Model Image
Manufacturer

Electrolux

Model Number

FES367AQF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318120711 318120711 + SWITCH
5304405244 5304405244 ANTI-TIP & ACCESSOR
318015042 318015042 BRACKET
318015043 318015043 BRACKET
318055601 318055601 BRACKET
318054701 318054701 BRACKET
5303304030 5303304030 BRACKET
5303311143 5303311143 BRACKET
318125932 318125932 BRACKET
318180310 318180310 BRACKET
318180312 318180312 BRACKET
318043100 318043100 BRACKET
5303311145 5303311145 BRACKET & WHEEL ASS
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
5303325174 5303325174 CAP
5303311129 5303311129 CHANNEL
5303311130 5303311130 CHANNEL
5304400195 5304400195 CLIP

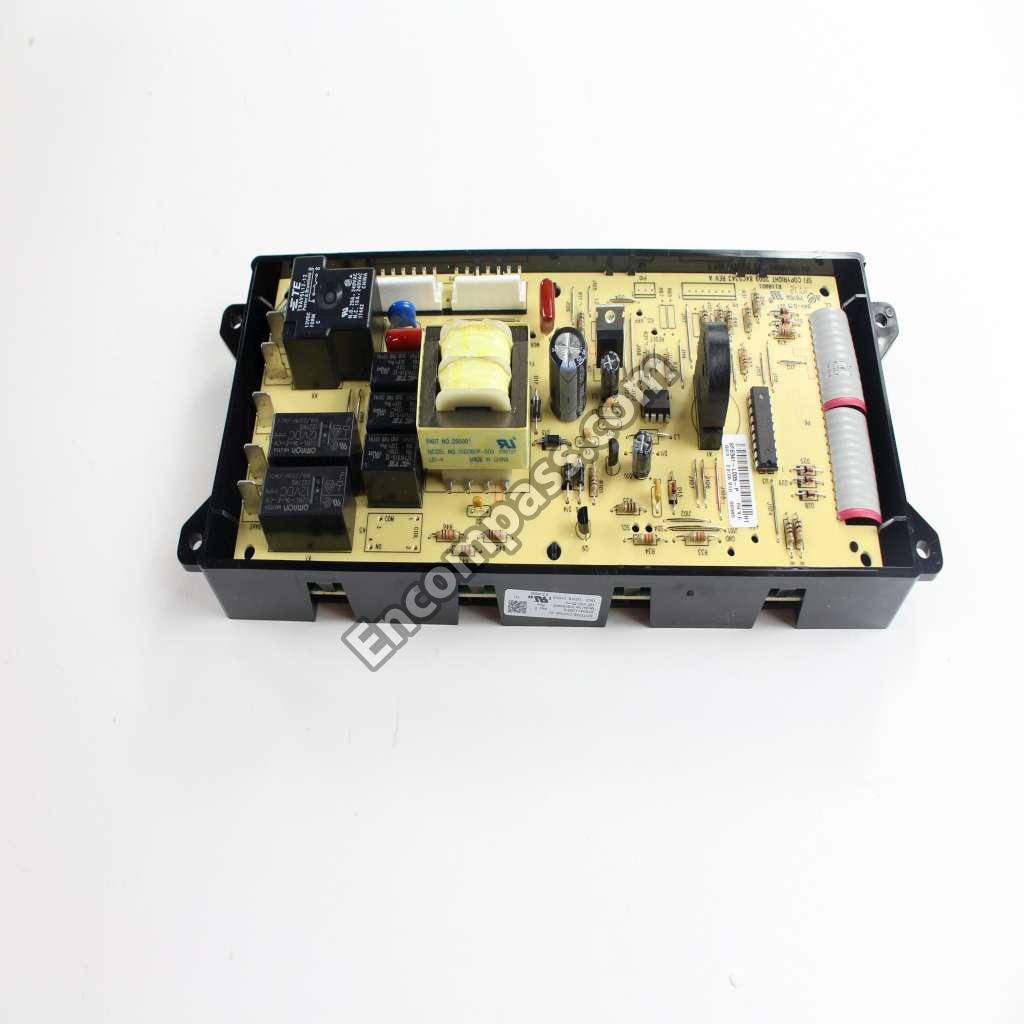

318185448 318185448 CLOCK/TIMER,ELECTRONIC ,BISQUE
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
318123901 318123901 DEFLECTOR
316224200 316224200 ELEMENT,9`` ,SURFACE ,2500W ,RADIANT
318124100 318124100 FRONT
318053103 318053103 GASKET
318041603 318041603 GLASS-OVEN DOOR, HEAT BARRIER
316203003 316203003 HANDLE-DOOR,BISQUE
318222400 318222400 HOUSING,OVEN LIGHT
807080401 807080401 INSULATION
318196635 318196635 KNOB
5303310536 5303310536 LATCH
318250801 318250801 LENS

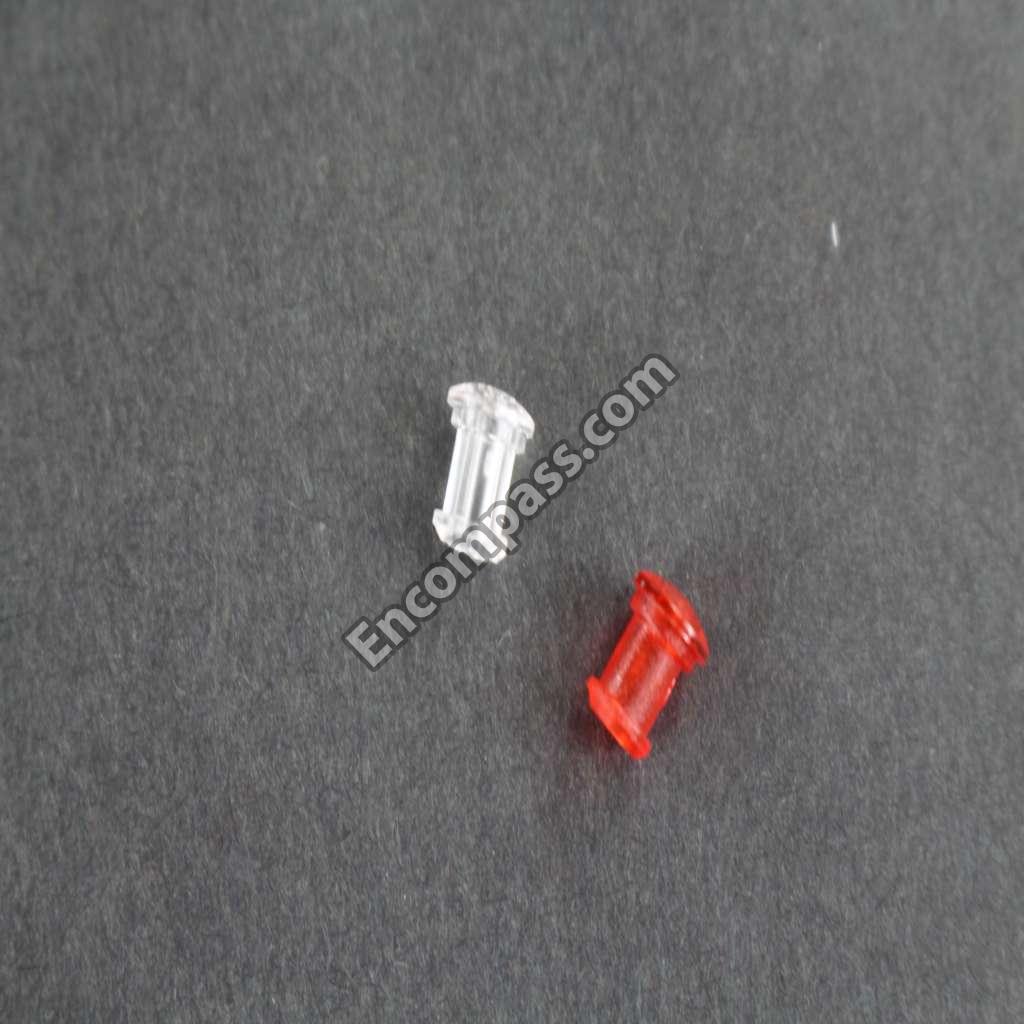

5304462665 5304462665 LENS-INDICATOR LIGHT
318044827 318044827 LIGHT,INDICATOR ,RED
5303051533 5303051533 LIGHT-INDICATOR
318089613 318089613 LINER
318157011 318157011 LINER
318154727 318154727 MAIN TOP
318095957 318095957 MOTOR,LATCH ASSY ,W/BRKT & SWITCH
5303323144 5303323144 NUT
316220840 316220840 OVERLAY,CLOCK ,BISQUE
318182992 318182992 PANEL
318070910 318070910 PANEL
5303310515 5303310515 PANEL
318159800 318159800 PANEL
318160004 318160004 PANEL
318160005 318160005 PANEL
318175100 318175100 PLATE
316208500 316208500 PLATE
318111803 318111803 PLATE
318328010 318328010 RECEPTACLE,HINGE
318118904 318118904 ROD
5303211311 5303211311 SCREW
318175503 318175503 SCREW
5303307980 5303307980 SCREW
5303317179 5303317179 SCREW
5303311174 5303311174 SCREW,10-24 X 3/8
5303300265 5303300265 SCREW,8-18 X 0.500 ,CHROME ,(3)
318108600 318108600 SHIELD
5303317178 5303317178 SPACER
318192400 318192400 SPRING
5303311164 5303311164 SPRING
5303317177 5303317177 SPRING
5304403015 5304403015 SUPPORT
5303311142 5303311142 SUPPORT
318194800 318194800 SUPPORT
318037520 318037520 SWITCH
318005201 318005201 SWITCH

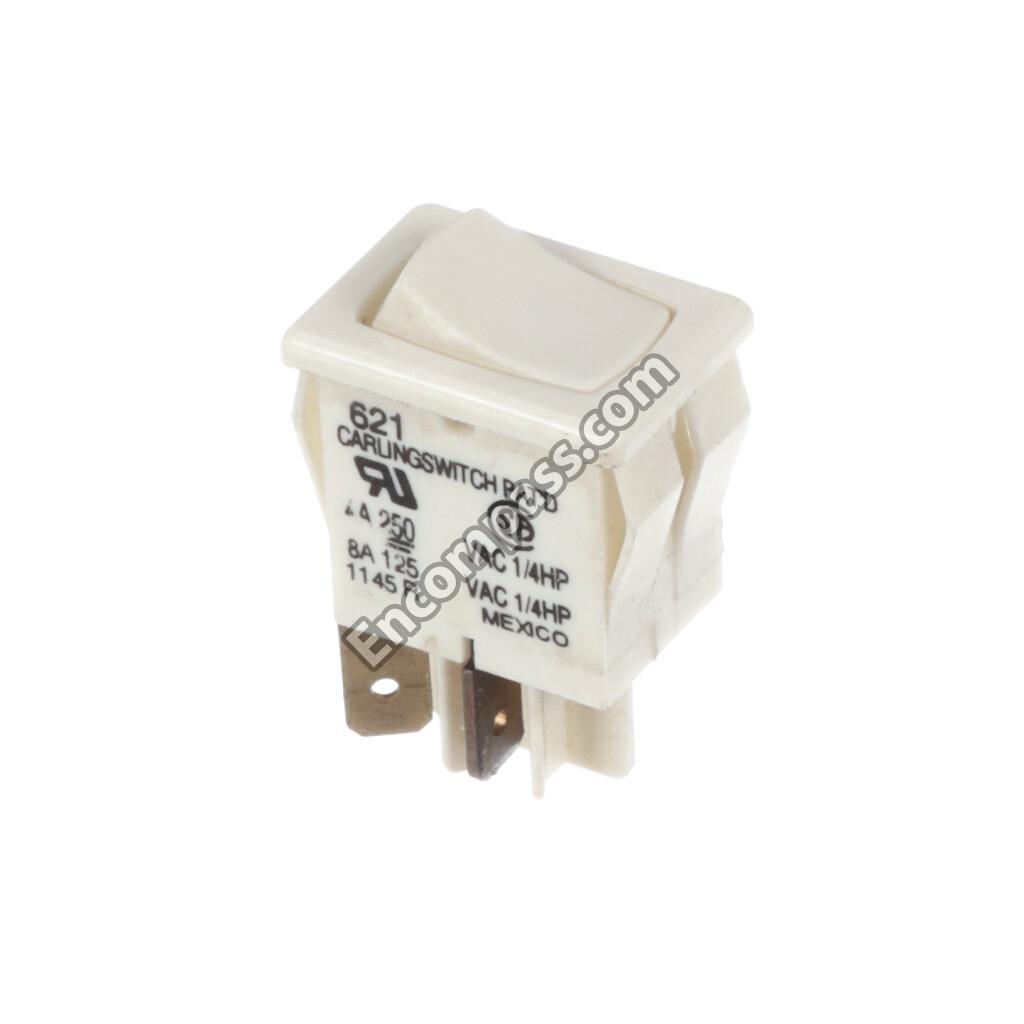

318394803 318394803 SWITCH,LIGHT
318003606 318003606 THERMOSTAT,SAFETY
318027807 318027807 TRIM
318002614 318002614 TRIM
318176648 318176648 TRIM
318187812 318187812 TRIM
3051063 3051063 WASHER
