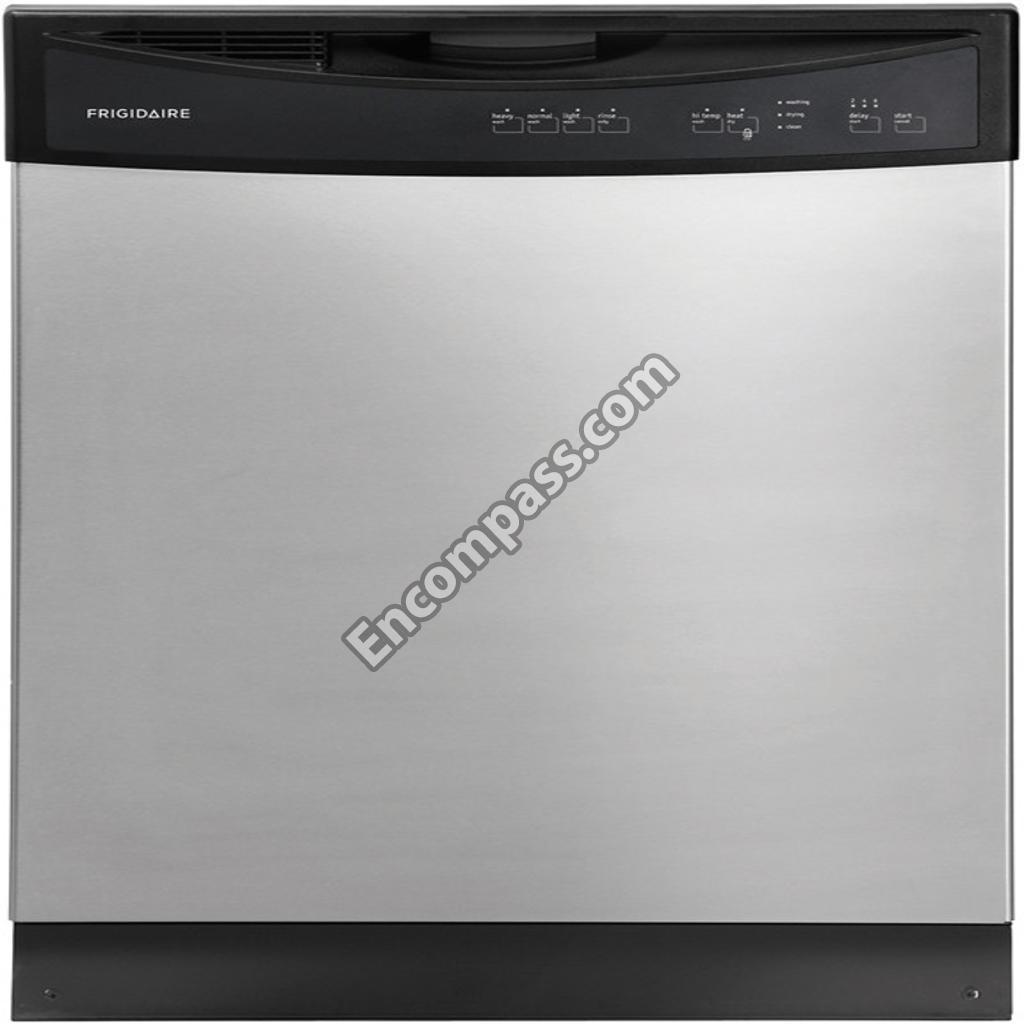

Model Image
Manufacturer

Electrolux

Model Number

FFBD2407LS0B

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154691201 154691201 ARM ASSEMBLY
154691101 154691101 ARM ASSEMBLY
154246402 154246402 BALL
154728001 154728001 BASE
154556101 154556101 BASKET
154686401 154686401 BEARING
154669301 154669301 BRACE
154246502 154246502 BRACKET
154479601 154479601 BRACKET
154595901 154595901 BRACKET
154388801 154388801 CAP
5300809927 5300809927 CAP
154380601 154380601 CLAMP
154320301 154320301 CLAMP
154783201 154783201 CONTROL
154758501 154758501 COVER
154724001 154724001 COVER
154552101 154552101 COVER
154574401 154574401 DISPENSER
154538305 154538305 DOOR
154758450 154758450 ENERGY GUIDE
154494601 154494601 F-LINER
154252401 154252401 FILTER
154767801 154767801 FLOAT
154251801 154251801 FUNNEL
154246801 154246801 GASKET
154406401 154406401 GASKET
154553501 154553501 GASKET
154824701 154824701 HARNESS
154647101 154647101 HINGE PIN
154804103 154804103 INSERT
154641601 154641601 INSULATION
154571101 154571101 LEG
154325201 154325201 LINKAGE
154606801 154606801 NOZZLE
154106202 154106202 NUT
154252001 154252001 NUT
154247001 154247001 ORING
154246901 154246901 ORING
154788803 154788803 PANEL
154241101 154241101 RETAINER
154200701 154200701 SCREW
154754901 154754901 SCREW
154741501 154741501 SCREW
154041001 154041001 SCREW
154200602 154200602 SCREW
154297701 154297701 SCREW
154754701 154754701 SCREW
154103702 154103702 SCREW
154093301 154093301 SCREW
154294701 154294701 SCREW
154793401 154793401 SCREW
154409401 154409401 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
5303316032 5303316032 SCREW
154200601 154200601 SCREW-#10-16 X 3/8
154289801 154289801 SHIELD
154798401 154798401 SHIELD
154597801 154597801 SLIDE
154313601 154313601 SPRAY ARM
154568001 154568001 SPRAY ARM
154430501 154430501 SPRING
154662601 154662601 STRIKE
154728201 154728201 SUMP ASSEMBLY
154294101 154294101 SUPPORT
154227501 154227501 THERMISTER
154290204 154290204 THERMOSTAT
154252701 154252701 TRAP

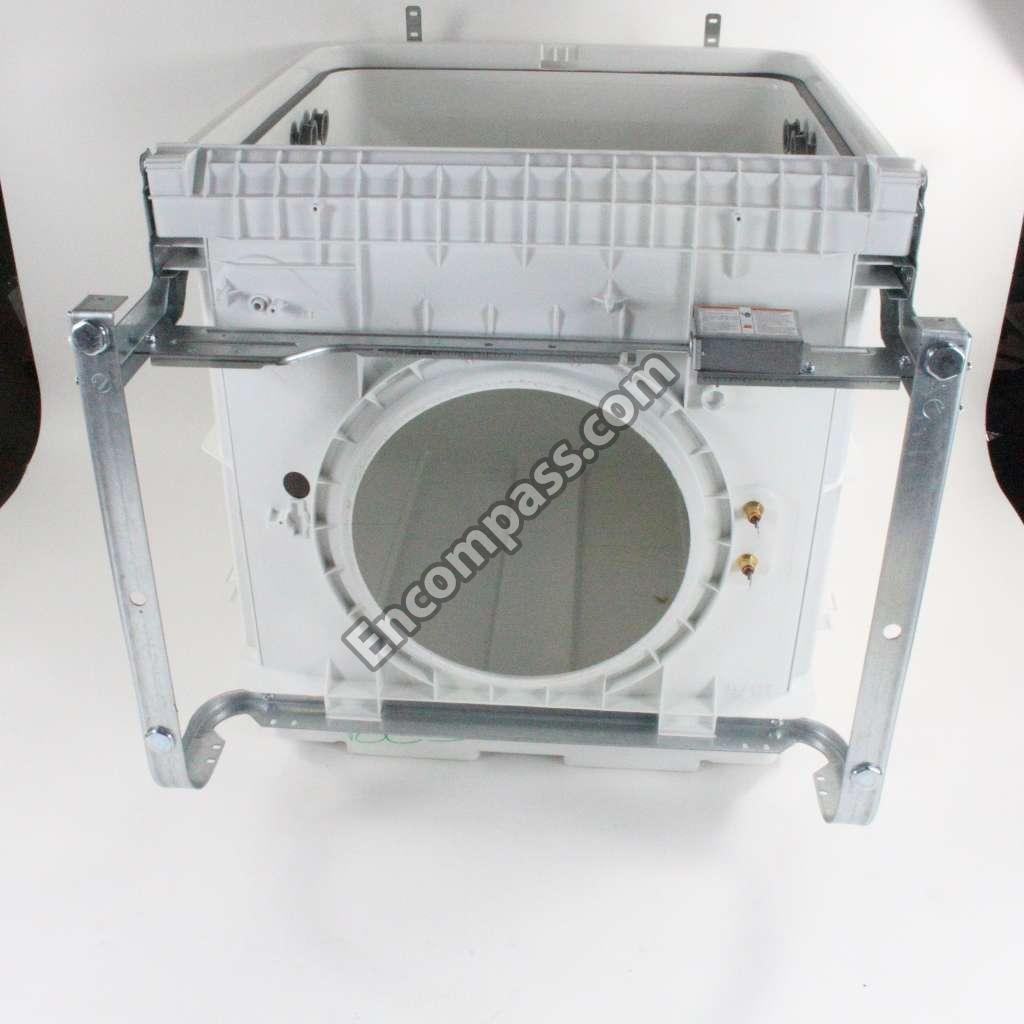

154729301 154729301 TUB ASSEMBLY
154406601 154406601 TUBE
154577401 154577401 TUBING
154637401 154637401 VALVE
154433001 154433001 VENT ASSEMBLY
