Manufacturer
Electrolux
Model Number
FFC15C4AW3
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BRACKET-LOWER HINGE |
|
|
BREAKER |
|
|
BREAKER |
|
|
CATCH-LOCK |
|
|
CLIP |
|
|
CLIP,PANEL MTG ,(1) |
|
|
COMPLETE PUMP ASSEMBLY |
|
|
CONDENSER |
|
|

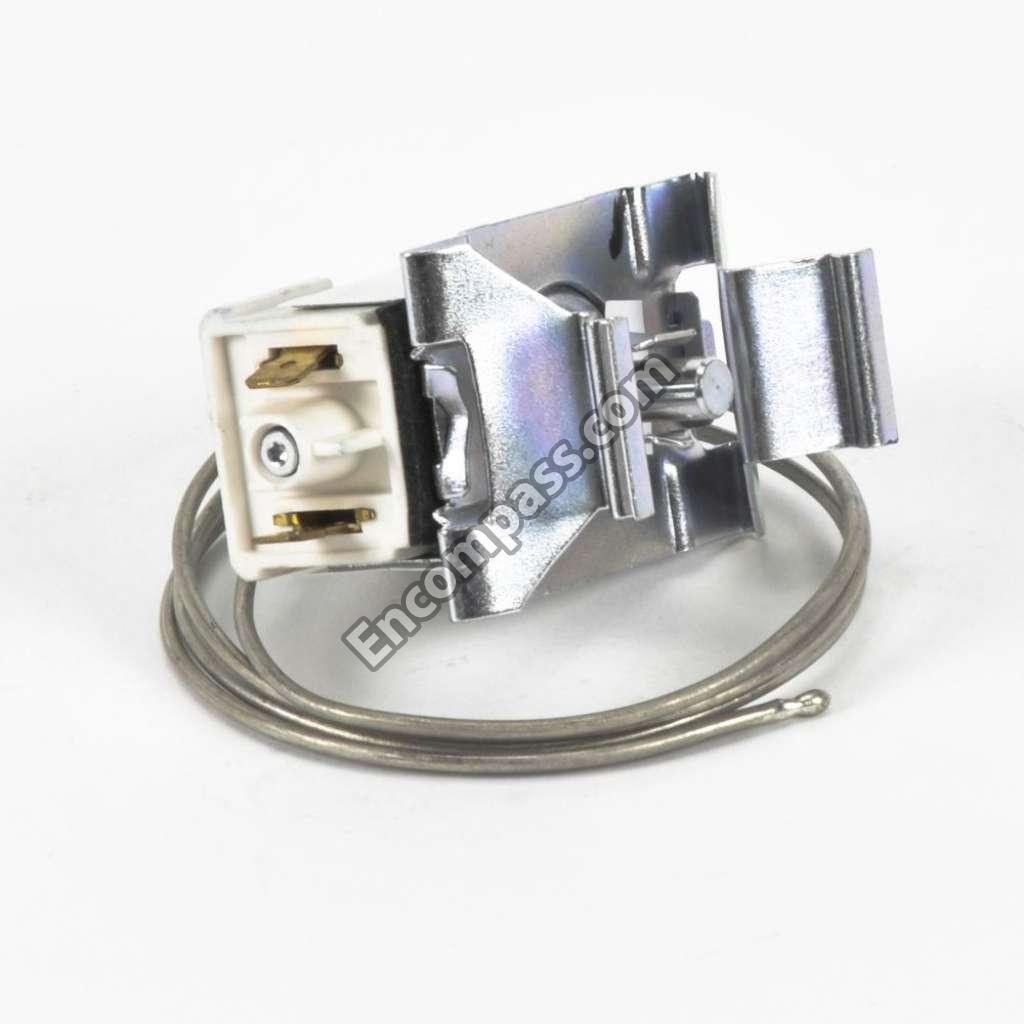

CONTROL TEMPERATURE |
|
|
COVER |
|
|
COVER - TOP HINGE - WHITE |
|
|

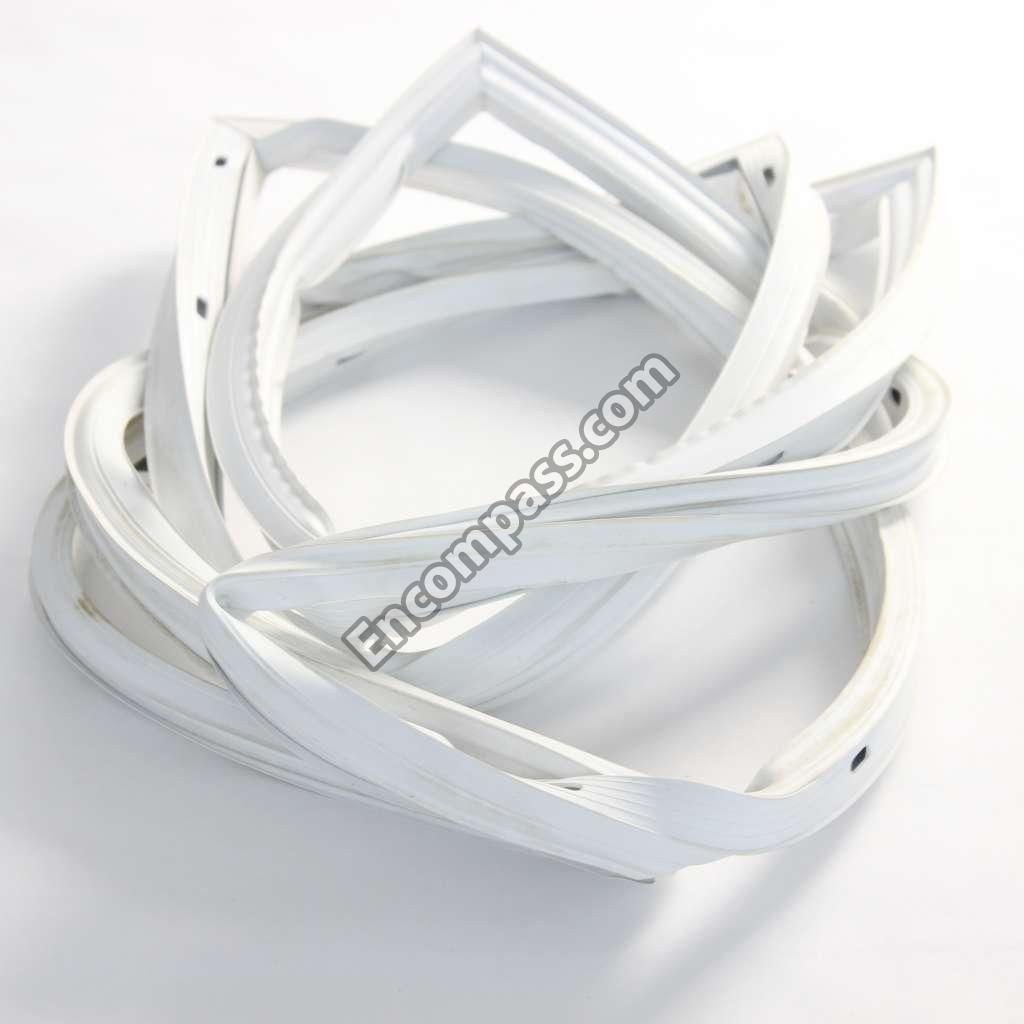

GASKET-LID WHITE |
|
|
HARNESSMAIN |
|
|
INSERT-NAMEPLATE |
|
|
INSULATION-DOOR |
|
|
KNOB |
|
|
LID |
|
|
LIGHT BULB/LAMP |
|
|
PANEL |
|
|
PANEL-LID |
|
|
PIN, CENTER HINGE |
|
|
PLUG |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|
ROLLER ASSY, METAL HOUSING, FRONT/REAR, (2) |
|
|
ROLLER ASSY,FRONT ,COMPLETE |
|
|
SCREW |
|
|
SCREW, PAN HD, 10-32X0.625, HINGE/MULL, THRD FORM |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SHIM -UPPER HINGE |
|
|
SIGNAL-LIGHT-AMBER |
|
|
SUPPORT |
|
|
SUPPORT |
|
|

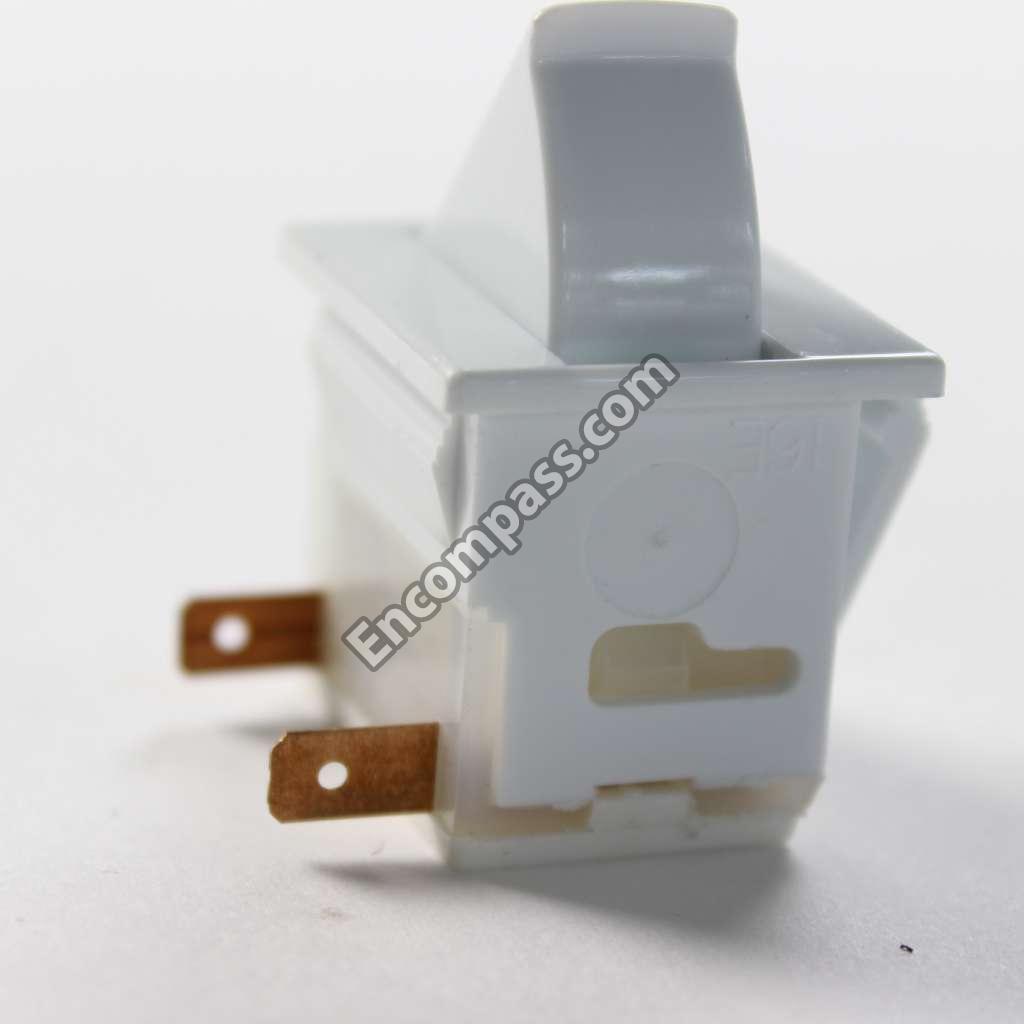

SWITCH |
|
|
WASHER |
|
|
WASHER , .34 X .62 X .10, NYLON |
|
|
WIRE |
|
|
WIRING HARNESS |
