Model Image
Manufacturer

Electrolux

Model Number

FFED3015LWE

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316048414 316048414 6IN EMLEMENT
316048413 316048413 8IN ELEMENT /USE 3180670
318317105 318317105 ADAPTER ASSEMBLY
318334900 318334900 ANTI-GLIDE & ACCESS
318259220 318259220 BACK
318260531 318260531 BAFFLE
318225820 318225820 BOX
318394445 318394445 BOX WIRES ASSEMBLY
318382301 318382301 BRACKET
318256201 318256201 BRACKET
318579001 318579001 BRACKET
318260622 318260622 BRACKET
318402901 318402901 BUSHING
5304447071 5304447071 CLIP

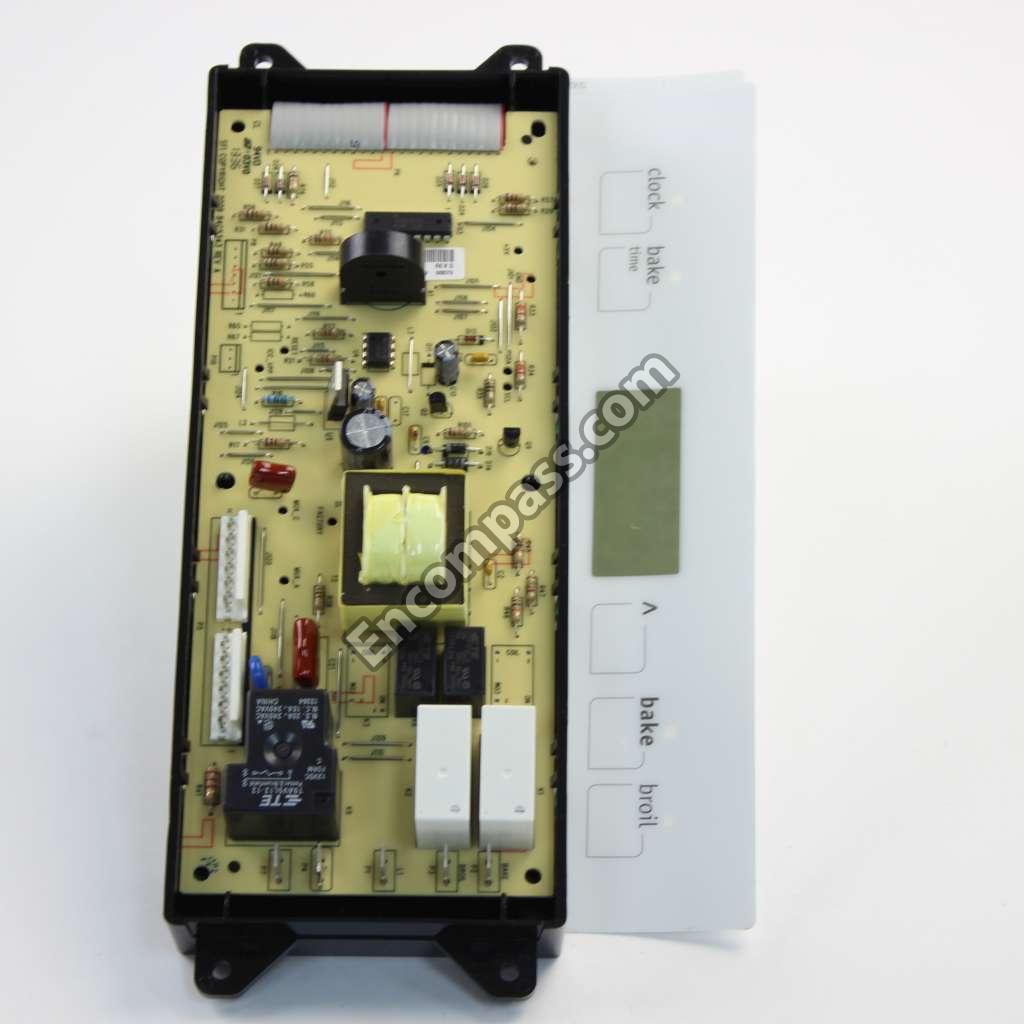

318185732 318185732 CLOCK/TIMER
318299100 318299100 CONSOLE
316442301 316442301 ELEMENT
318255808 318255808 ELEMENT
316439801 316439801 ELEMENT-SURFACE
5303308449 5303308449 FASTENER
318056292 318056292 FRONT
318053132 318053132 GASKET
318223900 318223900 GASKET
316117502 316117502 GLASS
318261323 318261323 GLASS ASSEMBLY
318532147 318532147 GROUND WIRE
318224875 318224875 HARNESS
318228877 318228877 HARNESS
318567113 318567113 HINGE
318227710 318227710 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318268099 318268099 INSULATION
316543809 316543809 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318228301 318228301 LENS
318293901 318293901 LIGHT
318411650 318411650 LINER
318261456 318261456 LINER
318225607 318225607 MAIN TOP
5303017715 5303017715 MEDALLION
318575600 318575600 MOTOR
5303323144 5303323144 NUT
316419137 316419137 OVERLAY
316081900 316081900 PAN
318296923 318296923 PANEL
318296922 318296922 PANEL
318225120 318225120 PANEL
318570500 318570500 PANEL
318225230 318225230 PANEL
318225231 318225231 PANEL
318260007 318260007 PANEL
318235192 318235192 PANEL
318224401 318224401 PANEL
5303320846 5303320846 PLATE
318054700 318054700 PLATE
318402800 318402800 PLATE
318345207 318345207 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
3051554 3051554 ROD
316418900 316418900 SCREW
5304453593 5304453593 SCREW
5303323130 5303323130 SCREW
5303131766 5303131766 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304454881 5304454881 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5304417153 5304417153 SCREW
5303211311 5303211311 SCREW
5304450850 5304450850 SCREW
5303323277 5303323277 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
5303300265 5303300265 SCREW
5303324184 5303324184 SCREW
5304480396 5304480396 SCREW
5304476599 5304476599 SCREW
318562500 318562500 SENSOR
318259105 318259105 SHIELD
318258765 318258765 SHIELD
318165800 318165800 SPACER
316517600 316517600 SPACER
318192400 318192400 SPRING
318366410 318366410 SUPPORT
5304403015 5304403015 SUPPORT
318183105 318183105 SUPPORT
318574701 318574701 SUPPORT
318005229 318005229 SWITCH
318394803 318394803 SWITCH
318293831 318293831 SWITCH
318293830 318293830 SWITCH
318578506 318578506 THERMOSTAT
318260401 318260401 TRIM
318260201 318260201 TRIM
318330001 318330001 TRIM
318913116 318913116 TRIM VENT BLACK UPPER
318301003 318301003 WIRING HARNESS
