Model Image
Manufacturer

Electrolux

Model Number

FFED3025LBA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318334900 318334900 ANTI-GLIDE & ACCESS
318259220 318259220 BACK
318260531 318260531 BAFFLE
318568201 318568201 BOX
318568200 318568200 BOX
318394445 318394445 BOX WIRES ASSEMBLY
318382301 318382301 BRACKET
318260622 318260622 BRACKET
318256201 318256201 BRACKET
5303013071 5303013071 BULB/LAMP
318402901 318402901 BUSHING
318368001 318368001 CHANNEL
318163601 318163601 CLEANER,COOKTOP
5304447071 5304447071 CLIP
318185731 318185731 CLOCK/TIMER
318299102 318299102 CONSOLE
318254918 318254918 ELEMENT
5303308449 5303308449 FASTENER
318056292 318056292 FRONT
318053132 318053132 GASKET
318223900 318223900 GASKET
316117500 316117500 GLASS
318212210 318212210 GLASS
318261321 318261321 GLASS ASSEMBLY
318532147 318532147 GROUND WIRE
318228969 318228969 HARNESS
318231876 318231876 HARNESS
318224875 318224875 HARNESS
318231880 318231880 HARNESS
318228875 318228875 HARNESS
318567101 318567101 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
316543810 316543810 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318228301 318228301 LENS
318044831 318044831 LIGHT
318293901 318293901 LIGHT
318411650 318411650 LINER
318261456 318261456 LINER

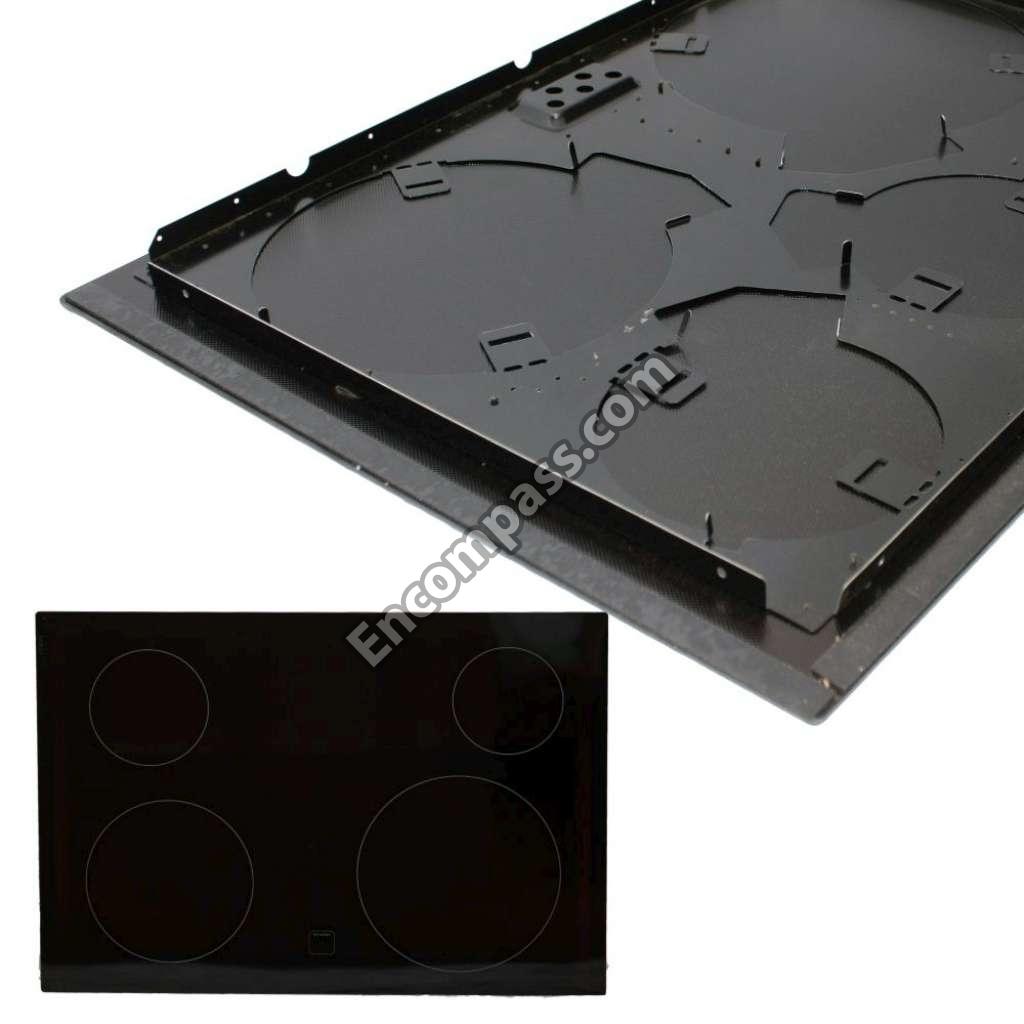

318223688 318223688 MAIN TOP
318575600 318575600 MOTOR
5303323144 5303323144 NUT
316419141 316419141 OVERLAY
316081900 316081900 PAN
318260007 318260007 PANEL
318225110 318225110 PANEL
318225211 318225211 PANEL
318225210 318225210 PANEL
318296924 318296924 PANEL
318570500 318570500 PANEL
318224401 318224401 PANEL
318235191 318235191 PANEL
318227520 318227520 PLATE
5303320846 5303320846 PLATE
318054700 318054700 PLATE
318402800 318402800 PLATE
316217002 316217002 PROBE
318922306 318922306 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5304453593 5304453593 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304454881 5304454881 SCREW
5304417153 5304417153 SCREW
5303308456 5303308456 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5303211311 5303211311 SCREW
5304440988 5304440988 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303323134 5303323134 SCREW
5303300265 5303300265 SCREW
5303324184 5303324184 SCREW
5304476599 5304476599 SCREW
318259105 318259105 SHIELD
318258765 318258765 SHIELD
318165800 318165800 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318122011 318122011 SPRING
318122010 318122010 SPRING
318122006 318122006 SPRING
318122004 318122004 SPRING
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318183100 318183100 SUPPORT
318574701 318574701 SUPPORT
318005229 318005229 SWITCH
318293831 318293831 SWITCH
318293830 318293830 SWITCH
318260401 318260401 TRIM
318260201 318260201 TRIM
318330003 318330003 TRIM
318913116 318913116 TRIM
318384490 318384490 WIRING HARNESS
