Model Image
Manufacturer

Electrolux

Model Number

FFEF4005LWC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304401361 5304401361 *SCREW 8-18 X 3/4
316048414 316048414 6IN EMLEMENT
316048413 316048413 8IN ELEMENT /USE 3180670
318317000 318317000 ADAPTER
5303310511 5303310511 BAR
318161902 318161902 BRACKET
318161903 318161903 BRACKET
318054701 318054701 BRACKET
318170400 318170400 BRACKET
318055500 318055500 BRACKET
318147420 318147420 BUMPER

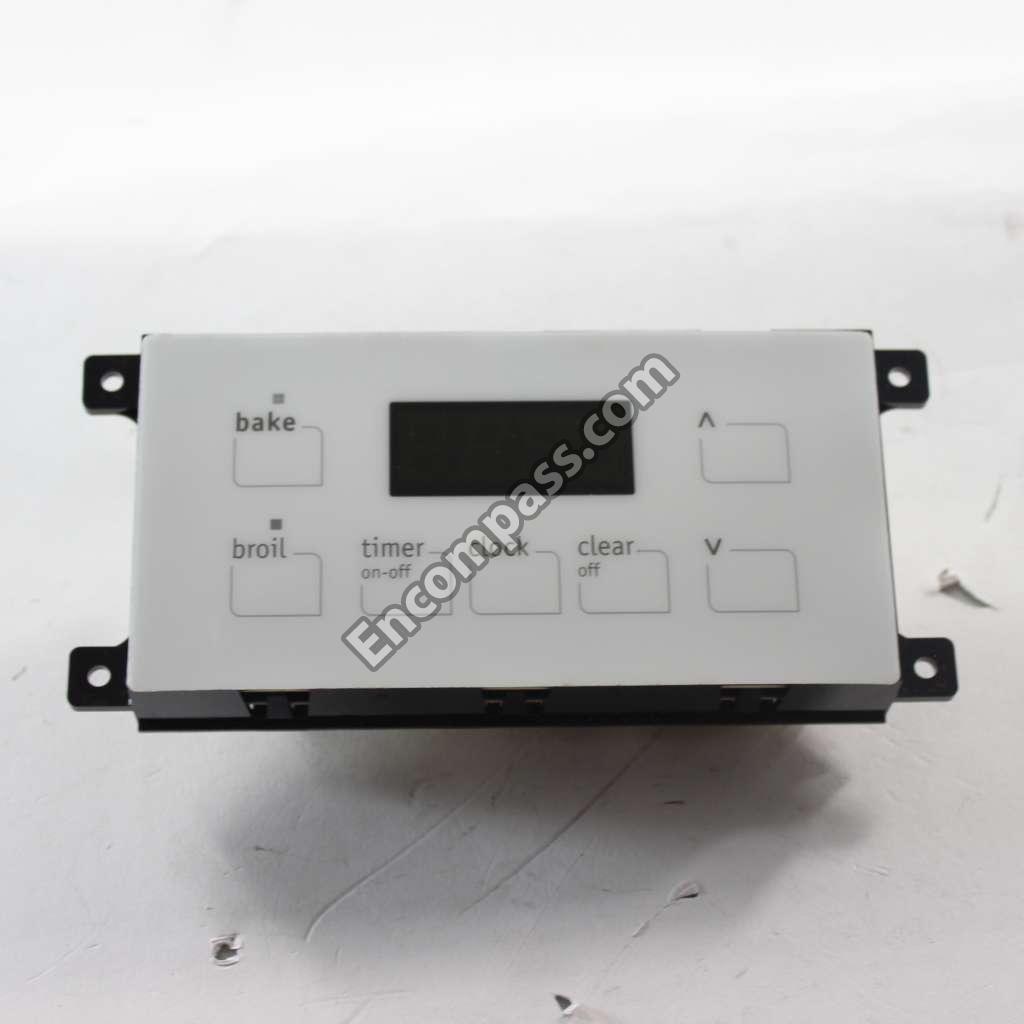

318185353 318185353 CLOCK/TIMER
318235300 318235300 CONNECTOR ASSEMBLY.
3202108 3202108 DRAWER
318255605 318255605 ELEMENT
316442301 316442301 ELEMENT
316439801 316439801 ELEMENT-SURFACE
318255006 318255006 ELEMENTHEATING
318056010 318056010 FRAME
318053203 318053203 GASKET
318381302 318381302 GLASS
318161600 318161600 GUIDE
5303326236 5303326236 GUIDE
318185901 318185901 HANDLE
318185903 318185903 HANDLE
318185902 318185902 HANDLE
318532146 318532146 HARNESS
318024508 318024508 HINGE
318024509 318024509 HINGE
318567110 318567110 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318285013 318285013 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
316221001 316221001 LABEL
318369501 318369501 LAMP
318090310 318090310 LATCH
318044512 318044512 LENS
318406100 318406100 LENS
318089613 318089613 LINER
5303017715 5303017715 MEDALLION
5303323144 5303323144 NUT
316220722 316220722 OVERLAY
316081900 316081900 PAN
318194105 318194105 PANEL
318055701 318055701 PANEL
318057401 318057401 PANEL
318066132 318066132 PANEL
318066133 318066133 PANEL
318066415 318066415 PANEL
5303310515 5303310515 PANEL
318009308 318009308 PANEL
318009130 318009130 PANEL
5301315631 5301315631 PIN
3051658 3051658 PIN
318264200 318264200 PLATE
318111800 318111800 PLATE
318025314 318025314 RACK
318345700 318345700 RACK,OVEN,SMALL
318018000 318018000 RAIL
318018001 318018001 RAIL
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5303323146 5303323146 RIVET
3051554 3051554 ROD
5303211311 5303211311 SCREW
5303323130 5303323130 SCREW
5303323134 5303323134 SCREW
5304415832 5304415832 SCREW
5303323133 5303323133 SCREW
5303323139 5303323139 SCREW
5303323277 5303323277 SCREW
318175503 318175503 SCREW
316116000 316116000 SCREW
5304461333 5304461333 SCREW
5303307980 5303307980 SCREW
5303317975 5303317975 SCREW
318053301 318053301 SEAL
318562500 318562500 SENSOR
318086913 318086913 SHIELD
318179113 318179113 SHIELD
5303304544 5303304544 SPACER
318014500 318014500 SPACER
5303310504 5303310504 SPACER
318141800 318141800 SPACER
318192400 318192400 SPRING
318090220 318090220 STRIKE
5304403015 5304403015 SUPPORT
318366410 318366410 SUPPORT
318120501 318120501 SWITCH
318293820 318293820 SWITCH
318394803 318394803 SWITCH
318368614 318368614 TERMINAL BLOCK
318368615 318368615 TERMINAL BLOCK
318368616 318368616 TERMINAL BLOCK
318107700 318107700 TOEPLATE
318549806 318549806 TUBE
318408915 318408915 USE 318399415
