Model Image
Manufacturer

Electrolux

Model Number

FFEF4017LBC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

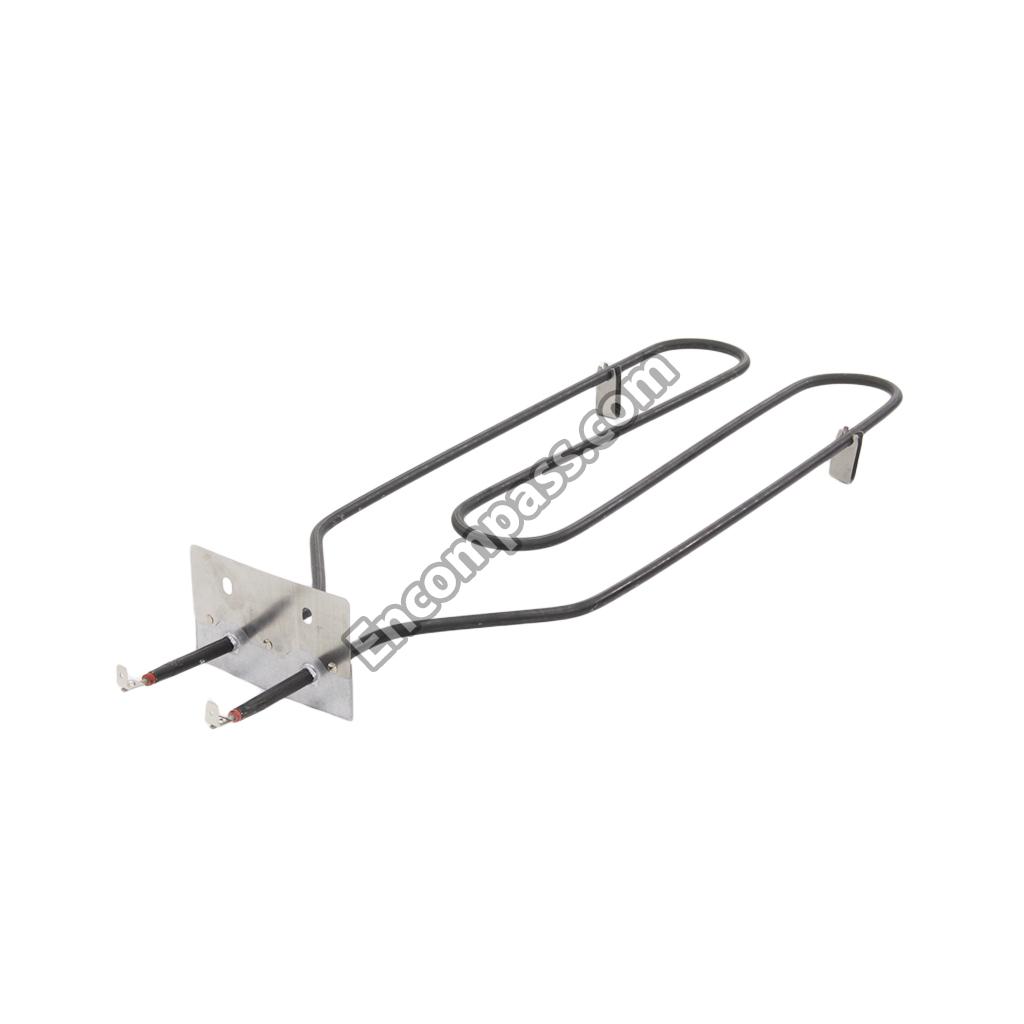

318255201 318255201 *ELEMENT BAKE
5304401361 5304401361 *SCREW 8-18 X 3/4
316048414 316048414 6IN EMLEMENT
316048413 316048413 8IN ELEMENT /USE 3180670
318317100 318317100 ADAPTER ASSEMBLY
5303310511 5303310511 BAR
318015045 318015045 BRACKET
318161902 318161902 BRACKET
318161903 318161903 BRACKET
318170400 318170400 BRACKET
318055500 318055500 BRACKET
318054701 318054701 BRACKET
318180200 318180200 BRACKET RECEPTACLE
318147420 318147420 BUMPER
318563000 318563000 BUSHING
5303205904 5303205904 CLIP
5303284616 5303284616 CLIP
318235300 318235300 CONNECTOR ASSEMBLY.
318185504 318185504 CONTROLLER
318123901 318123901 DEFLECTOR
318057204 318057204 DEFLECTOR
3202108 3202108 DRAWER
318255701 318255701 ELEMENT
318255605 318255605 ELEMENT
316442301 316442301 ELEMENT
316439801 316439801 ELEMENT-SURFACE
318255006 318255006 ELEMENTHEATING
318190695 318190695 END CAP
318056010 318056010 FRAME
318053103 318053103 GASKET
318053203 318053203 GASKET
318293500 318293500 GASKET
5303310533 5303310533 GLASS
318381302 318381302 GLASS
5304400770 5304400770 GRIDDLE
318161600 318161600 GUIDE
5303326236 5303326236 GUIDE
318185901 318185901 HANDLE
318185903 318185903 HANDLE
318185902 318185902 HANDLE
5301313051 5301313051 HANDLE-COVER
318355400 318355400 HANDLEGRIDDLE
318532146 318532146 HARNESS
318024508 318024508 HINGE
318024509 318024509 HINGE
318567103 318567103 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318285006 318285006 INSULATION
807080401 807080401 INSULATION
318285021 318285021 INSULATION
316544012 316544012 KNOB
316544010 316544010 KNOB
316221001 316221001 LABEL
318369501 318369501 LAMP
318090310 318090310 LATCH
5303310536 5303310536 LATCH
318044512 318044512 LENS
318406100 318406100 LENS
318089200 318089200 LINER
318089613 318089613 LINER
318048211 318048211 LINER
5303017715 5303017715 MEDALLION
318095959 318095959 MOTOR
5303323144 5303323144 NUT
316419141 316419141 OVERLAY
316081900 316081900 PAN
318194107 318194107 PANEL
318057401 318057401 PANEL
318133000 318133000 PANEL
318066135 318066135 PANEL
318066415 318066415 PANEL
318066134 318066134 PANEL
5303310515 5303310515 PANEL
318055701 318055701 PANEL
318071900 318071900 PANEL
3201577 3201577 PANEL-DRAWER
5301315631 5301315631 PIN
3051658 3051658 PIN
318111800 318111800 PLATE
318264200 318264200 PLATE
5303321106 5303321106 PLUG
318025314 318025314 RACK
318345206 318345206 RACK
318018000 318018000 RAIL
318018001 318018001 RAIL
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5303323146 5303323146 RIVET
5303311160 5303311160 ROD
5303323130 5303323130 SCREW
5303323134 5303323134 SCREW
5303211311 5303211311 SCREW
5303323277 5303323277 SCREW
318175503 318175503 SCREW
5303323133 5303323133 SCREW
5303323139 5303323139 SCREW
316116000 316116000 SCREW
5303311528 5303311528 SCREW
5304461333 5304461333 SCREW
5304415832 5304415832 SCREW
5303317975 5303317975 SCREW
5303307980 5303307980 SCREW
5304401834 5304401834 SCREW
318053300 318053300 SEAL
318562500 318562500 SENSOR
318086913 318086913 SHIELD
318179113 318179113 SHIELD
5303304544 5303304544 SPACER
318577200 318577200 SPACER
318014500 318014500 SPACER
318165900 318165900 SPACER
318141800 318141800 SPACER
318139001 318139001 SPACER
318192400 318192400 SPRING
5303311164 5303311164 SPRING
318090220 318090220 STRIKE
5304403015 5304403015 SUPPORT
318366410 318366410 SUPPORT
318120501 318120501 SWITCH
318293820 318293820 SWITCH
318394803 318394803 SWITCH
318368614 318368614 TERMINAL BLOCK
318368615 318368615 TERMINAL BLOCK
318368616 318368616 TERMINAL BLOCK
318395400 318395400 TERMINALELECTRIC
318183001 318183001 THERMOSTAT
318003600 318003600 THERMOSTAT
318107700 318107700 TOEPLATE
318549806 318549806 TUBE
318408915 318408915 USE 318399415
318232349 318232349 WIRING HARNESS
318199620 318199620 WIRING HARNESS
318232312 318232312 WIRING HARNESS
318232314 318232314 WIRING HARNESS
