Manufacturer

Electrolux

Model Number

FFEW2426UBB

Description

Wall Oven, Electric, Single, 24 Inch

Interactive Exploded View
Exploded View

Parts List

Part Number Description
139032900 139032900 BRACKET, BOTTOM, (2)
139074000 139074000 BRACKET, SUPPORT, CABLE BOX
139021101 139021101 BRACKET, SUPPORT, CHASSIS/FAN
318579001 318579001 BRACKET, WIRE
318172904 318172904 BRACKET, WIRE SUPPORT
5304494997 5304494997 BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
318946500 318946500 BULB, HALOGEN, G9, 25W, 120V
316517600 316517600 BUMPER, FRONT, MAIN
5304517641 5304517641 CONTROL PANEL, ASSEMBLY, BLACK
5304513048 5304513048 CONTROLLER, ELECTRONIC, ES330/334
5304506964 5304506964 COVER, LATCH MOTOR
139030900 139030900 COVER, OVEN TOP, FRONT
139029900 139029900 COVER, WRAPPER, TOP
5304523848 5304523848 DOOR ASSEMBLY, OUTER, STEEL/GLASS, BLACK
139027700 139027700 DUCT, COOLING FAN, LOWER
139027600 139027600 DUCT, COOLING FAN, UPPER
139086600 139086600 ELEMENT, BAKE, 4 PASS, 2100W
139203500 139203500 ELEMENT, BROIL, 6 PASS, 3400W
139085801 139085801 GLASS, DOOR, INNER, HRC2
5304513071 5304513071 HANDLE, DOOR, BLACK
5304506983 5304506983 HARNESS ASSEMBLY, CONDUIT, ELBOW CONNECTOR, & WIRING
5304513884 5304513884 HARNESS, WIRING, MAIN
316575954 316575954 HINGE, OVEN DOOR, BLUE
139028600 139028600 INSUALTION, CAVITY, BOTTOM
139028500 139028500 INSULATION, CAVITY, REAR
318372017 318372017 INSULATION, DOOR
807193501 807193501 INSULATION, DOOR, TOP/BOTTOM
139013600 139013600 INSULATION, OVEN WRAPPER
5304528790 5304528790 LAMP ASSEMBLY, ROUND, HALOGEN
139014510 139014510 LINER, DOOR
5304528836 5304528836 MOTOR
807123002 807123002 MOTOR ASSEMBLY, FAN, NO HE SENSOR
316205500 316205500 NUT, HEX FLANGE, 3/8 10-32
316419383 316419383 OVERLAY, EOC, BLACK, ES330
139029600 139029600 PANEL, MAIN BACK
5304525427 5304525427 PROBE, TEMP
139012300 139012300 RACK, OVEN, (2)
318561100 318561100 RECEPTACLE, HINGE, (2)

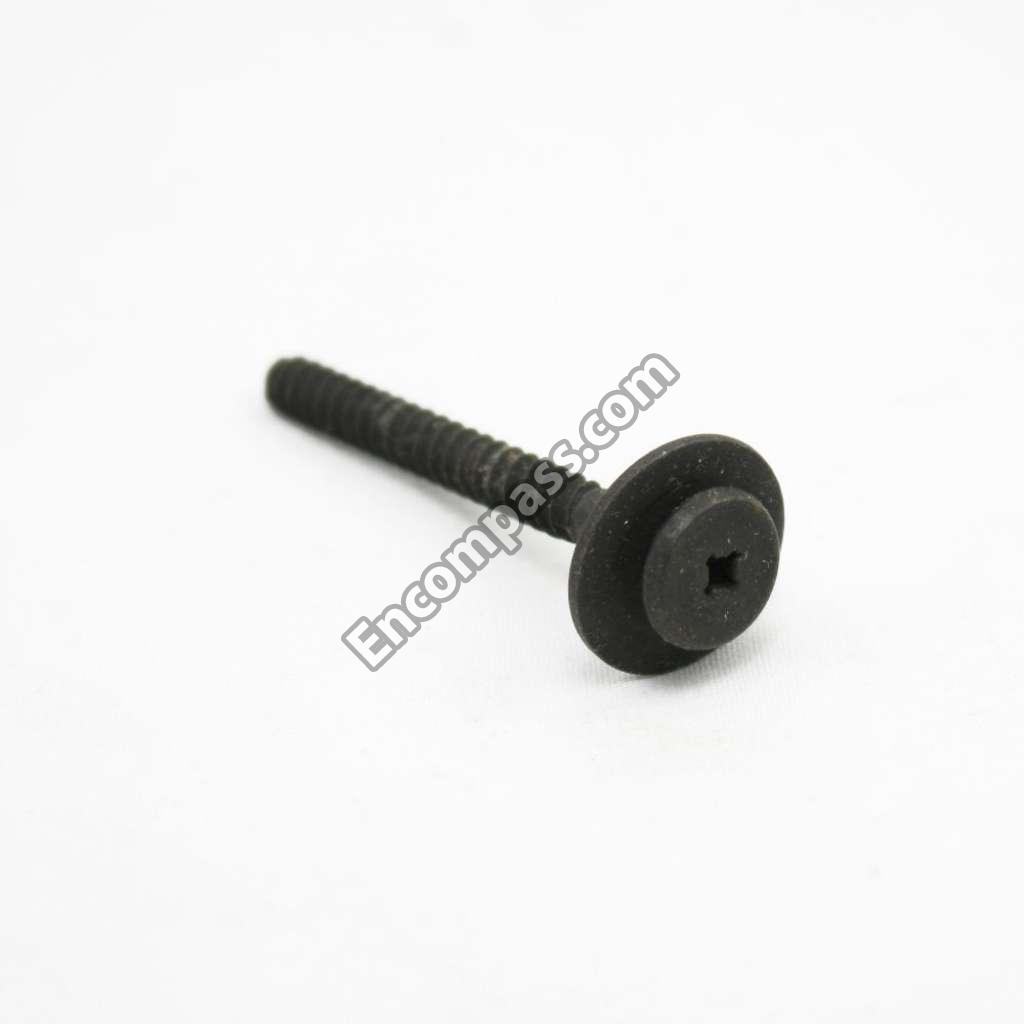

316433303 316433303 SCREW, 10-14 X 1.920", HANDLE MTG.
5304470882 5304470882 SCREW, ANTI-TIP, 8 - 5/8, BLACK, (2)
316001017 316001017 SCREW, GROUNDING, 10-24 X 1.835, GREEN
316021110 316021110 SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK
5304504225 5304504225 SCREW, PLASTITE, 48 #7-18X12.7, (4)
807597603 807597603 SCREW, SELF TAPPING, 8-18 X 11/32, (4)
316418900 316418900 SCREW, SIMS LP, #8-32 X 5/16", BLACK
5303289910 5303289910 SCREW, TRUSS SQDR, 8A X 1", 62*
5303324184 5303324184 SCREW,8-18 X 5/16 ,BLACK
316021109 316021109 SCREW`8-18 X 0.5 ,CHROME
807108501 807108501 SEAL, OVEN DOOR
139029700 139029700 SHIELD, AIR DEFLECTOR
5304504232 5304504232 SHIELD, DOOR SWITCH
139033200 139033200 SHIELD, INSULATION, LOWER
139000601 139000601 SHIELD, INSULATION, SIDES, (2)
139028800 139028800 SHIELD, INSULATION, TOP
139083101 139083101 SHIELD, OVEN DOOR, WOOL
139029000 139029000 SHIELD, REAR WIRE
139085701 139085701 SPACER, DOOR GLASS, (2)
139023400 139023400 SPACER, DOOR HANDLE, (2)
318165800 318165800 SPACER, GLASS, FOAM
318531800 318531800 SPACER, OVEN SHIELD, (2)
5304403015 5304403015 SUPPORT, HANGER, BROIL ELEMENT
808136601 808136601 SWITCH,OVEN LIGHT ,DOOR FRAME
5304409888 5304409888 TERMINAL BLOCK KIT
318578506 318578506 THERMOSTAT, SAFETY, 105C
139905002 139905002 TRIM, BOTTOM, BLACK
139023801 139023801 TRIM, DOOR, BLACK, UPPER
139079502 139079502 TRIM, FILLER, BLACK, LH SIDE
139079402 139079402 TRIM, FILLER, BLACK, RH SIDE
139014401 139014401 TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED
139086101 139086101 TRIM, VENT, BLACK, UPPER
139042600 139042600 TUBE ASSEMBLY, VENT, W/CATALYST
