Model Detail - Appliance Parts King

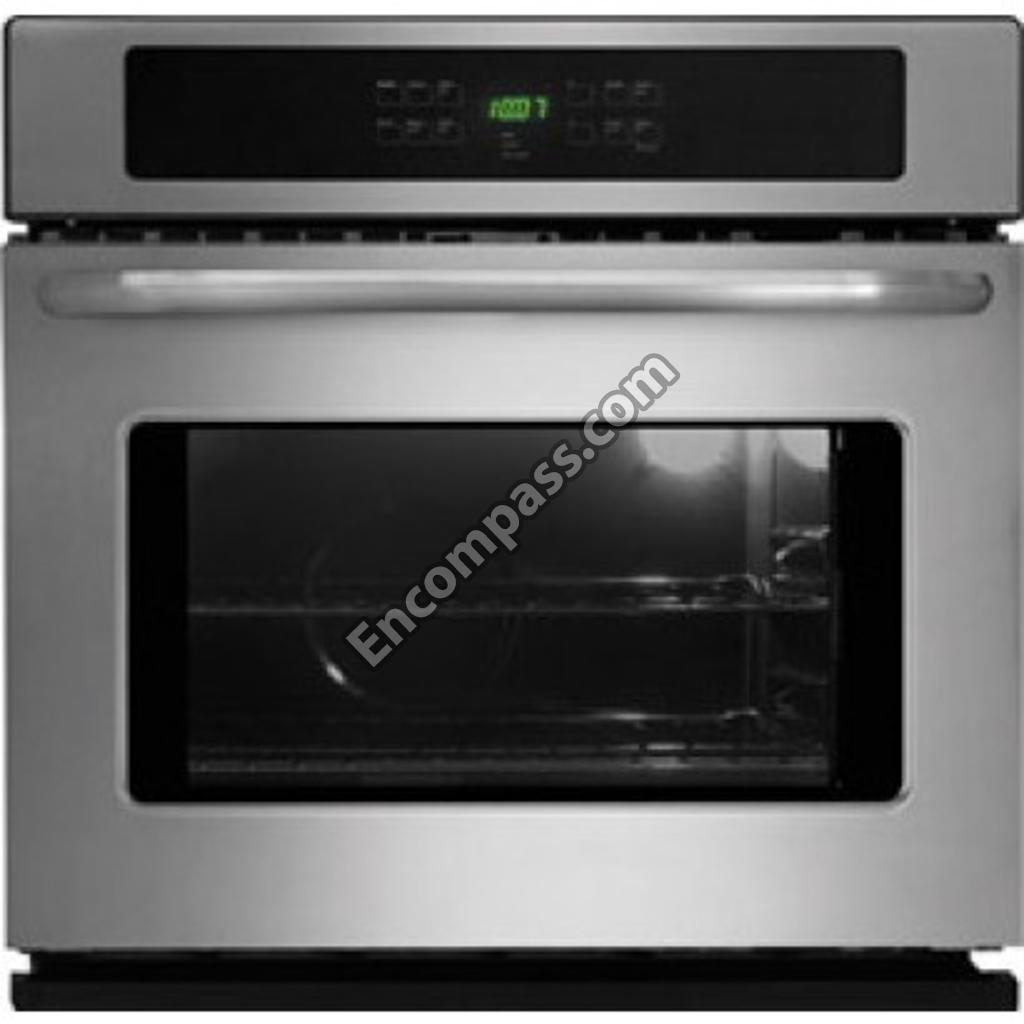

Model Image

Manufacturer

Electrolux

Model Number

FFEW3025LSA

Description

Wall Oven

Interactive Exploded View

Exploded View

Parts List

Part Number	Description
318259220	BACK
318260531	BAFFLE
318577800	BOX
318394441	BOX & WIRES ASSEMBLY
318370600	BRACKET
318382301	BRACKET
318242702	BRACKET
318256201	BRACKET
318260622	BRACKET
5303013071	BULB/LAMP
316418529	CLOCK/TIMER
318271555	CONTROL PANEL ASSEM
318262101	COVER
318260104	COVER
318123910	DEFLECTOR
318304162	DOOR ASSEMBLY
318254918	ELEMENT
318056292	FRONT
318053132	GASKET
316117500	GLASS
318212210	GLASS
318572718	HARNESS
318567100	HINGE
318222400	HOUSING
316082000	INSERT
318268099	INSULATION
318406100	LENS
318411646	LINER
318261456	LINER
318575600	MOTOR
5303323144	NUT
316081900	PAN
318570500	PANEL
318577700	PANEL
318260007	PANEL
5303320846	PLATE
318402800	PLATE
316217002	PROBE
318922306	RACK
318561101	RECEPTACLE
318112703	RELAY
5304400195	RETAINER
5304400192	RETAINER WIRE
5303311174	SCREW
5303300265	SCREW
5304461333	SCREW
5304417153	SCREW
5304415832	SCREW
5303211311	SCREW
5303323139	SCREW
5303323129	SCREW
5303323277	SCREW
5303325981	SCREW
5303324184	SCREW
5304436875	SCREW
5304454881	SCREW
5304476599	SCREW
318259105	SHIELD
318258765	SHIELD
318257305	SHIELD
5304455945	SPACER
316517600	SPACER
318165800	SPACER
318531703	SPACER
318531800	SPACER
318192400	SPRING
5304403015	SUPPORT
318172904	SUPPORT
316445501	SWITCH
318260401	TRIM
318259833	TRIM
318257706	TRIM
