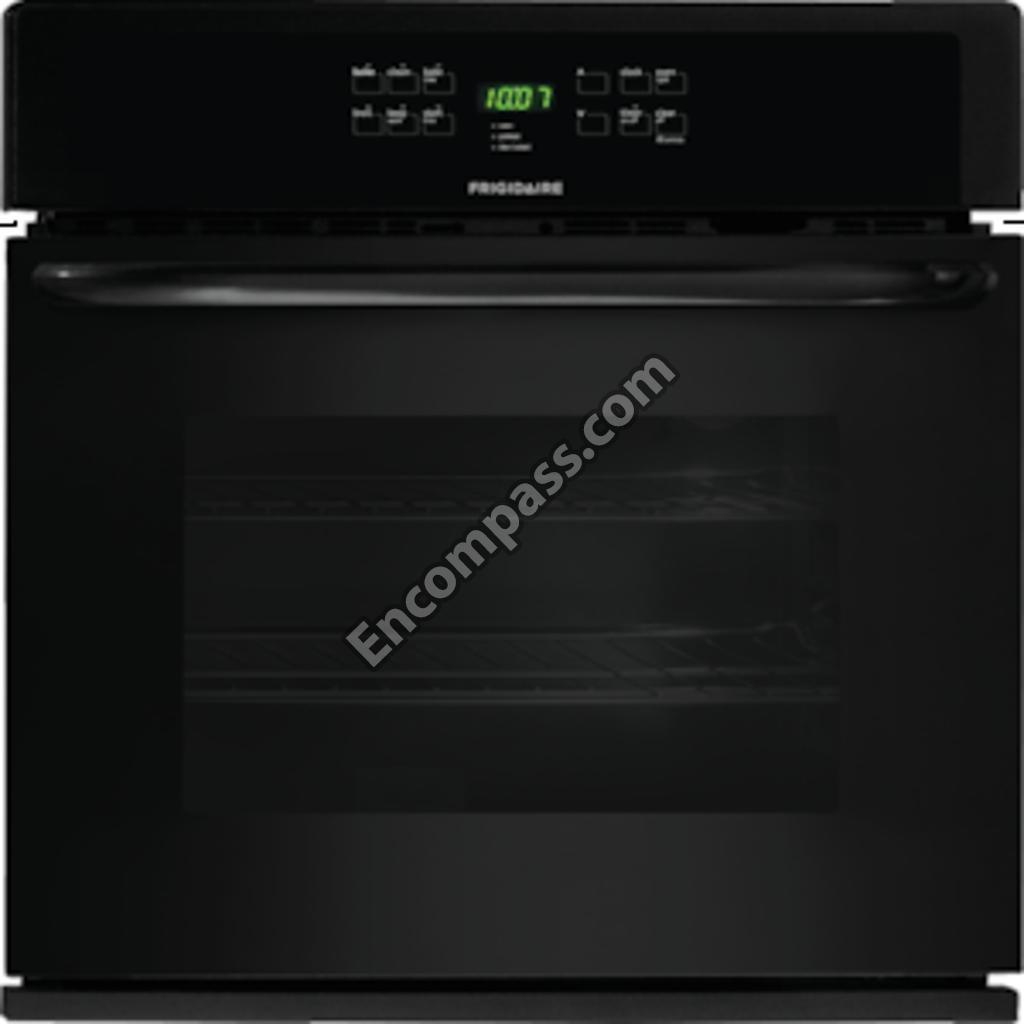

Model Image
Manufacturer

Electrolux

Model Number

FFEW3025PBB

Description

Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318577800 318577800 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
139021100 139021100 BRACKET
139020100 139020100 BRACKET
139028000 139028000 BRACKET
318579001 318579001 BRACKET
318256201 318256201 BRACKET
318242702 318242702 BRACKET
318382301 318382301 BRACKET
318370602 318370602 BRACKET
318274675 318274675 CONTROL PANEL ASSEMBLY,GLASS
139027900 139027900 COVER
139017901 139017901 COVER
139027600 139027600 DUCT
139027700 139027700 DUCT
139008900 139008900 ELEMENT
808650402 808650402 ELEMENT
316446400 316446400 GLASS
316117502 316117502 GLASS
139039528 139039528 GLASS ASSEMBLY
139802000 139802000 HARNESS
318126401 318126401 INSERT
139001700 139001700 INSULATION
318372017 318372017 INSULATION
807989001 807989001 INSULATION
318372016 318372016 INSULATION,DOOR
139009000 139009000 LAMP ASSEMBLY
139000404 139000404 LINER
139021301 139021301 MOTOR
318575612 318575612 MOTOR
316205500 316205500 NUT
318138801 318138801 PAN
139017304 139017304 PANEL
807988901 807988901 PANEL
139011800 139011800 RACK
318561101 318561101 RECEPTACLE
318112703 318112703 RELAY
316021105 316021105 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316418900 316418900 SCREW
316001003 316001003 SCREW
5303323130 5303323130 SCREW
5303289910 5303289910 SCREW
5303324184 5303324184 SCREW
316021132 316021132 SCREW
807597603 807597603 SCREW
5308014215 5308014215 SCREW
5304470882 5304470882 SCREW
808190201 808190201 SCREW
807545502 807545502 SEAL
318562500 318562500 SENSOR
139000600 139000600 SHIELD
139020000 139020000 SHIELD
139028100 139028100 SHIELD
139018000 139018000 SHIELD
807988801 807988801 SHIELD
807285601 807285601 SHIELD
807890403 807890403 SHIELD
139023400 139023400 SPACER
318165800 318165800 SPACER
316517600 316517600 SPACER
318531800 318531800 SPACER
318172904 318172904 SUPPORT
316445501 316445501 SWITCH
318003624 318003624 THERMOSTAT
318578506 318578506 THERMOSTAT
139014401 139014401 TRIM
139023301 139023301 TRIM
139008707 139008707 TRIM
139017601 139017601 TRIM
318903748 318903748 TRIM
139042600 139042600 TUBE ASSEMBLY
318903747 318903747 USE 318903704
318231870 318231870 WIRING HARNESS
