Manufacturer
Electrolux
Model Number
FFEW3026TDE
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAFFLE, DOOR |
|
|
BOX, BAKE ELEMENT |
|
|
BOX, FAN SERVICE |
|
|
BRACKET, CABLE MTG. |
|
|
BRACKET, GLASS HOLDER, DOOR, (2) |
|
|
BRACKET, GLASS PANEL, (2) |
|
|
BRACKET, GLASS RETAINER, (4) |
|
|
BRACKET, SIDE, BOTTOM, (2) |
|
|
BRACKET, SUPPORT, CHASSIS/FAN |
|
|
BRACKET, WIRE |
|
|
BRACKET, WIRE SUPPORT |
|
|
BULB, HALOGEN, G9, 25W, 120V |
|
|
BUMPER, FRONT, MAIN |
|
|
CONTROL PANEL ASSEMBLY, STEEL/GLASS, BLACK STAINLESS, W/TOUCH PAD |
|
|

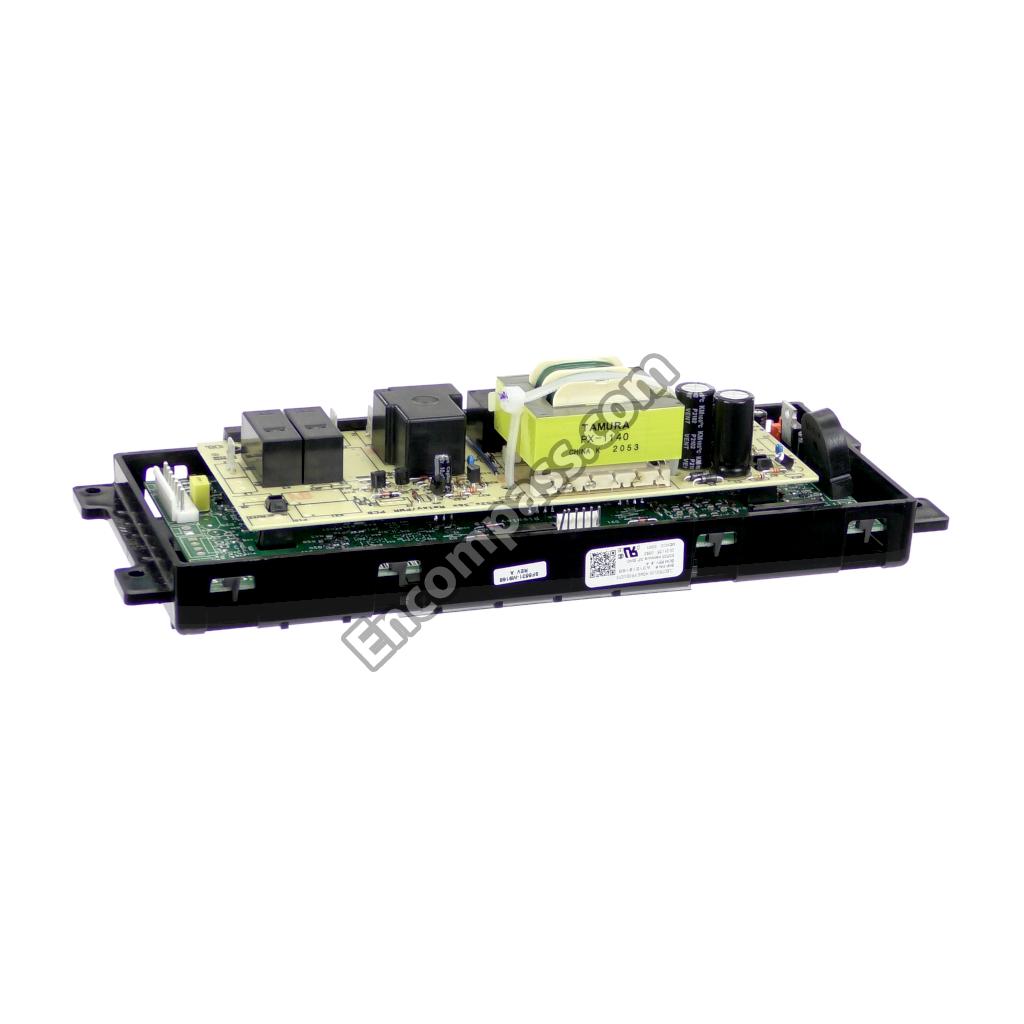

CONTROLLER, ELECTRONIC, ES525 |
|
|
COVER, CONTROL ACCESS |
|
|
COVER, LATCH MOTOR |
|
|
COVER, OVEN TOP |
|
|
COVER, REAR DOOR, BLACK, (2) |
|
|
DOOR ASSEMBLY, OUTER, BLACK STAINLESS, W/TRIM |
|
|
DUCT, COOLING FAN, LOWER |
|
|
DUCT, COOLING FAN, UPPER |
|
|
ELEMENT, BROIL, 3400W, 6 PASS |
|
|
ELEMENT, HIDDEN BAKE, 2500W |
|
|
GLASS, OVEN DOOR, AIRWASH |
|
|
GLASS, OVEN DOOR, INNER |
|
|
HANDLE, DOOR, BLACK STAINLESS, 39 |
|
|
HARNESS ASSEMBLY, CONDUIT, ELBOW CONNECTOR, & WIRING |
|
|
HARNESS ASSEMBLY, FILTER, ELECTRICAL, W/CAPACITORS |
|
|
HARNESS, WIRING, MAIN |
|
|
HARNESS, WIRING, MDL ADS, LATCH/PROBE |
|
|
HINGE, OVEN DOOR, RED |
|
|
INSERT,BROILER PAN ,COBALT BLUE |
|
|
INSULATION, BAKE ELEMENT, FRONT |
|
|
INSULATION, BAKE ELEMENT, LOWER |
|
|
INSULATION, BAKE ELEMENT, SIDE |
|
|
INSULATION, DOOR |
|
|
INSULATION, DOOR |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN WRAPPER, TOP & SIDES |
|
|
LAMP ASSEMBLY, ROUND, HALOGEN |
|
|
LINER, OVEN DOOR |
|
|
MOTOR ASSEMBLY, COOLING FAN |
|
|
MOTOR, LATCH ASSEMBLY, 2 TERMINAL |
|
|
NUT, HEX FLANGE, 3/8 10-32 |
|
|
PAN, BROILER |
|
|
PANEL, MAIN BACK, UPPER OVEN |
|
|
PANEL, SERVICE, MAIN BACK |
|
|
PROBE, TEMP |
|
|
RACK, OVEN, W/HANDLE |
|
|
RECEPTACLE, HINGE, (2) |
|
|
SCREW, 8-18 X 1/2 |
|
|
SCREW, 8-18 X 5/16, BLACK |
|
|
SCREW, ANTI-TIP, 8 - 5/8, BLACK, (2) |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HANDLE MTG. |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, SELF TAPPING, 8-18 X 11/32, (4) |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SCREW,8-32 X 3/8`` ,(4) |
|
|
SCREW`8-18 X 0.5 ,CHROME |
|
|
SEAL, OVEN DOOR, GRAY |
|
|
SHIELD, AIR DEFLECTOR, BACK |
|
|
SHIELD, BAKE ELEMENT, REAR |
|
|
SHIELD, INSULATION, LOWER, UPPER OVEN |
|
|
SHIELD, INSULATION, SIDES, (2) |
|
|
SHIELD, INSULATION, TOP |
|
|
SHIELD, REAR WIRE, MAIN BACK |
|
|
SPACER, GLASS, (2) |
|
|
SPACER, GLASS, FOAM |
|
|
SPACER, OVEN SHIELD, (2) |
|
|
SWITCH,OVEN LIGHT ,DOOR FRAME |
|
|
TERMINAL BLOCK KIT |
|
|
THERMOSTAT, SAFETY, 105C |
|
|
TRIM, LOWER VENT, BLACK STAINLESS |
|
|
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED |
|
|
TRIM, SIDE, BLACK, LH |
|
|
TRIM, SIDE, BLACK, RH |
|
|
TRIM, VENT, BLACK, FRONT |
|
|
TUBE ASSEMBLY, VENT, W/CATALYST |
