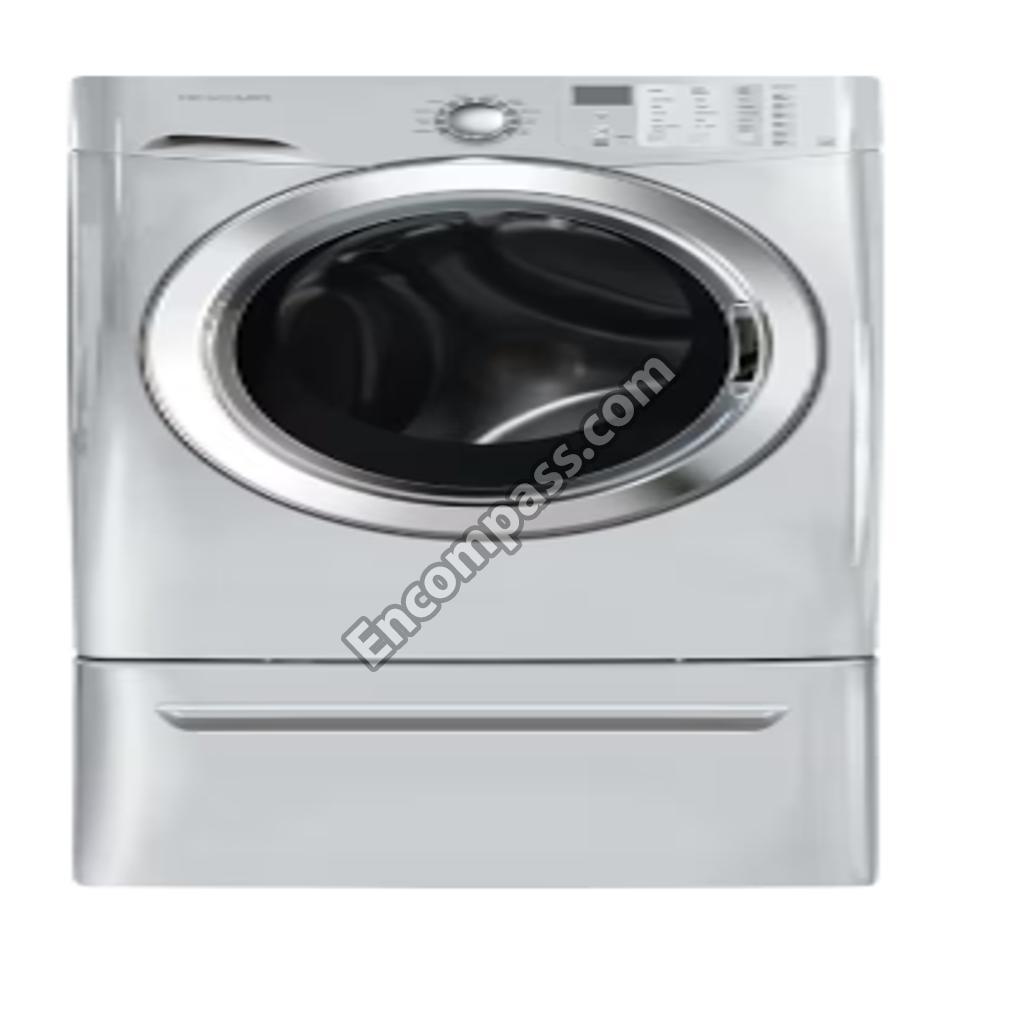

Model Image
Manufacturer

Electrolux

Model Number

FFFS5115PA0

Description

Laundry, Residential, Washer, Front-load

Interactive Exploded View
Exploded View

Parts List

Part Number Description
134646200 134646200 BACK PANEL SERVICE
134646001 134646001 BASE
134616700 134616700 BELT
131793303 131793303 BOLT
134363200 134363200 BRACKET
134641100 134641100 BRACKET
134713100 134713100 BRACKET
134550900 134550900 BRACKET
137021610 137021610 BRACKET
137021600 137021600 BRACKET
134645600 134645600 BRACKET
134887400 134887400 BRACKET
134648500 134648500 BRACKETSPRING
134617600 134617600 BUSHING
5303209428 5303209428 BUSHING
137003500 137003500 CABLE TIE
5304464772 5304464772 CABLE TIE
137087500 137087500 CLAMP
134737300 134737300 CLAMP
134527100 134527100 CLAMP
131306234 131306234 CLAMP
134372400 134372400 CLAMP
137087504 137087504 CLAMP
134638700 134638700 CLIP
134876500 134876500 CLIP
134618211 134618211 CONTROL BOARD
134370100 134370100 CONVEYOR
134362210 134362210 COUNTERWEIGHT
134640300 134640300 COVER
134649700 134649700 COVER
134370200 134370200 COVER
137110800 137110800 CUSHION
131931202 131931202 DAMPENER
134407900 134407900 DAMPENER
137340800 137340800 DAMPER
134926600 134926600 DAMPER
134370000 134370000 DRAWER
134950400 134950400 DRUM ASSEMBLY
134649401 134649401 FASTENER
134640200 134640200 FILTER
137280302 137280302 FRAME
137286005 137286005 FRAME
134371300 134371300 GASKET
137578120 137578120 GLASS
134372000 134372000 GROMMET
137503600 137503600 HARNESS
137488301 137488301 HEATING ELEMENT (10
134550800 134550800 HINGE
134639920 134639920 HOSE
137322400 137322400 HOSE
137628100 137628100 HOSE
134372300 134372300 HOSE
134586500 134586500 HOSE
134446130 134446130 HOUSING
137286500 137286500 KNOB
137296900 137296900 LENS
137248100 137248100 MOTOR
137086500 137086500 NUT
134639200 134639200 NUT
134372200 134372200 O-RING
134361900 134361900 ORING
134618100 134618100 PAD
137265525 137265525 PANEL
134638525 134638525 PANEL
137021826 137021826 PANEL
134958025 134958025 PANEL
137501755 137501755 PANEL
134962000 134962000 PANELBACK
131268300 131268300 PIN
137286600 137286600 PIPE
134430600 134430600 PLATE
137011400 137011400 POWER CORD
134655800 134655800 PROTECTOR
137317100 137317100 PULLEY
137311900 137311900 PUMP
137385100 137385100 RING
137266700 137266700 RING
137322500 137322500 SCREEN
134408400 134408400 SCREW
134638100 134638100 SCREW
134637200 134637200 SCREW
131202300 131202300 SCREW
131303900 131303900 SCREW
131303500 131303500 SCREW
131205300 131205300 SCREW
134629400 134629400 SCREW
131302901 131302901 SCREW
134178901 134178901 SCREW
131168200 131168200 SCREW
131302800 131302800 SCREW
134402900 134402900 SCREW
134956200 134956200 SHELL
134955100 134955100 SHELL
134365300 134365300 SPRING
134957000 134957000 SPRING ASMY
134642300 134642300 SUPPORT
134644600 134644600 SUPPORT
134762010 134762010 SWITCH
134591500 134591500 TRANSPORT PLUG KIT
134372100 134372100 TUBE
134959330 134959330 VALVE
134952702 134952702 VANE
137279900 137279900 VENT DOOR COMPLETE ASSEMBLY
131276900 131276900 WASHER
131763255 131763255 WASHER DOOR LOCK & SWITCH
137290700 137290700 WIRING HARNESS
137288600 137288600 WIRING HARNESS
