Manufacturer
Electrolux
Model Number
FFGF3011LWK
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANTI TIP KIT, ASSY, W/TEMPLATE |
|
|
BAFFLE, OVEN BURNER |
|
|
BASE, LOW BROIL |
|
|
BLOCK, STABILITY, CONCRETE |
|
|
BRACKET, CLOCK MTG, LH |
|
|
BRACKET, CLOCK MTG, RH |
|
|
BRACKET, HINGE, MAIN TOP LH |
|
|
BRACKET, HINGE, MAIN TOP RH |
|
|
BRACKET, REGULATOR |
|
|
BRACKET, SAFETY VALVE |
|
|
BRACKET, SUPPORT, OVEN BURNER |
|
|
BURNER BOX |
|
|
BURNER, OVEN |
|
|
CARRIAGE, LOW BROIL |
|
|
CHANNEL, BURNER SUPPORT |
|
|
CLIP, BODYSIDE |
|
|

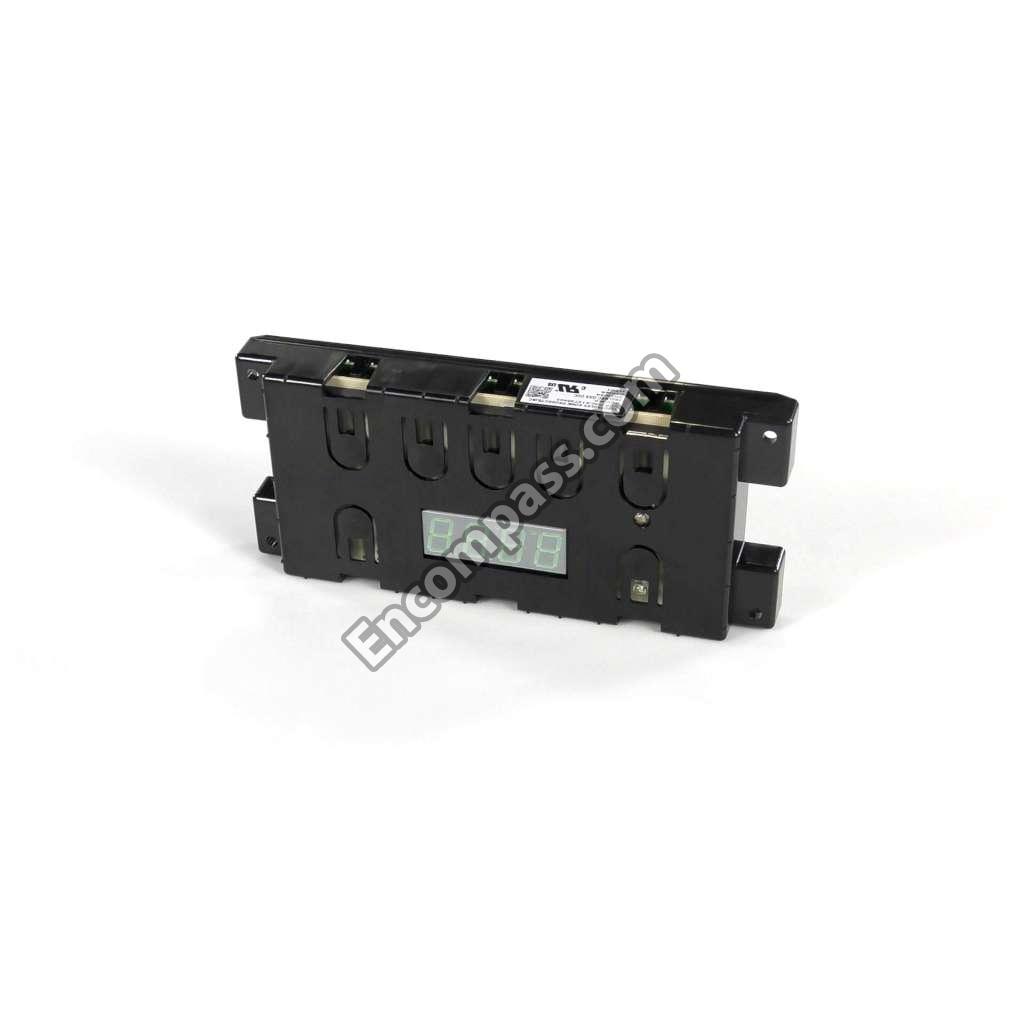

CONTROL, ELECTRONIC |
|
|
CORD, POWER, GREY, 39#, 7A |
|
|
COVER, VENT, CHROME |
|
|
CUP, OVEN LIGHT |
|
|
END CAP, WHITE, LH |
|
|
END CAP, WHITE, RH |
|
|
FASTENER, PUSH-IN NUT, NYLON, SPACER |
|
|
FASTENER, TANDEN WIRE, (2) |
|
|
FLUE |
|
|
GASKET-FLUE |
|
|
GLASS, OVEN DOOR, CLEAR, OUTER |
|
|
GLASS, OVEN DOOR, INNER |
|
|
GLIDE, LOW BROIL, OUTER/RH & LH, (2) |
|
|
GLIDE-LOW BROIL, INNER |
|
|
GRATE, BLACK, (4) |
|
|
HANDLE, DOOR/DRAWER, WHITE |
|
|
HANDLE, DRAWER, WHITE |
|
|

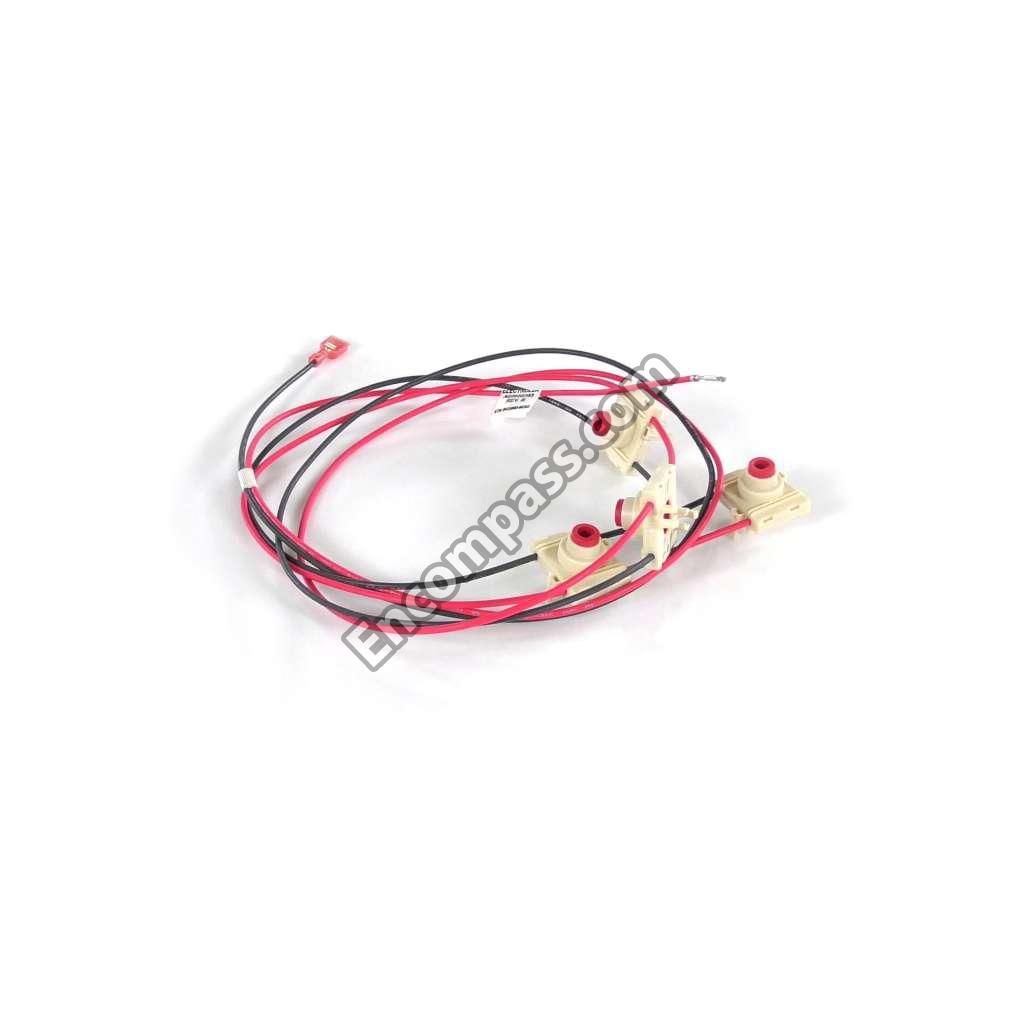

HARNESS, IGNITION |
|
|
HARNESS, WIRING, MAIN |
|
|
HINGE, OVEN DOOR, ORANGE |
|
|
IGNITOR, OVEN BURNER |
|
|
IGNITOR,TOP BURNER ,50`` |
|
|
INSERT, BROILER PAN, SLATE BLUE |
|
|
INSULATION, 1", OVEN BACK |
|
|
INSULATION, OVEN DOOR |
|
|
INSULATION, OVEN WRAPPER |
|
|
KNOB, TOP VALVE, WHITE, (4) |
|
|
LABEL, ANTI-TIP |
|
|
LAMP, OVEN LIGHT |
|
|
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET & LEG |
|
|
LINER, LOW BROIL |
|
|
LINER, OVEN DOOR |
|
|
LP CONVERSION KIT |
|
|
MAIN TOP, WHITE |
|
|
MANIFOLD |
|
|
NUT, HEX HEAD SEMS |
|
|
OVERLAY, CLOCK, WHITE |
|
|
PAN, BROILER, SLATE BLUE |
|
|
PANEL, BACKGUARD, WHITE |
|
|
PANEL, BODYSIDE, WHITE, LH |
|
|
PANEL, BODYSIDE, WHITE, RH |
|
|
PANEL, DRAWER, WHITE |
|
|
PANEL, MAIN BACK |
|
|
PANEL, MANIFOLD, WHITE |
|
|
PANEL, OVEN BOTTOM |
|
|
PANEL, OVEN DOOR, WHITE |
|
|
PROBE, OVEN TEMP |
|
|
RACK, LOW BROIL |
|
|
RACK, OVEN, FLAT |
|
|
RECEPTACLE, HINGE |
|
|
RECEPTACLE, OVEN LIGHT, 24 # |
|
|
REGULATOR, PRESSURE |
|
|
RETAINER, GLASS, (2), ANGLE |
|
|
RETAINER, IGNITOR |
|
|
RETAINER, WIRE |
|
|
ROD, MAINTOP SUPPORT |
|
|
SCREW, 10-16 X .486 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, CONCRETE, 1.75", ANTI-TIP BRKT |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR BRKT |
|
|
SCREW, LEVELING, PLASTIC, REAR, (2) |
|
|
SCREW, PAN HEAD, 8-18AB X 0.375 |
|
|
SCREW, SHOULDER HEAD, 8-18 X 5/8, (2), SQUARE DRIVE |
|
|
SCREW, TRILOBE, 10-32 X 5/16", BLACK |
|
|
SCREW, VALVE MTG., 1/4 - 20 |
|
|
SCREW, WAFER HD SQ DR, 8-18AB X 0.5 |
|
|
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* |
|
|
SCREW,W/WASHER ,8-18 |
|
|
SCREW,WAFER HEAD ,10-14 X 1 3/8 ,HANDLE MTG |
|
|
SEAL, DOOR, AIR GAP |
|
|
SEAL, OVEN DOOR |
|
|
SHIELD, BACKGUARD, REAR WALL |
|
|
SHIELD, BROILER |
|
|
SHIELD, IGNITOR, METAL |
|
|
SHIELD, SPARK MODULE, GALV STEEL |
|
|
SHIELD, WOOL, OVEN DOOR |
|
|
SPACER, BURNER BOX |
|
|
SPACER, DOOR HANDLE, (2) |
|
|
SPARK MODULE |
|
|
SUPPORT, OVEN BOTTOM |
|
|
SWITCH, ROCKER, WHITE |
|
|
TOP, BURNER, FRONT |
|
|
TOP, BURNER, REAR |
|
|
TUBE, REGULATOR |
|
|
TUBE, VALVE TO REGUL, 3/8 |
|
|
VALVE, SAFETY |
|
|

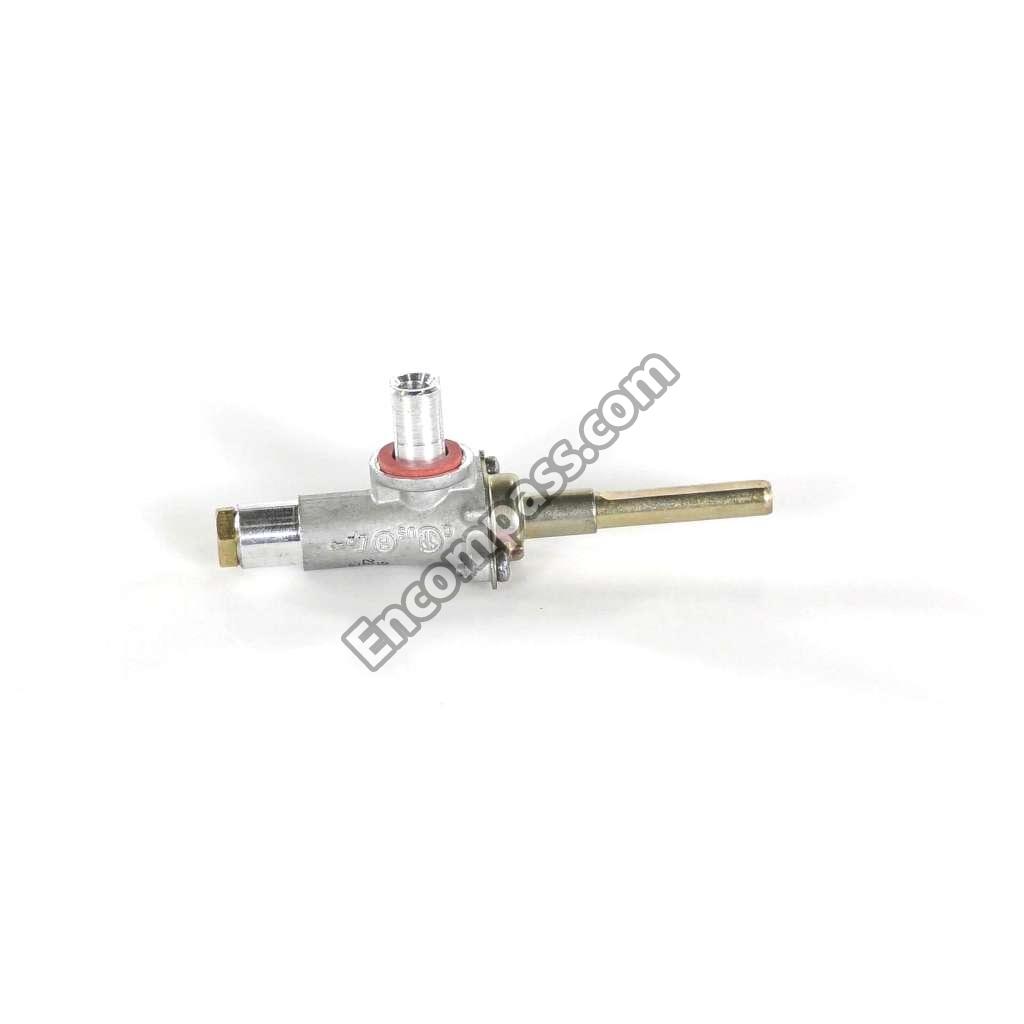

VALVE, TOP BURNER |
