Model Image
Manufacturer

Electrolux

Model Number

FFGS3025LBC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318335500 318335500 ANTI-TIP & ACCESSOR
318259220 318259220 BACK
318260531 318260531 BAFFLE
318290400 318290400 BAFFLE
316401301 316401301 BAFFLE
318568201 318568201 BOX
318568200 318568200 BOX
318291800 318291800 BOX
318288801 318288801 BOX
318382301 318382301 BRACKET
318298410 318298410 BRACKET
318288701 318288701 BRACKET
318291900 318291900 BRACKET
318579301 318579301 BRACKET
318579001 318579001 BRACKET
318367401 318367401 BRACKET
318262810 318262810 BRACKET

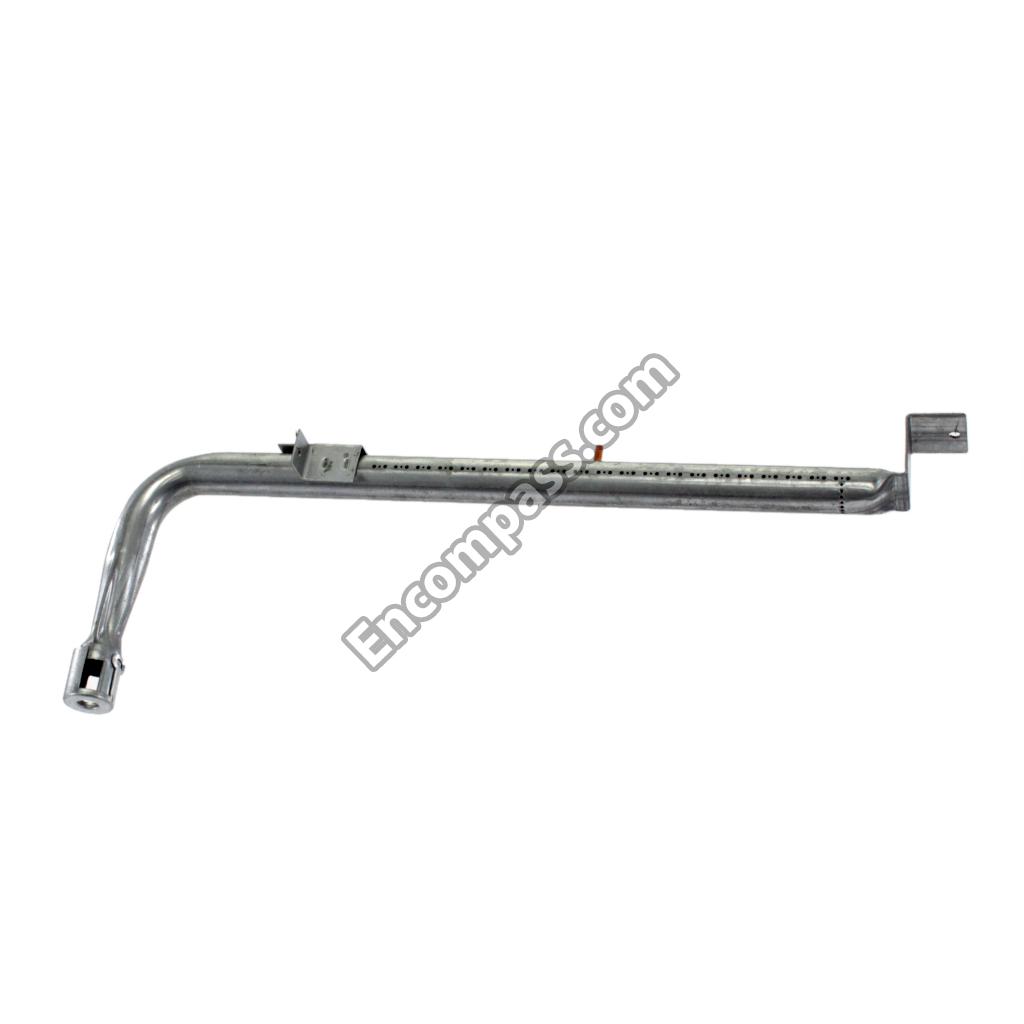

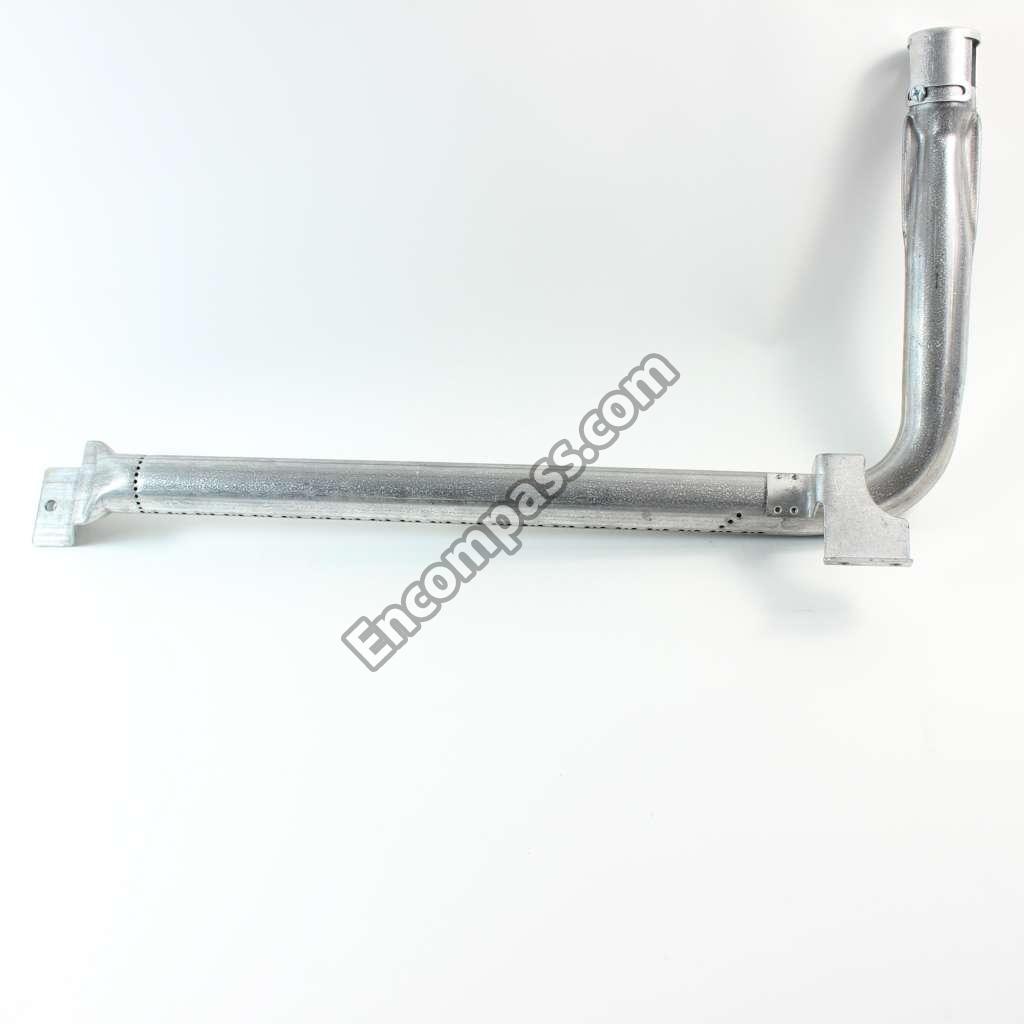

318292200 318292200 BURNER
316558300 316558300 BURNER
318292300 318292300 BURNER
316438200 316438200 BURNER
316438600 316438600 BURNER
318233400 318233400 BUSHING
318018101 318018101 CHANNEL
318018100 318018100 CHANNEL
318414229 318414229 CLOCK/TIMER
318299102 318299102 CONSOLE
318565404 318565404 CONVERSION KIT
318308303 318308303 COVER
318291102 318291102 COVER
318570603 318570603 DUCT
316409703 316409703 ELBOW
318298230 318298230 FRAME
318335600 318335600 FRAME & WHEEL ASSEM
318056292 318056292 FRONT
318053132 318053132 GASKET
318223900 318223900 GASKET
316117500 316117500 GLASS
318261321 318261321 GLASS ASSEMBLY
318560470 318560470 GRATE
318306606 318306606 HARNESS
318268600 318268600 HARNESS
318567101 318567101 HINGE
318222400 318222400 HOUSING

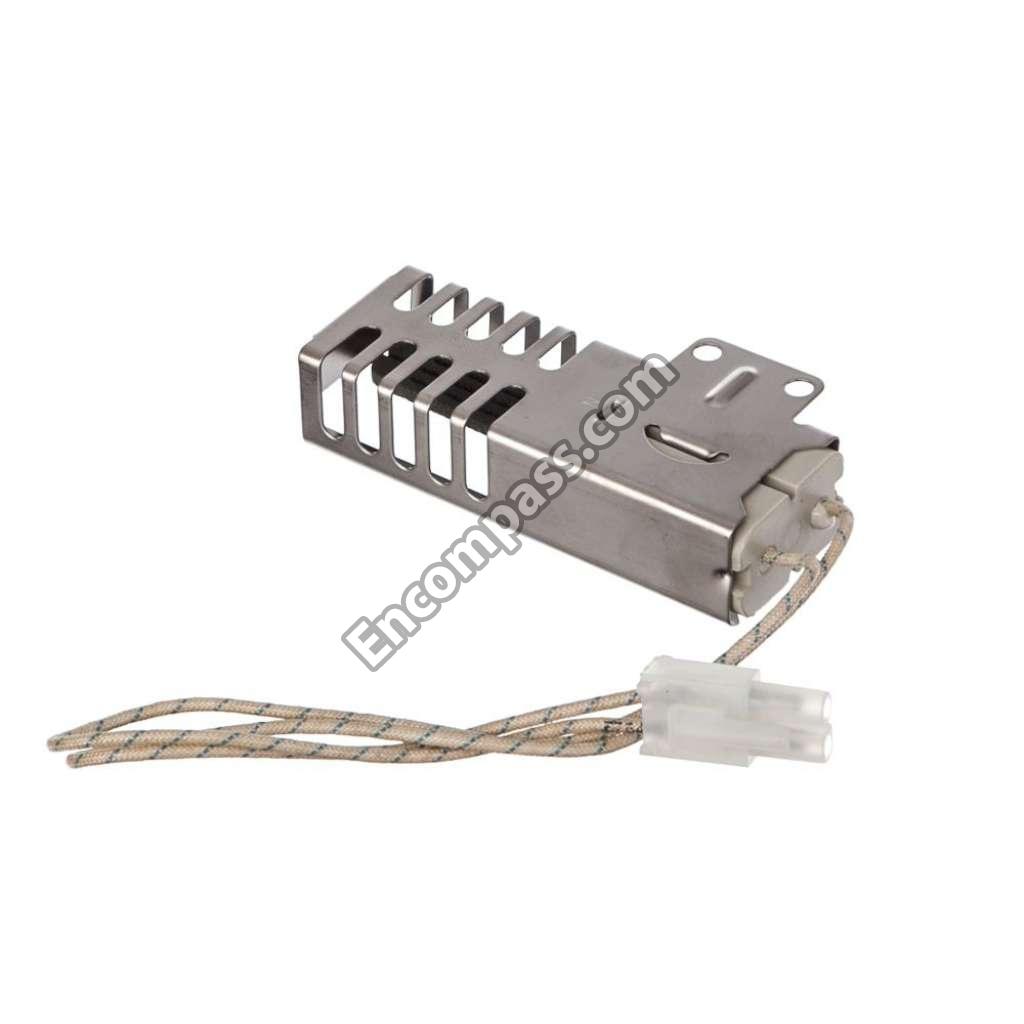

318177710 318177710 IGNITOR

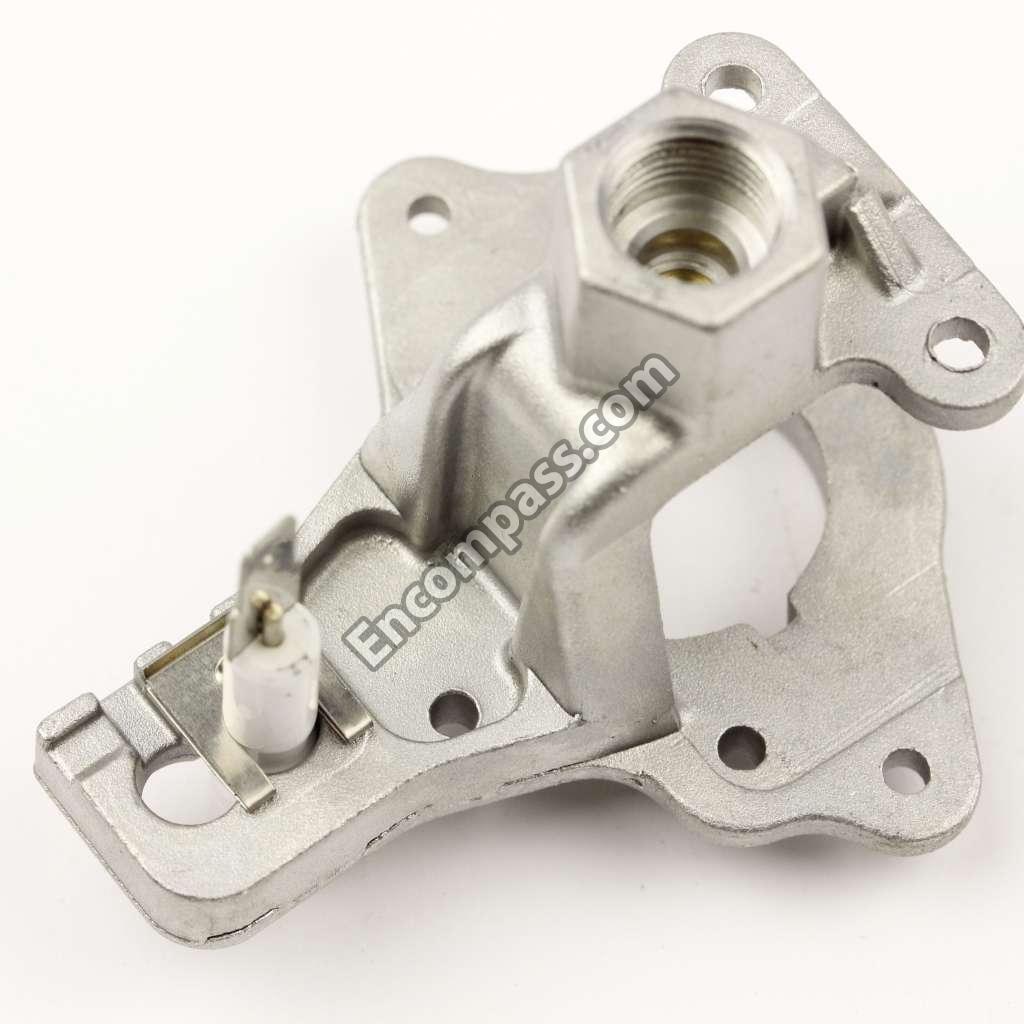

316540700 316540700 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316543206 316543206 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
318285099 318285099 INSULATION
318594400 318594400 INSULATION
318386116 318386116 INSULATION
318594510 318594510 INSULATION

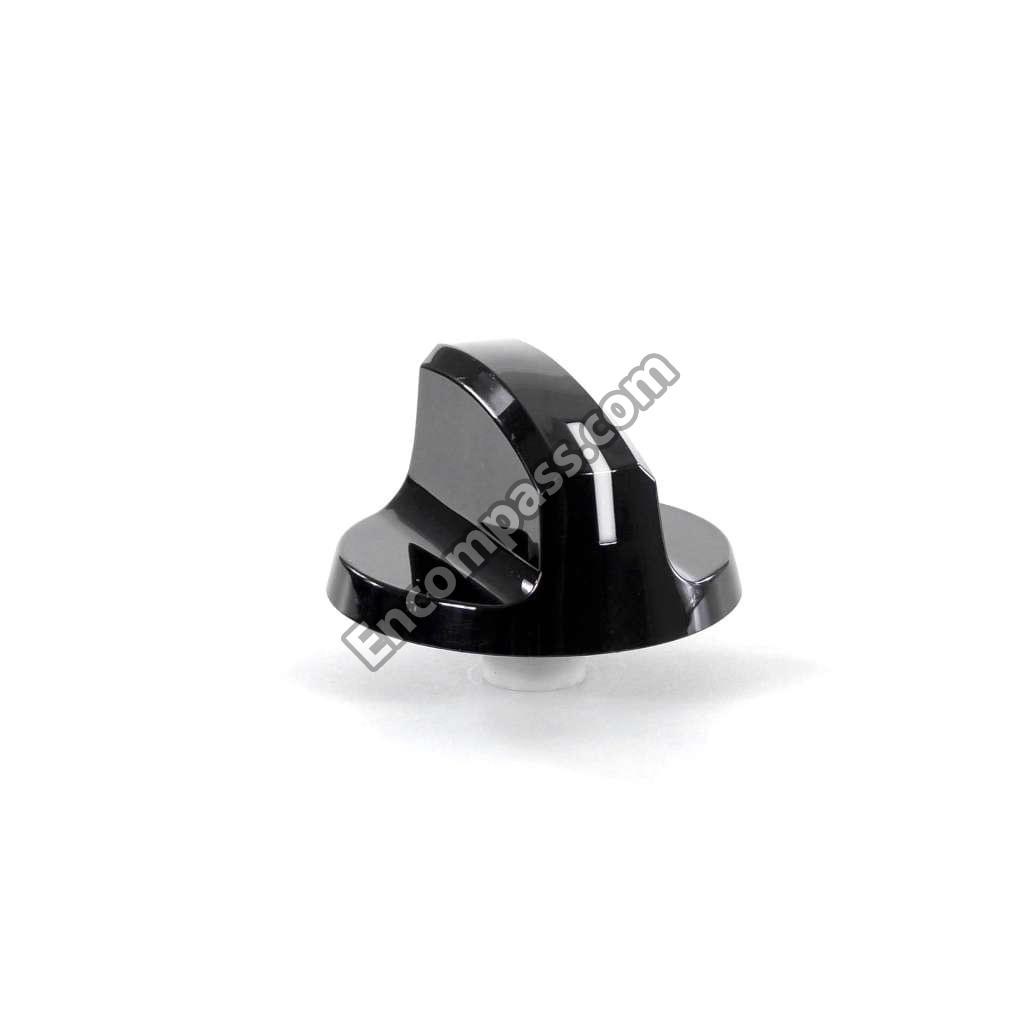

316543812 316543812 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318411650 318411650 LINER
318569262 318569262 MAINTOP ASSEMBLY
318305600 318305600 MANIFOLD
318305601 318305601 MANIFOLD

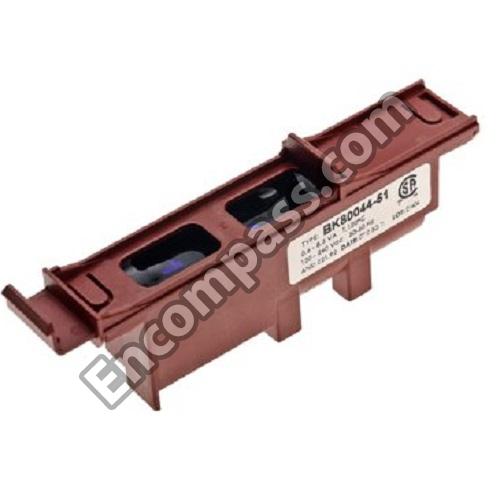

316135702 316135702 MODULE

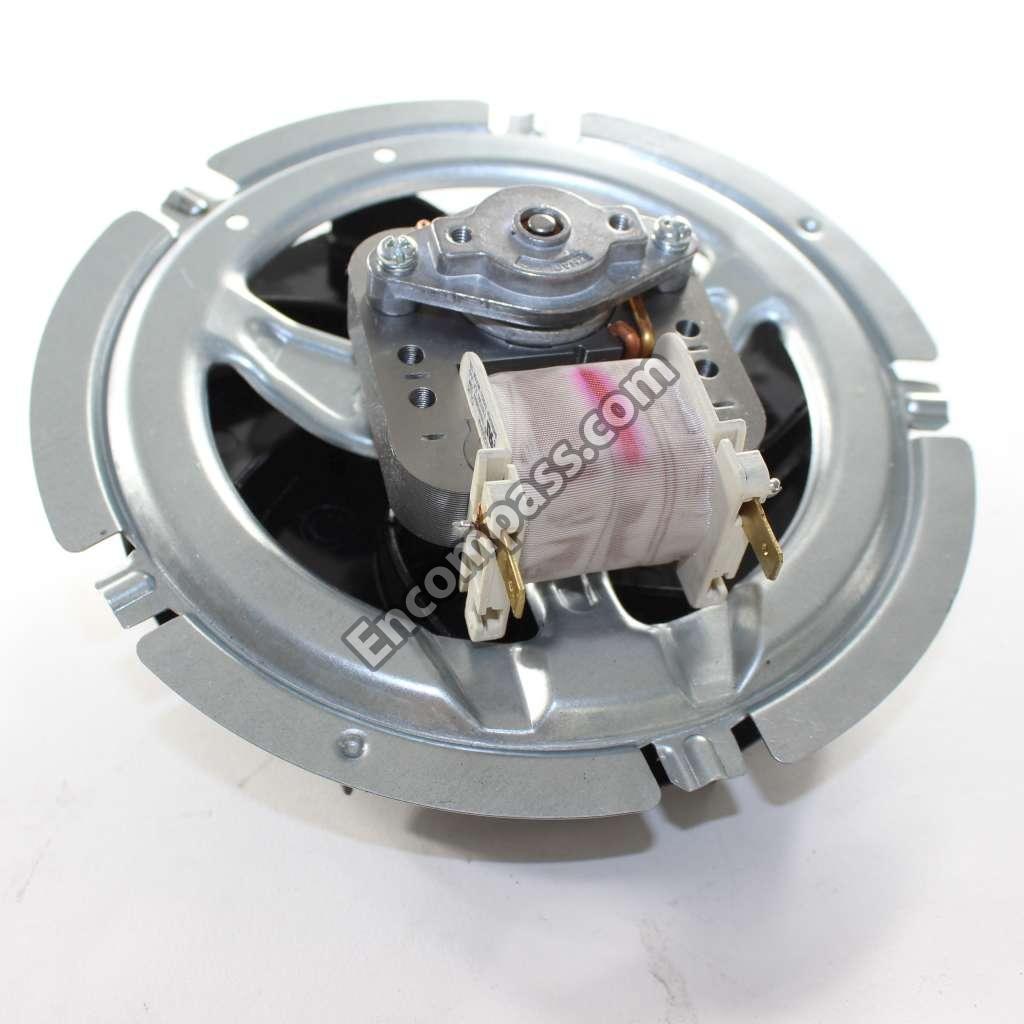

318575603 318575603 MOTOR

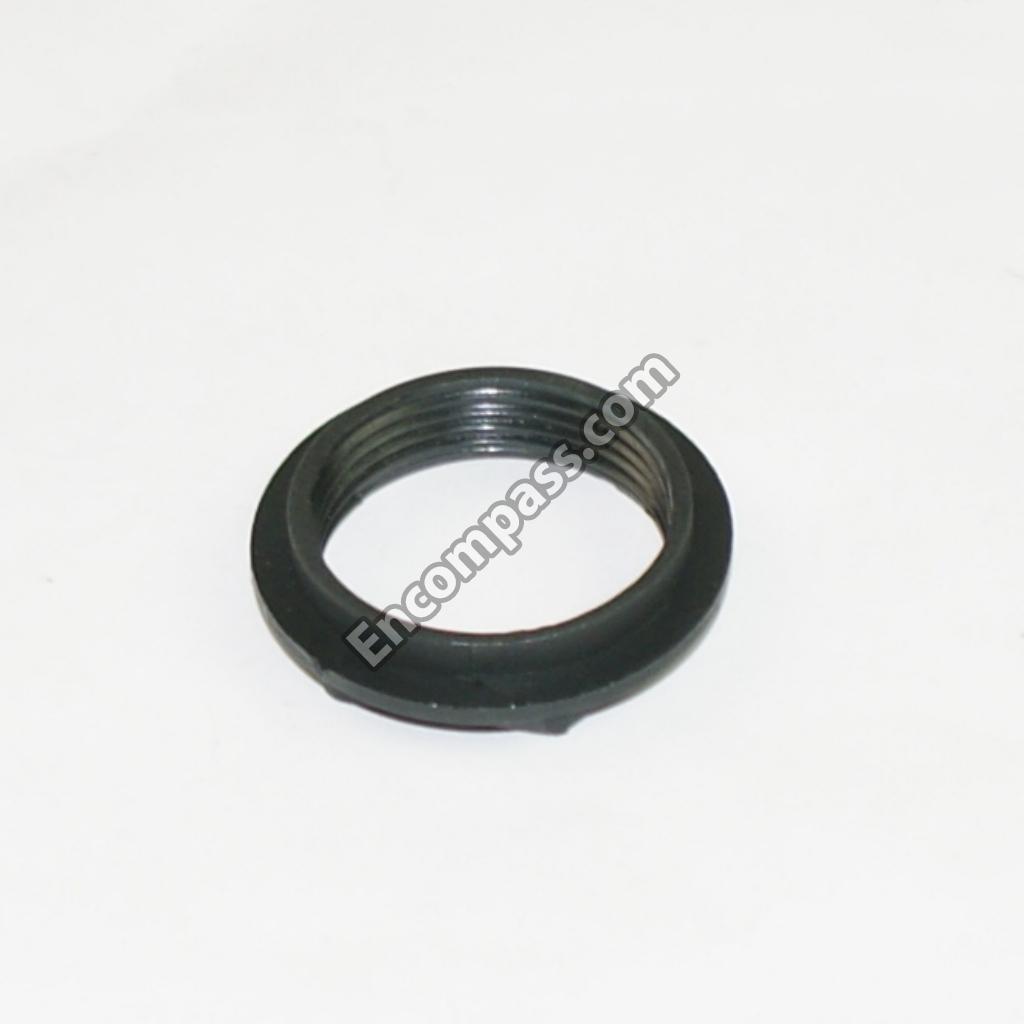

318233800 318233800 NUT
316527513 316527513 ORIFICE
316527504 316527504 ORIFICE
316419141 316419141 OVERLAY
316081900 316081900 PAN
318298908 318298908 PANEL
318295611 318295611 PANEL
318225211 318225211 PANEL
318225210 318225210 PANEL
318225110 318225110 PANEL
318287800 318287800 PANEL
318290501 318290501 PANEL
318296905 318296905 PANEL
318296904 318296904 PANEL
318327500 318327500 PANEL
318289401 318289401 PANEL
318260007 318260007 PANEL
318235193 318235193 PANEL
318224402 318224402 PANEL
5303320846 5303320846 PLATE

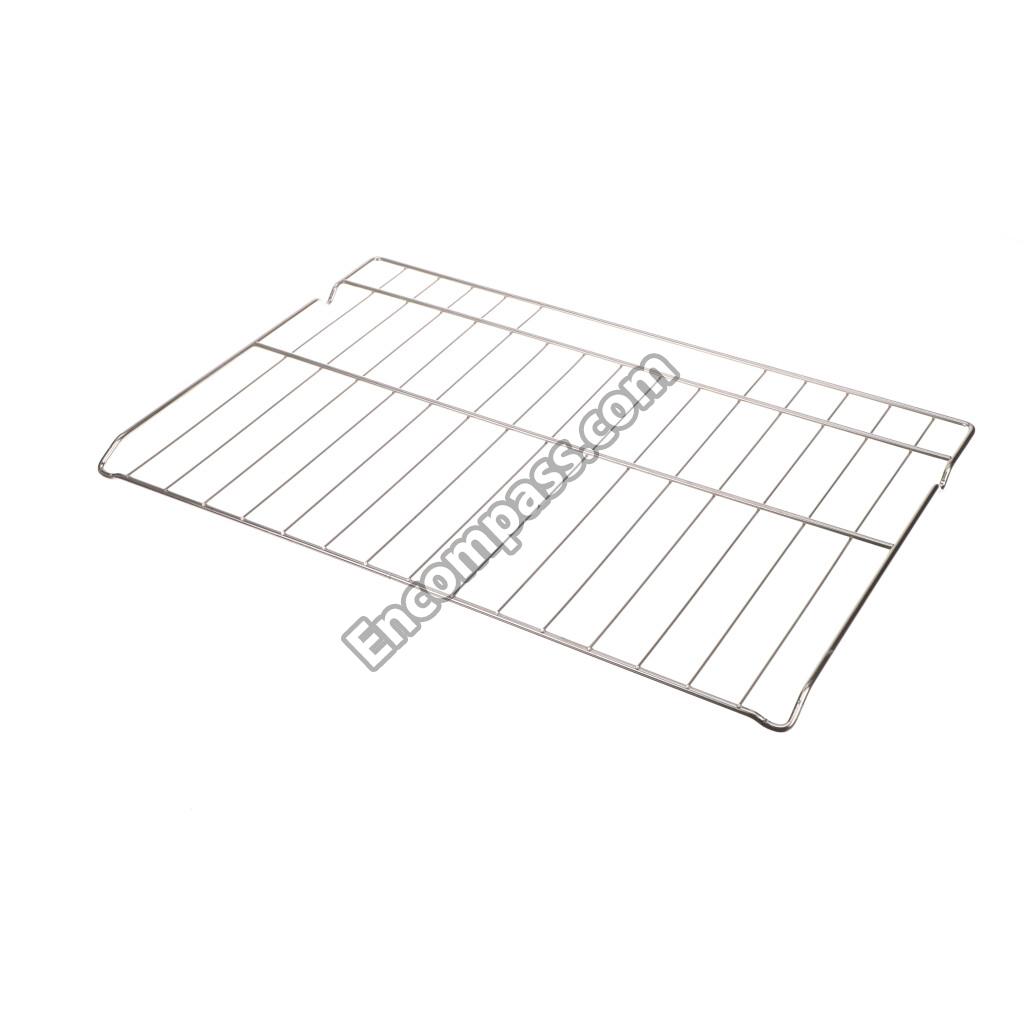

318922306 318922306 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
318233720 318233720 RETAINER
5304453593 5304453593 SCREW
5304415832 5304415832 SCREW
5304417153 5304417153 SCREW
5304440988 5304440988 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5303323277 5303323277 SCREW
5303323139 5303323139 SCREW
5303323137 5303323137 SCREW
5303324184 5303324184 SCREW
316215600 316215600 SCREW
5303300195 5303300195 SCREW
5303323129 5303323129 SCREW
5304463705 5304463705 SCREW
5304454881 5304454881 SCREW
5303300265 5303300265 SCREW
5303211311 5303211311 SCREW
5304436875 5304436875 SCREW
5304476599 5304476599 SCREW
316240600 316240600 SCREW,HEX WASH,6-32 X .485
318291300 318291300 SEAL

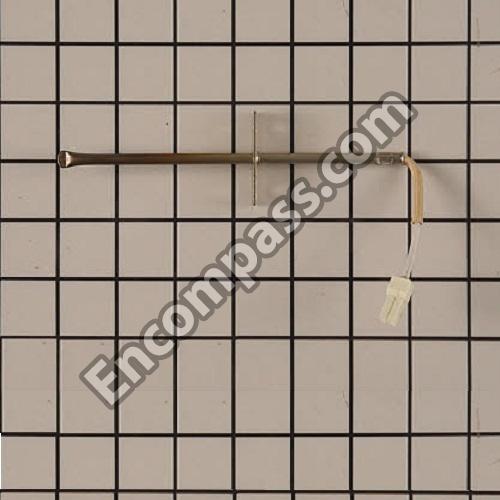

318562500 318562500 SENSOR
318259105 318259105 SHIELD
318165800 318165800 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318192400 318192400 SPRING
318574701 318574701 SUPPORT

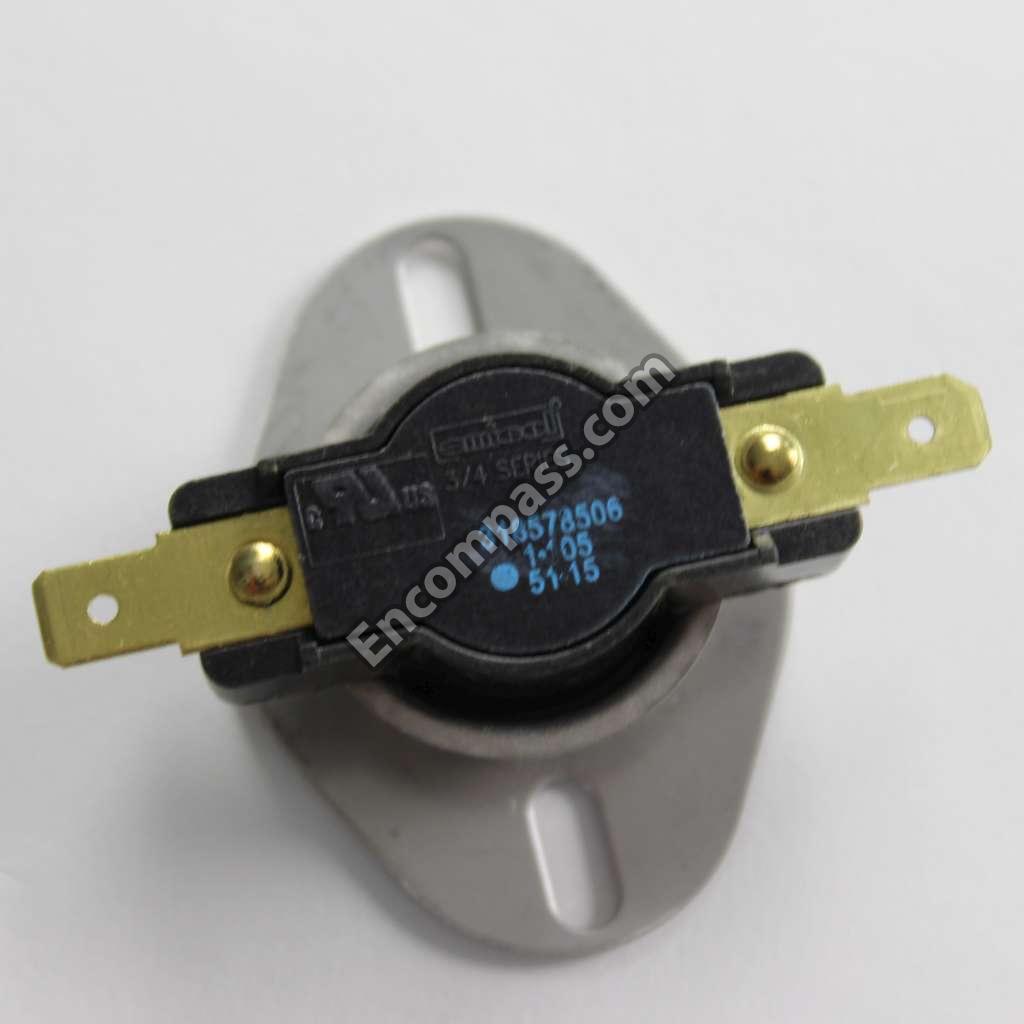

318578506 318578506 THERMOSTAT
318260401 318260401 TRIM
318260201 318260201 TRIM
318913118 318913118 TRIM
318305410 318305410 TUBE
318305203 318305203 TUBE
318305110 318305110 TUBE
318289500 318289500 TUBE
318916501 318916501 TUBE
318916701 318916701 TUBE

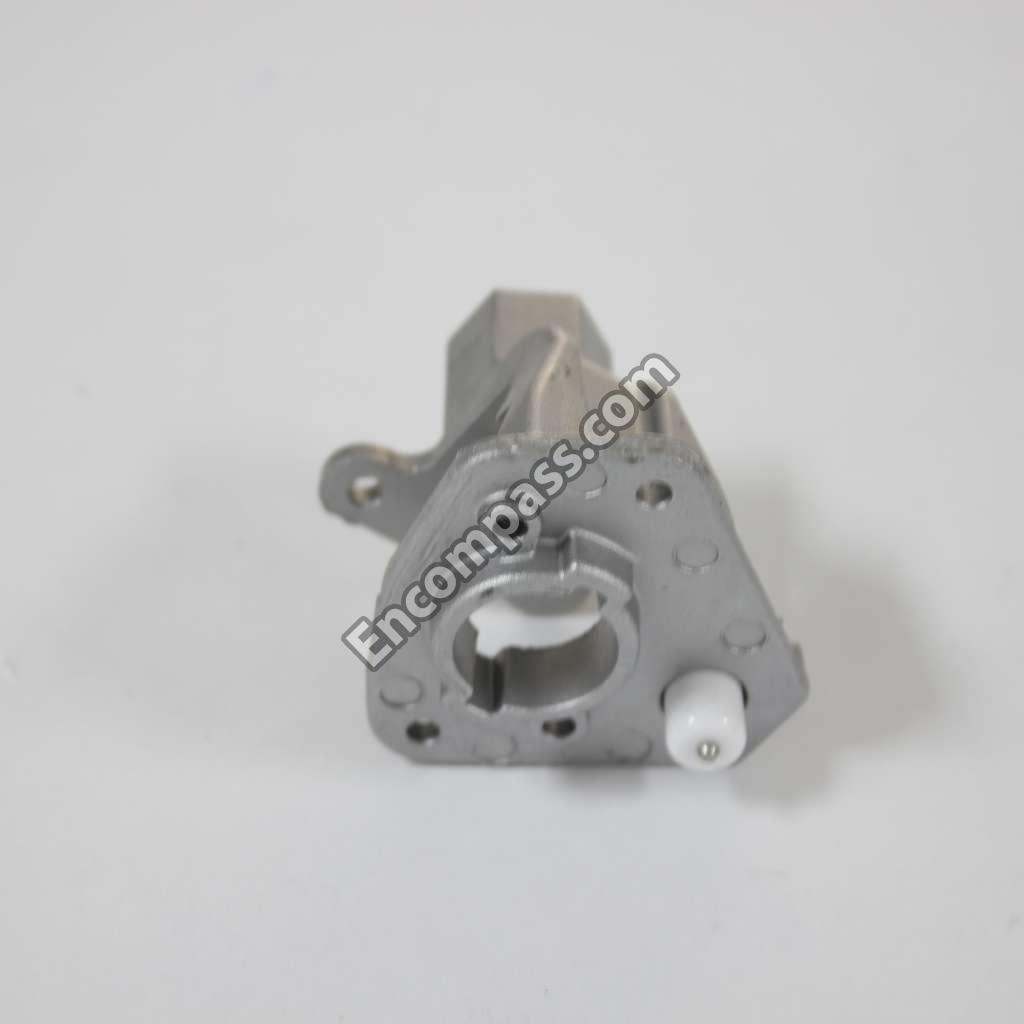

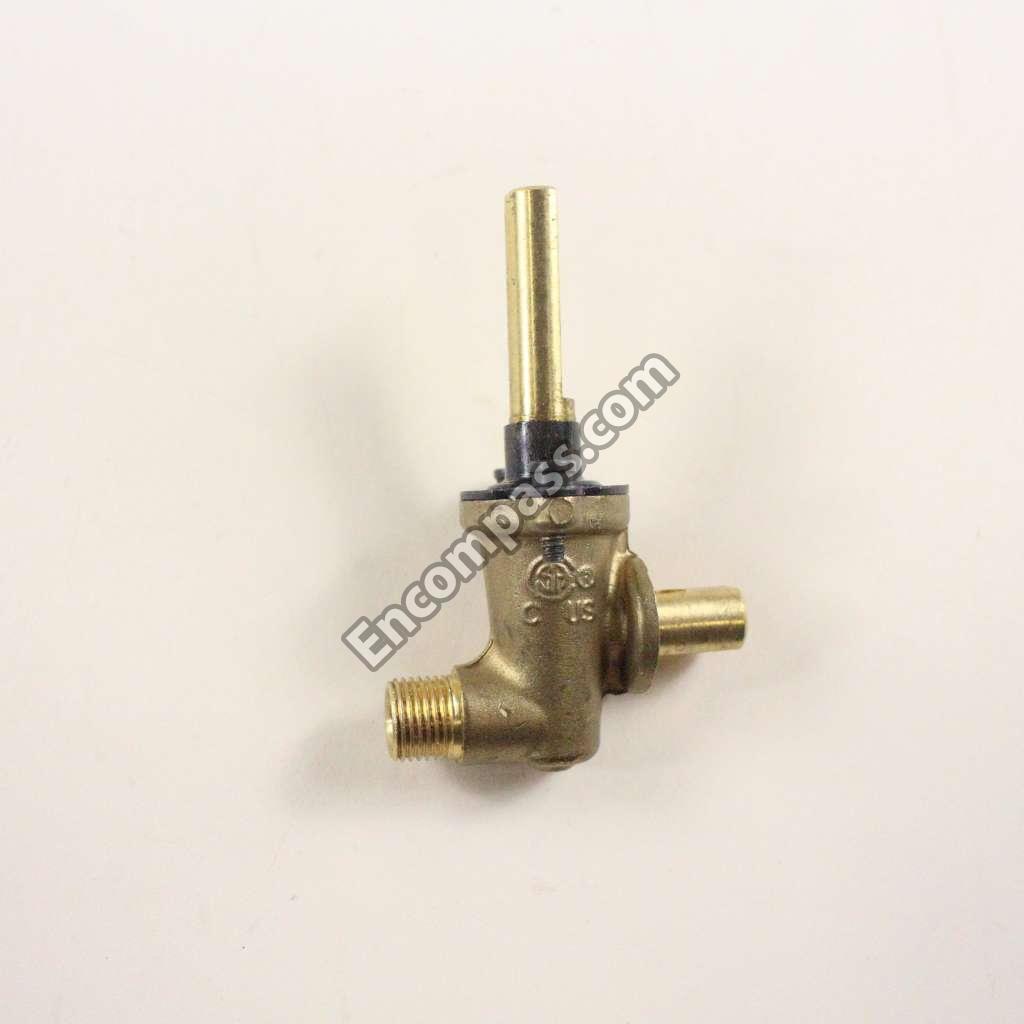

316404901 316404901 VALVE
318233930 318233930 VALVE
318233910 318233910 VALVE
318233900 318233900 VALVE

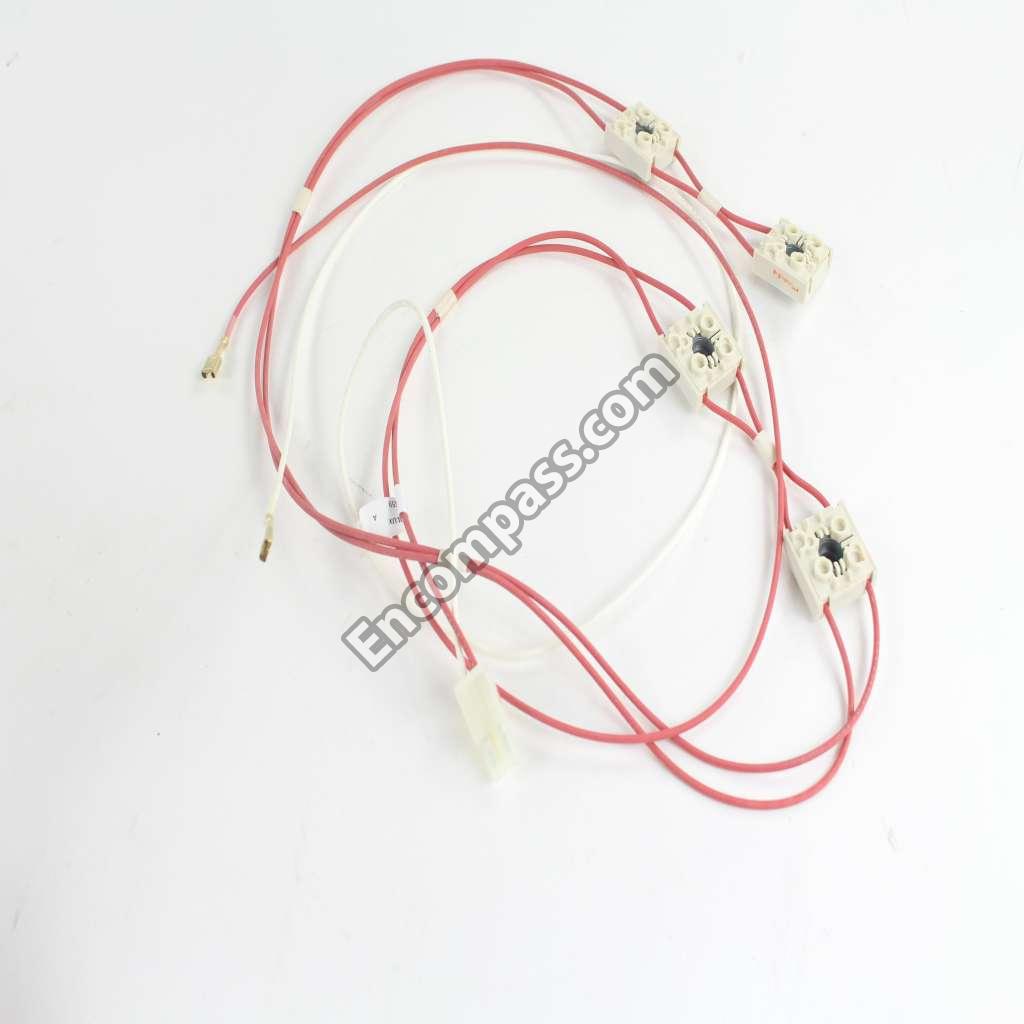

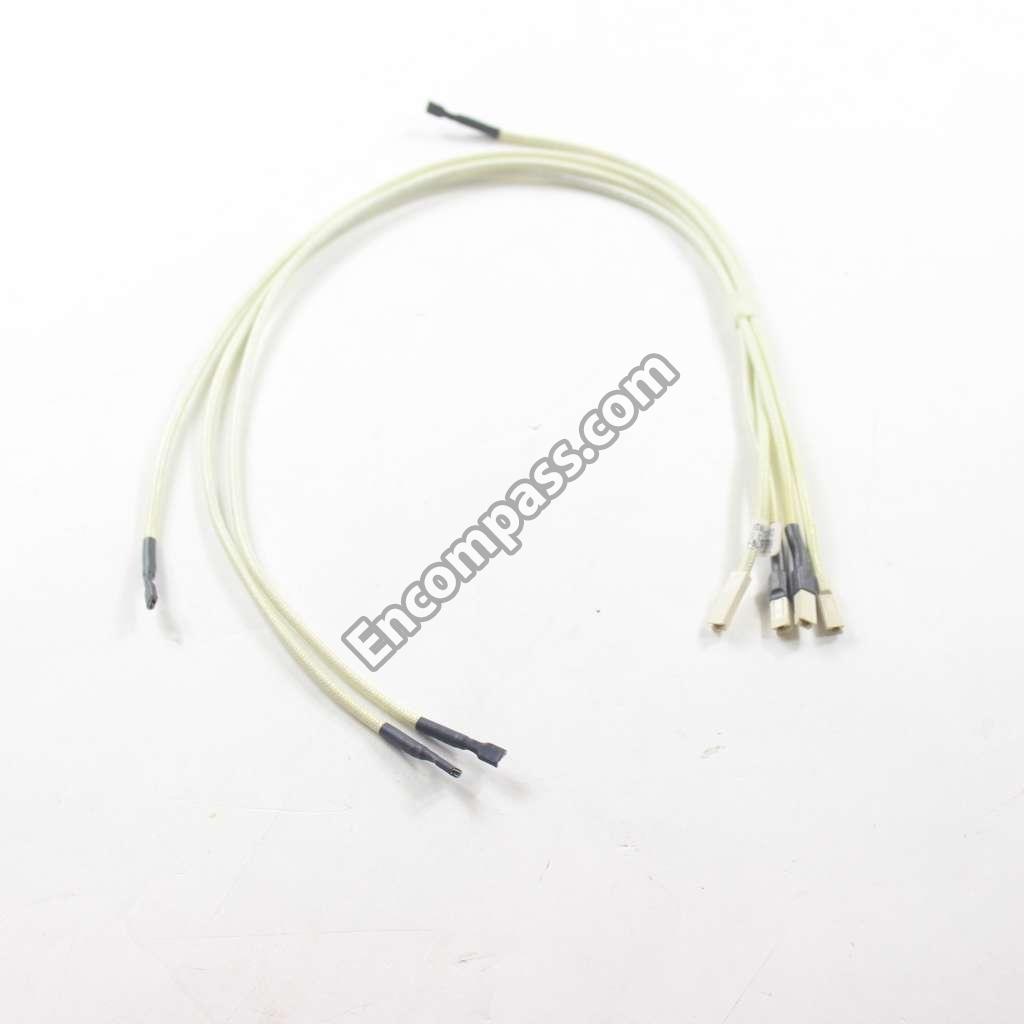

318199776 318199776 WIRING HARNESS
318232659 318232659 WIRING HARNESS
