Model Image
Manufacturer

Electrolux

Model Number

FFGS3025PSA

Description

Gas Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316401301 316401301 BAFFLE
139005100 139005100 BAFFLE,BAKE BURNER
318568200 318568200 BOX
318568201 318568201 BOX
139004700 139004700 BOX,OVEN BURNER
139021100 139021100 BRACKET
318262810 318262810 BRACKET
318579001 318579001 BRACKET
318291900 318291900 BRACKET
318298410 318298410 BRACKET
318298600 318298600 BRACKET
318242702 318242702 BRACKET
318370602 318370602 BRACKET
318382301 318382301 BRACKET
316438200 316438200 BURNER
316438600 316438600 BURNER
316558300 316558300 BURNER
139007100 139007100 BURNER,BROIL
318233400 318233400 BUSHING
318018100 318018100 CHANNEL
318018101 318018101 CHANNEL

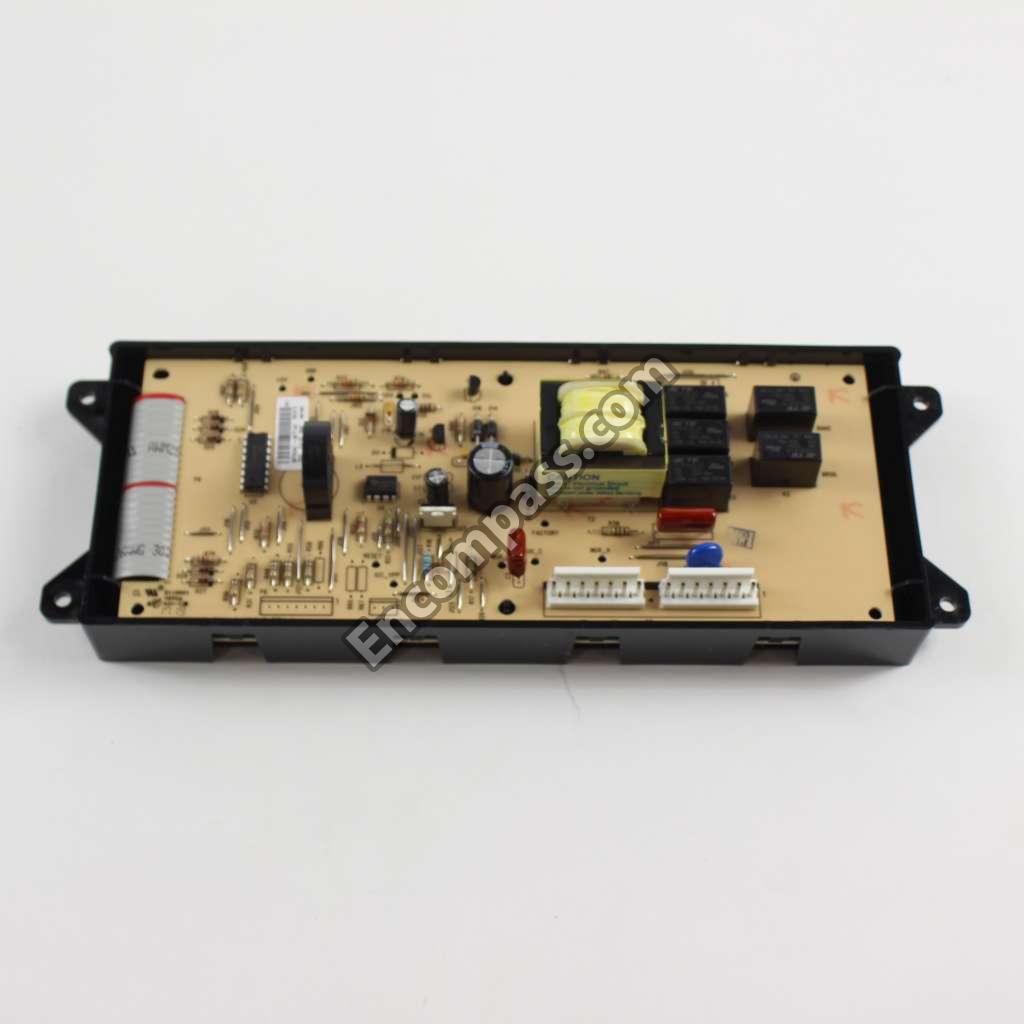

316557141 316557141 CLOCK/TIMER,ELECTRONIC,ES300
318299102 318299102 CONSOLE
139038864 139038864 CONTROL PANEL ASSEMBLY,STEEL/G
318565404 318565404 CONVERSION KIT
139075001 139075001 COVER
316283600 316283600 COVER
318308303 318308303 COVER
318291102 318291102 COVER
318262104 318262104 COVER
139099607 139099607 DOOR ASSEMBLY
139078100 139078100 DUCT,COOLING FAN,BOTTOM
139078000 139078000 DUCT,COOLING FAN,TOP
316409703 316409703 ELBOW
139074901 139074901 FRAME
318298230 318298230 FRAME
318335600 318335600 FRAME & WHEEL ASSEM
318223900 318223900 GASKET
316446400 316446400 GLASS
316117502 316117502 GLASS
318560470 318560470 GRATE
807704601 807704601 HARNESS,WIRING,MAIN
808041201 808041201 HARNESS,WIRING,OVEN IGNITORS
139013700 139013700 IGNITOR,BAKE BURNER
139013701 139013701 IGNITOR,BROIL BURNER
316543206 316543206 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316540700 316540700 IGNITOR/ORIFICE ASS
318126401 318126401 INSERT
318594401 318594401 INSULATION
318372017 318372017 INSULATION
318372016 318372016 INSULATION,DOOR
139011000 139011000 INSULATION,OVEN BACK
139010900 139010900 INSULATION,WRAPPER,TOP & SIDES
5304486410 5304486410 KIT
316543812 316543812 KNOB
316483100 316483100 LABEL
139009000 139009000 LAMP ASSEMBLY
139000410 139000410 LINER
318569262 318569262 MAINTOP ASSEMBLY
318305601 318305601 MANIFOLD
318305600 318305600 MANIFOLD
318575612 318575612 MOTOR
318233800 318233800 NUT
5303013272 5303013272 NUT
316527504 316527504 ORIFICE
316527513 316527513 ORIFICE
316419141 316419141 OVERLAY
318138801 318138801 PAN
139017302 139017302 PANEL
139004600 139004600 PANEL
318224402 318224402 PANEL
318225231 318225231 PANEL
318225230 318225230 PANEL
318289401 318289401 PANEL
318296905 318296905 PANEL
318296904 318296904 PANEL
318287800 318287800 PANEL
318578803 318578803 PANEL
318295611 318295611 PANEL
318298812 318298812 PANEL
139005001 139005001 PANEL,OVEN BOTTOM
139004100 139004100 PANEL,REINFORCEMENT,(2)
139011800 139011800 RACK
318561101 318561101 RECEPTACLE
318233720 318233720 RETAINER
316021105 316021105 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316418901 316418901 SCREW
316215600 316215600 SCREW
316418900 316418900 SCREW
316001003 316001003 SCREW
3131732 3131732 SCREW
5303289910 5303289910 SCREW
5303324184 5303324184 SCREW
5303311174 5303311174 SCREW
316240600 316240600 SCREW,HEX WASH,6-32 X .485
316260800 316260800 SCREWSHOULDER
318291300 318291300 SEAL
807545502 807545502 SEAL
318562500 318562500 SENSOR
139000600 139000600 SHIELD
139014000 139014000 SHIELD
139004800 139004800 SHIELD,HEAT,LOWER
318531701 318531701 SPACER
316517600 316517600 SPACER
318165800 318165800 SPACER
318574701 318574701 SUPPORT
139008300 139008300 SUPPORT,PANEL,FLUE
316445501 316445501 SWITCH
807144901 807144901 THERMOSTAT
139014401 139014401 TRIM
318916501 318916501 TUBE
318916701 318916701 TUBE
318289500 318289500 TUBE
318305110 318305110 TUBE
318305410 318305410 TUBE
139009500 139009500 TUBE,BROIL SUPPLY
316031501 316031501 VALVE
318233900 318233900 VALVE
318233910 318233910 VALVE
318233930 318233930 VALVE
318591200 318591200 WASHER
318232659 318232659 WIRING HARNESS
318199776 318199776 WIRING HARNESS
