Manufacturer
Electrolux
Model Number
FFGW2426UWB
Description
Wall Oven, Gas, Single, 24 Inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAFFLE, OVEN BURNER |
|
|
BOX, BURNER |
|
|
BRACKET, BODY, MIDDLE |
|
|
BRACKET, COMPARTMENT, FRAME |
|
|
BRACKET, REGULATOR MTG. |
|
|
BRACKET, SUPPORT, CHASSIS/FAN |
|
|
BRACKET, WIRE |
|
|
BRACKET, WIRE SUPPORT |
|
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY |
|
|
BULB, HALOGEN, G9, 25W, 120V |
|
|
BUMPER, FRONT, MAIN |
|
|
BUMPER, RUBBER |
|
|
BURNER, BAKE |
|
|
CONTROL PANEL, ASSEMBLY, WHITE/BLACK, W/OVERLAY |
|
|
CONTROLLER, ELECTRONIC, ES300/305 |
|
|
CORD, POWER, BLACK, 13A |
|
|
COVER, OVEN BOTTOM, BLACK |
|
|
COVER, OVEN TOP, FRONT |
|
|
COVER, WRAPPER, TOP |
|
|
DOOR ASSEMBLY, OUTER, STEEL/GLASS, WHITE |
|
|
DRAWER ASSEMBLY, W/ROLLERS |
|
|
DUCT, COOLING FAN, BOTTOM |
|
|
DUCT, COOLING FAN, TOP |
|
|
ELEMENT, BROIL, 2 PASS |
|
|
FLUE ADAPTOR, ASSEMBLY |
|
|
FLUE ASSEMBLY, Y CHANNEL |
|
|
FRAME, COMPARTMENT, BLACK, FRONT |
|
|
FRAME, COMPARTMENT, GALVANIZED, REAR |
|
|
FRAME, SERVICE PANEL, VALVE |
|
|
GASKET, FLUE ADAPTOR |
|
|
GASKET, FLUE BASE |
|
|
GLASS, DOOR, INNER, HRC2 |
|
|
HANDLE, DOOR, WHITE |
|
|
HARNESS, IGNITOR JUMPER |
|
|
HARNESS, WIRING, MAIN |
|
|
HINGE, OVEN DOOR, BLUE |
|
|
IGNITOR, BURNER, BAKE |
|
|
INSULATION, CAVITY, REAR |
|
|
INSULATION, CONTROL PANEL |
|
|
INSULATION, CONTROL PANEL, (2) |
|
|
INSULATION, DOOR |
|
|
INSULATION, DOOR, TOP/BOTTOM |
|
|
INSULATION, FLUE ADAPTOR |
|
|
INSULATION, OVEN WRAPPER |
|
|
LAMP ASSEMBLY, ROUND, HALOGEN |
|
|
LINER, DOOR |
|
|
LINER, DRAWER, BLACK |
|
|
MOTOR |
|
|
MOTOR ASSEMBLY, FAN, NO HE SENSOR |
|
|
NUT, HEX HEAD SEMS |
|
|
OVERLAY, EOC, WHITE, ES330 |
|
|
PANEL, ADJUSTABLE, SIDE, (2) |
|
|
PANEL, BACK COVER |
|
|
PANEL, DRAWER SIDE, (2) |
|
|
PANEL, DRAWER, WHITE, OUTER |
|
|
PANEL, INNER DRAWER, BLACK, FRONT |
|
|
PANEL, LOWER |
|
|
PANEL, MAIN BACK |
|
|
PANEL, VALVE MOUNTING |
|
|
PROBE, TEMP |
|
|
RACK, OVEN, (2) |
|
|
RAIL, DRAWER, LH |
|
|
RAIL, DRAWER, RH |
|
|
RECEPTACLE, HINGE, (2) |
|
|
REGULATOR, PRESSURE, VERTICLE MTG., BYPASS |
|
|
SCREW, 10-14 X 1.920", HANDLE MTG. |
|
|
SCREW, ANTI-TIP, 8 - 5/8, WHITE, (2) |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, PLASTITE, 48 #7-18X12.7, (4) |
|
|
SCREW, SELF TAPPING, 8-18 X 11/32, (4) |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TRILOBE, 10-32 X 5/16", BLACK |
|
|
SCREW, TRUSS HD, #10-14 X .591", HANDLE MTG. |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SCREW,8-18 X 5/16 ,BLACK |
|
|
SCREW,W/WASHER ,8-18 |
|
|
SCREW-SHOULDER, W/SHOULDER, #8-18 X 1/2" |
|
|
SCREW`8-18 X 0.5 ,CHROME |
|
|
SEAL, OVEN DOOR |
|
|
SHIELD, CONTROL |
|
|
SHIELD, DOOR SWITCH |
|
|
SHIELD, FLUE INSULATION |
|
|
SHIELD, HEAT, LOWER |
|
|
SHIELD, INSULATION, SIDES, (2) |
|
|
SHIELD, INSULATION, TOP |
|
|
SHIELD, OVEN DOOR, WOOL |
|
|
SHIELD, REAR WIRE |
|
|
SPACER, DOOR GLASS, (2) |
|
|
SPACER, DOOR HANDLE, (2) |
|
|
SPACER, GLASS, FOAM |
|
|
SPACER, OVEN SHIELD, (2) |
|
|
SWITCH,OVEN LIGHT ,DOOR FRAME |
|
|
THERMOSTAT |
|
|
TRIM, BOTTOM, WHITE |
|
|
TRIM, DOOR, BLACK, UPPER |
|
|
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED |
|
|
TRIM, SIDE, WHITE, LH |
|
|
TRIM, SIDE, WHITE, RH |
|
|
TRIM, VENT COVER, BLACK, TOP |
|
|
TRIM, VENT, BLACK, CONTROL PANEL |
|
|
TRIM, VENT, BLACK, UPPER |
|
|
TUBE, REGULATOR, TO VALVE |
|
|

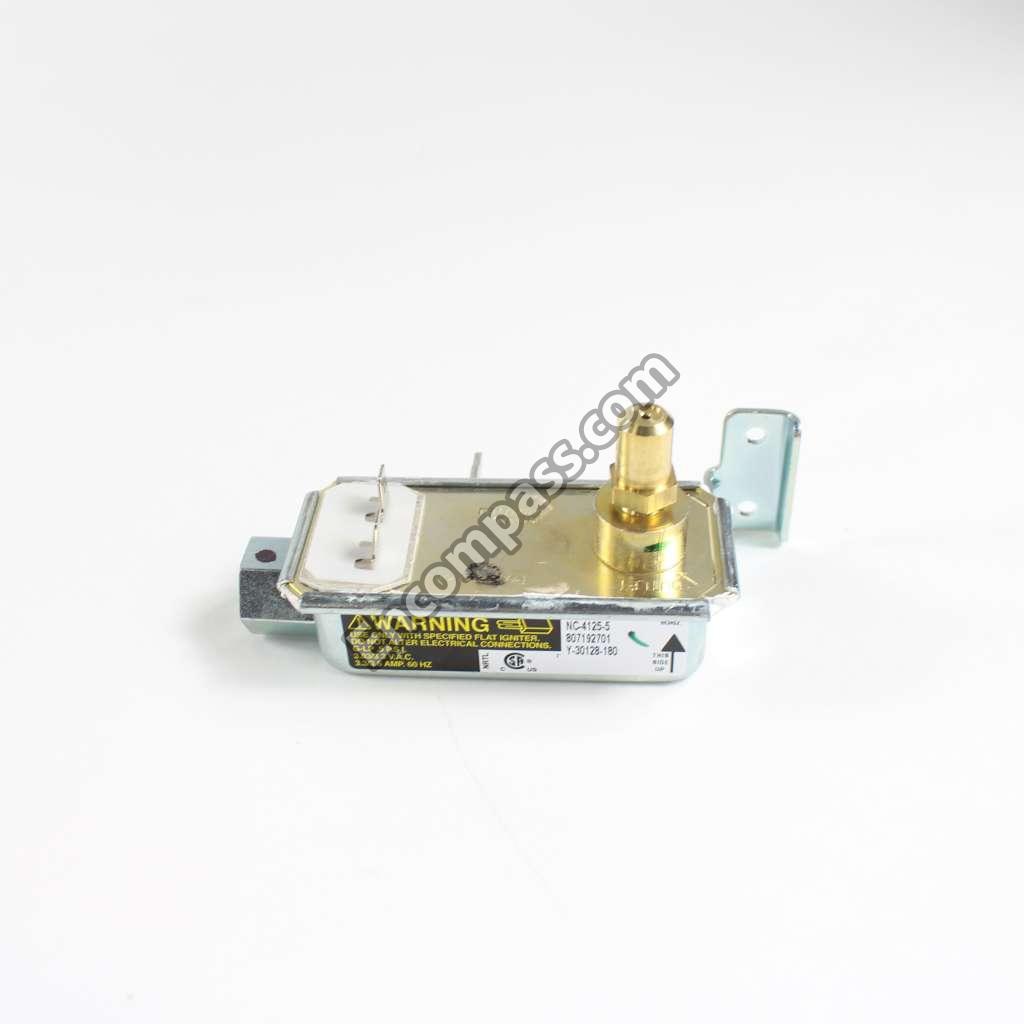

VALVE, SAFETY |
