Model Image
Manufacturer

Electrolux

Model Number

FFHB2740PE9A

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241807605 241807605 BAR
241829001 241829001 BARDRIVE
242136901 242136901 BARTIMING
241602112 241602112 BASECOMPRESSOR
242009602 242009602 BASEWATER FILTER
241780810 241780810 BASKETFRZR
241872201 241872201 BEAMCRISPER COVER
241760401 241760401 BEARING
242071401 242071401 BIN
242071301 242071301 BIN DOOR 2 LITER
242011501 242011501 BIN DOOR GALLON
242011701 242011701 BINDOOR
242079901 242079901 BINDOOR
241639502 241639502 BLADE
241838401 241838401 BLOCKEVAP COIL
241838402 241838402 BLOCKEVAP COIL
240335006 240335006 BOLT-ROLLER ADJ
241778701 241778701 BRACKETANTI TIP
241761301 241761301 BRACKETUPPER HINGE
242068601 242068601 BUMPER
241979602 241979602 BUMPER
242075602 242075602 BUSHING
242075601 242075601 BUSHING
241518301 241518301 BUSHING
242075701 242075701 CAM-LOWER HINGE
241969001 241969001 CAP
241842301 241842301 CAPTHERMISTOR
242122202 242122202 CHANNEL
242122001 242122001 CHANNELSHELF MTG
242122101 242122101 CHANNELSHELF MTG
242122301 242122301 CHANNELSHELF MTG
240396801 240396801 CLAMP-TUBE
241949502 241949502 CLIP
242135301 242135301 CLIP
218515401 218515401 CLIP
242036801 242036801 CLIPPLASTIC
241862903 241862903 CONDENSER
241516901 241516901 CORD-SERVICE
242095002 242095002 COVER
242072101 242072101 COVER
242157501 242157501 COVER
242072002 242072002 COVER
242157801 242157801 COVER
242157601 242157601 COVER
242072201 242072201 COVER
241733902 241733902 COVER
808456301 808456301 COVER,WIRING
241860402 241860402 COVEREVAP COIL
241860601 241860601 COVEREVAPORATOR
241862402 241862402 COVERUPPER HINGE
241778003 241778003 COVERUPPER HINGE
241778004 241778004 COVERUPPER HINGE
241971801 241971801 COVERWIRING
241518501 241518501 DAMPER
241987301 241987301 DEFLECTORAIR
5303918410 5303918410 DEFROST HEATER KIT
242131301 242131301 DIVIDER
242130901 242130901 DIVIDER
241868401 241868401 DOOR STOP
241868402 241868402 DOOR STOP
241987935 241987935 DOORFRZR
242185633 242185633 DOORREFR
242185632 242185632 DOORREFR
242006902 242006902 DUCTAIR
3205266 3205266 EDGE PROTECTOR
242094603 242094603 EVAPORATOR
5303918569 5303918569 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
5308000010 5308000010 FAN BLADE
5303918578 5303918578 GASKET
242095406 242095406 GASKET
5303918784 5303918784 GASKET
241860101 241860101 GASKET
241928201 241928201 GASKETAIR DUCT
241860105 241860105 GASKETCOIL COVER
241860104 241860104 GASKETCOIL COVER
241860112 241860112 GASKETEVAP
241860111 241860111 GASKETEVAP
241860103 241860103 GASKETEVAP
241860102 241860102 GASKETEVAP
242095409 242095409 GASKETEVAP HOUSING
5303918737 5303918737 GASKETEVAP HOUSING
241778303 241778303 GASKETREFR DOOR
242082303 242082303 GLASS
242054802 242054802 GRILL
241929902 241929902 GROMMET
241929901 241929901 GROMMET
218513300 218513300 GROMMET-COMPR MTG
808274201 808274201 GUIDE
242059303 242059303 HANDLEDOOR
242090503 242090503 HANDLEDOOR
5304521784 5304521784 HARNESS
807999001 807999001 HARNESS,WIRING,FREEZER,LED MAI
241510802 241510802 HARNESS-WIRING
241510904 241510904 HARNESSDISPENSER
241969202 241969202 HARNESSWIRING
242061606 242061606 HARNESSWIRING
241788401 241788401 HARNESSWIRING
242094802 242094802 HEATERDEFROST
241779401 241779401 HINGE
241779801 241779801 HINGEMULLION
242291002 242291002 HOUSING
242095702 242095702 HOUSINGAIR HANDLER
241983816 241983816 HOUSINGWATER FILTR
242093006 242093006 ICE CONTAINER ASSEMBLY

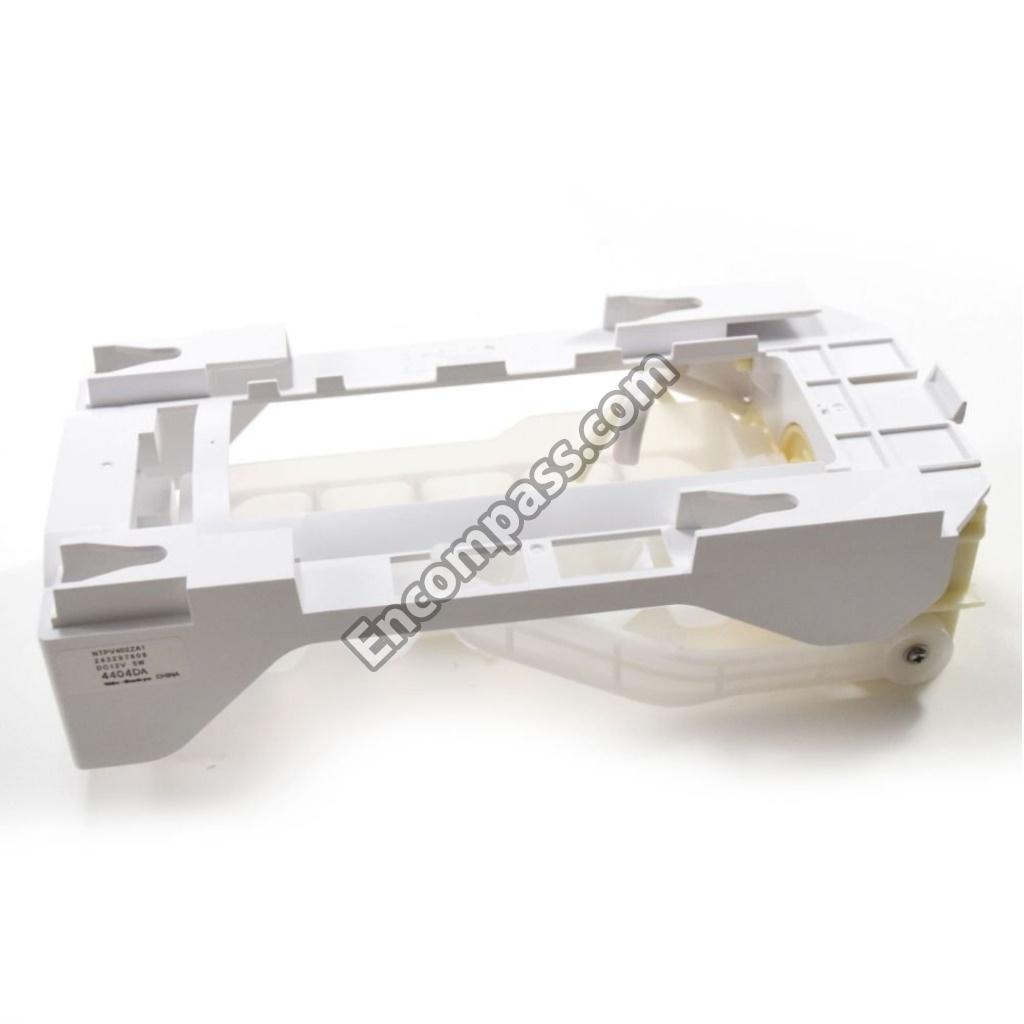

243297609 243297609 ICE MAKER ASSEMBLY
242253002 242253002 ICE MAKER WATER VALVE
242096001 242096001 INSULATION
242072401 242072401 INSULATION
242072501 242072501 INSULATION
242004802 242004802 INSULATIONAIR DUCT
5304512686 5304512686 INVERTOR
5304517886 5304517886 LIGHT BULB
241779101 241779101 MAGNET
241812202 241812202 MAGNET
242270102 242270102 MODULE
241816602 241816602 MOTOR AUGER THREADS ARE LEFT H
242018304 242018304 MOTORCONDENSER FAN
241998302 241998302 MOUNTWATER FILTER
242190501 242190501 MULLION
241778808 241778808 MULLION HEATER
241801801 241801801 PAN-CRISPER
241920606 241920606 PANDEFROST
242095501 242095501 PINANTI TWIST BUCK
242011101 242011101 PINLOCK
240494001 240494001 PLUG-BUTTON
241752703 241752703 RETAINER
242216301 242216301 RETAINERBASKET
5304455655 5304455655 RIVET
242236801 242236801 ROLLER
240335202 240335202 ROLLER
242010901 242010901 ROLLER ASSEMBLY
241953904 241953904 SCREW
241853202 241853202 SCREW
242025601 242025601 SCREW
134549700 134549700 SCREW
5304455650 5304455650 SCREW
242017501 242017501 SCREW
240451503 240451503 SCREW
242146401 242146401 SCREW
242039702 242039702 SCREW
242015001 242015001 SCREW
242039701 242039701 SCREW
241953901 241953901 SCREW
5304515677 5304515677 SCREW
241690602 241690602 SCREW
240383412 240383412 SCREW
241695904 241695904 SCREW
218362501 218362501 SCREW
241732101 241732101 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
218252201 218252201 SCREW
240383407 240383407 SCREW
241641502 241641502 SCREW
241695906 241695906 SCREW
241701902 241701902 SCREW DRIVER
240555004 240555004 SCREW#832 X 3/8 B
240442706 240442706 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
241518601 241518601 SEAL-DAMPER
240597203 240597203 SENSOR
241971304 241971304 SHEILD
242068703 242068703 SHELF
242068702 242068702 SHELF
242118001 242118001 SHIELD
242072704 242072704 SHIELD-LIGHT,REFR
241971601 241971601 SHIELDLIGHT
241971202 241971202 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN
242197901 242197901 SLIDE

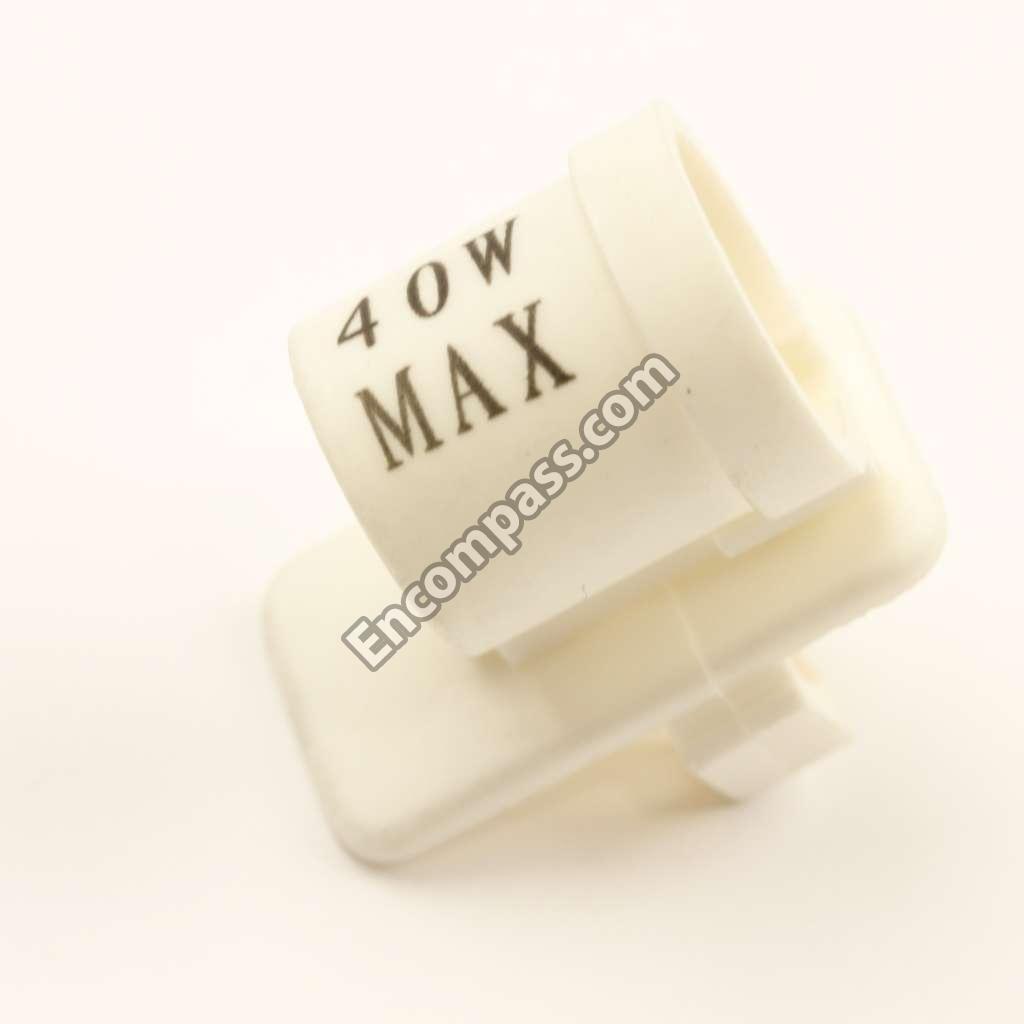

240590403 240590403 SOCKETLIGHT
241947701 241947701 SPACER
241868201 241868201 SPACER
241868202 241868202 SPACER
240409302 240409302 SPACER-COND TUBE
242139201 242139201 SPRINGCOMPRESSION
5308000110 5308000110 STRAP-EVAP/HEATER
242176502 242176502 SUMP
242071201 242071201 SUMP
242067901 242067901 SUPPORT
242067801 242067801 SUPPORT
242082401 242082401 SUPPORT
242072601 242072601 SUPPORT
807854301 807854301 SUPPORT,HOUSING,MAIN BOARD
242139301 242139301 SUPPORTBEAM
241872203 241872203 SUPPORTBEAM
241835502 241835502 SWITCHLIGHT
242060202 242060202 SWITCHLIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
808137001 808137001 THERMISTOR,DEFROST TEMP
5304521781 5304521781 THERMOSTAT,DEFROST SAFETY
242161202 242161202 TRIMCABINET CORNER
242176402 242176402 TRIMFACADE
241791201 241791201 TROUGHDRAIN
242220204 242220204 TUBE-WATER INLET
241871501 241871501 TUBECONNECTOR
215346900 215346900 TUBEPROCESS
241964707 241964707 TUBEWATER
241965906 241965906 TUBEWATER
218976436 218976436 TUBEWATER

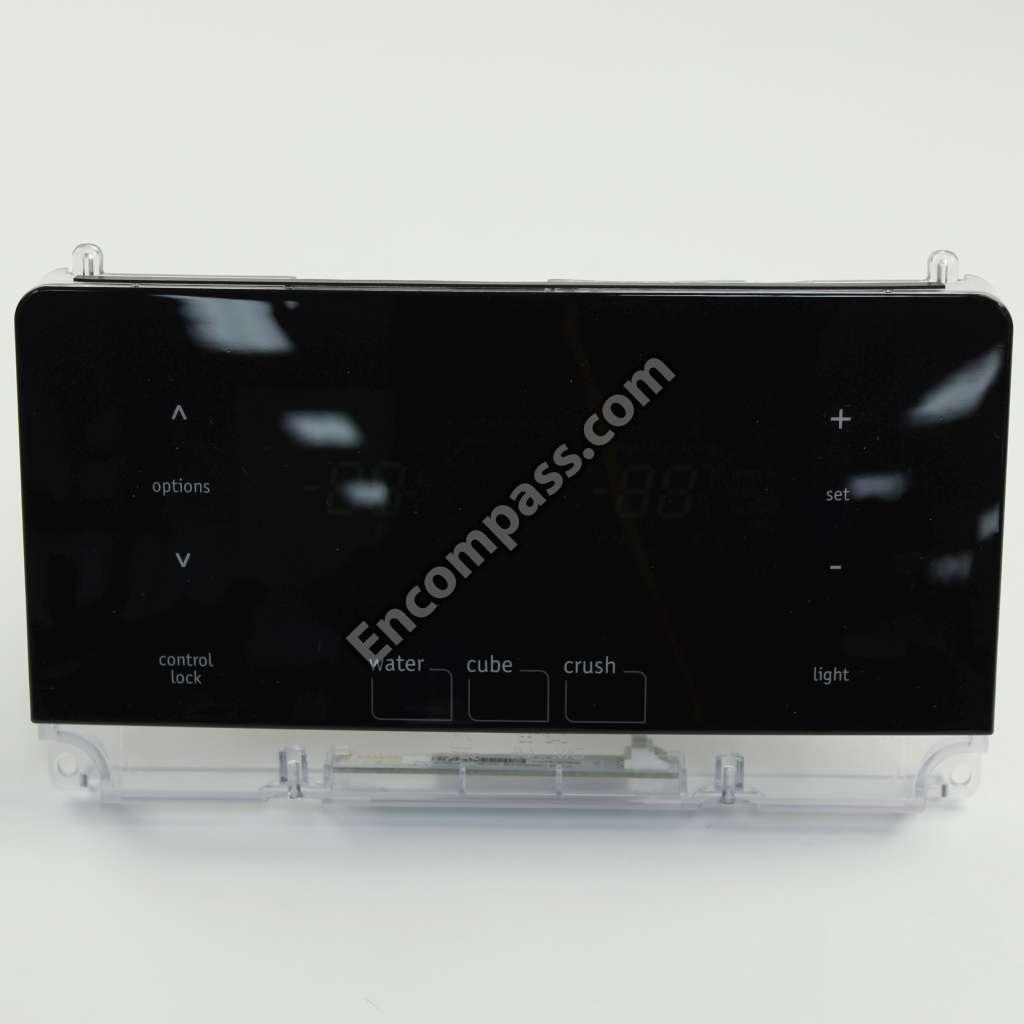

242058229 242058229 USER INTERFACE
241868301 241868301 WASHER
215474201 215474201 WASHER
241812301 241812301 WASHERCOMPR MTG
ULTRAWF ULTRAWF WATER FILTER
5304467131 5304467131 WRENCH
