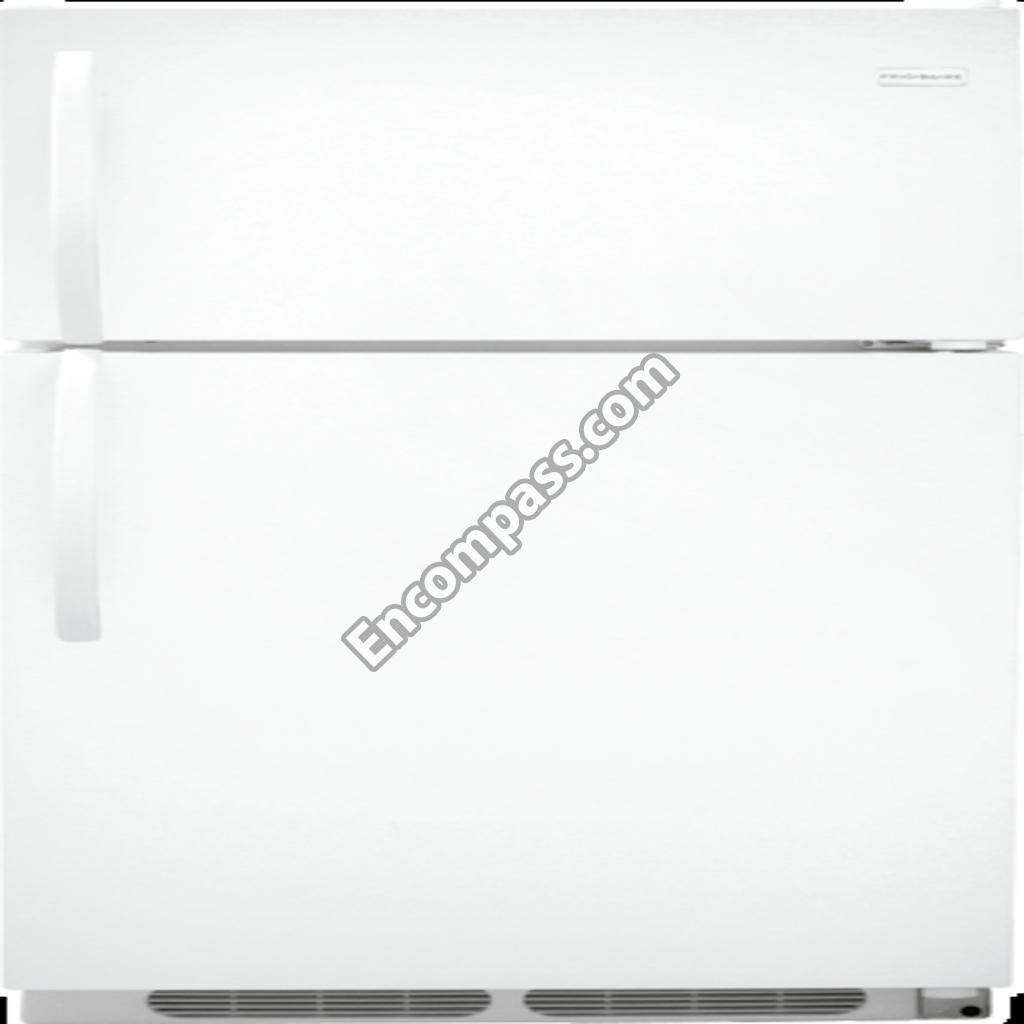

Model Image
Manufacturer

Electrolux

Model Number

FFHT1521QW2

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241665605 241665605 BASECOMPRESSOR
240527101 240527101 BEARING-HINGE
242238301 242238301 BLOCK,EVAPORATOR,LH
242238401 242238401 BLOCK,EVAPORATOR,RH
240313802 240313802 BRACKET-CTR HINGE
241555401 241555401 BULB-LAMP
297286803 297286803 CAPACITORRUN
240396801 240396801 CLAMP-TUBE
5304456288 5304456288 CLAMP-WIRING HARNES
216954300 216954300 CLIP
218515401 218515401 CLIP
240542601 240542601 CLIP-WIRING HARNESS
242037701 242037701 CLIPCOMPRESSOR MTG
241785404 241785404 CONDENSER
242216701 242216701 CONTROL BOX
241613502 241613502 CONTROL-HUMIDITY
241613501 241613501 CONTROL-HUMIDITY
241733906 241733906 COVER ACCESS
242249201 242249201 COVER,CONNECTION,ICE MAKER
242229804 242229804 COVER,EVAPORATOR COIL
240354401 240354401 COVER-UPPER HINGE
242213901 242213901 DEFLECTOR
242228801 242228801 DIFFUSER
240535101 240535101 DOOR RACK FOR REFRIGERATOR
240312414 240312414 DOOR STOP
240312403 240312403 DOOR STOP
240337712 240337712 DOOR-DAIRY
242190201 242190201 DRYER-FILTER,W/PROCESS TUBE
5303918275 5303918275 EVAPORATOR KIT
242219302 242219302 FAN BLADE,EVAPORATOR
240372404 240372404 FRAME
240372401 240372401 FRAME
807460007 807460007 FREEZER DOOR,COMPLETE,WHITE
242240601 242240601 GASKET
242193202 242193202 GASKET-DOOR,WHITE
242193201 242193201 GASKETFRZR DOOR
242087903 242087903 GLASS-SHELF,CRISPER COVER,FULL
240368301 240368301 GRILLE/KICKPLATE
240405201 240405201 GROMMET
242237301 242237301 GROMMET,EVAPORATOR FAN,FRONT
242287501 242287501 GROMMET,EVAPORATOR FAN,REAR
240530601 240530601 HANGER
242213801 242213801 HARNESS ASSEMBLY
242019701 242019701 HARNESSWIRING
242044019 242044019 HEATERDEFROST
242217001 242217001 KNOB,COLD CONTROL
240364503 240364503 PAN
240530811 240530811 PAN-MEAT
240350619 240350619 PANEL
240516502 240516502 PIN-LOWER HINGE
215774901 215774901 PLUG-BUTTON
240381301 240381301 PLUG-BUTTON
240494001 240494001 PLUG-BUTTON
241586701 241586701 PLUG-FOAM-WTR-INLET
240535201 240535201 RACK-DOOR
240535001 240535001 RACK-DOOR
240535301 240535301 RACK-DOOR
807460108 807460108 REFRIGERATOR DOOR,COMPLETE,WHI
5304497413 5304497413 RING,LOCKING,(2)
5304455655 5304455655 RIVET
240335202 240335202 ROLLER
241889002 241889002 ROLLER ASSEMBLY
240569202 240569202 SCREW
218843801 218843801 SCREW
215005101 215005101 SCREW
241710601 241710601 SCREW
241500304 241500304 SCREW
218252201 218252201 SCREW
240383406 240383406 SCREW
240521303 240521303 SCREW
240433204 240433204 SCREW
215503203 215503203 SCREW
5304455650 5304455650 SCREW
241953901 241953901 SCREW
240442708 240442708 SCREW#1032 X 3/4
240578904 240578904 SCREW,HEX HEAD,1/4-20 X 5/8
240359403 240359403 SCREW-FAN SHROUD
240597203 240597203 SENSOR
240358007 240358007 SHELF-FREEZER FW
242228701 242228701 SHIELD
242320401 242320401 SHIELD
242050601 242050601 SHROUD
242229301 242229301 SHROUD BRACKET,EVAPORATOR FAN
5303299664 5303299664 SPACER
240336802 240336802 SPACER-HINGE
241705801 241705801 SPACERSHELF
297259505 297259505 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
240530701 240530701 SUPPORT
241554901 241554901 SWITCH-LIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
240357703 240357703 TRIM
240561501 240561501 TRIM-SHELF
242161201 242161201 TRIMCABINET CORNER
241801302 241801302 TROUGHDRAIN
240500801 240500801 TUBE-DRAIN
241856903 241856903 TUBECONNECTOR
240311303 240311303 WASHER
241812301 241812301 WASHERCOMPR MTG
