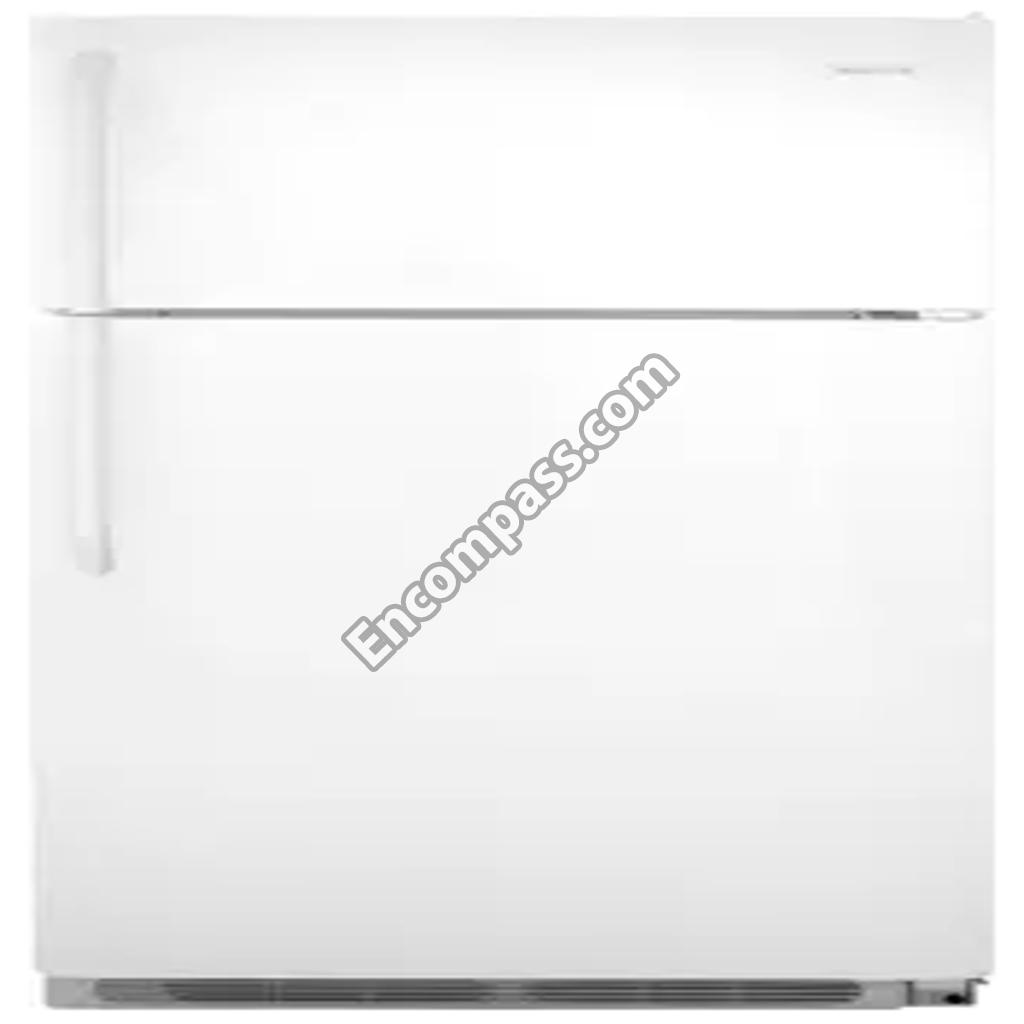

Manufacturer
Electrolux
Model Number
FFHT1814QW1
Description
Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BEARING-HINGE |
|
|
BLOCK,EVAPORATOR,LH |
|
|
BLOCK,EVAPORATOR,RH |
|
|
BRACKET-CTR HINGE |
|
|
BULB-LAMP |
|
|
CAPACITORRUN |
|
|
CLAMP-TUBE |
|
|
CLAMP-WIRING HARNES |
|
|
CLIP |
|
|
CLIP |
|
|
CLIP-WIRE |
|
|
CLIP-WIRING HARNESS |
|
|
CLIPCOMPRESSOR MTG |
|
|
COMPRESSOR |
|
|
CONTROL BOX |
|
|
CONTROL-HUMIDITY |
|
|
CONTROL-HUMIDITY |
|
|
COVER,CONNECTION,ICE MAKER |
|
|
COVER-ACCESS,W/LABEL |
|
|
COVER-UPPER HINGE |
|
|
COVERCRISPER PAN |
|
|
DOOR STOP |
|
|
DOOR STOP |
|
|
DOOR-DAIRY |
|
|
DOOR-FRZR |
|
|
DOOR-REFR |
|
|
DRYER-FILTER,W/PROCESS TUBE |
|
|
EVAPORATOR KIT |
|
|
FAN BLADE,EVAPORATOR |
|
|
GASKET,AIR DIFFUSER |
|
|
GASKET-FRZR DOOR,WHITE,MAGNETI |
|
|
GASKET-FRZR DOOR,WHITE,MAGNETI |
|
|
GRILLE/KICKPLATE |
|
|
GROMMET |
|
|
GROMMET,EVAPORATOR FAN,FRONT |
|
|
GROMMET,EVAPORATOR FAN,REAR |
|
|
GROMMET-COMPR MTG |
|
|
HARNESS,WIRING,FREEZER SECTION |
|
|
HARNESSWIRING |
|
|
HEATERDEFROST |
|
|
INSERT-PAN COVER |
|
|
KNOB,COLD CONTROL |
|
|
MOTORCONDENSER FAN |
|
|
PAN-CRISPER |
|
|
PANDEFROST |
|
|
PIN-LOWER HINGE |
|
|
PLUG-BUTTON |
|
|
PLUG-BUTTON |
|
|
PLUG-BUTTON |
|
|
PLUG-FOAM-WTR-INLET |
|
|
RACK-DOOR |
|
|
RACK-DOOR |
|
|
REFRIG DOOR SHELF RACK BAR |
|
|
RING,LOCKING,(2) |
|
|
RIVET |
|
|
ROLLER |
|
|
S/APUR COMPR BASE |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW#1032 X 3/4 |
|
|
SCREW,HEX HEAD,1/4-20 X 5/8 |
|
|
SCREW-FAN SHROUD |
|
|
SENSOR |
|
|
SHELF,FREEZER,FULL-WIDTH,WIRE |
|
|
SHELF-SLIDING 18 |
|
|
SHIELD |
|
|
SHROUD |
|
|
SHROUD BRACKET,EVAPORATOR FAN |
|
|
SPACER-HINGE |
|
|
SPACERSHELF |
|
|
STARTER |
|
|
STRAP-EVAP/HEATER |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPE-FOAM SEAL |
|
|
TRIMCABINET CORNER |
|
|
TROUGH-DRAIN |
|
|
TUBE-DRAIN |
|
|
TUBECONNECTOR |
|
|
WASHER |
|
|
WASHERCOMPR MTG |
