Manufacturer
Electrolux
Model Number
FFHT2033VE3
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BADGE, FRIGIDAIRE, BLACK |
|
|
BASE-COMPRESSOR |
|
|
BEARING-HINGE, BLACK, (8) |
|
|
BIN, DOOR, LOWER, PSEUDO |
|
|
BIN, DOOR, MIDDLE, PSEUDO |
|
|
BIN, DOOR, UPPER, PSEUDO |
|
|
BIN-DOOR, PSEUDO, FRZR |
|
|
BLACK HANDLE KIT |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BLADE-CONDENSER FAN |
|
|
BLOCK, EVAPORATOR, LH |
|
|
BLOCK, EVAPORATOR, RH |
|
|
BRACKET-CTR HINGE, BLACK |
|
|
BRACKET-LOWER HINGE,ZINC |
|
|
BRACKET-UPPER HINGE |
|
|
BUTTON, PLUG, BLACK |
|
|
BUTTON, PLUG, BLACK, HINGE BRG HOLE |
|
|
BUTTON, PLUG, WHITE |
|
|
CAPACITOR-RUN |
|
|
CLAMP |
|
|
CLAMP, ELEC CONT MTG, COMPRESSOR |
|
|
CLIP, GRILLE/TUBE, & HINGE |
|
|
CLIP, WIRE/TUBE |
|
|
CLIP-COMPRESSOR MTG |
|
|
CLIP-WIRING HARNESS |
|
|
COMPRESSOR W DRAIN |
|
|
CONDENSER, W/OUT GROMMETS |
|
|
CONTROL BOX HOUSING |
|
|
CONTROL BOX, ASSEMBLY, COMPLETE, W/BOARD & HARNS |
|
|
CONTROL BOX, ASSEMBLY, COMPLETE, W/BOARD & HARNS |
|
|
CONTROL-HUMIDITY, LH |
|
|
CONTROL-HUMIDITY, RH |
|
|
COVER ASSEMBLY, FAN, W/DAMPER-KNOB |
|
|
COVER, CONNECTION, ICE MAKER |
|
|
COVER, EVAPORATOR COIL, 21' |
|
|
COVER-ACCESS, W/LABEL |
|
|
COVER-CRISPER PAN |
|
|
COVER-UPPER HINGE, BLACK |
|
|
DIFFUSER KIT |
|
|
DOOR STOP, BLACK, FRZR |
|
|
DOOR STOP, BLACK, REF |
|
|
DOOR, FREEZER, BLACK, COMPLETE ASSY |
|
|

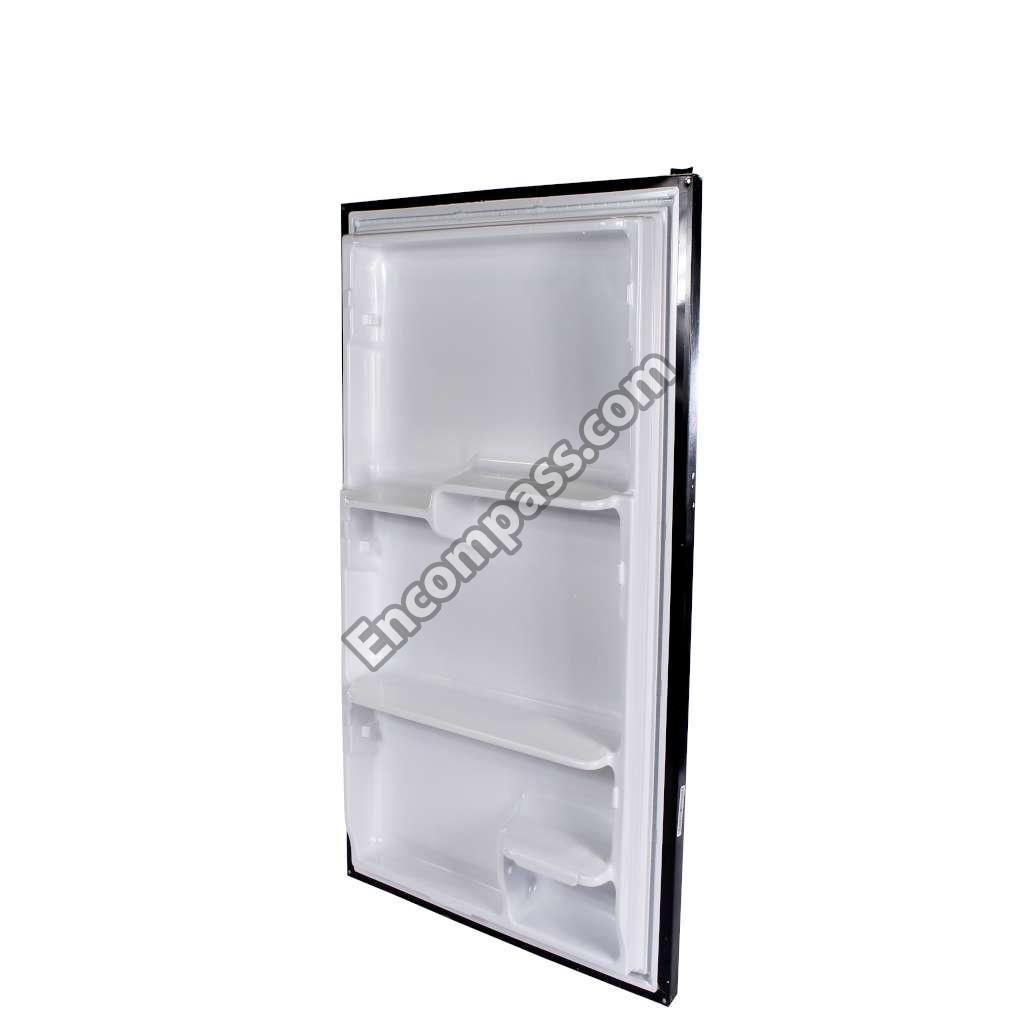

DOOR, REFRIGERATOR, BLACK, COMPLETE ASSY |
|
|
DOOR-DAIRY |
|
|
DRIER-FILTER,R12 & R134A |
|
|
EVAPORATOR KIT |
|
|
FAN COVER & DAMPER ASMY 18' |
|
|
GASKET, AIR DIFFUSER |
|
|
GASKET-FRZR DOOR, BLACK, MAGNETIC |
|
|
GASKET-REFR DOOR, BLACK, MAGNETIC |
|
|
GRILLE/KICKPLATE, BLACK |
|
|
GROMMET, EVAPORATOR FAN, FRONT |
|
|
GROMMET, EVAPORATOR FAN, REAR |
|
|
GROMMET, RUBBER, BLACK, 23 # |
|
|
GROMMET, SHELF MTG |
|
|
GROMMET-COMPR MTG, (4) |
|
|
HARNESS,WIRING,FREEZER SECTION |
|
|
HARNESS-WIRING,MACHINE COMPT |
|
|
HEATER-DEFROST |
|
|
INSERT-PAN COVER, GLASS |
|
|
KNOB, COLD CONTROL |
|
|
KNOB, SLIDING, DAMPER |
|
|
LIGHT BULB, LED |
|
|
MOTOR, BLOWER, EVAP FAN |
|
|
MOTOR-CONDENSER FAN |
|
|
PAN, CRISPER, (2) |
|
|
PAN-DEFROST |
|
|
PAN-MEAT,W/O GRAPHICS ,CLEAR |
|
|
PIN-CENTER HINGE |
|
|
PIN-LOWER HINGE |
|
|
PLUG, BUTTON, BLACK, UPR HINGE HOLES |
|
|
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET |
|
|
RING, LOCKING, (2) |
|
|
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN |
|
|
ROLLER ASSY, FRONT, (2) |
|
|
ROLLER, COMPRESSOR BASE, REAR |
|
|
SCREW, #10-16 X 1/2 |
|
|
SCREW, #8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, HEX HEAD, 1/4-20 X 5/8 |
|
|
SCREW, HEX HEAD, 10-32 X 0.500 |
|
|
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 |
|
|
SCREW,CONTROL MTG. |
|
|
SCREW,KIT FOUR SCREWS |
|
|
SCREW-#10-32 X 3/4, BLACK |
|
|
SCREW-#8-32 X 3/8 |
|
|
SCREW-FAN SHROUD, (2) |
|
|
SEAL-COIL COVER |
|
|
SENSOR, TEMPERATURE, 10K, NTC |
|
|
SHELF, FREEZER, WIRE |
|
|
SHELF-``SPILL-SAFE``,SLIDING ,W/PAN HANGER |
|
|
SHIELD, HEAT |
|
|
SHIELD, HEAT, EVAP BLOCK |
|
|
SHROUD BRACKET, EVAPORATOR FAN |
|
|
SHROUD-COND FAN |
|
|
SOCKET-LIGHT |
|
|
SPACER, SHELF/WTR TUBE |
|
|
SPACER-COND TUBE, BLACK |
|
|
SPACER-HINGE, CENTER, WHITE |
|
|
STARTER |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPE, FOAM SEAL, SHROUD |
|
|
TRIM-CABINET CORNER, BLACK, (2) |
|
|
TROUGH-DRAIN |
|
|
TUBE-CONNECTOR,SUCTION |
|
|
WASHER, HINGE, NYLON, (2) |
|
|
WASHER-COMPR MTG |
