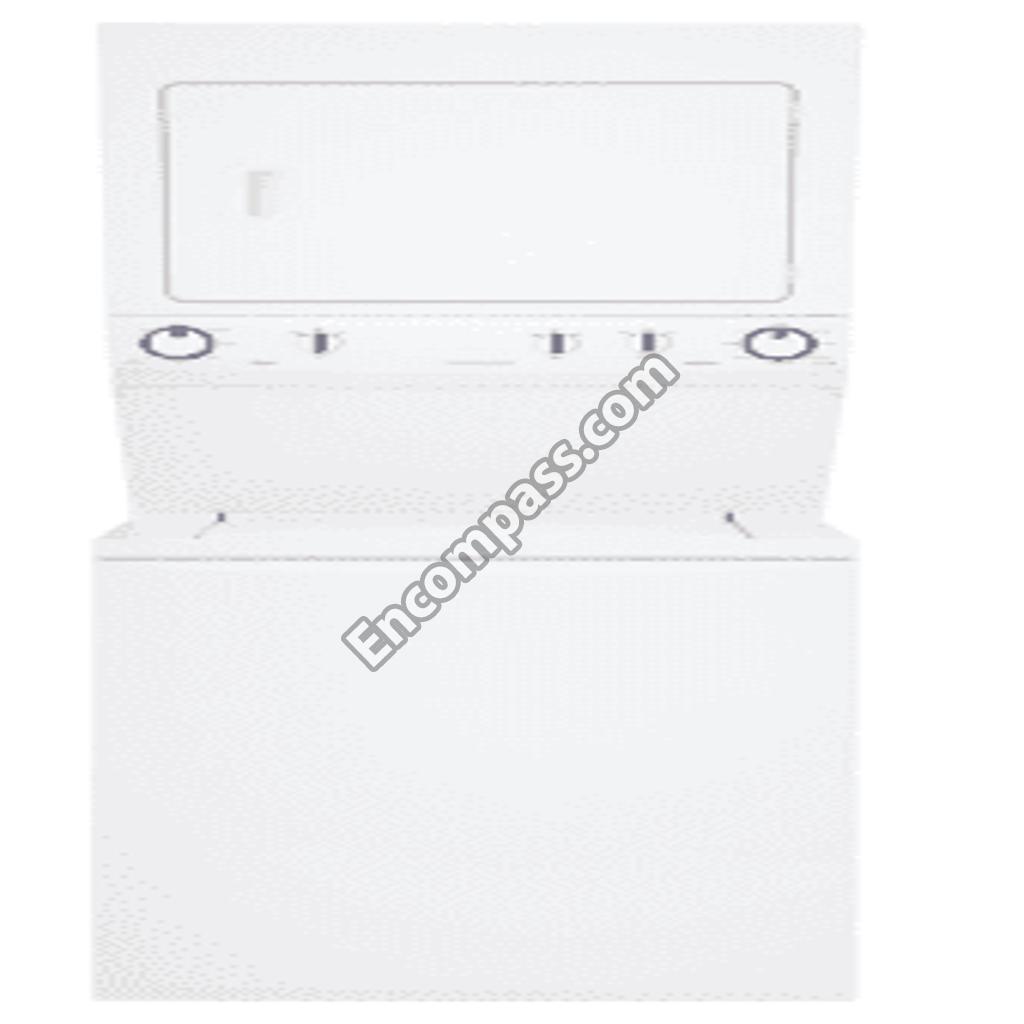

Model Image
Manufacturer

Electrolux

Model Number

FFLG1011MW3

Description

Laundry Center, W/gas Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303281019 5303281019 BALL
137469200 137469200 BASE
137364600 137364600 BASE ASSEMBLY
131825900 131825900 BEARING
137051400 137051400 BELT
137511300 137511300 BLOCK
131476300 131476300 BLOWER WHEEL
5303309493 5303309493 BRACKET
3204326 3204326 BRACKET
131724300 131724300 BRACKET
137304500 137304500 BRACKET
137457100 137457100 BRACKET
134075500 134075500 BUMPER
134197700 134197700 BURNER
131453000 131453000 BUSHING
5304464772 5304464772 CABLE TIE
137193200 137193200 CAP
5304488479 5304488479 CLAMP
134242400 134242400 CLAMP
131306234 131306234 CLAMP
5303309503 5303309503 CLIP
5303281020 5303281020 CLIP
134261300 134261300 CLIP
134745300 134745300 CLIP
134714400 134714400 COLLAR
137518410 137518410 CONSOLE
137466600 137466600 COUNTERWEIGHT
5304488478 5304488478 COVER
137363400 137363400 COVER
137305200 137305200 COVER
131367110 131367110 CRADLE
131663500 131663500 CUSHION
5304488476 5304488476 DISPENSER
131658800 131658800 DOOR CATCH
134122565 134122565 DRUM
3204320 3204320 ELBOW
131362400 131362400 FASTENER
134393700 134393700 GAS DRYER IGNITOR ASSEMBLY
137492200 137492200 GASKET
137513300 137513300 GLIDE
5304488483 5304488483 GROMMET
137272000 137272000 GROMMET
131789400 131789400 HANDLE
137328900 137328900 HARNESS
137156200 137156200 HARNESS
137161400 137161400 HARNESS
137329200 137329200 HARNESS
137303800 137303800 HARNESS
134222900 134222900 HINGE
137470900 137470900 HINGE BAR
137469900 137469900 HINGE BAR
131494800 131494800 HOSE
137308000 137308000 HOSE
134865102 134865102 HOUSING
134611700 134611700 HOUSING
131863100 131863100 IDLER ARM ASSEMBLY
134535300 134535300 INSULATOR
137191300 137191300 KNOB
137489800 137489800 KNOB
137513900 137513900 LEG
5303212872 5303212872 LID
137032600 137032600 LIMITER
137353300 137353300 LOCK
134196600 134196600 MOTOR
137326000 137326000 MOTOR
137469113 137469113 MOTOR CONTROL
131422200 131422200 PAD
5304488480 5304488480 PANEL
137491301 137491301 PANEL
137408403 137408403 PANEL
137510410 137510410 PANEL
137510510 137510510 PANEL
137546910 137546910 PANEL
131883301 131883301 PANEL
137365110 137365110 PANEL
137273201 137273201 PANEL
137190810 137190810 PANEL
137272610 137272610 PANELSIDE LH/RH
3204374 3204374 PIN
137362600 137362600 PIN
131346401 131346401 PIN
137076300 137076300 PIPE
134264800 134264800 PLATE
137510300 137510300 PLATE
137576600 137576600 PLUG
134500500 134500500 POWER CORD
137489000 137489000 PULLEY DRIVE
137491600 137491600 RETAINER
131707800 131707800 RING
134203900 134203900 SCR 6-32X.337 PPH D
5304488469 5304488469 SCREW
3204368 3204368 SCREW
131382300 131382300 SCREW
131202300 131202300 SCREW
131205400 131205400 SCREW
134156200 134156200 SCREW
131168200 131168200 SCREW
131205100 131205100 SCREW
134402900 134402900 SCREW
131205500 131205500 SCREW
137466300 137466300 SCREW
137511100 137511100 SCREW
134160900 134160900 SCREW
131302800 131302800 SCREW
134154100 134154100 SCREW 10-32X.375 CO
137470600 137470600 SCREW 1214X75 QUA
137329800 137329800 SCREW 1224 UNC X
137050600 137050600 SCREW 5/16182A UN
3204490 3204490 SEAL
131295200 131295200 SEAL
131901400 131901400 SEAL
137547700 137547700 SEAL KIT
5303281135 5303281135 SENSOR
137055800 137055800 SENSORPRESSURE
134287300 134287300 SHIELD
131731410 131731410 SHIELD
137419200 137419200 SHIELD
137049800 137049800 SHIELD
137282900 137282900 SHIELD
3204380 3204380 SHIPPING BLOCK
3205241 3205241 SPRING
134890500 134890500 SPRING
137272300 137272300 SPRING
134885900 134885900 SPRING
137513710 137513710 STRIKER
134813600 134813600 SWITCH
137052500 137052500 SWITCH
137493300 137493300 SWITCH
134587700 134587700 THERMISTOR
5304406099 5304406099 THERMOSTAT
137489100 137489100 TRUNNION
137492900 137492900 TUB
131712401 131712401 TUBE
5300771996 5300771996 TUBE-PRESSURE
5303207409 5303207409 VALVE
137353500 137353500 VALVE2 COIL
137494000 137494000 WASH PLATE
137489500 137489500 WASHER
137324300 137324300 WIRING HARNESS
