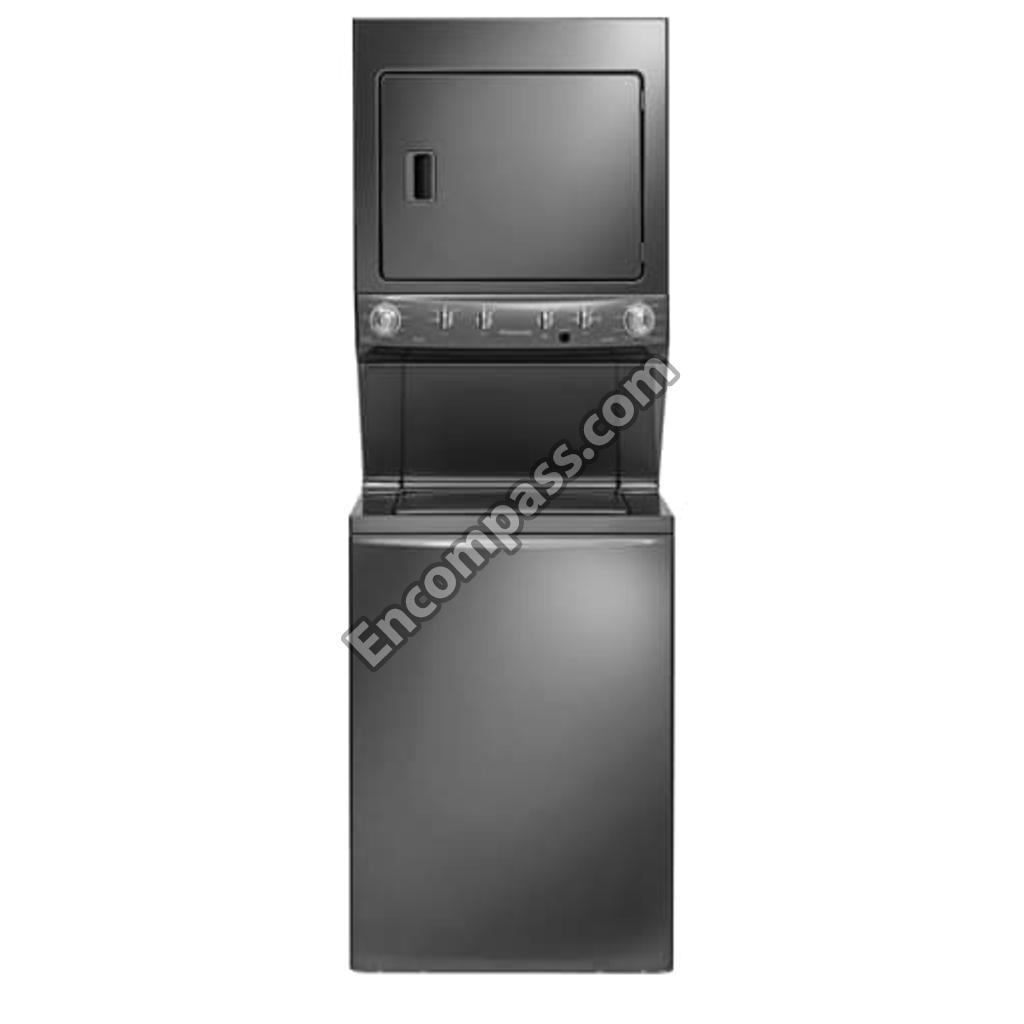

Model Image
Manufacturer

Electrolux

Model Number

FFLG4033QT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304492254 5304492254 ACTUATOR
3204254 3204254 BAFFLE
131825900 131825900 BEARING
137292700 137292700 BELT
137511300 137511300 BLOCK
131476300 131476300 BLOWER WHEEL

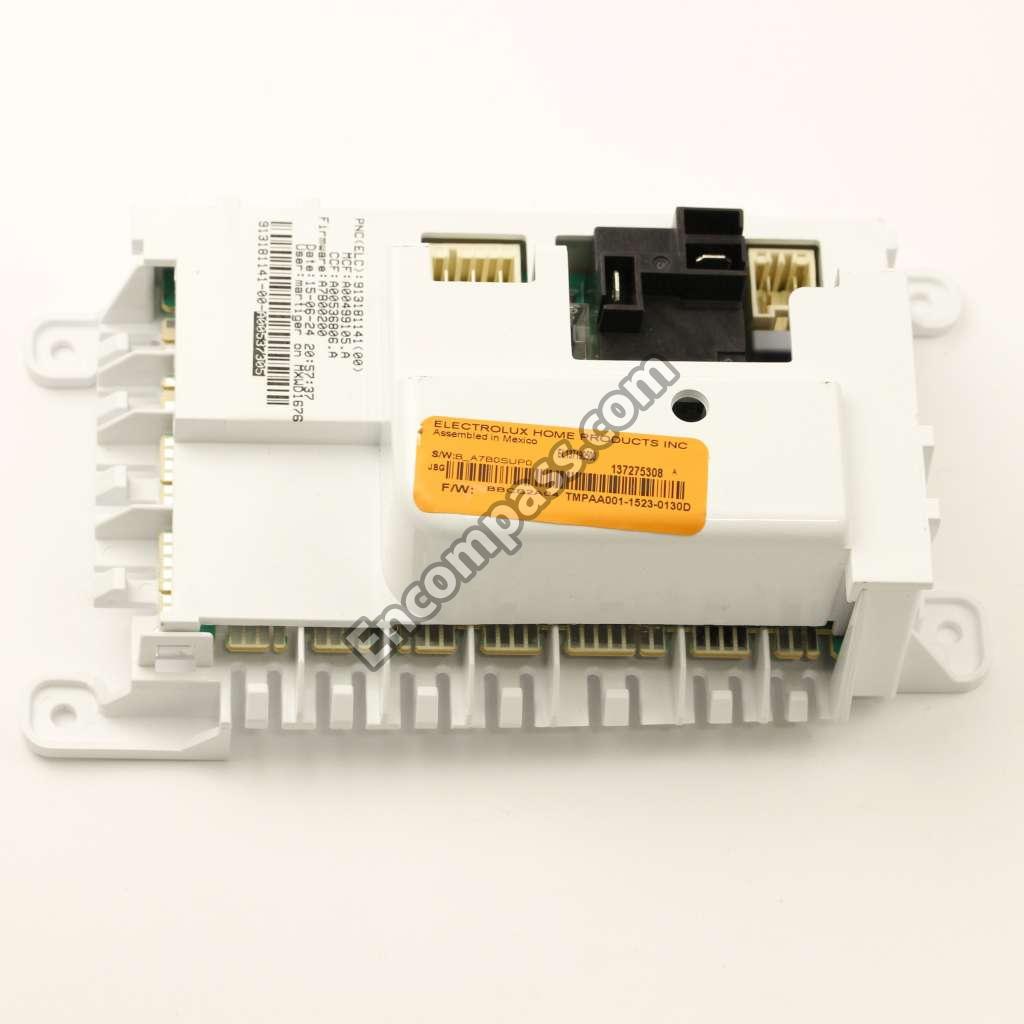

5304500455 5304500455 BOARD
3204326 3204326 BRACKET
5303309493 5303309493 BRACKET
131724300 131724300 BRACKET
134197700 134197700 BURNER
131453000 131453000 BUSHING
5304464772 5304464772 CABLE TIE
131658820 131658820 CATCH
5304488479 5304488479 CLAMP
134242400 134242400 CLAMP
5303309503 5303309503 CLIP
5303281020 5303281020 CLIP
134714400 134714400 COLLAR
5304488478 5304488478 COVER
131367110 131367110 CRADLE
134086301 134086301 DUCT
134393700 134393700 GAS DRYER IGNITOR ASSEMBLY
137513300 137513300 GLIDE
5304488483 5304488483 GROMMET
137352600 137352600 HARNESS
137303800 137303800 HARNESS
134222900 134222900 HINGE
137469900 137469900 HINGE BAR
137470900 137470900 HINGE BAR
134865102 134865102 HOUSING
134611700 134611700 HOUSING
131863100 131863100 IDLER ARM ASSEMBLY
134535300 134535300 INSULATOR
134548800 134548800 LEVELING LEG
137032600 137032600 LIMITER
134196600 134196600 MOTOR
131422200 131422200 PAD
5304488480 5304488480 PANEL
131883301 131883301 PANEL
3204374 3204374 PIN
137362600 137362600 PIN
131346401 131346401 PIN
137076300 137076300 PIPE
134264800 134264800 PLATE
137576600 137576600 PLUG
134500500 134500500 POWER CORD
134203900 134203900 SCR 6-32X.337 PPH D
3204368 3204368 SCREW
3205245 3205245 SCREW
131168200 131168200 SCREW
131382300 131382300 SCREW
131202300 131202300 SCREW
131205400 131205400 SCREW
134156200 134156200 SCREW
131205100 131205100 SCREW
134402900 134402900 SCREW
131205500 131205500 SCREW
134178901 134178901 SCREW
134154100 134154100 SCREW 10-32X.375 CO
137329800 137329800 SCREW 1224 UNC X
3204490 3204490 SEAL
131295200 131295200 SEAL
5303281135 5303281135 SENSOR
134287300 134287300 SHIELD
131731410 131731410 SHIELD
3205241 3205241 SPRING
134890500 134890500 SPRING
134813660 134813660 SWITCH
137205200 137205200 SWITCH
137261000 137261000 SWITCH
137493400 137493400 SWITCH
137052700 137052700 SWITCH
134587700 134587700 THERMISTOR
5304406099 5304406099 THERMOSTAT
131712401 131712401 TUBE
5303207409 5303207409 VALVE
137329400 137329400 WIRING HARNESS
