Manufacturer
Electrolux
Model Number
FFRU20F4VW0
Description
Under Counter Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR TOWER |
|
|
BAFFLE DIVIDER HIGH SIDE UF20 |
|
|
BAFFLE,DRAIN PAN ,AIR BLOCK |
|
|
BASE ASSEMBLY,COMPRESSOR ,W/ROLLERS |
|
|
BASKET,WIRE ,LOWER |
|
|
BEARING,DOOR ,LOWER |
|
|
BEARING,HINGE ,WHITE |
|
|
BULB,LIGHT ,E17/12 LED |
|
|
CAPACITOR,RUN ,10UF |
|
|
CHANNEL,WIRING HARNESS |
|
|
CLAMP COMPRESSOR |
|
|
COMPRESSOR,ASSEMBLY ,TH1114HY ,W/GROMMETS |
|
|
CONDENSER,DYNAMIC |
|
|
CONTROLLER,COMPRESSOR PTC |
|
|
COVER ASSEMBLY,EVAPORATOR ,W/TAPE-SEALS |
|
|
COVER,ELECTRICALS ,COMPRESSOR |
|
|
COVER,HINGE ,WHITE ,LOWER ,NON HINGED |
|
|
COVER,HINGE SIDE ,WHITE ,LOWER |
|
|
COVER,LENS |
|
|
COVER,REED SWITCH |
|
|
COVER,REED SWITCH ,FRONT |
|
|
COVER,UPPER HINGE ,WHITE |
|
|

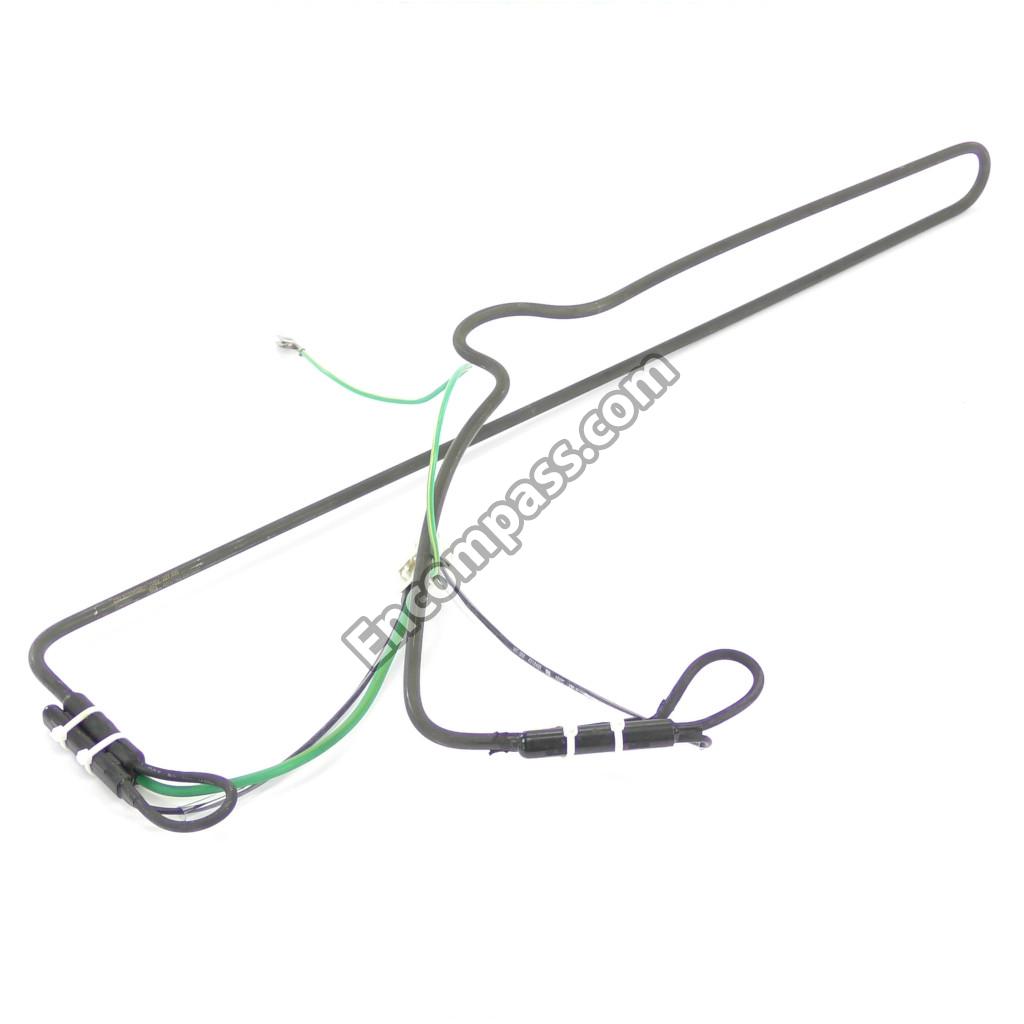

DEFROST HEATER |
|
|
DIVERTER,AIR |
|
|
DOOR |
|
|
DRAIN TUBE |
|
|
EVAPORATOR,COIL |
|
|
FAN ASSEMBLY,CONDENSER ,W/SHROUD-FOAM |
|
|
FAN SEAL & D |
|
|
FREEZER DOOR HANDLE SET SCREW |
|
|
GASKET |
|
|
GROMMET |
|
|
HARNESS ASSEMBLY,TEMP/DEFROST ,W/THERMOSTATS |
|
|
HARNESS W RE |
|
|
HARNESS,JUMPER ,CABINET ,TO DOOR |
|
|
HARNESS,WIRING ,MACHINE COMPT. |
|
|
HINGE,UPPER |
|
|
HINGE-BOTTOM,ASSEMBLY ,LH |
|
|
HINGE-BOTTOM,ASSEMBLY ,RH |
|
|
HOOK,DOOR CLOSER ,WHITE |
|
|
INSTALLATION HANDLE |
|
|
LOCK RING,DRYER OUT |
|
|
LOCK RING,EVAPORATOR IN |
|
|
LOCK RING,EVAPORATOR OUT |
|
|
LOCK RING,JUMPER IN |
|
|
MAGNET |
|
|
MAIN BOARD,ASSEMBLY ,W/HOUSING |
|
|
MOTOR-FAN,EVAPORATOR |
|
|
MOUNT,SOCKET |
|
|
MOUNT-FAN,EVAPORATOR |
|
|
PAN-DRAIN |
|
|
REFRIGERATOR DOOR HANDLE (STAINLESS) |
|
|
REFRIGERATOR DOOR HANDLE SCREW |
|
|
REFRIGERATOR DOOR HOLE PLUG |
|
|
REFRIGERATOR SCREW |
|
|
REFRIGERATOR SCREW |
|
|
REFRIGERATOR STRAP |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW,10-16 TYPE AB |
|
|
SCREW,HEX WSH HD QUAD ,M5 X 16 |
|
|
SCREW,HX WASH HD ,M4.2 X 12 |
|
|
SCREW-HEX WASH HD.,M4.2 X 16 |
|
|
SEAL |
|
|
SEAL,FOAM ,AIR BLOCK |
|
|
SHELF ASSEMBLY,GLASS ,LARGE ,W/TRIM |
|
|
SHELF ASSEMBLY,GLASS ,SMALL ,W/TRIM |
|
|
SHELF,DOOR ,CLEAR |
|
|
SOCKET,LED LIGHT |
|
|
SPACER,ROLLER ,LOWER HINGE |
|
|
SUPPORT,EVAPORATOR |
|
|
SUPPORT,EVAPORATOR ,RH |
|
|
TAPE-FOAM |
|
|
TROUGH-DRAIN |
|
|
TUBE,SUCTION JUMPER |
|
|
USER INTERFACE,ASSEMBLY ,W/PC BOARD |
|
|
WIRING CLAMP |
