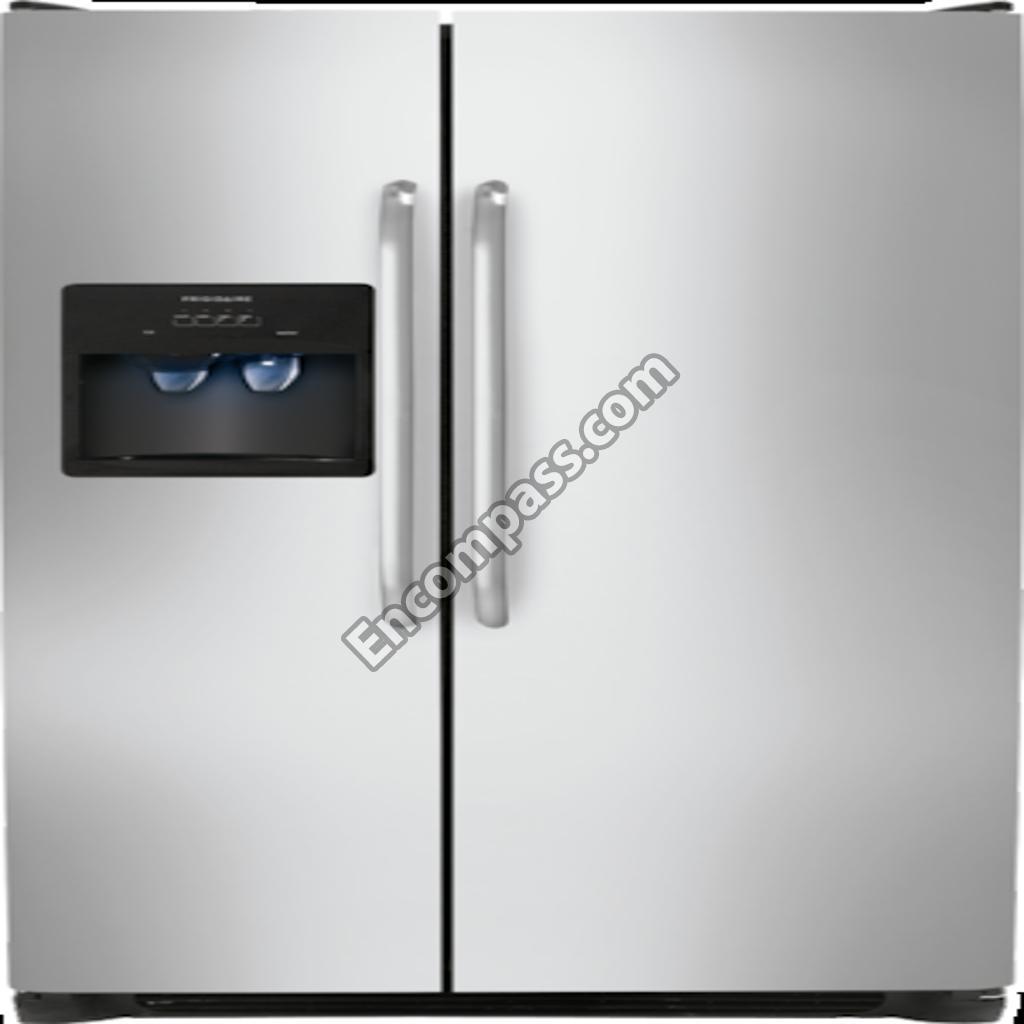

Model Image
Manufacturer

Electrolux

Model Number

FFSS2314QS2A

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241681903 241681903 ACTUATOR-ICE
241682003 241682003 ACTUATOR-WATER
241676101 241676101 ACTUATORSOLENOID
241716101 241716101 AUGER-ICE
241726501 241726501 BAR-DRIVE
240330010 240330010 BASE
242009602 242009602 BASEWATER FILTER
240564301 240564301 BASKET-SLIDING
241688301 241688301 BEARING PLATE
241688302 241688302 BEARING PLATE
240328404 240328404 BEARING-HINGE
242000502 242000502 BEARINGHINGE
242015302 242015302 BEARINGHINGE(REF)
240359001 240359001 BIN-DOOR
240367301 240367301 BIN-DOOR
240324501 240324501 BIN-DOOR
5303321321 5303321321 BLACK TOUCHUP PAINT
241639502 241639502 BLADE
241684107 241684107 BLADE
241684102 241684102 BLADE
241684103 241684103 BLADE
218679613 218679613 BLOCKEVAP COIL
240335006 240335006 BOLT-ROLLER ADJ
241608902 241608902 BOXCONTROL
241633512 241633512 BOXCONTROL
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
240327207 240327207 BRACKET-UPPER HINGE
242034601 242034601 BRACKETLOWER HINGE
242034604 242034604 BRACKETLOWER HINGE
316538904 316538904 BULB-LAMP
241563601 241563601 BUSHING-MOTOR MTG
241685201 241685201 CAM-DRIVE
240542901 240542901 CAP-WATER VALVE
297286803 297286803 CAPACITORRUN
241674401 241674401 CHANNEL
241674402 241674402 CHANNEL
240430501 240430501 CHANNEL
218659500 218659500 CHANNEL-SHELF MTG
240396801 240396801 CLAMP-TUBE
242135301 242135301 CLIP
240362101 240362101 CLIP
216954300 216954300 CLIP
241519401 241519401 CLIP
218515403 218515403 CLIPGRILLE
242036801 242036801 CLIPPLASTIC
241650210 241650210 COMPRESSOR,W/O ELECTRICALS
242106606 242106606 CONDENSER
241734001 241734001 CONTAINER-ICE
241716002 241716002 CONTROL ROD
297259515 297259515 CONTROLLER
240435911 240435911 COVER
240354602 240354602 COVER
241679003 241679003 COVER
241734802 241734802 COVER
241733901 241733901 COVER-ACCESS
240354502 240354502 COVER-CRISPER PAN
240327007 240327007 COVER-UPPER HINGE
241719710 241719710 COVEREVAP
242303001 242303001 DAMPER ASSEMBLY
241689301 241689301 DAMPER-ROTARY
240507202 240507202 DEFLECTOR-ICE CONTA
240374301 240374301 DIFFUSER-AIR
241688401 241688401 DOOR ASSEMBLY-ICE CHUTE
241688501 241688501 DOOR CENTER
241688701 241688701 DOOR SEAL
240581906 240581906 DOOR STOP
240581905 240581905 DOOR STOP
241734101 241734101 DOOR-ACCESS
242026433 242026433 DOORFRZR
242038826 242038826 DOORREFR
241649003 241649003 DRIP TRAY
241684501 241684501 DRIVE BLADE
241685101 241685101 DRUM
240380101 240380101 DUCT-ICE MAKER
241690201 241690201 E-RING
5303918286 5303918286 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
241684203 241684203 FIXED BLADE
241684301 241684301 FIXED BLADE
241734201 241734201 FRONT-ICE CONTAINER
241786008 241786008 GASKET
241786007 241786007 GASKET
240405201 240405201 GROMMET
241550701 241550701 GROMMET-SHELF MTG
241550801 241550801 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
240343102 240343102 HANGER-BASKET
240343002 240343002 HANGER-BASKET
240552101 240552101 HARNESS-WIRING
241679201 241679201 HARNESS-WIRING
5304521773 5304521773 HARNESSWIRING
5304521769 5304521769 HARNESSWIRING
5303918328 5303918328 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
241983814 241983814 HOUSINGWATER FILTR
241860803 241860803 ICE CONTAINER ASSEMBLY
241688601 241688601 INSULATION-DOOR
241604010 241604010 LABELCONTROL BOX
241680507 241680507 MODULE-DISPENSER
242221501 242221501 MOTOR-AUGER
242018304 242018304 MOTORCONDENSER FAN
241998302 241998302 MOUNTWATER FILTER
241685001 241685001 NUT-AUGER
240354706 240354706 PAN
241697602 241697602 PANDEFROST
241688801 241688801 PIN-HINGE
240518802 240518802 PIN-PUSH
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
241856502 241856502 PLATEDOOR CLOSER
240494001 240494001 PLUG-BUTTON
5303208309 5303208309 PLUG-HOLE
241734401 241734401 RAIL ASSEMBLY
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241676301 241676301 ROTATION STOP
5304455852 5304455852 SCREW
5304455650 5304455650 SCREW
240451503 240451503 SCREW
240598402 240598402 SCREW
218781101 218781101 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
218252201 218252201 SCREW
218493101 218493101 SCREW
241637202 241637202 SCREW
241679801 241679801 SCREW
241690601 241690601 SCREW
241690701 241690701 SCREW
241690501 241690501 SCREW
218359202 218359202 SCREW
240442706 240442706 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
241689201 241689201 SCREWMICRO SWITCH
240363602 240363602 SCREWSHOULDER
240597203 240597203 SENSOR
241657501 241657501 SHELF
241657503 241657503 SHELF
241657601 241657601 SHELF
240355277 240355277 SHELFSPILLSAFE
240350103 240350103 SHELFSPILLSAFE
241686101 241686101 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN
240349801 240349801 SLIDE CLIP
240548901 240548901 SOCKET
241559801 241559801 SOCKET-LIGHT
218906802 218906802 SOCKETLIGHT
241675803 241675803 SOLENOID
241675704 241675704 SOLENOID ASSEMBLY
241689801 241689801 SPACER
241684802 241684802 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
241689001 241689001 SPRINGACTUATOR
241731801 241731801 SPRINGCONTROL ROD
241675902 241675902 SPRINGVALVE
5308000110 5308000110 STRAP-EVAP/HEATER
241993101 241993101 SUPPORTCRISPER CVR
241993001 241993001 SUPPORTCRISPER CVR
240505801 240505801 SWITCH
241547901 241547901 SWITCH-LIGHT/LAMP
241689106 241689106 SWITCH-MICRO
242220506 242220506 TANK-WATER
240346701 240346701 TAPE-FOAM SEAL
242278801 242278801 THERMISTOR ASSEMBLY
242161202 242161202 TRIMCABINET CORNER
218976438 218976438 TUBE
218976409 218976409 TUBE
242220206 242220206 TUBE-WATER INLET
241856903 241856903 TUBECONNECTOR
241796405 241796405 TUBEWATER FILL
218976439 218976439 TUBEWATER INLET
242252702 242252702 VALVE
215474201 215474201 WASHER
241690306 241690306 WASHER
WF3CB WF3CB WATER FILTER
5304521777 5304521777 WIRING HARNESS
