Manufacturer
Electrolux
Model Number
FFTR1814WB4
Description
Refrigerator, Top Mount
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS COVER, REAR |
|
|
BADGE, FRIGIDAIRE, BLACK |
|
|
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
|
|
BEARING, HINGE, BLACK |
|
|
BIN, DOOR, 4", WHITE, REFRIGERATOR |
|
|
BIN, DOOR, 6", WHITE, REFRIGERATOR |
|
|
BIN, DOOR, WHITE, FREEZER |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BULB, LIGHT, E17/12 LED |
|
|
CAPACITOR, RUN, 12UF |
|
|
CLAMP, COMPRESSOR |
|
|
CLAMP, WIRING HARNESS, GALV STEEL, STRN RELIEF |
|
|
CLIP, WIRE SHELF, LH |
|
|
CLIP, WIRE SHELF, RH |
|
|
CLIP, WIRING HARNESS, PLASTIC, W/ADHESIVE |
|
|
COLD CONTROL, ASSEMBLY, W/CAPILLARY |
|
|
CONDENSER, DYNAMIC |
|
|
COVER ASSEMBLY, CRISPER |
|
|
COVER ASSEMBLY, EVAPORATOR, W/FRZ SLIDE |
|
|
COVER, ELECTRICALS, COMPRESSOR |
|
|
COVER, HINGE BEARING, BLACK |
|
|
COVER, HINGE SIDE, BLACK, LOWER |
|
|
COVER, HINGE, BLACK, LOWER, NON HINGED |
|
|
COVER, HINGE, BLACK, UPPER |
|
|
COVER, I/M CONNECTOR |
|
|
DIFFUSER, CONTROL BOX, BOTTOM |
|
|
DIFFUSER, CONTROL BOX, TOP |
|
|
DOOR ASSEMBLY, FREEZER |
|
|
DOOR ASSEMBLY, FRESH FOOD |
|
|
EVAPORATOR, ASSEMBLY |
|
|
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM |
|
|
FILTER, DRIER, SERVICE |
|
|
GASKET, DOOR, BLACK, FREEZER |
|
|
GASKET, DOOR, BLACK, FRESH FOOD |
|
|
GROMMET, EVAPORATOR FAN, REAR |
|
|
HARNESS, WIRING, CONTROL BOX |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, EVAP DEFROST, W/THERMOSTAT |
|
|
HINGE ASSEMBLY, BOTTOM, BLACK, RH, W/PIN-CLOSER |
|
|
HINGE ASSEMBLY, BOTTOM, LH |
|
|
HINGE, DOOR, BLACK, CENTER |
|
|
HINGE, DOOR, UPPER |
|
|
HOOK, DOOR CLOSER, BLACK |
|
|
HOUSING, CONTROL BOX |
|
|

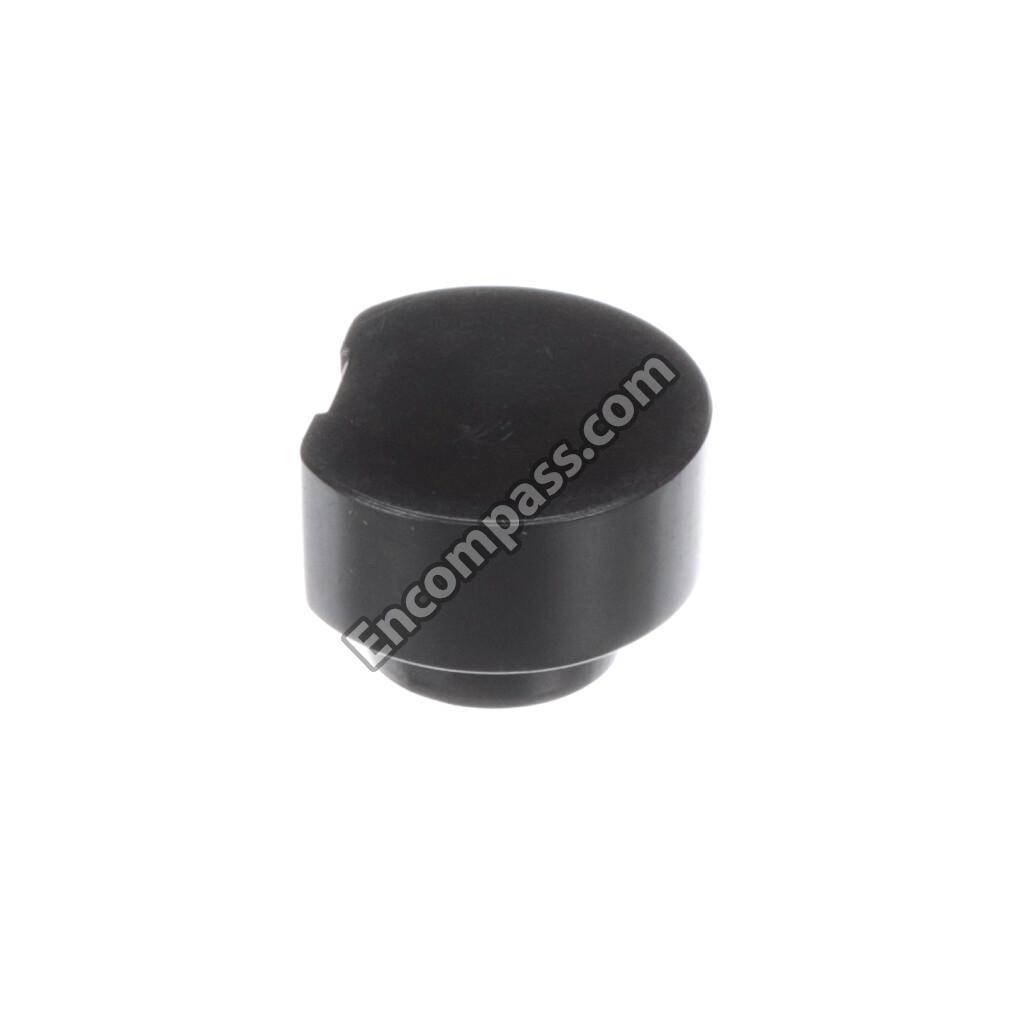

KNOB, CONTROL |
|
|
LABEL, BLANK, BLACK, HOLE COVER |
|
|
MOTOR, EVAPORATOR FAN, BLOWER |
|
|
PAN ASSEMBLY, CRISPER, W/SLIDERS |
|
|
PAN, DRAIN |
|
|
PIN, CENTER HINGE, DOOR |
|
|
PLATE, DIFFUSER |
|
|
S/A PUR COMP ESX55C |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, 8-18 X 1.25 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, HEX WSH HD QUAD, M5 X 16 |
|
|
SCREW, HX WASH HD, M4.2 X 12 |
|
|
SCREW, PAN HD QDRX TRI, M5 X 12, BLACK |
|
|
SEAL, AIR DUCT, TOP |
|
|
SEAL, FOAM, DRAIN PAN |
|
|
SHELF ASSEMBLY, FREEZER, GLASS, W/TRIM |
|
|
SHELF-SLIDING, FW WIRE 18'CD, WIRE SHELF |
|
|
SHIELD, ELECTRICAL, FRONT |
|
|
SHIELD, ELECTRICAL, REAR |
|
|
SHROUD, EVAPORATOR FAN |
|
|
SOCKET, LIGHT, LED |
|
|
STARTER |
|
|
SUPPORT, EVAPORATOR, LH |
|
|
SUPPORT, EVAPORATOR, RH |
|
|
SWITCH, DOOR/LIGHT, WHITE |
|
|
TIMER |
|
|
TROUGH, EVAP DRAIN |
|
|
TUBE, DRAIN EXTENSION |
|
|
TUBE-SUCTION JUMPER ES COMP |
|
|
TUBING, CAPILLARY, PLASTIC |
|
|
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT |
