Manufacturer
Electrolux
Model Number
FFTR1821TSC
Description
Refrigerator, Top Mount
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BADGE, FRIGIDAIRE, CHROME |
|
|
BASE-COMPRESSOR |
|
|
BASE-COMPRESSOR, W/ROLLERS |
|
|
BEARING-HINGE, BLACK, (8) |
|
|
BLADE, CONDENSER FAN |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BLOCK, EVAPORATOR, LH |
|
|
BLOCK, EVAPORATOR, RH |
|
|

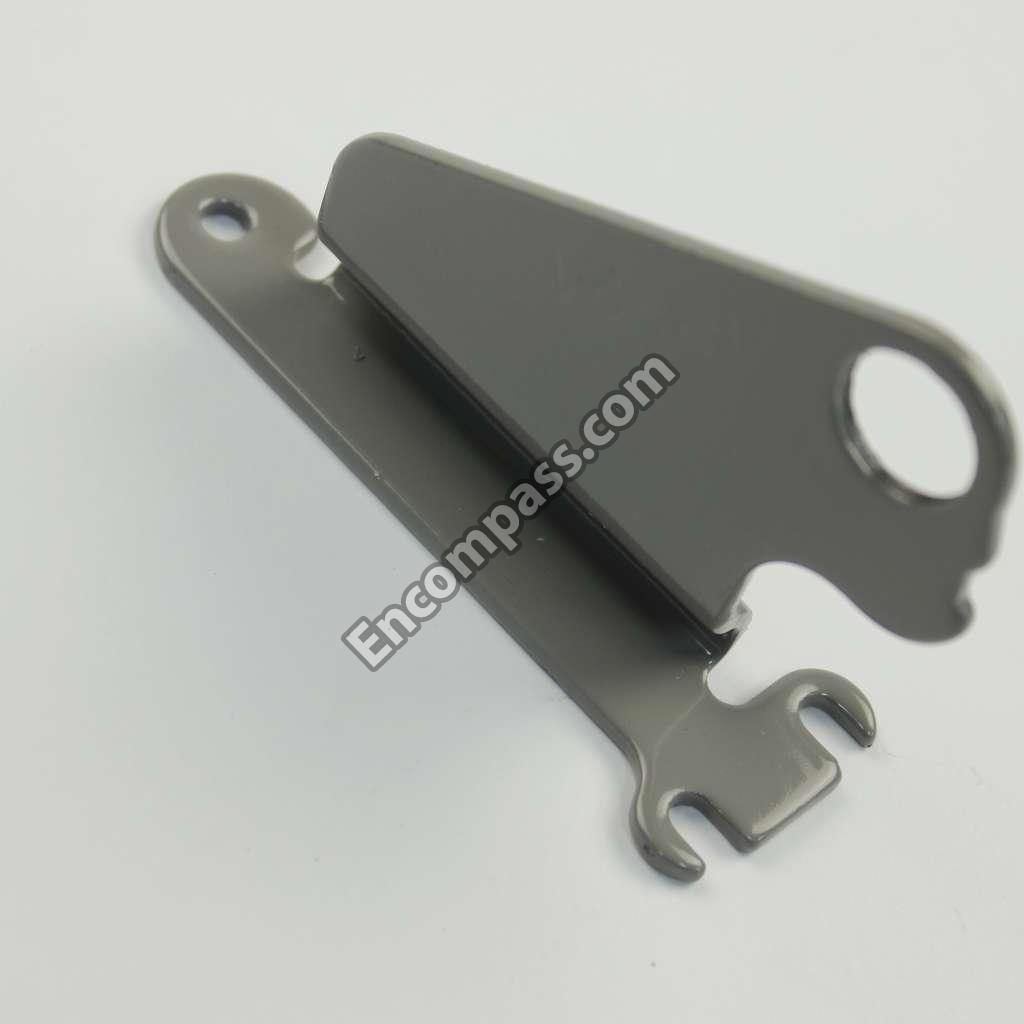

BRACKET-CTR HINGE, GRAY |
|
|
BRACKET-LOWER HINGE,ZINC |
|
|
BRACKET-UPPER HINGE |
|
|
BUTTON, PLUG, GRAY |
|
|
BUTTON, PLUG, GRAY, HINGE BRG HOLE, (2) |
|
|
BUTTON, PLUG, WHITE |
|
|
CAPACITOR-RUN |
|
|
CLAMP, ELEC CONT MTG, COMPRESSOR |
|
|
CLAMP, TUBE/WIRING, 1/2", NYLON, BLACK/NATURAL |
|
|
CLAMP, WIRING HARNESS, GALV STEEL, STRN RELIEF |
|
|
CLEANER, STAINLESS STEEL |
|
|
CLIP, GRILLE/TUBE, & HINGE |
|
|
CLIP, WIRE/TUBE |
|
|
CLIP-COMPRESSOR MTG |
|
|
CLIP-WIRING HARNESS |
|
|
COMPRESSOR, W/O ELECTRICALS |
|
|
CONDENSER, HIGH EFFICIENCY |
|
|
CONTROL BOX |
|
|
CONTROL-HUMIDITY, LH |
|
|
CONTROL-HUMIDITY, RH |
|
|
CONTROL-TEMPERATURE |
|
|
COVER, COIL |
|
|
COVER, CONNECTION, ICE MAKER |
|
|
COVER, EVAPORATOR FAN |
|
|
COVER-ACCESS, W/LABEL |
|
|
COVER-CRISPER PAN |
|
|
COVER-UPPER HINGE, BLACK |
|
|
DIFFUSER, AIR, BOTTOM |
|
|
DIFFUSER, AIR, TOP |
|
|
DOOR STOP, GRAY, REF |
|
|
DOOR-DAIRY |
|
|
DOOR-FRZR |
|
|
DOOR-REFR,STAINLESS ,COMPLETE |
|
|
DRIER-FILTER,R12 & R134A |
|
|
EVAPORATOR KIT |
|
|
FAN COVER & DAMPER ASMY 18' |
|
|
FRAME, SLIDING SHELF, FULL WIDTH |
|
|
FRAME, SLIDING SHELF, FULL WIDTH, W/HANGER TABS |
|
|

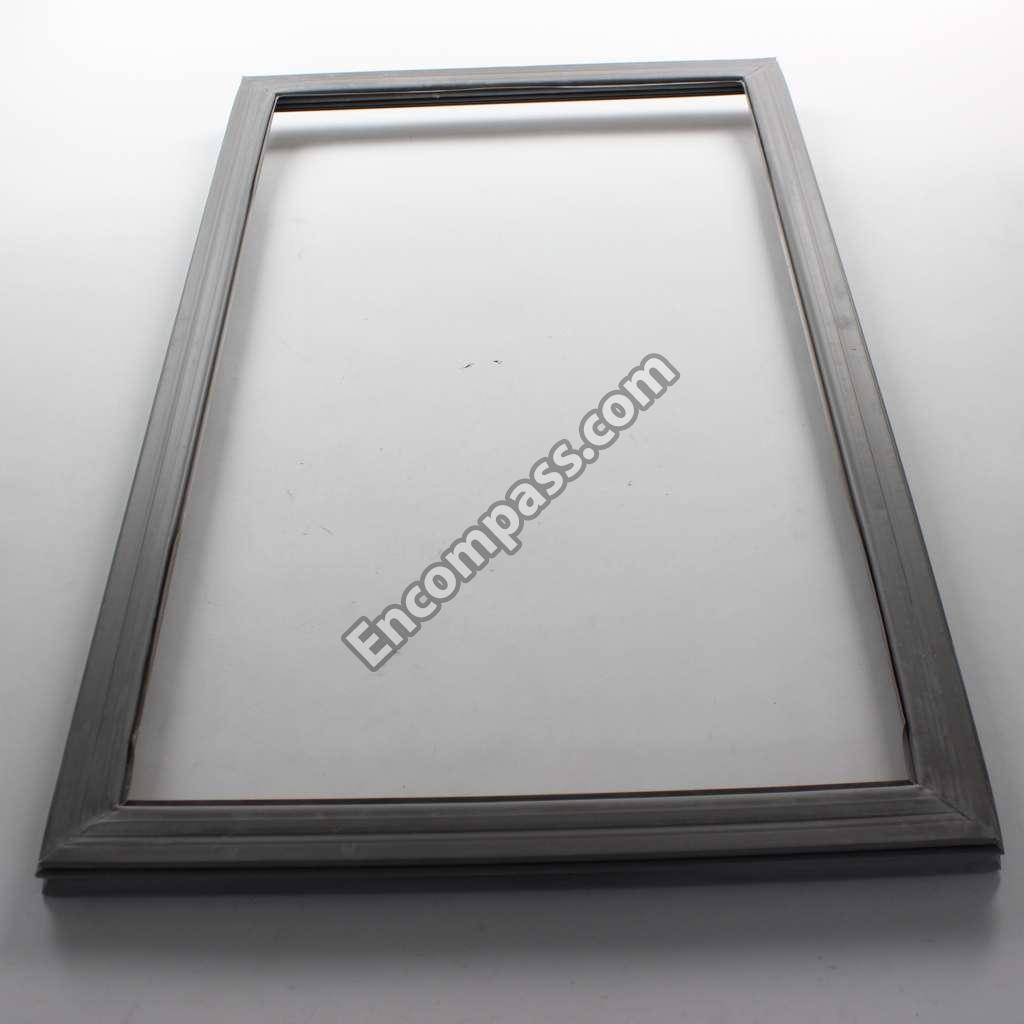

GASKET-FRZR DOOR, GRAY, MAGNETIC |
|
|
GASKET-REFR DOOR, GRAY, MAGNETIC |
|
|
GLASS-SHELF, 23.78" X 16.34" |
|
|
GRILLE/KICKPLATE, BLACK |
|
|
GROMMET, EVAPORATOR FAN, FRONT |
|
|
GROMMET, EVAPORATOR FAN, REAR |
|
|
GROMMET, RUBBER, BLACK, 23 # |
|
|
GROMMET, SHELF MTG |
|
|
HANDLE, DOOR, STAINLESS, FRZ RHS, W/SET SCREW |
|
|
HANDLE, DOOR, STAINLESS, REF RHS, W/SET SCREW |
|
|
HARNESS-WIRING,MACHINE COMPT |
|
|
HEAT EXCHANGER KIT, SUCTION LINE |
|
|
HEATER-DEFROST |
|
|
HOT TUBE REPAIR KIT, SERVICE |
|
|
INSERT-PAN COVER, 23.82" X 15.50", GLASS |
|
|
KNOB, SLIDING, DAMPER |
|
|
KNOB, TEMP CONTROL |
|
|
LAMP, OVEN LIGHT |
|
|
MOTOR-BLOWER |
|
|
MOTOR-CONDENSER FAN |
|
|
PAN-CRISPER, CLEAR, (2), NO GRAPHICS |
|
|
PAN-DEFROST |
|
|
PAN-MEAT, W/O GRAPHICS, CLEAR |
|
|
PIN-CENTER HINGE |
|
|
PIN-LOWER HINGE |
|
|
PLUG, BUTTON, GRAY, UPR HINGE HOLES |
|
|
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET |
|
|
PLUG-HOLE, FACTORY TEST |
|
|
RACK-DOOR |
|
|
RACK-DOOR |
|
|
RACK-DOOR, 4B |
|
|
RING, LOCKING, (2) |
|
|
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN |
|
|
ROLLER ASSY, FRONT LH |
|
|
ROLLER ASSY, FRONT RH |
|
|
ROLLER, COMPRESSOR BASE, REAR |
|
|
ROLLER, COMPRESSOR BASE, REAR, (2) |
|
|
SCREW, #8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, HANGER/RLR MTG, 8-10 X 7/16 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD, 1/4-20 X 5/8, GRAY |
|
|
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING |
|
|
SCREW,CONTROL MTG. |
|
|
SCREW,KIT FOUR SCREWS |
|
|
SCREW-FAN SHROUD, (2) |
|
|
SCREW-NO.10-32 X 3/4,WHITE |
|
|
SCREW-SET,10-32 X 0.650 |
|
|
SCREW-TIMER MTG,PAN HD ,6-20 X 0.438 ,(2) |
|
|
SEAL KIT |
|
|
SEAL-COIL COVER |
|
|
SHELF, FREEZER |
|
|
SHIELD, HEAT, EVAP BLOCK |
|
|
SHROUD BRACKET, EVAPORATOR FAN |
|
|
SHROUD, CONDENSER FAN |
|
|
SOCKET-LIGHT |
|
|
SPACER, SHELF/WTR TUBE |
|
|
SPACER-HINGE, CENTER, GRAY |
|
|
STARTER |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPE, FOAM SEAL, SHROUD |
|
|
THERMOSTAT KIT, DEFROST, W/CONNECTOR |
|
|
TIMER-DEFROST |
|
|
TRACK, MEAT PAN HANGER, LH |
|
|
TRACK, MEAT PAN HANGER, RH |
|
|
TRIM-CABINET CORNER, BLACK, (2) |
|
|
TRIM-SHELF, FRONT |
|
|
TRIM-SHELF, REAR |
|
|
TROUGH-DRAIN |
|
|
TUBE, SENSOR SLEEVE, 31 INCH, PLASTIC, WHITE |
|
|
TUBE-CONNECTOR,SUCTION |
|
|
TUBE-DRAIN, RUBBER, LOWER |
|
|
WASHER, HINGE, NYLON, (2) |
|
|
WASHER-COMPR MTG |
|
|

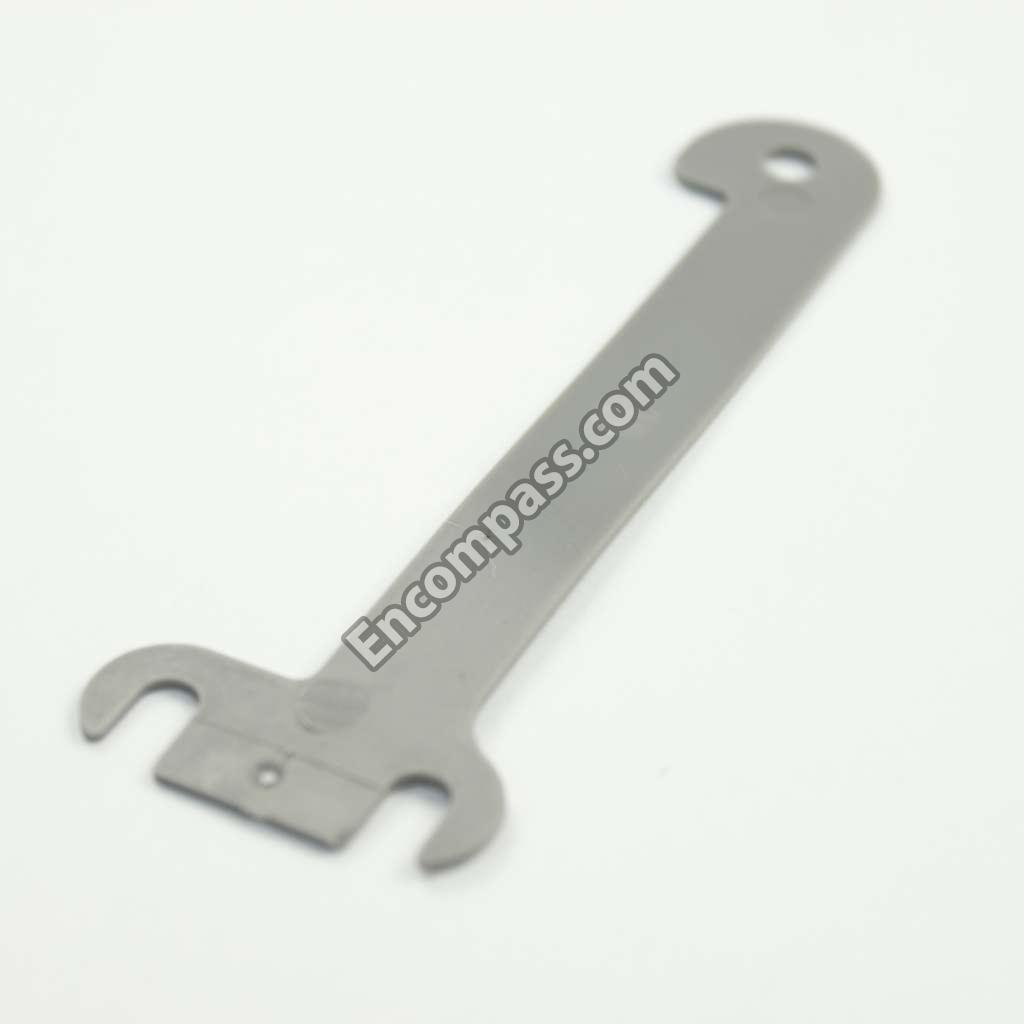

WRENCH |
