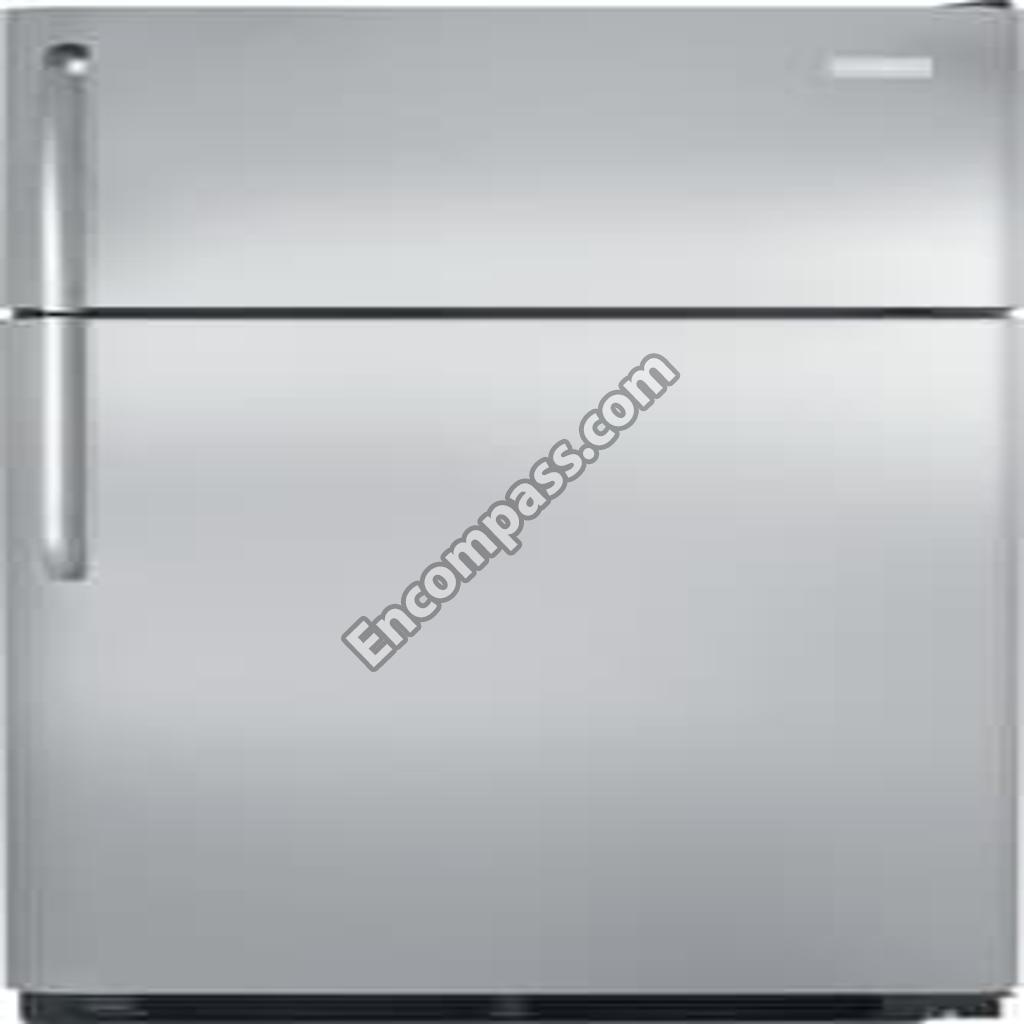

Model Image
Manufacturer

Electrolux

Model Number

FFTR1831QS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
240527102 240527102 BEARING-HINGE
240495805 240495805 BIN-DOOR
242238301 242238301 BLOCK,EVAPORATOR,LH
242238401 242238401 BLOCK,EVAPORATOR,RH
240313803 240313803 BRACKET-CTR HINGE
297286803 297286803 CAPACITORRUN
5304456288 5304456288 CLAMP-WIRING HARNES
218515401 218515401 CLIP
5304497418 5304497418 CLIP,CONTROLLER
218990901 218990901 CLIP-WIRE
240542601 240542601 CLIP-WIRING HARNESS
242037701 242037701 CLIPCOMPRESSOR MTG
242249002 242249002 CONTROL ASSEMBLY,TEMPERATURE
241613502 241613502 CONTROL-HUMIDITY
241613501 241613501 CONTROL-HUMIDITY
297259528 297259528 CONTROLLER
242249201 242249201 COVER,CONNECTION,ICE MAKER
241733911 241733911 COVER-ACCESS,W/LABEL
240354404 240354404 COVER-UPPER HINGE
240364787 240364787 COVERCRISPER PAN
242213901 242213901 DEFLECTOR
240337901 240337901 DOOR BIN FOR REFRIGERATOR
240338101 240338101 DOOR BIN SHELF
240312405 240312405 DOOR STOP
240312415 240312415 DOOR STOP
240337712 240337712 DOOR-DAIRY
240410309 240410309 DOORCOMPLETE
242190201 242190201 DRYER-FILTER,W/PROCESS TUBE
5303918274 5303918274 EVAPORATOR KIT
242219302 242219302 FAN BLADE,EVAPORATOR
240410206 240410206 FREEZER DOOR- STAINLESS
242193209 242193209 GASKET-FRZR DOOR,BLACK,MAGNETI
242193212 242193212 GASKET-FRZR DOOR,BLACK,MAGNETI
241839407 241839407 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
242237301 242237301 GROMMET,EVAPORATOR FAN,FRONT
242287501 242287501 GROMMET,EVAPORATOR FAN,REAR
218513300 218513300 GROMMET-COMPR MTG
242213501 242213501 HARNESS,WIRING,FREEZER SECTION
5303918263 5303918263 HEAT EXCHANGER KIT
5303918222 5303918222 HOT TUBE REPAIR KIT
240350608 240350608 INSERT-PAN COVER
241552807 241552807 LIGHT BULB
240337103 240337103 PAN-CRISPER
240530811 240530811 PAN-MEAT
241920605 241920605 PANDEFROST
240516502 240516502 PIN-LOWER HINGE
240494001 240494001 PLUG-BUTTON
240494007 240494007 PLUG-BUTTON,GRAY
240381307 240381307 PLUG-BUTTON,GRAY,HINGE BRG HOL
241586701 241586701 PLUG-FOAM-WTR-INLET
215774918 215774918 PLUGBUTTON
240338001 240338001 REFRIG DOOR SHELF BAR
5304497413 5304497413 RING,LOCKING,(2)
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241889002 241889002 ROLLER ASSEMBLY
241665606 241665606 S/APUR COMPR BASE
218843801 218843801 SCREW
240569202 240569202 SCREW
241710601 241710601 SCREW
241500304 241500304 SCREW
240433204 240433204 SCREW
218252201 218252201 SCREW
240383406 240383406 SCREW
241953901 241953901 SCREW
5304455650 5304455650 SCREW
240442707 240442707 SCREW-#10-32 X 3/4
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
240358008 240358008 SHELF,FREEZER,FULL-WIDTH,WIRE
240358926 240358926 SHELFSPILLSAFE
240358925 240358925 SHELFSPILLSAFE
242320401 242320401 SHIELD
242050601 242050601 SHROUD
242229301 242229301 SHROUD BRACKET,EVAPORATOR FAN
240590403 240590403 SOCKETLIGHT
240336803 240336803 SPACER-HINGE
241705801 241705801 SPACERSHELF
5308000110 5308000110 STRAP-EVAP/HEATER
807854301 807854301 SUPPORT,HOUSING,MAIN BOARD
241554901 241554901 SWITCH-LIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
242161202 242161202 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN
240500801 240500801 TUBE-DRAIN
240311303 240311303 WASHER
241812301 241812301 WASHERCOMPR MTG
5304467131 5304467131 WRENCH
