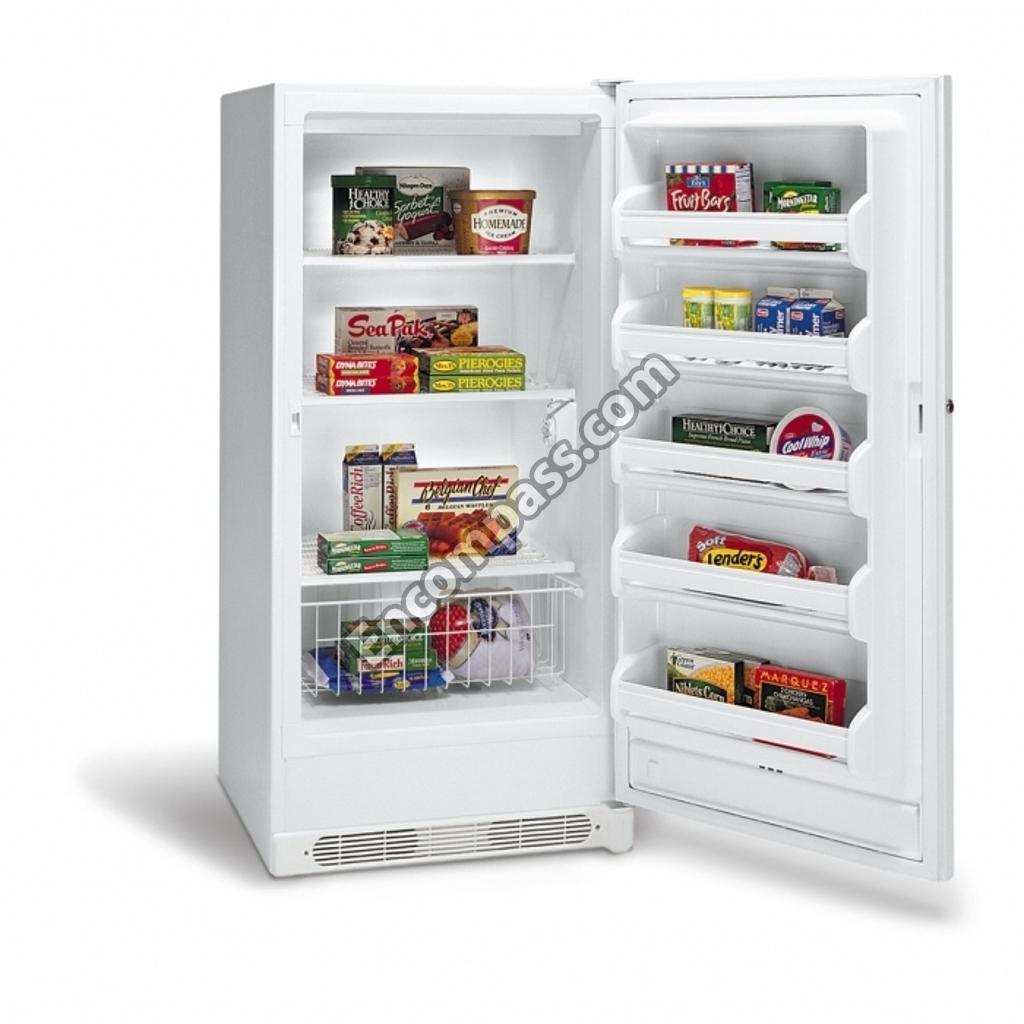

Model Image
Manufacturer

Electrolux

Model Number

FFU1724DW5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
218676001 218676001 BAND-DECORATIVE
216154400 216154400 BASKET
216970800 216970800 BEARING
297006800 297006800 BEARING-HINGE
216603300 216603300 BREAKER KIT W/CORNE
216603700 216603700 BREAKER KIT W/CORNE
216604200 216604200 BREAKER KIT W/CORNE
5305878546 5305878546 BUMPER-BASKET
297051100 297051100 CLAMP
216823500 216823500 CLAMP
5304406520 5304406520 CLIP
5303212828 5303212828 CLIP
216273000 216273000 CLIP
5300083897 5300083897 CONDENSER
297051000 297051000 CONTROLLER
297013800 297013800 COVER-CONTROL HOUSI
5308005500 5308005500 DRAIN
216522309 216522309 GASKET-DOOR
297036900 297036900 GRILLE/KICKPLATE
216225700 216225700 GROMMETSPACER
5304472125 5304472125 HARNESS-MAIN
216939100 216939100 HINGE-UPPER
216313502 216313502 HOSEDRAIN
297001704 297001704 INSULATION
216707200 216707200 KNOB
216846400 216846400 LIGHT BULB/LAMP
216892802 216892802 NAMEPLATE
216527816 216527816 PANELINNER DOOR
216502600 216502600 PLUG
216403700 216403700 PLUGBUTTON
216951600 216951600 RACK-DOOR
216503300 216503300 RAMP
5303272328 5303272328 SCREW
131420300 131420300 SCREW
216036601 216036601 SCREW
216138900 216138900 SCREW
5300052943 5300052943 SCREW-CLAMP
216396900 216396900 SCREW-LEG
216816200 216816200 SHIELD-LIGHT
216502500 216502500 SLEEVE
5306594529 5306594529 SLEEVE-COMPRESSOR
5303298960 5303298960 SPACER-TUBE
216486500 216486500 STOP-BASKET
216474600 216474600 SUPPORT-REAR SHELF
297001600 297001600 SUPPORT-SHELF
297001500 297001500 SUPPORT-SHELF
215870619 215870619 TRIM-HANDLE
216847806 216847806 TRIM-SHELF
297048400 297048400 USE 297048400
5309950074 5309950074 VALVE
