Manufacturer
Electrolux
Model Number
FFUE2022AWM
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR TOWER ASSENMBLY, COMPLETE, W/MOTOR-HEATER |
|
|
BADGE, FRIGIDAIRE, WHITE |
|
|
BAFFLE, DIVIDER |
|
|
BAFFLE, DRAIN PAN, AIR BLOCK |
|
|
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
|
|
BASKET, GRAY, LOWER |
|
|
BEARING, DOOR, LOWER |
|
|
BEARING, HINGE, WHITE |
|
|
BULB, LIGHT, E17/12 LED |
|
|
CLAMP, COMPRESSOR |
|
|
CLAMP-WIRING HARNESS,STRAIN RELIEF ,GALV STEEL |
|
|
CLIP, PLASTIC, W/ADHESIVE |
|
|
CLIP, WIRE SHELF, LH |
|
|
CLIP, WIRE SHELF, RH |
|
|
COMPRESSOR, ASSEMBLY, VTH1111Y, 230V, W/GROMMETS |
|
|
CONDENSER FAN, ASSEMBLY, 29 #, W/SHROUD |
|
|
CONDENSER, DYNAMIC |
|
|
COVER ASSEMBLY, EVAPORATOR, W/COLD CONTROL |
|
|
COVER, ACCESS, MACHINE COMPT. |
|
|
COVER, DRAIN JUMPER |
|
|
COVER, EPS, POTENTIOMETER |
|
|
COVER, HINGE SIDE, WHITE, LOWER |
|
|
COVER, HINGE, WHITE, LOWER, NON HINGED |
|
|
COVER, HOUSING, REED SWITCH |
|
|
COVER, LENS |
|
|
COVER, LIGHT GUIDE |
|
|
COVER, UPPER HINGE, WHITE |
|
|
COVER-DUST U20/TT, 29 # |
|
|
DOOR ASSEMBLY, FREEZER, WHITE, W/GASKET-HRDWRE |
|
|
DRAIN JUMPER, ASSEMBLY, W/SEAL |
|
|
EVAPORATOR, COIL |
|
|
FILTER, DRIER, SERVICE |
|
|
GASKET, DOOR, GRAY |
|
|
GROMMET, CMPRSR MTG, 34 |
|
|
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS |
|
|
HARNESS, JUMPER, FOIL HEATER |
|
|
HARNESS, POTENTIONMETER |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, DEFROST |
|
|
HINGE, UPPER |
|
|
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT |
|
|
HINGE-BOTTOM, ASSEMBLY, RH, W/FOOT-CLOSER |
|
|
HOOK, DOOR CLOSER, WHITE |
|
|
INVERTER, FLEXDRIVE 2.2 |
|
|
KNOB, TEMP CONTROL |
|
|
LABEL, BLANK, WHITE, HOLE COVER |
|
|
MAGNET, REED SWITCH |
|
|
MOTOR-FAN, EVAPORATOR |
|
|
MOUNT, SOCKET |
|
|
MOUNT-FAN, EVAPORATOR |
|
|
PAN, DRAIN |
|
|

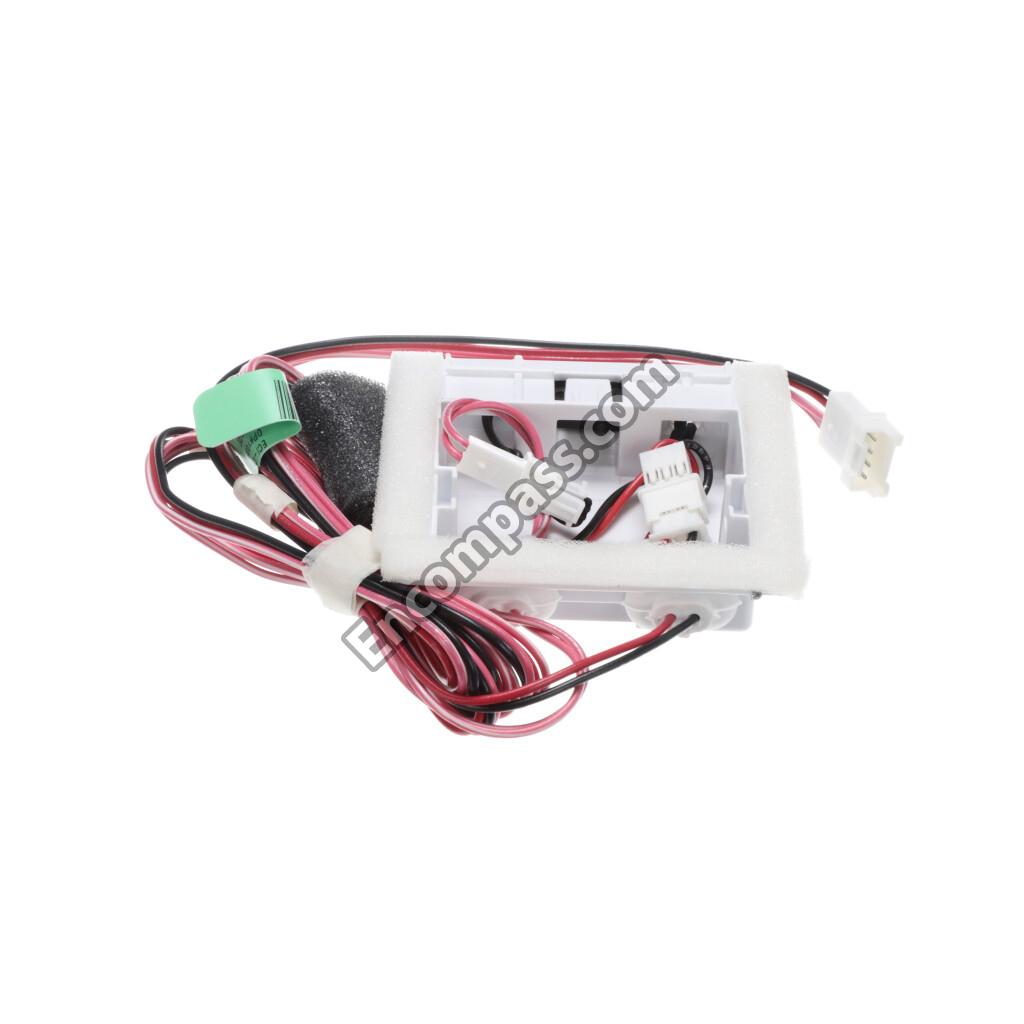

REED SWITCH HARNESS, ASSEMBLY, W/LED LIGHT |
|
|
S/A-M.BOARD & HOUSE ERF300 VTH, 50 # |
|
|
SCREW, 8-18 X 1.25 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX WASH HD, M4 X 10 |
|
|
SCREW, HEX WASH HD, M4.2 X 16 |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, HEX WSH HD QUAD, M5 X 16 |
|
|
SCREW, HX WASH HD, M4.2 X 12 |
|
|
SCREW, TYPE AB, #10-16 |
|
|
SCREW,CONTROL MTG. |
|
|
SEAL, 6X8, FOAM TAPE, 154" ROLL |
|
|
SEAL, FOAM, AIR BLOCK |
|
|
SHELF-DOOR |
|
|
SHELF-SLIDING U20 (FW WIRE) |
|
|
SHELF-WIRE LOWER UF (GRAY) |
|
|
SOCKET, LED LIGHT |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, EVAPORATOR, LH |
|
|
SUPPORT, EVAPORATOR, RH |
|
|
TAPE, ALUMINUM, 36MM |
|
|
TROUGH, DRAIN |
|
|
TUBE, DRAIN, EXTENSION |
|
|
TUBE, SUCTION JUMPER |
|
|
WIRE TIE |
