Manufacturer
Electrolux
Model Number
FFUE2024AN5
Description

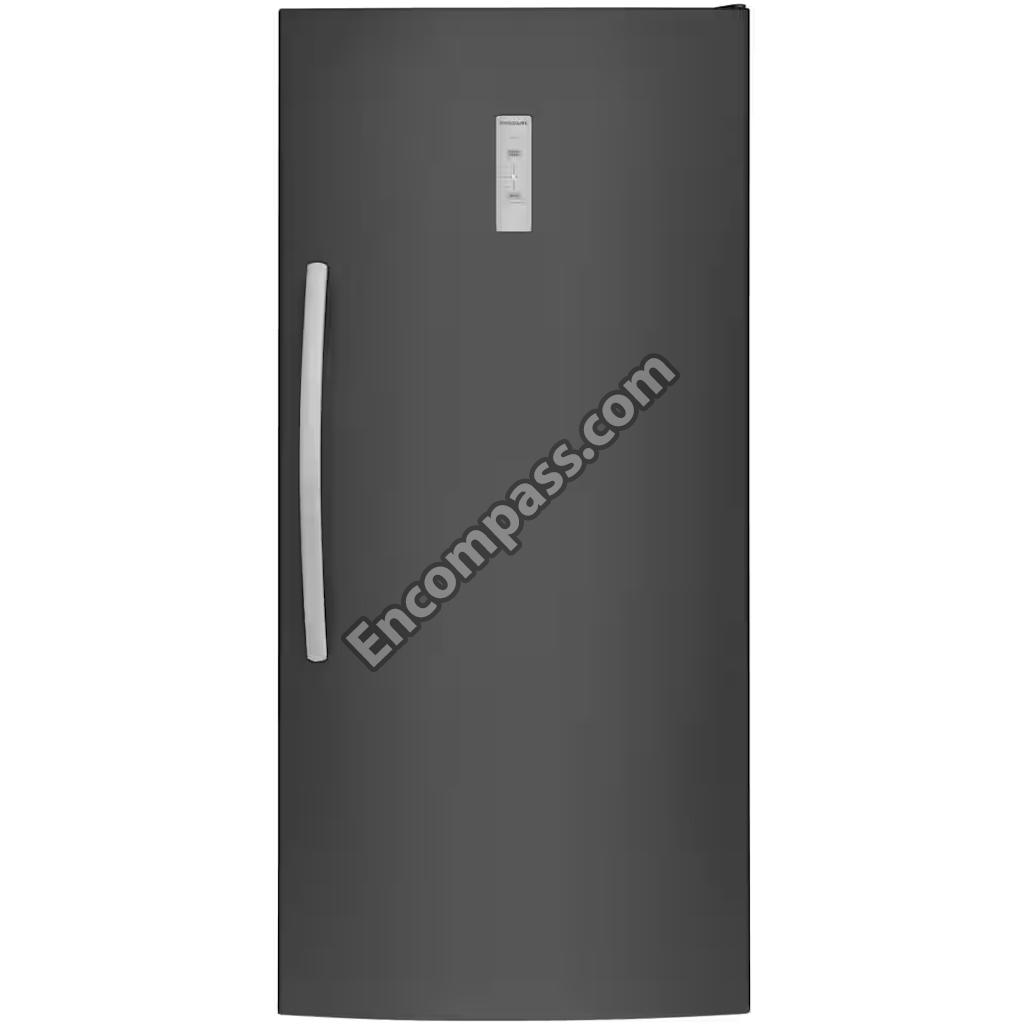

Ffue2024an 20.0 Cu. Ft. Upright Freezer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR TOWER, ASSEMBLY, COMPLETE, W/MOTOR-HEATER |
|
|
BAFFLE, DIVIDER |
|
|
BAFFLE, DRAIN PAN, AIR BLOCK |
|
|
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
|
|
BASKET, WIRE, LOWER |
|
|
BEARING, DOOR, GRAY, LOWER |
|
|
BEARING, HINGE, GRAY |
|
|
BOARD ASSEMBLY, MAIN, ERF300, W/HOUSING |
|
|

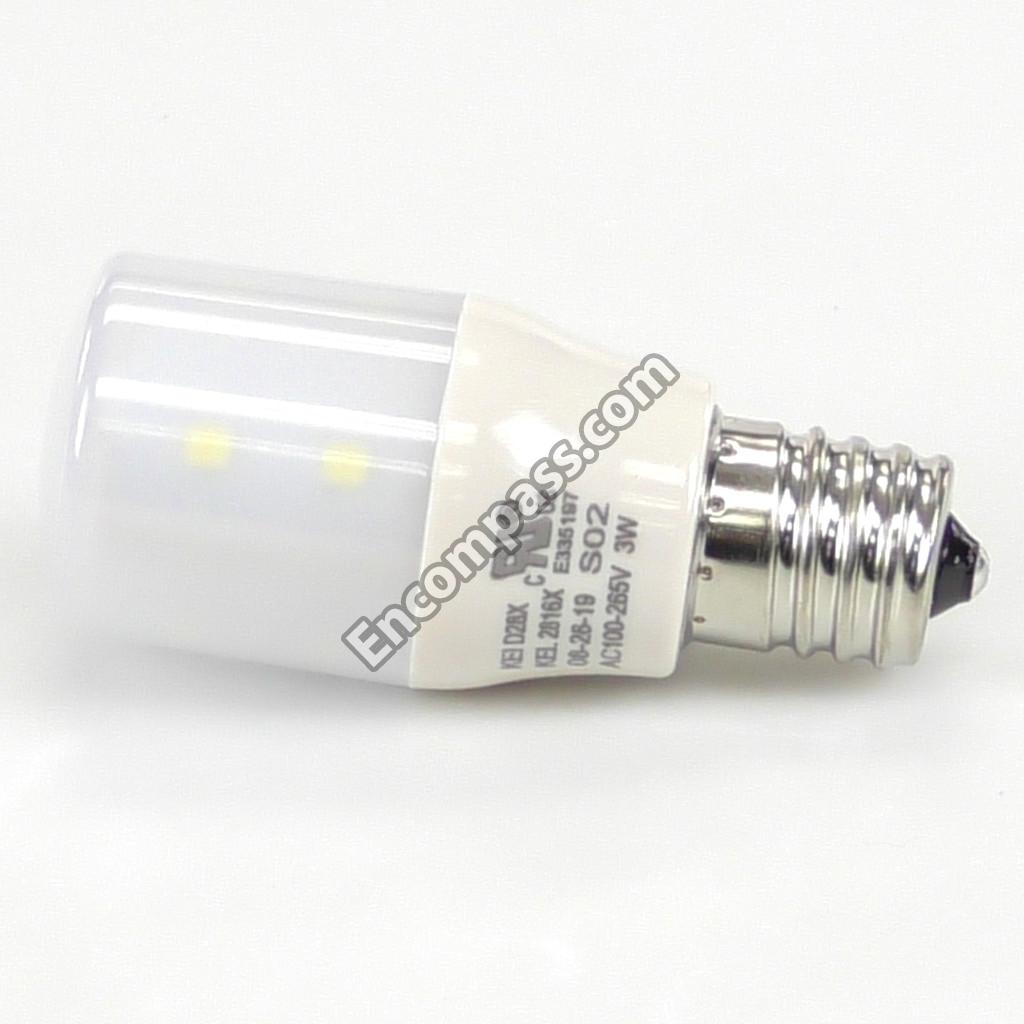

BULB, LIGHT, E17/12 LED |
|
|
BUTTON, PLUG, GRAY |
|
|
CHANNEL, WIRING HARNESS |
|
|
CLAMP, COMPRESSOR |
|
|
CLIP, PLASTIC, W/ADHESIVE |
|
|
COMPRESSOR, ASSEMBLY, VTH1111Y, 230V, W/GROMMETS |
|
|
CONDENSER, DYNAMIC |
|
|
COVER, DRAIN JUMPER |
|
|
COVER, HINGE SIDE, GRAY, LOWER |
|
|
COVER, HINGE, GRAY, LOWER, NON-HINGED |
|
|
COVER, HINGE, GRAY, UPPER |
|
|
COVER, HOUSING, REED SWITCH |
|
|
COVER, LENS |
|
|
COVER, REED SWITCH, FRONT |
|
|
COVER-DUST U20/TT, 29 # |
|
|
DOOR ASSEMBLY, FREEZER, CARBON, W/GASKET-HRDWRE |
|
|
DRAIN JUMPER, ASSEMBLY, W/SEAL |
|
|
EVAPORATOR, COIL |
|
|
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM |
|
|
FILTER, DRIER, SERVICE |
|
|
GASKET, DOOR, GRAY |
|
|
GROMMET, CMPRSR MTG, 23 |
|
|

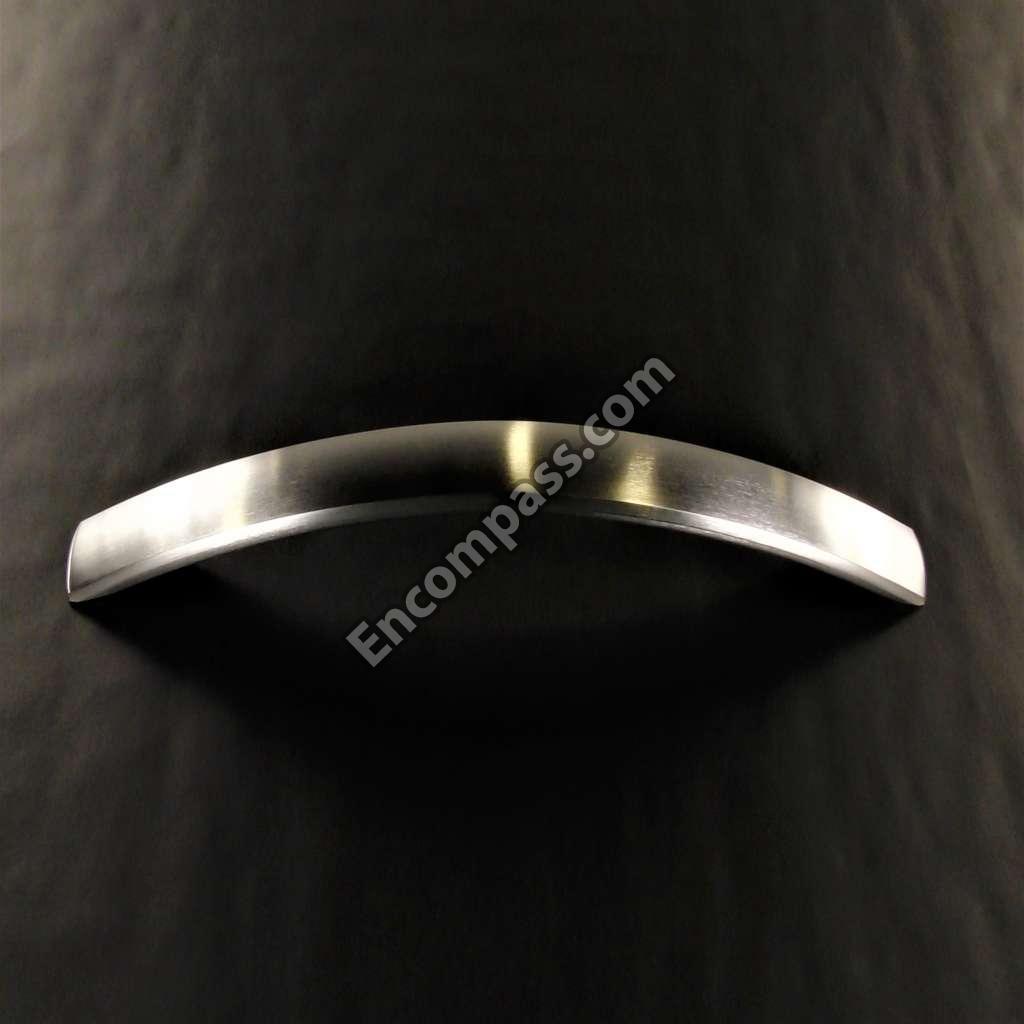

HANDLE-DOOR, STAINLESS |
|
|
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS |
|
|
HARNESS, JUMPER, CABINET, TO DOOR |
|
|
HARNESS, JUMPER, FOIL HEATER |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, DEFROST |
|
|
HINGE, UPPER |
|
|
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT |
|
|
HINGE-BOTTOM, ASSEMBLY, RH, W/FOOT-CLOSER |
|
|
HOOK, DOOR CLOSER, GRAY |
|
|
INVERTER, FLEXDRIVE 2.2 |
|
|
LABEL, BLANK, GRAY, QR CODE |
|
|
MAGNET, REED SWITCH |
|
|
MOTOR-FAN, EVAPORATOR |
|
|
MOUNT, SOCKET |
|
|
MOUNT-FAN, EVAPORATOR |
|
|
PAN, DRAIN |
|
|
REED SWITCH HARNESS, ASSEMBLY |
|
|
SCREW, 8-18 X 1.25 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD, #8-18X5/8 |
|
|
SCREW, HEX WASH HD, M4 X 10 |
|
|
SCREW, HEX WASH HD, M4.2 X 16 |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, HEX WSH HD QUAD, M5 X 16 |
|
|
SCREW, HX WASH HD, M4.2 X 12 |
|
|
SCREW, QUAD HILO, #8-18 X 0.50 |
|
|
SCREW, SET, 10-32 X 0.500 |
|
|
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING |
|
|
SEAL, DRAIN PAN, FOAM |
|
|
SEAL, FOAM, AIR BLOCK |
|
|
SHELF ASSEMBLY, GLASS, SMALL, W/TRIM |
|
|
SHELF, DOOR, CLEAR |
|
|
SHELF-ASSEMBLY, GLASS 26.7-INCH U20, GLASS, 42, W/TRIM |
|
|
SOCKET, LED LIGHT |
|
|
SPACER, ROLLER, LOWER HINGE |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, EVAPORATOR, LH |
|
|
SUPPORT, EVAPORATOR, RH |
|
|
TAPE, ALUMINUM, 36MM |
|
|
TROUGH, DRAIN |
|
|
TUBE, DRAIN, EXTENSION |
|
|
TUBE, SUCTION JUMPER |
|
|
USER INTERFACE, ASSEMBLY, W/PC BOARD |
|
|
WIRE TIE |
|
|
WRENCH, ALLEN |
