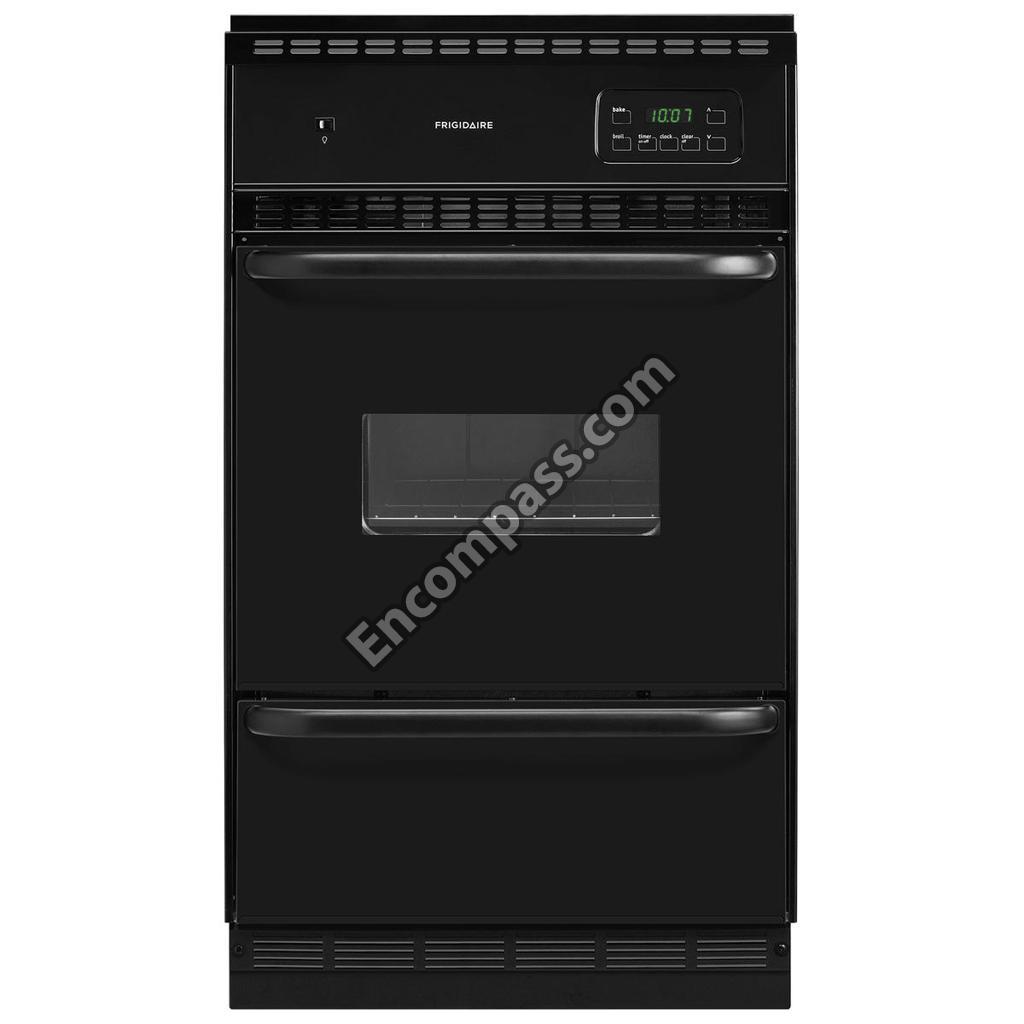

Model Image
Manufacturer

Electrolux

Model Number

FGB24L2ABC

Description

Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3203676 3203676 BAFFLE
318161500 318161500 BOX
5303308475 5303308475 BRACKET
5303323710 5303323710 BRACKET
5303308469 5303308469 BRACKET
318015037 318015037 BRACKET
5303013071 5303013071 BULB/LAMP
318147412 318147412 BUMPER
5303210787 5303210787 BURNER

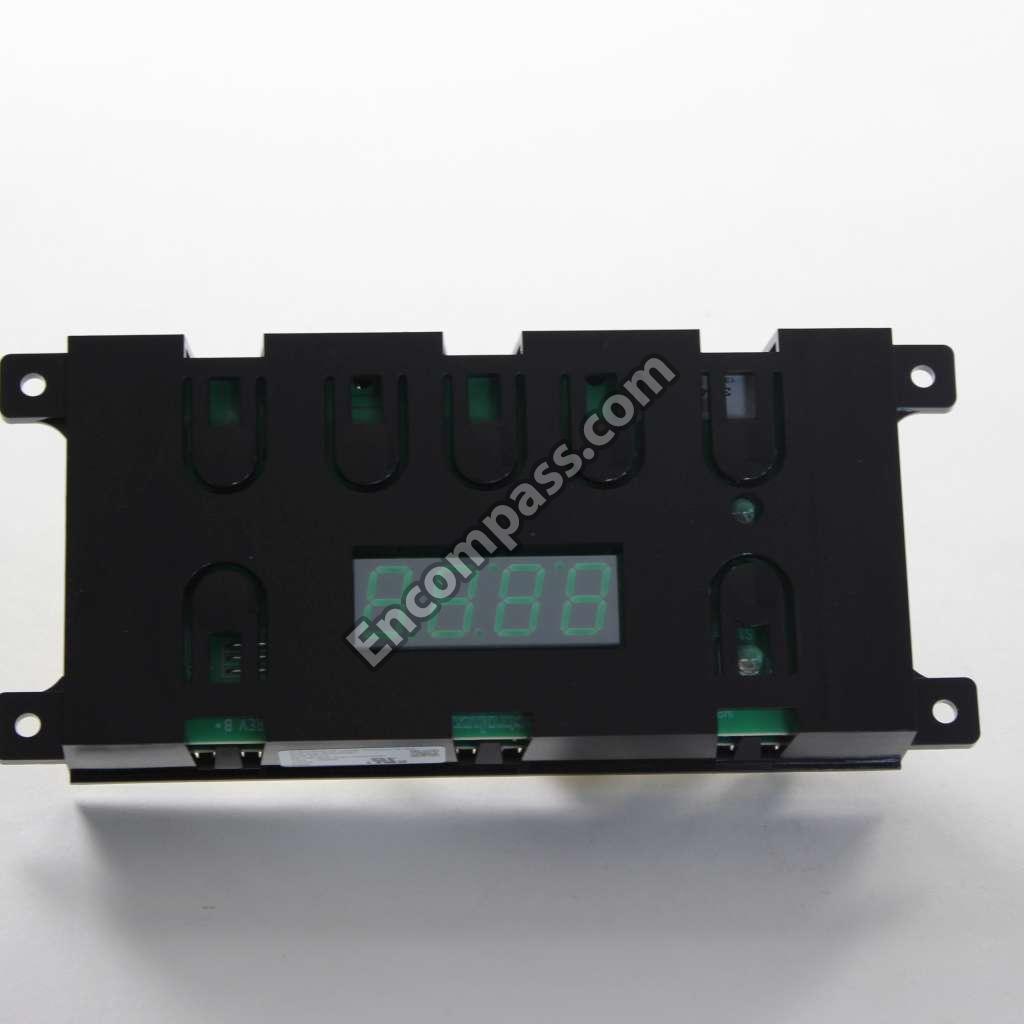

318185349 318185349 CLOCK TIMER EOC BLCK
318144007 318144007 CORD
318038804 318038804 COVER
318107000 318107000 DRAWER
318176005 318176005 FLUE
318170200 318170200 FLUE
318056141 318056141 FRONTOVEN
318053204 318053204 GASKET
318051558 318051558 GLASS
318381402 318381402 GLASS OVEN DOOR
3203715 3203715 GLASS-DRAWER
318532147 318532147 GROUND WIRE
318362822 318362822 HANDLE ASSEMBLY
318024400 318024400 HINGE
318024401 318024401 HINGE
318567109 318567109 HINGE
318222400 318222400 HOUSING
5303302397 5303302397 HOUSING
318177710 318177710 IGNITOR
318126300 318126300 INSERT
807631701 807631701 INSULATION
318285003 318285003 INSULATION
318285032 318285032 INSULATION
318285015 318285015 INSULATION
318156615 318156615 LINER
318112200 318112200 NLAPLATE
318126200 318126200 PAN
318116000 318116000 PANEL
318284201 318284201 PANEL
318121400 318121400 PANEL
318234141 318234141 PANEL
3202113 3202113 PLUG
318166800 318166800 PLUG
316217002 316217002 PROBE
318345216 318345216 RACK
3203723 3203723 RAIL
3203722 3203722 RAIL
318561101 318561101 RECEPTACLE
5303210167 5303210167 REGULATOR
5304400192 5304400192 RETAINER WIRE
5303311217 5303311217 SCREW
5304436875 5304436875 SCREW
5304461333 5304461333 SCREW
5303323277 5303323277 SCREW
5303325980 5303325980 SCREW
5303300195 5303300195 SCREW
5303211311 5303211311 SCREW
5303307406 5303307406 SCREW
318073600 318073600 SHIELD
5303308474 5303308474 SHIELD
5303305035 5303305035 SHIELD
318179000 318179000 SHIELD
318014410 318014410 SPACER
5303300414 5303300414 SPACER
318088300 318088300 SPRING
318192400 318192400 SPRING
3201437 3201437 STRAIN RELIEF
318162601 318162601 SUPPORT
318192100 318192100 SUPPORT
318026522 318026522 TRIM
5303316735 5303316735 TRIM
318176813 318176813 TRIM
318176812 318176812 TRIM
318176500 318176500 TRIM
318027101 318027101 TRIM
3203702 3203702 VALVE
318232517 318232517 WIRING HARNESS
318145005 318145005 WRAPPER
318066804 318066804 WRAPPER
