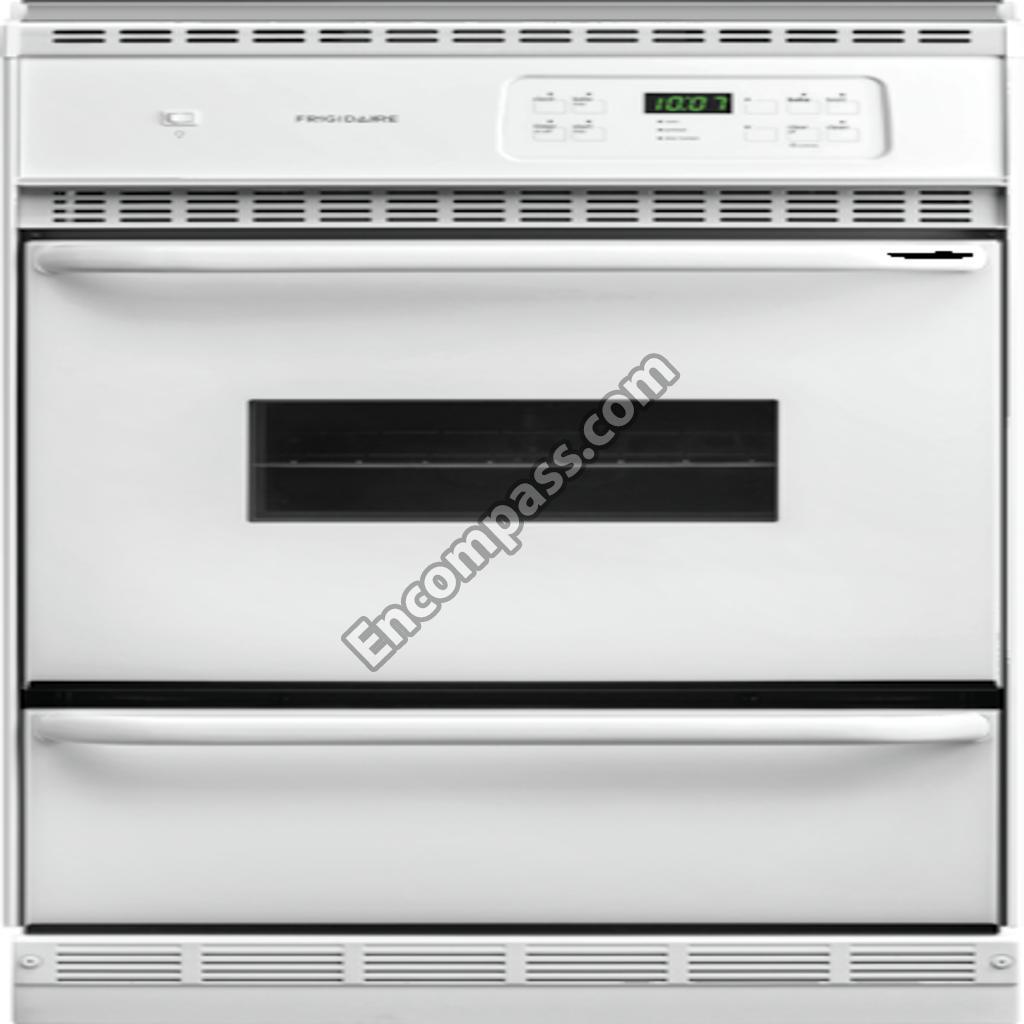

Model Image
Manufacturer

Electrolux

Model Number

FGB24S5ASE

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303326183 5303326183 ANGLE BURNER BOX
318370110 318370110 BAFFLE
3203676 3203676 BAFFLE
318161500 318161500 BOX
318015034 318015034 BRACKET
5303323710 5303323710 BRACKET
318122101 318122101 BRACKET
3131903 3131903 BUMPER
5303283132 5303283132 BURNER
5303210787 5303210787 BURNER
318563000 318563000 BUSHING
318139201 318139201 COLLAR
318185434 318185434 CONTROLLER
318144007 318144007 CORD
318056902 318056902 DEFLECTOR
5303326215 5303326215 DRAWER
210265-1991 210265-1991 END CAP
318170211 318170211 FLUE
5303316982 5303316982 FOAM SEAL
318293510 318293510 GASKET
5303324250 5303324250 GLASS
318051557 318051557 GLASS
318381402 318381402 GLASS OVEN DOOR
5303308464 5303308464 GLASS-DRAWER
318362820 318362820 HANDLE ASSEMBLY
318567112 318567112 HINGE
318222400 318222400 HOUSING
318177710 318177710 IGNITOR
316119302 316119302 IGNITOR
316082000 316082000 INSERT
318285015 318285015 INSULATION
318285033 318285033 INSULATION
318285090 318285090 INSULATION
318285010 318285010 INSULATION
807631701 807631701 INSULATION
318065102 318065102 LATCH
318406100 318406100 LENS
318089411 318089411 LINER
318048319 318048319 LINER
318272801 318272801 LINER
318038600 318038600 LINER
5303210786 5303210786 MIXER ELBOW
5303210807 5303210807 MIXER ELBOW

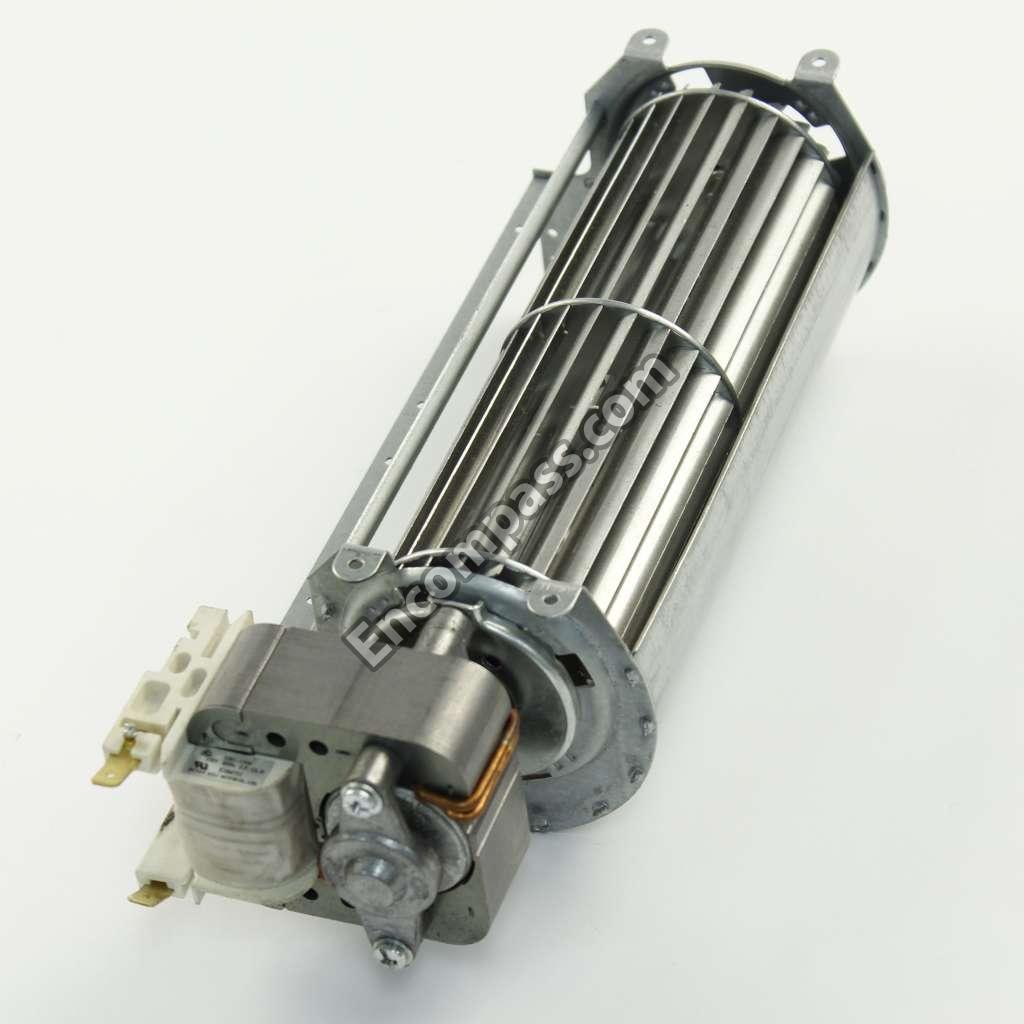

318073036 318073036 MOTOR

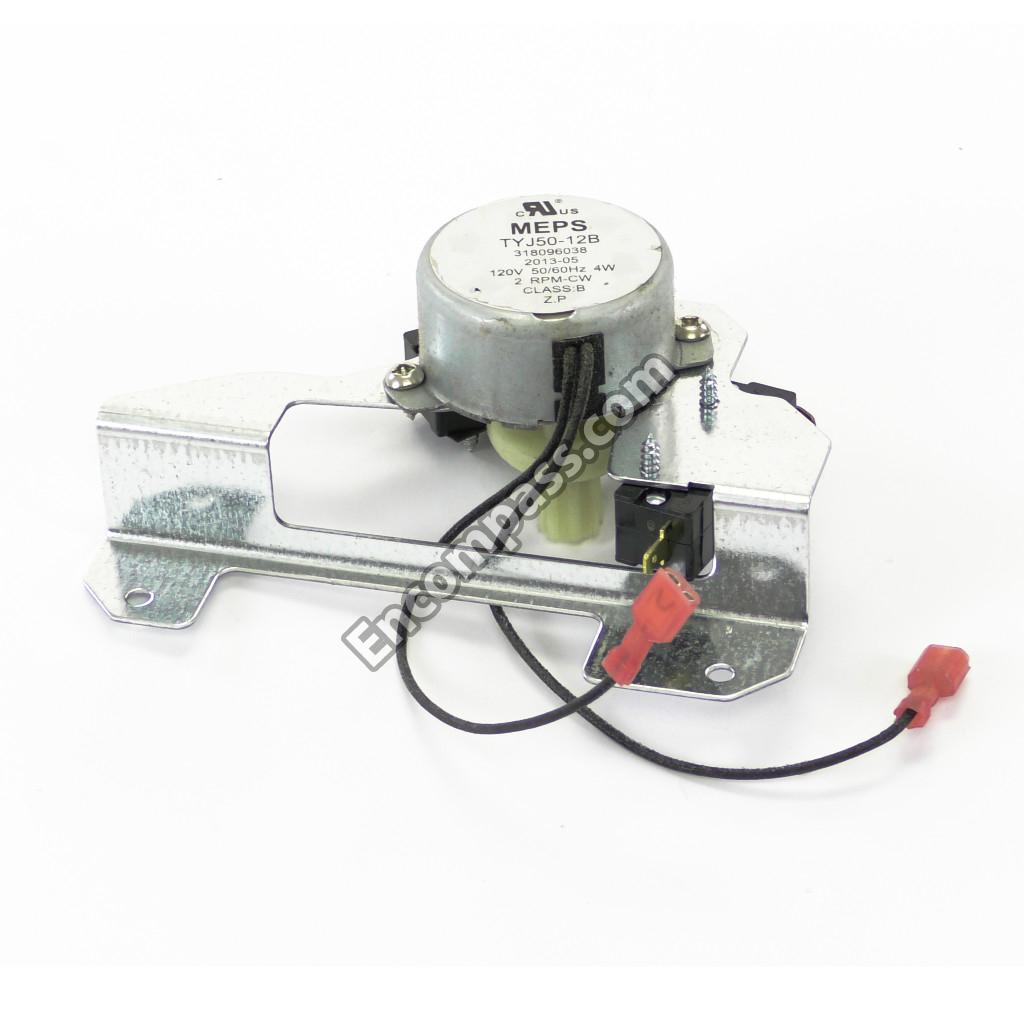

318095953 318095953 MOTOR
318112200 318112200 NLAPLATE
316419137 316419137 OVERLAY
316081900 316081900 PAN
318234143 318234143 PANEL
318121400 318121400 PANEL
318284201 318284201 PANEL
3202113 3202113 PLUG
318345204 318345204 RACK
3203722 3203722 RAIL
3203723 3203723 RAIL
318561101 318561101 RECEPTACLE
5303210167 5303210167 REGULATOR
5304400195 5304400195 RETAINER
5303311222 5303311222 ROD
5304450850 5304450850 SCREW
5303323130 5303323130 SCREW
5303211311 5303211311 SCREW
5303300195 5303300195 SCREW
5303302745 5303302745 SCREW
5303323277 5303323277 SCREW
5303320422 5303320422 SCREW
5303311528 5303311528 SCREW
5304461333 5304461333 SCREW
5303325981 5303325981 SCREW
5303310510 5303310510 SCREW
5303311217 5303311217 SCREW
5304436875 5304436875 SCREW
318178801 318178801 SEAL
318562500 318562500 SENSOR
5303210844 5303210844 SHIELD
5303210843 5303210843 SHIELD
318179000 318179000 SHIELD
318073600 318073600 SHIELD
316517600 316517600 SPACER
5303300414 5303300414 SPACER
318139100 318139100 SPACER
318014301 318014301 SPACER
318014410 318014410 SPACER
318192400 318192400 SPRING
5303311164 5303311164 SPRING
3201437 3201437 STRAIN RELIEF
318192100 318192100 SUPPORT
318120711 318120711 SWITCH
5303326252 5303326252 SWITCH

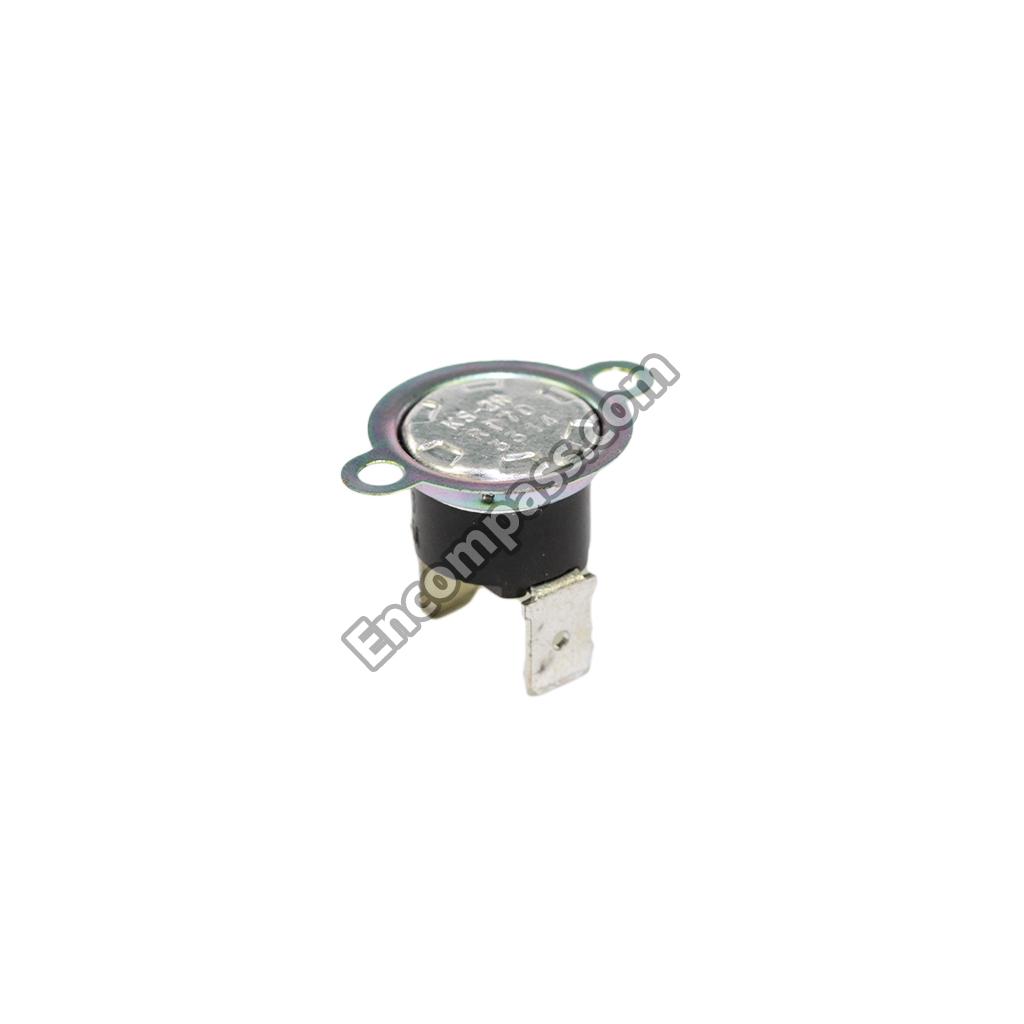

318003623 318003623 THERMOSTAT
318003624 318003624 THERMOSTAT
5303271089 5303271089 TRIM
5303308462 5303308462 TRIM
5303308459 5303308459 TRIM
318029404 318029404 TRIM
5303316734 5303316734 TRIM
318026522 318026522 TRIM
318013503 318013503 TUBE
318177801 318177801 TUBING
5303271092 5303271092 TUBING
5303210798 5303210798 VALVE
318232523 318232523 WIRING HARNESS
318145003 318145003 WRAPPER
318066804 318066804 WRAPPER
318145005 318145005 WRAPPER
