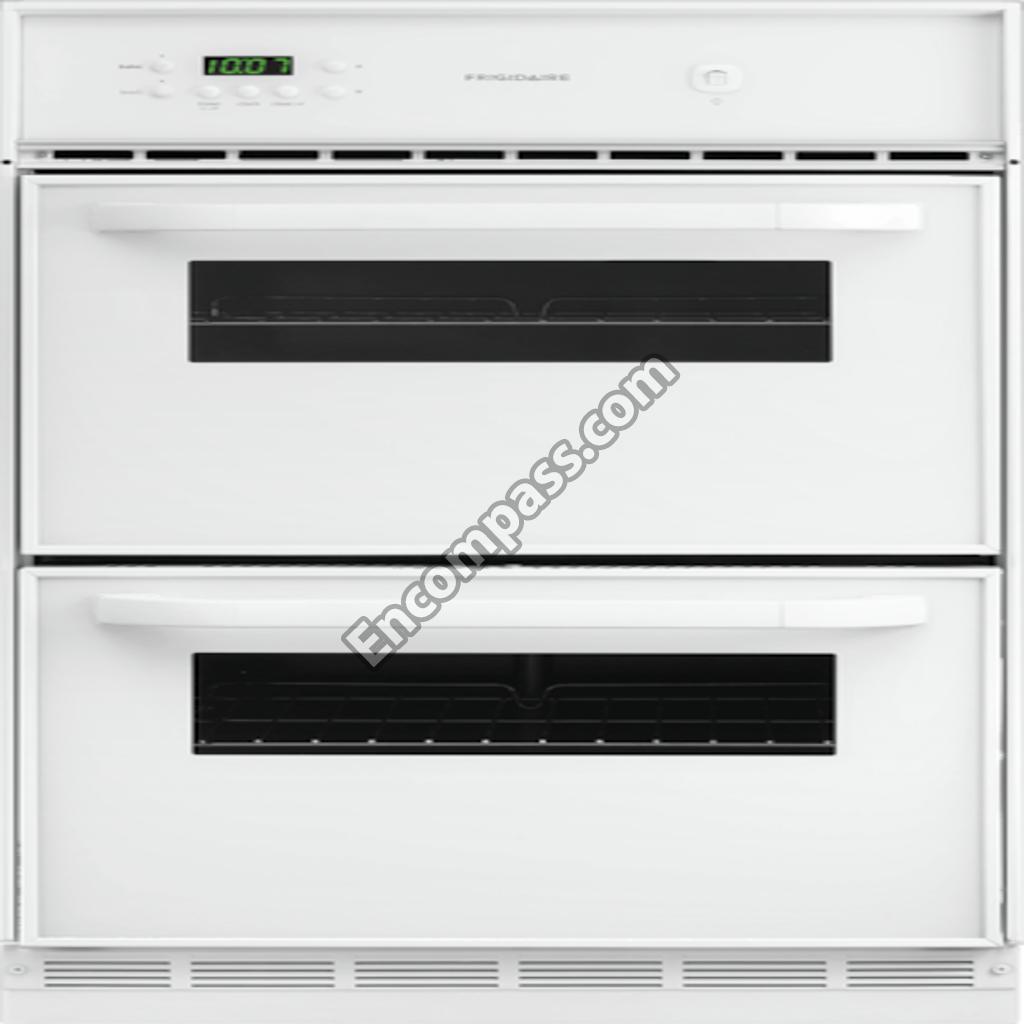

Model Image
Manufacturer

Electrolux

Model Number

FGB24T3ESF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303317129 5303317129 ANGLE
5303317122 5303317122 BAFFLE
318076801 318076801 BOX
318110700 318110700 BRACKET
5303317124 5303317124 BRACKET
5303317123 5303317123 BRACKET
5303013071 5303013071 BULB/LAMP
5303207603 5303207603 BURNER
318034601 318034601 CAP
318034503 318034503 CAP
316455461 316455461 CLOCK/TIMER
318186100 318186100 DOOR
318212510 318212510 GLASS
318042310 318042310 GLASS
318178516 318178516 GLASS
318355200 318355200 GLIDE
318567104 318567104 HINGE
318177710 318177710 IGNITOR
316082000 316082000 INSERT
318285008 318285008 INSULATION
318285048 318285048 INSULATION
318294928 318294928 INSULLATION
318017710 318017710 KNOB
318109512 318109512 LINER
318048902 318048902 LINER
316081900 316081900 PAN
318136500 318136500 PANEL
318133600 318133600 PANEL
318116906 318116906 PLATE
316217005 316217005 PROBE
318345800 318345800 RACK
318561101 318561101 RECEPTACLE
5303210167 5303210167 REGULATOR
5303295303 5303295303 RETAINER
5304400192 5304400192 RETAINER WIRE
5303211311 5303211311 SCREW
5304436875 5304436875 SCREW
5303308456 5303308456 SCREW
5303316956 5303316956 SCREW
5303323277 5303323277 SCREW
5304461333 5304461333 SCREW
5304400429 5304400429 SCREW
5304416408 5304416408 SCREW
5304459529 5304459529 SCREW
5303935083 5303935083 SCREW 10-16X1-1/4
5303295311 5303295311 SEAL
5303207644 5303207644 SEAL
5303317712 5303317712 SHIELD
5303317128 5303317128 SHIELD
318574300 318574300 SHIELD
5303300173 5303300173 SPACER
318014408 318014408 SPACER
316090901 316090901 SWITCH
318029002 318029002 TRIM
318029003 318029003 TRIM
5303316734 5303316734 TRIM
318026501 318026501 TRIM
5304410865 5304410865 TUBE
5303210156 5303210156 VALVE
318232522 318232522 WIRING HARNESS
5303317130 5303317130 WRAPPER
5303317132 5303317132 WRAPPER
