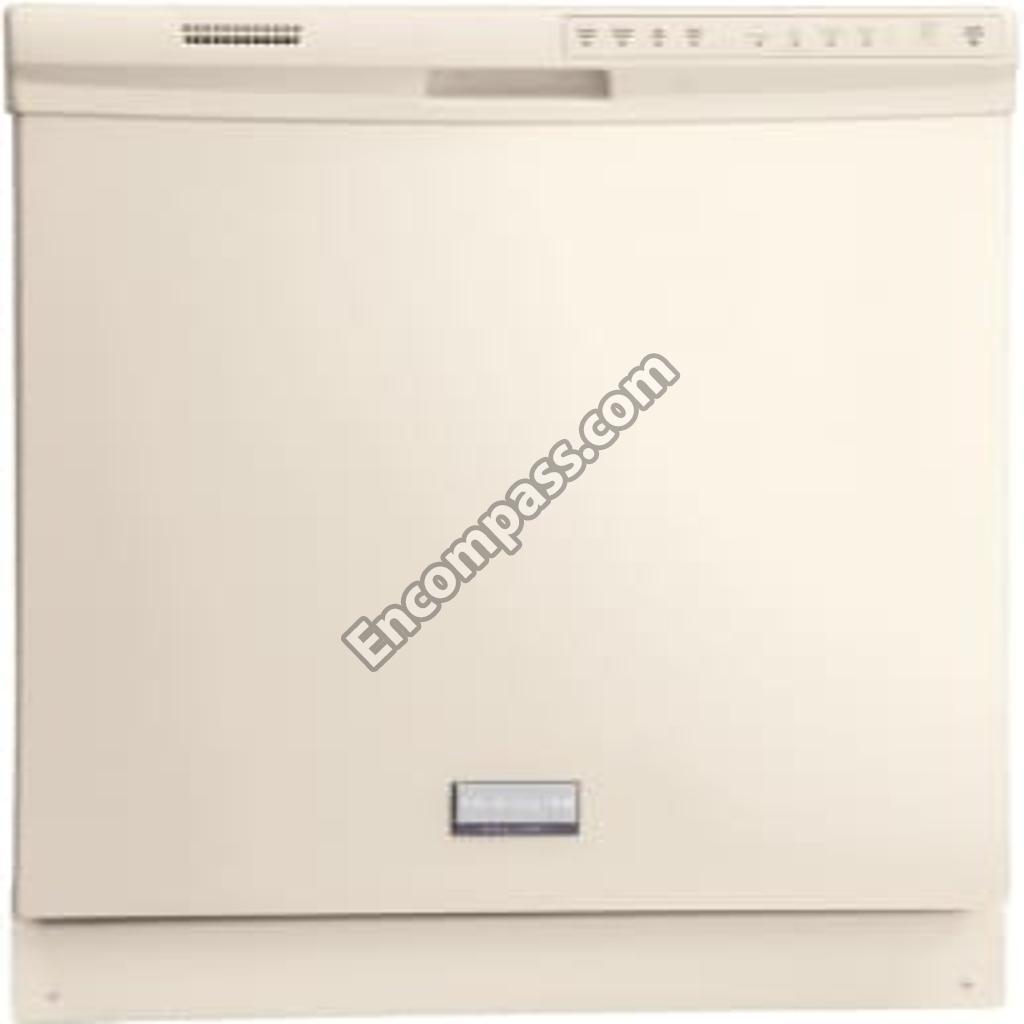

Model Image
Manufacturer

Electrolux

Model Number

FGBD2431KQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154723201 154723201 ADAPTER
154691101 154691101 ARM ASSEMBLY
154691201 154691201 ARM ASSEMBLY
154246402 154246402 BALL
154775401 154775401 BASE
154556102 154556102 BASKET
154686401 154686401 BEARING
154669301 154669301 BRACE
154246502 154246502 BRACKET
154595901 154595901 BRACKET
154465101 154465101 BRACKET
154388801 154388801 CAP
5304440996 5304440996 CAP
154380601 154380601 CLAMP
154320301 154320301 CLAMP
154752604 154752604 CONSOLE ASSEMBLY
154758501 154758501 COVER
154724001 154724001 COVER
154718801 154718801 COVER
154574401 154574401 DISPENSER
154741004 154741004 DOOR ASSEMBLY
154758430 154758430 ENERGY GUIDE
154283005 154283005 F-FILTER ASSEMBLY
154494601 154494601 F-LINER
154246801 154246801 GASKET
154406401 154406401 GASKET
154478901 154478901 GASKET
154463402 154463402 GROMMET
154732602 154732602 HANDLE
154530902 154530902 HANDLE
154824801 154824801 HARNESS
154647101 154647101 HINGE PIN
154253201 154253201 INSULATION
154589505 154589505 KICKPLATE ASSEMBLY
154571101 154571101 LEG
154325201 154325201 LINKAGE
154106202 154106202 NUT
154247001 154247001 ORING
154246901 154246901 ORING
154241101 154241101 RETAINER
154371303 154371303 SCREW
154491101 154491101 SCREW
154741501 154741501 SCREW
154041001 154041001 SCREW
154200701 154200701 SCREW
154200602 154200602 SCREW
154297701 154297701 SCREW
154093301 154093301 SCREW
154103702 154103702 SCREW
154294701 154294701 SCREW
154409401 154409401 SCREW
154783101 154783101 SCREW
5304428306 5304428306 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
5303316032 5303316032 SCREW
154200601 154200601 SCREW-#10-16 X 3/8
154289801 154289801 SHIELD
154719301 154719301 SHIELD
154597801 154597801 SLIDE
154568002 154568002 SPRAY ARM
154430501 154430501 SPRING
154728201 154728201 SUMP ASSEMBLY
154294102 154294102 SUPPORT
154227501 154227501 THERMISTER
154290204 154290204 THERMOSTAT
154745504 154745504 TOEPLATE
154252702 154252702 TRAP
154729401 154729401 TUB ASSEMBLY
154446002 154446002 TUBING
154637401 154637401 VALVE
154423601 154423601 VENT ASSEMBLY
154522902 154522902 WHEEL & BUSHING ASS
