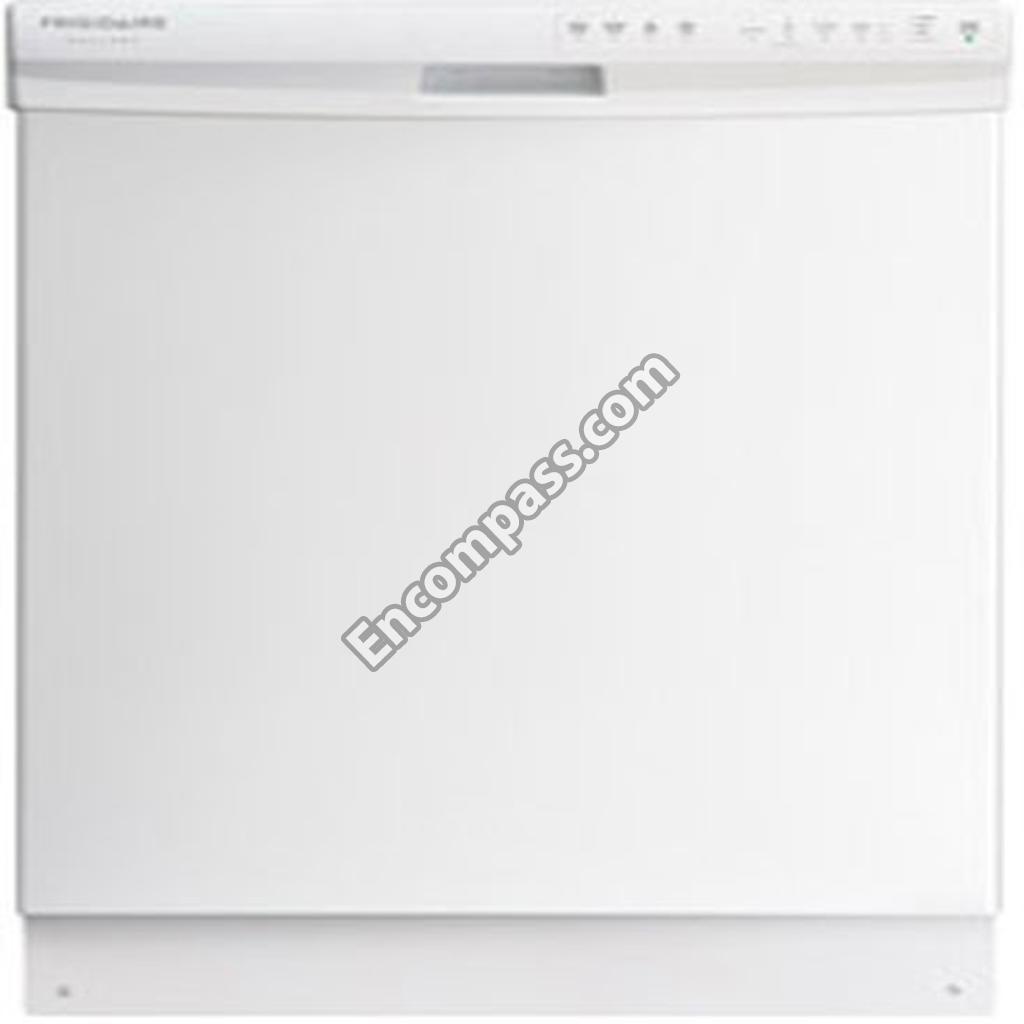

Model Image
Manufacturer

Electrolux

Model Number

FGBD2438PW3A

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154691101 154691101 ARM ASSEMBLY
154691201 154691201 ARM ASSEMBLY
154246402 154246402 BALL
154775402 154775402 BASE
154556102 154556102 BASKET
154686401 154686401 BEARING
154823701 154823701 BRACE
154242003 154242003 BRACKET
154465101 154465101 BRACKET
154595901 154595901 BRACKET
154246502 154246502 BRACKET
154578801 154578801 CABLE
5304440996 5304440996 CAP
154380601 154380601 CLAMP
154320301 154320301 CLAMP
154872204 154872204 CONSOLE
154406801 154406801 COUNTER BRACKET KIT
154758501 154758501 COVER
154724001 154724001 COVER
154718801 154718801 COVER
154874701 154874701 DOOR ASSEMBLY
154755801 154755801 DUCT ASSEMBLY
154283005 154283005 F-FILTER ASSEMBLY
154740404 154740404 FENCE
154740304 154740304 FENCE
154767802 154767802 FLOAT
154406401 154406401 GASKET
154246801 154246801 GASKET
154478901 154478901 GASKET
809006501 809006501 GASKET,DOOR,BOTTOM
154463402 154463402 GROMMET
154732602 154732602 HANDLE
154530902 154530902 HANDLE
154870201 154870201 HARNESS
154825001 154825001 HEATER
154647101 154647101 HINGE PIN
807117001 807117001 HOSE,DRAIN
807327601 807327601 INSERT,CONTROL PANEL, WHITE
154858701 154858701 INSULATION
154253201 154253201 INSULATION
154871201 154871201 KICKPLATE ASSEMBLY
154722401 154722401 LATCH
154571101 154571101 LEG
154743504 154743504 LINER,DOOR ASSEMBLY,DARK GREY
154844301 154844301 MOTOR KIT
154106202 154106202 NUT
154247001 154247001 ORING
154246901 154246901 ORING
154579202 154579202 PULLEY
154579201 154579201 PULLEY
154875203 154875203 RACK ASSEMBLY
808602102 808602102 RACK ASSEMBLY
154241101 154241101 RETAINER
154767502 154767502 ROLLER ASSEMBLY
154371301 154371301 SCREW
154200701 154200701 SCREW
154741501 154741501 SCREW
154491101 154491101 SCREW
154779601 154779601 SCREW
154754901 154754901 SCREW
154297701 154297701 SCREW
154041001 154041001 SCREW
154103702 154103702 SCREW
154793401 154793401 SCREW
154754701 154754701 SCREW
154825401 154825401 SCREW
154093301 154093301 SCREW
154783101 154783101 SCREW
154294701 154294701 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
154762601 154762601 SENSOR
154793904 154793904 SHELF
154289801 154289801 SHIELD
154798401 154798401 SHIELD
154597801 154597801 SLIDE
5304496936 5304496936 SPRAY ARM,ASSEMBLY,BLUE,LOWER
154579101 154579101 SPRING
154723801 154723801 SUMP ASSEMBLY
154294102 154294102 SUPPORT
154773201 154773201 SWITCH ASSEMBLY FLOAT
154642901 154642901 THERMOSTAT
154745501 154745501 TOEPLATE
154252702 154252702 TRAP
154827601 154827601 TUB GASKET
154824201 154824201 TUBE
154446002 154446002 TUBING
807047901 807047901 VALVE
807048001 807048001 VALVEFLAPPER
154784401 154784401 VENT ASSEMBLY
154174503 154174503 WHEEL & BRACKET ASS
154522902 154522902 WHEEL & BUSHING ASS
