Model Image
Manufacturer

Electrolux

Model Number

FGDS3065KBB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318357001 318357001 ADAPTER
318335500 318335500 ANTI-TIP & ACCESSOR
318259220 318259220 BACK
318260531 318260531 BAFFLE
318272901 318272901 BOX
318297303 318297303 BOX
318382301 318382301 BRACKET
318251300 318251300 BRACKET
318313601 318313601 BRACKET
318298410 318298410 BRACKET
318260628 318260628 BRACKET
318921300 318921300 BRACKET
318928500 318928500 BRACKET
5303013071 5303013071 BULB/LAMP
318147430 318147430 BUMPER
316558300 316558300 BURNER
316438600 316438600 BURNER
316438400 316438400 BURNER
316438200 316438200 BURNER
318347800 318347800 CHIMNEY
316095800 316095800 CLIP
318235300 318235300 CONNECTOR ASSEMBLY.

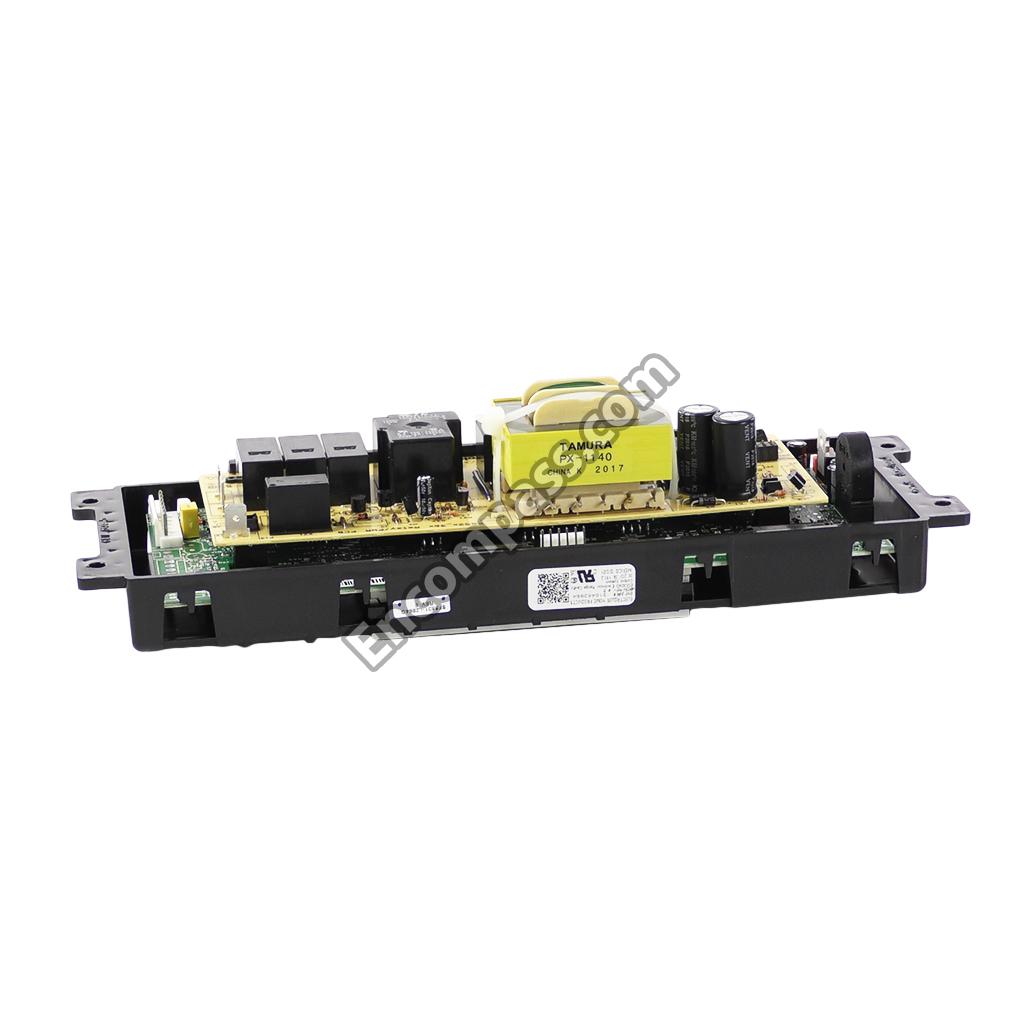

316462864 316462864 CONTROLLER
318565405 318565405 CONVERSION KIT
318219405 318219405 COVER
318913300 318913300 DEFLECTOR
318304404 318304404 DRAWER
318072577 318072577 DUCT
318255301 318255301 ELEMENT
318255504 318255504 ELEMENT
318398302 318398302 FAN BLADE
318298230 318298230 FRAME
318298226 318298226 FRAME
318056292 318056292 FRONT
318053132 318053132 GASKET
316117500 316117500 GLASS
318212210 318212210 GLASS
318261316 318261316 GLASS ASSEMBLY
316105501 316105501 GLIDE
318259509 318259509 GLIDE
318259508 318259508 GLIDE
318560470 318560470 GRATE
318927401 318927401 HANDLE
318224861 318224861 HARNESS
318567101 318567101 HINGE
318222400 318222400 HOUSING
316540700 316540700 IGNITOR/ORIFICE ASS
316543206 316543206 IGNITOR/ORIFICE ASS
316543203 316543203 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
318929702 318929702 INSERT
318285099 318285099 INSULATION
318372015 318372015 INSULATION
318285079 318285079 INSULATION
318536600 318536600 INSULATION
318294912 318294912 INSULLATION
316564409 316564409 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318259665 318259665 LINER
318261439 318261439 LINER
316547900 316547900 LINK
318569053 318569053 MAINTOP ASSEMBLY
318913400 318913400 MANIFOLD
318907200 318907200 MANIFOLD
316135702 316135702 MODULE
318073028 318073028 MOTOR
316136600 316136600 NUT
5303323144 5303323144 NUT
316527513 316527513 ORIFICE
316527509 316527509 ORIFICE
316527504 316527504 ORIFICE
316081900 316081900 PAN
318300102 318300102 PANEL
318300003 318300003 PANEL
318300301 318300301 PANEL
318295611 318295611 PANEL
318303907 318303907 PANEL
318225211 318225211 PANEL
318225210 318225210 PANEL
318225110 318225110 PANEL
318296904 318296904 PANEL
318359500 318359500 PANEL
318296905 318296905 PANEL
318260007 318260007 PANEL
318590002 318590002 PANEL
318912905 318912905 PANEL
318922140 318922140 PANEL ASSEMBLY
318299908 318299908 PANEL DRAWER (BLK)
318394300 318394300 PLATE
318389400 318389400 PLATE
318264200 318264200 PLATE
5303320846 5303320846 PLATE
318111806 318111806 PLATE
318003000 318003000 PLATE
318402800 318402800 PLATE
316217002 316217002 PROBE
807328301 807328301 RACK
318922301 318922301 RACK
318921600 318921600 RACK
318926803 318926803 RACK
318561101 318561101 RECEPTACLE
318122721 318122721 REGULATOR
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5303307980 5303307980 SCREW
5303311174 5303311174 SCREW
5303300265 5303300265 SCREW
5304415832 5304415832 SCREW
3051050 3051050 SCREW
5304440988 5304440988 SCREW
5304461333 5304461333 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
5303324184 5303324184 SCREW
316215600 316215600 SCREW
316240600 316240600 SCREW
5303211311 5303211311 SCREW
5303323277 5303323277 SCREW
5304436875 5304436875 SCREW
5304454881 5304454881 SCREW
5304453707 5304453707 SCREW
5304477986 5304477986 SCREW1024X1770
318389000 318389000 SEAL
318303800 318303800 SHIELD
318259105 318259105 SHIELD
318258957 318258957 SHIELD
318165800 318165800 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318927600 318927600 SUPPORT
316445501 316445501 SWITCH
318004902 318004902 SWITCH
318005108 318005108 THERMOSTAT
316536100 316536100 TRANSFORMER
318260401 318260401 TRIM
318260201 318260201 TRIM
318913101 318913101 TRIM
318249409 318249409 TUBE
318913600 318913600 TUBE
318913500 318913500 TUBE
318916800 318916800 TUBE
318916700 318916700 TUBE
318916600 318916600 TUBE
318916500 318916500 TUBE
318915703 318915703 VALVE
318915701 318915701 VALVE
318915700 318915700 VALVE
318915704 318915704 VALVE
3201909 3201909 WASHER
318384442 318384442 WIRING HARNESS
318232659 318232659 WIRING HARNESS
318199776 318199776 WIRING HARNESS
