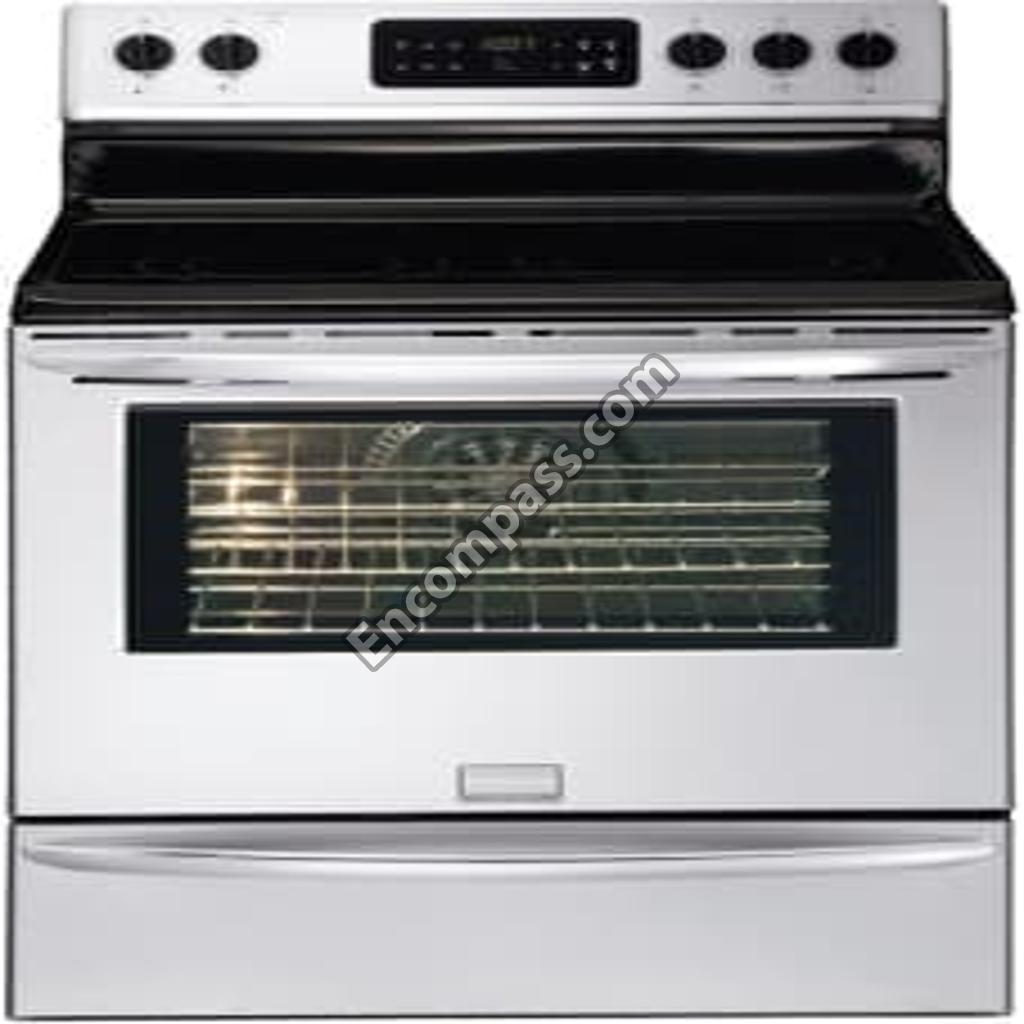

Model Image
Manufacturer

Electrolux

Model Number

FGEF3042KFC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316505701 316505701 BASE
316408300 316408300 BRACKET
316498200 316498200 BRACKET
316214202 316214202 BRACKET
316506000 316506000 BRACKET
316404100 316404100 BRACKET
316081200 316081200 BRACKET
316546703 316546703 CAP
316546702 316546702 CAP
316546601 316546601 CAP
316427603 316427603 CHANNEL
316468100 316468100 CLEANER
316461700 316461700 CLIP
316408000 316408000 CLIP
316026701 316026701 COVER
316457801 316457801 COVER
316231800 316231800 COVER
316408703 316408703 DRAWER
316505500 316505500 ELEMENT
316200600 316200600 ELEMENT
316452719 316452719 GLASS
316117502 316117502 GLASS
316407400 316407400 GLIDE
316407301 316407301 GLIDE
316510647 316510647 HARNESS
316436600 316436600 HINGE BRACKET
316082000 316082000 INSERT
316405600 316405600 INSULATION
316509600 316509600 INSULATION
316406601 316406601 INSULATION
316406503 316406503 INSULATION
316509700 316509700 INSULATION
316542200 316542200 INSULATOR
316564402 316564402 KNOB
316433603 316433603 LABEL
316405800 316405800 LATCH ASSEMBLY
318406100 318406100 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316423705 316423705 LINER
316403300 316403300 LINER
316547900 316547900 LINK
316531953 316531953 MAINTOP
316256100 316256100 MOTOR
316464300 316464300 MOTOR-LATCH
316136600 316136600 NUT
316205500 316205500 NUT
316419342 316419342 OVERLAY
316081900 316081900 PAN
316401802 316401802 PANEL
316572418 316572418 PANEL
316542600 316542600 PLATE
316490000 316490000 PROBE
316496205 316496205 RACK
316441300 316441300 RECEPTACLE
316116400 316116400 RECEPTACLE
316087500 316087500 RETAINER
316203500 316203500 ROD
316021109 316021109 SCREW
5303285179 5303285179 SCREW
316116000 316116000 SCREW
316001003 316001003 SCREW
316418901 316418901 SCREW
316418900 316418900 SCREW
316021132 316021132 SCREW
316272900 316272900 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316089500 316089500 SCREW
5308014215 5308014215 SCREW
316405000 316405000 SEAL
316408201 316408201 SHIELD
316406310 316406310 SHIELD
316400701 316400701 SHIELD
316422304 316422304 SHIELD
316234100 316234100 SHIELD
316406200 316406200 SHIELD
316404600 316404600 SHIELD
316557600 316557600 SHIELD
316234013 316234013 SHIELD
316408600 316408600 SPACER
316517600 316517600 SPACER
316505801 316505801 SUPPORT
316404000 316404000 SUPPORT
316445500 316445500 SWITCH
316436000 316436000 SWITCH
316095503 316095503 SWITCH
5303935271 5303935271 TERMINAL BLOCK KIT
316208304 316208304 TUBE
316208401 316208401 VENT TUBE
316008401 316008401 WASHER
316506263 316506263 WIRING HARNESS
