Manufacturer
Electrolux
Model Number
FGEF306TMFE
Description

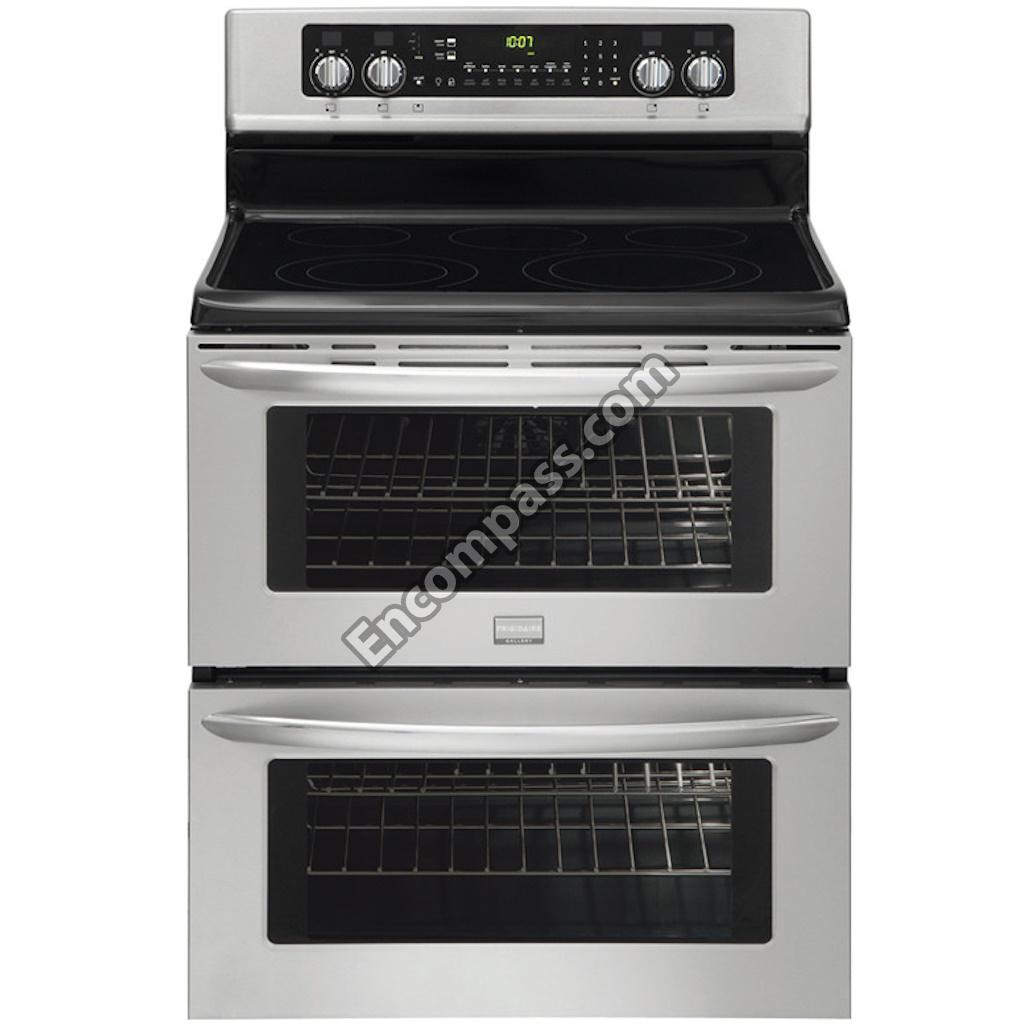

30-inch Freestanding Electric Double Oven Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANGLE,REAR PLENUM,(2) |
|
|
ANTI TIPKIT, ASSEMBLY, W/TEMPLATE |
|
|
BACK,MAIN,LOWER OVEN |
|
|
BAFFLE,DOOR,LOWER |
|
|
BAFFLE,DOOR,UPPER |
|
|
BASE, ELEMENT,UPPER OVEN |
|
|
BOARD,POWER, UIB |
|
|
BOARD,POWER,RELAY |
|
|
BOARD,RELAY, DUAL OVEN |
|
|
BOX,BAKE ELEMENT |
|
|
BRACE, CONTROL PANEL |
|
|
BRACKET, BAKE ELEMENT |
|
|
BRACKET, BOTTOM,REAR |
|
|
BRACKET, CABLEMTG. |
|
|
BRACKET, CHASSIS SUPPORT,FRONT |
|
|
BRACKET, CONTROLPANEL |
|
|
BRACKET, COOKTOP,BLACK |
|
|
BRACKET, ELEMENT MTG,(2) |
|
|
BRACKET, LATERAL PANEL,(2) |
|
|
BRACKET, RETAINER,INSULATION |
|
|
BRACKET, SIDE,(4) |
|
|
BRACKET, SIDE,BOTTOM,(2) |
|
|
BRACKET,GLASSRETAINER,(4) |
|
|
BRACKET,TERMINAL BLOCK |
|
|
BRACKET,VENT TUBE,(3) |
|
|
BUMPER,BODYSIDE,(4) |
|
|
CAP, TOP,BLACK, BACKGUARD |
|
|
CAP, VENT TUBE,(2) |
|
|
CLIP,ROD |
|
|
CONNECTOR ASSEMBLY., W/3 LUGS, & INSTRUCTIONS |
|
|
CONTROL ASSEMBLY, COMPLETE,ROTARY, W/4 CONTROLS |
|
|
CONTROL, ELECTRONIC,ES610W10, DUAL OVEN |
|
|
COVER, FAN |
|
|
COVER,INSULATION, CENTER |
|
|
DEFLECTOR,(2) |
|
|
DEFLECTOR,INSULATION |
|
|
ELEMENT, CONVECTION, 350 W |
|
|
ELEMENT, SURFACE,6-INCH , 1200,(2),RADIANT |
|
|
ELEMENT, SURFACE,6-INCH /9-INCH , 1400/3000W,RADIANT |
|
|
ELEMENT, SURFACE,9-INCH /12-INCH , 1200W/1800W, DUAL RADIANT |
|
|
ELEMENT, SURFACE,WARMER,100 W |
|
|
ELEMENT,BAKE, 2500W, 8 PASS |
|
|
ELEMENT,BROIL, 3400W |
|
|
ELEMENT,OVEN BAKE, 2500W |
|
|
END CAP,BACKSPLASH,BLACK, LH |
|
|
END CAP,BACKSPLASH,BLACK, RH |
|
|
FAN BLADE |
|
|
FRONT, ELEMENT BASE,UPPEROVEN |
|
|
FRONT, OVEN |
|
|
GLASS,OVEN DOOR,HEAT BARRIER,HBII |
|
|
HANDLE, DOOR/DRAWER,STAINLESS |
|
|
HARNESS, WIRING, CONTROLLER, TO RELAY BOARD |
|
|
HARNESS, WIRING, COOKTOP |
|
|
HARNESS, WIRING,MAIN |
|
|
HARNESS, WIRING,MAIN, BACKGUARD |
|
|
HARNESS, WIRING,UI8, TO RELAYBOARD |
|
|
HINGE BRACKET,MAINTOP,(2) |
|
|
HINGE, DOOR,UPPER OVEN,(2) |
|
|
HINGE,DOOR,LOWER OVEN,(2) |
|
|
HOUSING,OVEN LIGHT |
|
|
INSULATION |
|
|
INSULATION |
|
|
INSULATION, 1.25-INCH THICK, 19 X 2 |
|
|
INSULATION, 13.25 X 2.375, 1-INCH THICK,(2) |
|
|
INSULATION, 20.5 X 2.375, 1-INCH THICK,(2) |
|
|
INSULATION,BACK, OVEN,(2) |
|
|
INSULATION,REAR |
|
|
INSULATION,TOP & SIDES,LOWER OVEN |
|
|
INSULATION,UPPER |
|
|
KNOB, CONTROL, STAINLESS |
|
|
LABEL, ANTI-TIP |
|
|
LAMP, OVENLIGHT |
|
|
LENS,OVEN LIGHT, GLASS |
|
|
LINER,DOOR |
|
|
LINER,LOWEROVEN |
|
|
LINER,LOWEROVEN |
|
|
LNSUALTION,FRONT |
|
|
LNSULLATION, BAKE ELEMENT |
|
|
MAIN TOP ASSEMBLY, GLASS/STEEL,BLACK |
|
|
MOTOR, FAN |
|
|
MOTOR,LATCH ASSEMBLY, W/BRKT & SWITCH |
|
|
NUT, 10-32 |
|
|
NUT, FANRETAINER |
|
|
NUT,MOUNTING |
|
|
PAN,BROILEROPTIONALACCESSORY |
|
|
PANEL ASSEMBLY, UPPER DOOR, STAINLESS, OUTER, W/BADGE |
|
|
PANEL ASSEMBLY,LOWER DOOR, STAINLESS, OUTER |
|
|
PANEL, CONTROL, STAINLESS |
|
|
PANEL, SERVICE |
|
|
PANEL,ACCESS |
|
|
PANEL,BODY SIDE,BLACK,(2) |
|
|
PANEL,COVER, UPPER |
|
|
PANEL,REAR,LOWER |
|
|
PLATE, CORD SET MTG |
|
|
PLATE, GROUNDING STRAP |
|
|
PLATE, OVENMTG |
|
|
RACK, OVEN |
|
|
RACK,LOWER OVEN |
|
|
RACK,UPPER OVEN |
|
|
REATINER, GLASS,INNER,(2) |
|
|
RECEPTACLE, OVEN LIGHT |
|
|
RECEPTACLE,HINGE, (2) |
|
|
RETAINER, WIRING |
|
|
RETAINER,LIGHT COVER |
|
|
ROD,LATCH, W/BUSHING |
|
|
SCREW, 10-24 X 0.906 |
|
|
SCREW, 10-24,(2) |
|
|
SCREW, 10-32 X 17/32 |
|
|
SCREW, 6-18X 1,(2) |
|
|
SCREW, 8 X 0.750 |
|
|
SCREW, 8-18 X 0.500 |
|
|
SCREW, 8-18X 0.406 |
|
|
SCREW, 8-18X 0.531,BLACK |
|
|
SCREW, 8-18X 1/2, (4) |
|
|
SCREW, 8-18X 1/2, BLACK,(3) |
|
|
SCREW, 8-18X 1/4,(2) |
|
|
SCREW, 8-18X 13/32 |
|
|
SCREW, 8-32 X 1/4 |
|
|
SCREW, ELEMENT, 6 X 3/4 |
|
|
SCREW, SHOULDER |
|
|
SCREW, SIMSIP, #8-32 X 5/16-INCH ,BLACK |
|
|
SCREW, TRUSS HEAD, 8-18 X 0.375 |
|
|
SCREW,#8-18 X 3/8,(10) |
|
|
SCREW,LEVELING |
|
|
SCREW,LEVELING, W/TEENUT |
|
|
SCREWGROUND |
|
|
SEAL, OVENDOOR |
|
|
SENSOR, OVEN TEMPPROBE |
|
|
SHIELD, BACKGUARD,BLACK, INNER |
|
|
SHIELD, VENT TUBE, COVER |
|
|
SHIELD,BOX |
|
|
SHIELD,INSULATION,LOWER,LARGEOVEN |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER, CONTROL |
|
|
SPACER, ELEMENT |
|
|
SPACER, OVENDOOR |
|
|
SPRING |
|
|
SPRING,ELEMENT MTG. |
|
|
SPRING,OVEN |
|
|
SUPPORT, ELEMENT BASE,(2) |
|
|
SUPPORT, SIDE, OVEN,(2) |
|
|
SUPPORT, WIRE |
|
|
SUPPORT,HANGER, BROIL ELEMENT |
|
|
SWITCH,LIGHT, DOOR |
|
|
TERMINAL BLOCKKIT |
|
|
TIMER ASSEMBLY, ES610W5,BLACK, W/OVERLAY |
|
|
TRIM, CENTERVENT, BLACK, FRONT |
|
|
TRIM, OVENDOOR,BLACK, SIDE |
|
|
TRIM,BACK,UPPER |
|
|
TRIM,BOTTOM,BLACK |
|
|
TUBE, VENT,LOWER OVEN |
|
|
TUBE, VENT,UPPER OVEN |
|
|
TUBE,PROTECTOR |
|
|
VENT TUBE, OVEN, W/CATALYST |
|
|
WASHER, FLAT |
|
|
WASHER, FLAT, LOWER |
|
|
WASHER,LOCK, MTG |
|
|
WIRING HARNESS, DOOR SWITCH,AND LATCHMTR |
