Model Image
Manufacturer

Electrolux

Model Number

FGEF306TMWA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318322801 318322801 ANGLE
318259272 318259272 BACK
318260525 318260525 BAFFLE
318260528 318260528 BAFFLE
316443945 316443945 BOARD
316442112 316442112 BOARD
316442063 316442063 BOARD
318297303 318297303 BOX
318571400 318571400 BRACE
318382301 318382301 BRACKET
318640301 318640301 BRACKET
316214202 316214202 BRACKET
318561801 318561801 BRACKET
318565000 318565000 BRACKET
318313601 318313601 BRACKET
318338520 318338520 BRACKET
318256210 318256210 BRACKET
318405500 318405500 BRACKET
318573700 318573700 BRACKET
318535405 318535405 BRACKET SIDE (4)
318141910 318141910 BUMPER
318641500 318641500 CAP
318413500 318413500 CAP
318167300 318167300 CLIP
318235300 318235300 CONNECTOR ASSEMBLY.
316443865 316443865 CONTROL
318411411 318411411 CONTROL ASSEMBLY
318640400 318640400 COVER
318219405 318219405 COVER
318304183 318304183 DOOR ASSEMBLY
318255513 318255513 ELEMENT
318254915 318254915 ELEMENT
318641100 318641100 ELEMENT
318311933 318311933 END CAP
318311932 318311932 END CAP
318398302 318398302 FAN BLADE
318056249 318056249 FRONT
318212216 318212216 GLASS
318934202 318934202 GLASS ASSEMBLY
318927400 318927400 HANDLE
318228989 318228989 HARNESS
318588901 318588901 HARNESS
318578352 318578352 HARNESS
318578355 318578355 HARNESS
318578354 318578354 HARNESS
318567120 318567120 HINGE
318567122 318567122 HINGE
316436600 316436600 HINGE BRACKET
318222400 318222400 HOUSING
316082000 316082000 INSERT
318642800 318642800 INSUALTION
318372015 318372015 INSULATION
318285098 318285098 INSULATION
807162601 807162601 INSULATION
318362163 318362163 INSULATION
318641700 318641700 INSULATION
318294912 318294912 INSULLATION
316575200 316575200 KNOB
316433603 316433603 LABEL
318406100 318406100 LENS
318259682 318259682 LINER
318327044 318327044 LINER
318327042 318327042 LINER

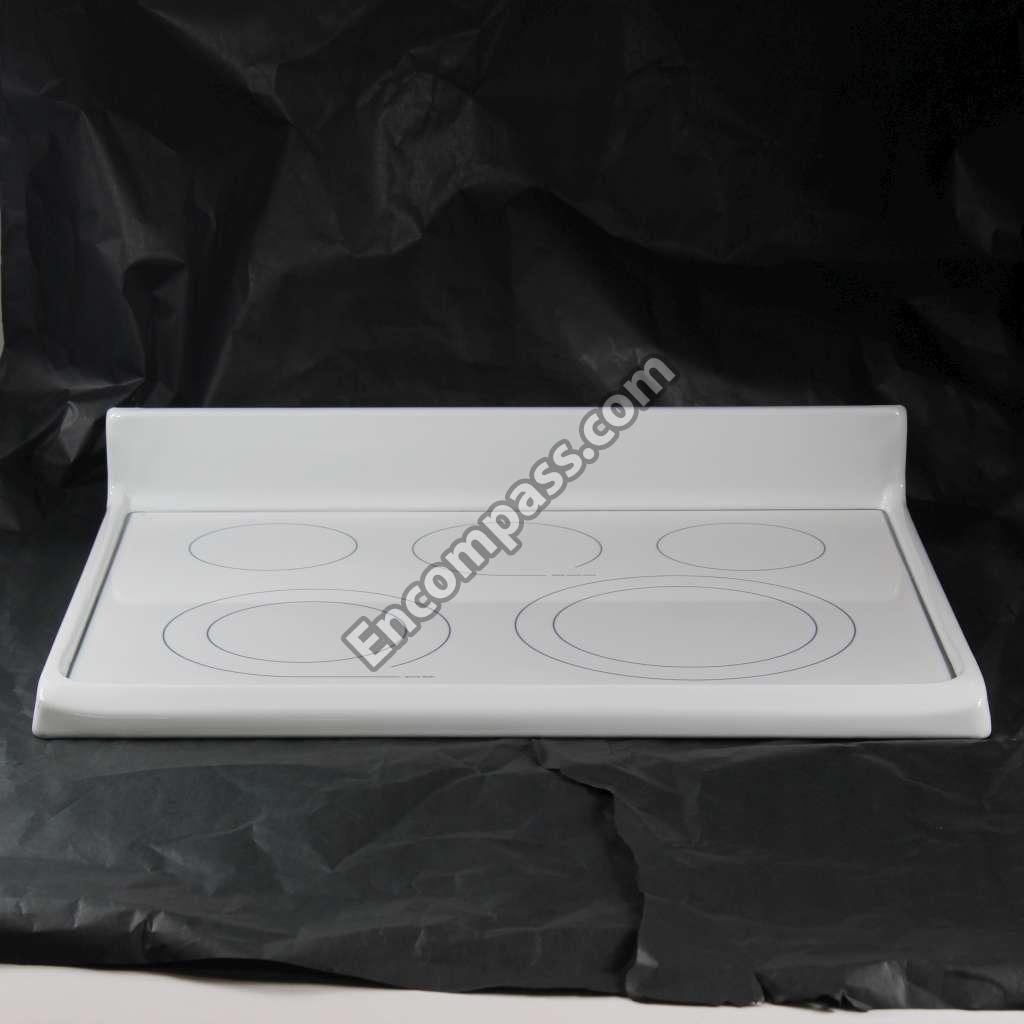

318394213 318394213 MAIN TOP ASSEMBLY
318398203 318398203 MOTOR
318095967 318095967 MOTOR
316136600 316136600 NUT
5303323144 5303323144 NUT
316247700 316247700 NUT
316081900 316081900 PAN
318359500 318359500 PANEL
318405404 318405404 PANEL
318299866 318299866 PANEL
318407100 318407100 PANEL
318314111 318314111 PANEL
318573500 318573500 PANEL
318264200 318264200 PLATE
5303320846 5303320846 PLATE
318111806 318111806 PLATE
318922304 318922304 RACK
318919807 318919807 RACK
318919806 318919806 RACK
318640200 318640200 REATINER
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
318250207 318250207 ROD
5304448821 5304448821 SCREW
5304459529 5304459529 SCREW
5303317179 5303317179 SCREW
5303300265 5303300265 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5304401490 5304401490 SCREW
5303323129 5303323129 SCREW
318175503 318175503 SCREW
5303323277 5303323277 SCREW
5303323139 5303323139 SCREW
5303211311 5303211311 SCREW
5304454881 5304454881 SCREW
5303323134 5303323134 SCREW
318053154 318053154 SEAL
318562500 318562500 SENSOR
318258779 318258779 SHIELD
318641000 318641000 SHIELD
318165800 318165800 SPACER
5303317178 5303317178 SPACER
316114100 316114100 SPACER
318293702 318293702 SPACER
316517600 316517600 SPACER
5303317177 5303317177 SPRING
5303311164 5303311164 SPRING
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318172904 318172904 SUPPORT
318640000 318640000 SUPPORT
316445501 316445501 SWITCH
318566005 318566005 TIMER ASSEMBLY
318562703 318562703 TRIM
318301431 318301431 TRIM
318260226 318260226 TRIM
318304209 318304209 TRIM
318405201 318405201 TRIM
318642500 318642500 TRIM
318566201 318566201 TRIM
318249409 318249409 TUBE
318641200 318641200 VENT TUBE
5304436864 5304436864 WASHER
316247800 316247800 WASHER
318370378 318370378 WIRING HARNESS
