Model Image
Manufacturer

Electrolux

Model Number

FGES3075KWD

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317105 318317105 ADAPTER ASSEMBLY
318335500 318335500 ANTI-TIP & ACCESSOR
318259220 318259220 BACK
318260531 318260531 BAFFLE
316442112 316442112 BOARD
316442061 316442061 BOARD
318568201 318568201 BOX
318568200 318568200 BOX
318297303 318297303 BOX
318382301 318382301 BRACKET
318313601 318313601 BRACKET
318298410 318298410 BRACKET
318298405 318298405 BRACKET
318579001 318579001 BRACKET
318921300 318921300 BRACKET
318928500 318928500 BRACKET
318147430 318147430 BUMPER
318368001 318368001 CHANNEL
318917700 318917700 CHASSIS
316095800 316095800 CLIP
318235300 318235300 CONNECTOR ASSEMBLY.
318411400 318411400 CONTROL ASSEMBLY
318219405 318219405 COVER
318913300 318913300 DEFLECTOR
318304404 318304404 DRAWER
318255301 318255301 ELEMENT
318198843 318198843 ELEMENT
318255504 318255504 ELEMENT
318398302 318398302 FAN BLADE
318298230 318298230 FRAME
318298226 318298226 FRAME
318056292 318056292 FRONT
318053132 318053132 GASKET
316117502 316117502 GLASS
318261319 318261319 GLASS ASSEMBLY
316105501 316105501 GLIDE
318259509 318259509 GLIDE
318259508 318259508 GLIDE
318927402 318927402 HANDLE
318224873 318224873 HARNESS
318402398 318402398 HARNESS
318228975 318228975 HARNESSELECTRICAL
318582605 318582605 HARNESSELECTRICAL
318578317 318578317 HARNESSELECTRICAL
318567113 318567113 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318929702 318929702 INSERT
318372015 318372015 INSULATION
318285079 318285079 INSULATION
318294912 318294912 INSULLATION

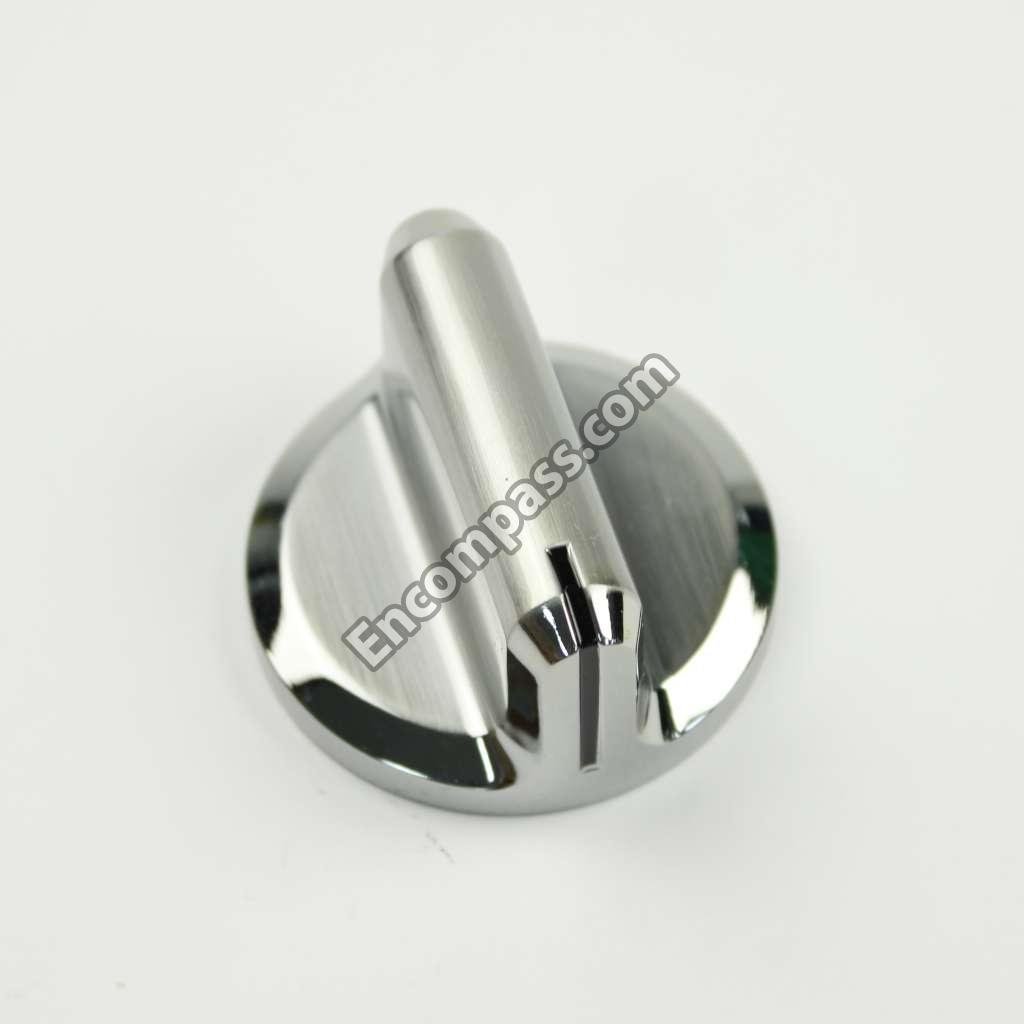

316564406 316564406 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
316547900 316547900 LINK
318575600 318575600 MOTOR
316136600 316136600 NUT
5303323144 5303323144 NUT
316247700 316247700 NUT
316081900 316081900 PAN
318300102 318300102 PANEL
318300003 318300003 PANEL
318300301 318300301 PANEL
318299906 318299906 PANEL
318303907 318303907 PANEL
318225110 318225110 PANEL
318225211 318225211 PANEL
318225210 318225210 PANEL
318296903 318296903 PANEL
318296902 318296902 PANEL
318359500 318359500 PANEL
318570500 318570500 PANEL
318260007 318260007 PANEL
318912900 318912900 PANEL
318264200 318264200 PLATE
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318111806 318111806 PLATE
807328301 807328301 RACK
318922301 318922301 RACK
318921600 318921600 RACK
318926803 318926803 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5303311174 5303311174 SCREW
5303300265 5303300265 SCREW
5304415832 5304415832 SCREW
3051050 3051050 SCREW
5304440988 5304440988 SCREW
5304461333 5304461333 SCREW
5303211311 5303211311 SCREW
5303297477 5303297477 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
318175503 318175503 SCREW
5303323277 5303323277 SCREW
5303324184 5303324184 SCREW
5304436875 5304436875 SCREW
5304454881 5304454881 SCREW
5304453707 5304453707 SCREW
5303323134 5303323134 SCREW
5304476599 5304476599 SCREW
5304477986 5304477986 SCREW1024X1770
318389000 318389000 SEAL
318562500 318562500 SENSOR
318303800 318303800 SHIELD
318259105 318259105 SHIELD
318916904 318916904 SMOOTH TOP
318264712 318264712 SPACER
316114100 316114100 SPACER
318165800 318165800 SPACER
318293702 318293702 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318122011 318122011 SPRING
318122010 318122010 SPRING
318122006 318122006 SPRING
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318927600 318927600 SUPPORT
316445501 316445501 SWITCH
318005108 318005108 THERMOSTAT
318578506 318578506 THERMOSTAT
318260401 318260401 TRIM
318260201 318260201 TRIM
318913116 318913116 TRIM VENT BLACK UPPER
318249409 318249409 TUBE
3201909 3201909 WASHER
316247800 316247800 WASHER
