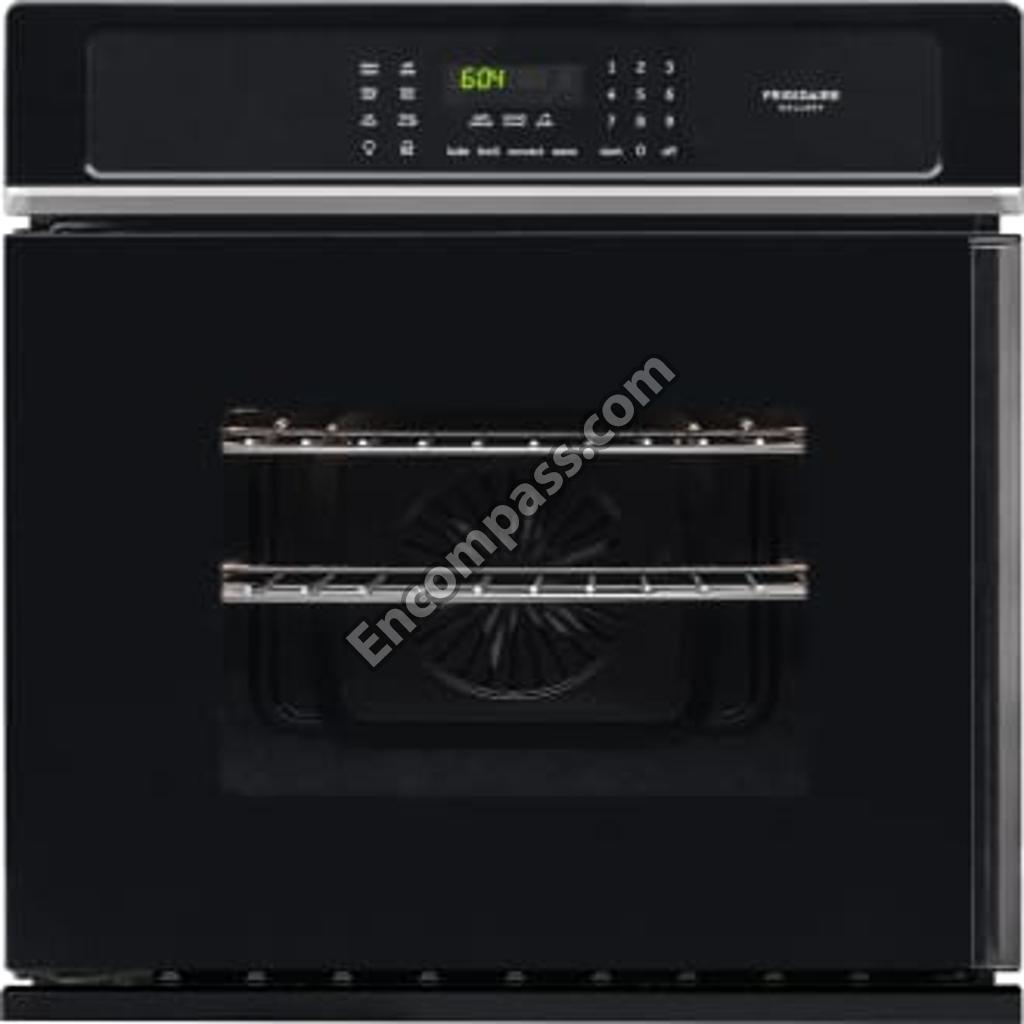

Model Image
Manufacturer

Electrolux

Model Number

FGEW276SPBA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
139009100 139009100 BLADE
318394441 318394441 BOX & WIRES ASSEMBLY
139028000 139028000 BRACKET
318579001 318579001 BRACKET
318256201 318256201 BRACKET
318242702 318242702 BRACKET
318382301 318382301 BRACKET
318370602 318370602 BRACKET
318946500 318946500 BULB
139027900 139027900 COVER
139013903 139013903 COVER
139003701 139003701 COVER
139003601 139003601 COVER
139027700 139027700 DUCT
139027600 139027600 DUCT
139006500 139006500 ELEMENT
139028200 139028200 ELEMENT
318902502 318902502 ELEMENT
318212201 318212201 GLASS
5304490877 5304490877 HARNESS
316082000 316082000 INSERT
139021501 139021501 INSULATION
318372017 318372017 INSULATION
139009000 139009000 LAMP ASSEMBLY
318090310 318090310 LATCH
139008500 139008500 MOTOR
318575612 318575612 MOTOR
316136600 316136600 NUT
316205500 316205500 NUT
316081900 316081900 PAN
139021200 139021200 PANEL
318074913 318074913 PIN
139011700 139011700 RACK
316021105 316021105 SCREW
316021110 316021110 SCREW
5304436875 5304436875 SCREW
5303289910 5303289910 SCREW
316001003 316001003 SCREW
5303323130 5303323130 SCREW
316021109 316021109 SCREW
5303324184 5303324184 SCREW
5304461333 5304461333 SCREW
5304470882 5304470882 SCREW
807597603 807597603 SCREW
809136201 809136201 SCREW,TRUSS HEAD,#8-32 X 3/8
807545501 807545501 SEAL
318562500 318562500 SENSOR
139003101 139003101 SHIELD
139021800 139021800 SHIELD
139000600 139000600 SHIELD
318165800 318165800 SPACER
318531800 318531800 SPACER
318172904 318172904 SUPPORT
318578506 318578506 THERMOSTAT
139023601 139023601 TRIM
318259847 318259847 TRIM
139021700 139021700 TUBE
139042600 139042600 TUBE ASSEMBLY
318231870 318231870 WIRING HARNESS
