Electrolux

Model Number

FGF316WGSK

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3204254 3204254 BAFFLE,HEATER SHIELD

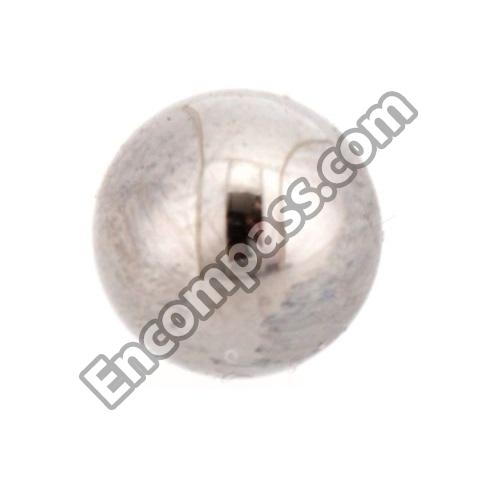

5303281019 5303281019 BALL,GROUNDING
316109902 316109902 BASE

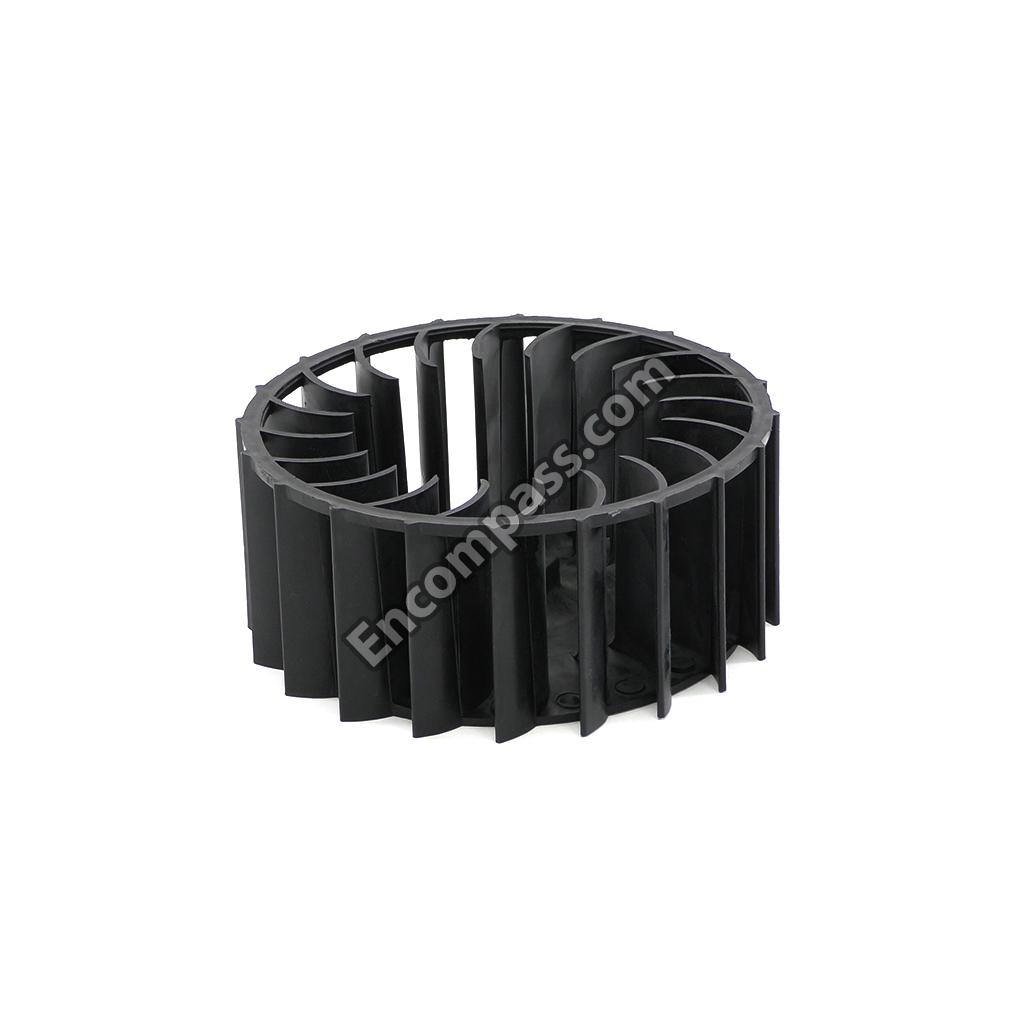

5303281079 5303281079 BLOWER WHEEL
3131468 3131468 BRACKET
3131438 3131438 BRACKET
3018603 3018603 BRACKET
5303013071 5303013071 BULB/LAMP,OVEN LIGHT

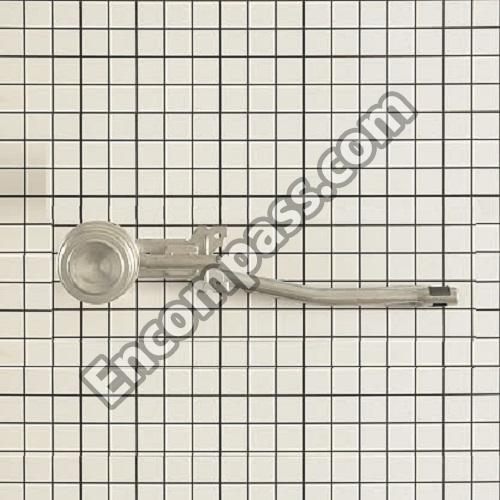

316114300 316114300 BURNER

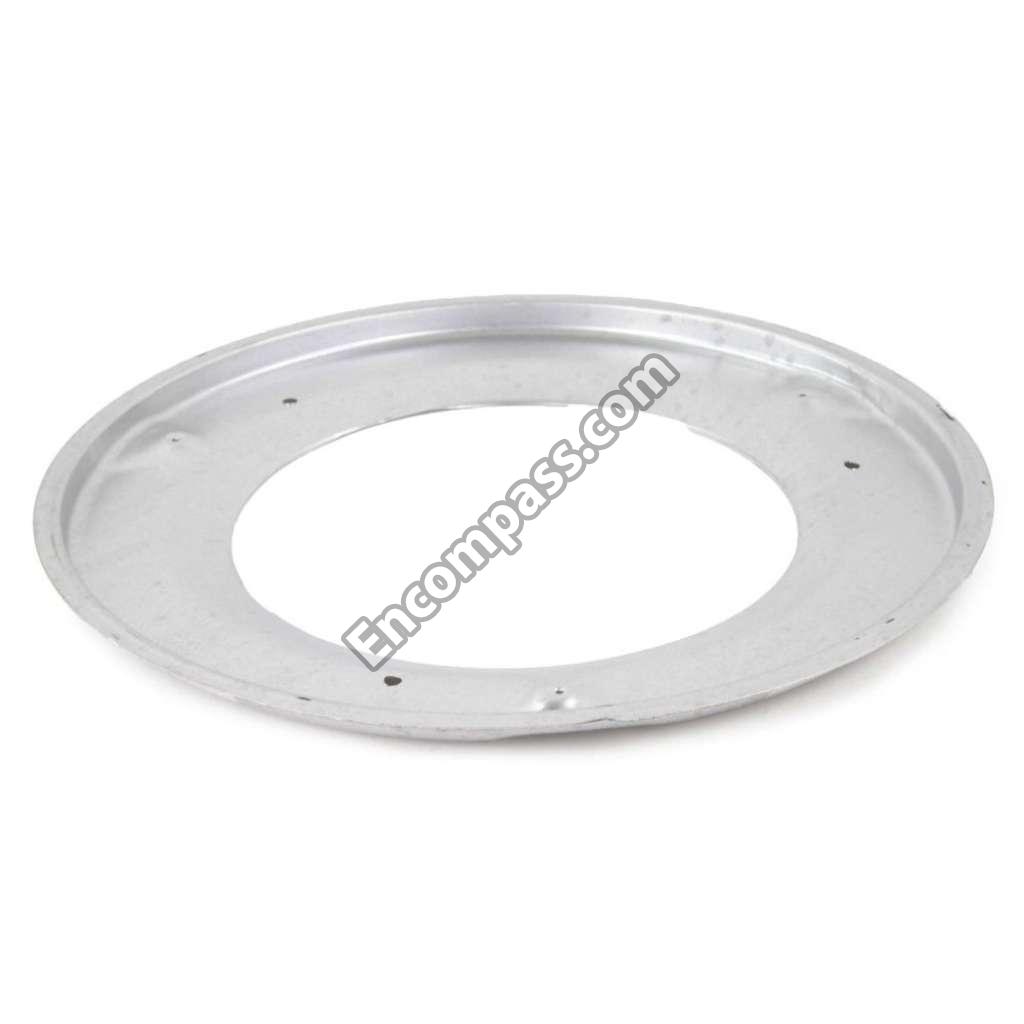

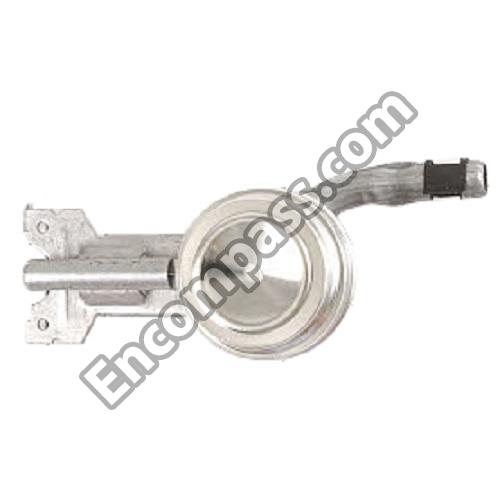

316103802 316103802 BURNER,TOP ,FRONT ,VENTURI RING
316103803 316103803 BURNER-TOP,VENTURI RING
316110201 316110201 CARRIAGE
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
131197000 131197000 CLIP,CONSOLE MTG
5303281074 5303281074 CLIP,GUIDE ,(3)

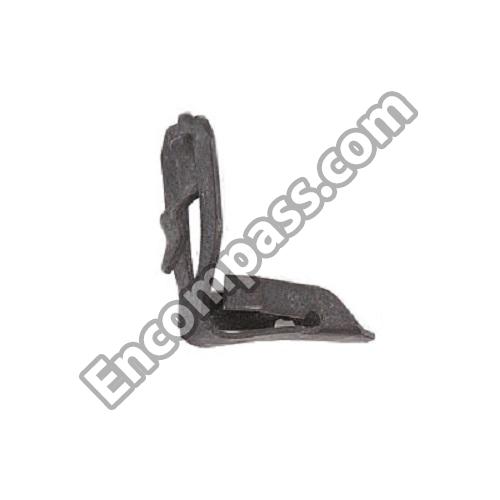

3205821 3205821 CLIP,TOP-TO-FRONT
5303284616 5303284616 CLIP-THERMOSTAT
3131570 3131570 COVER
316104500 316104500 COVER

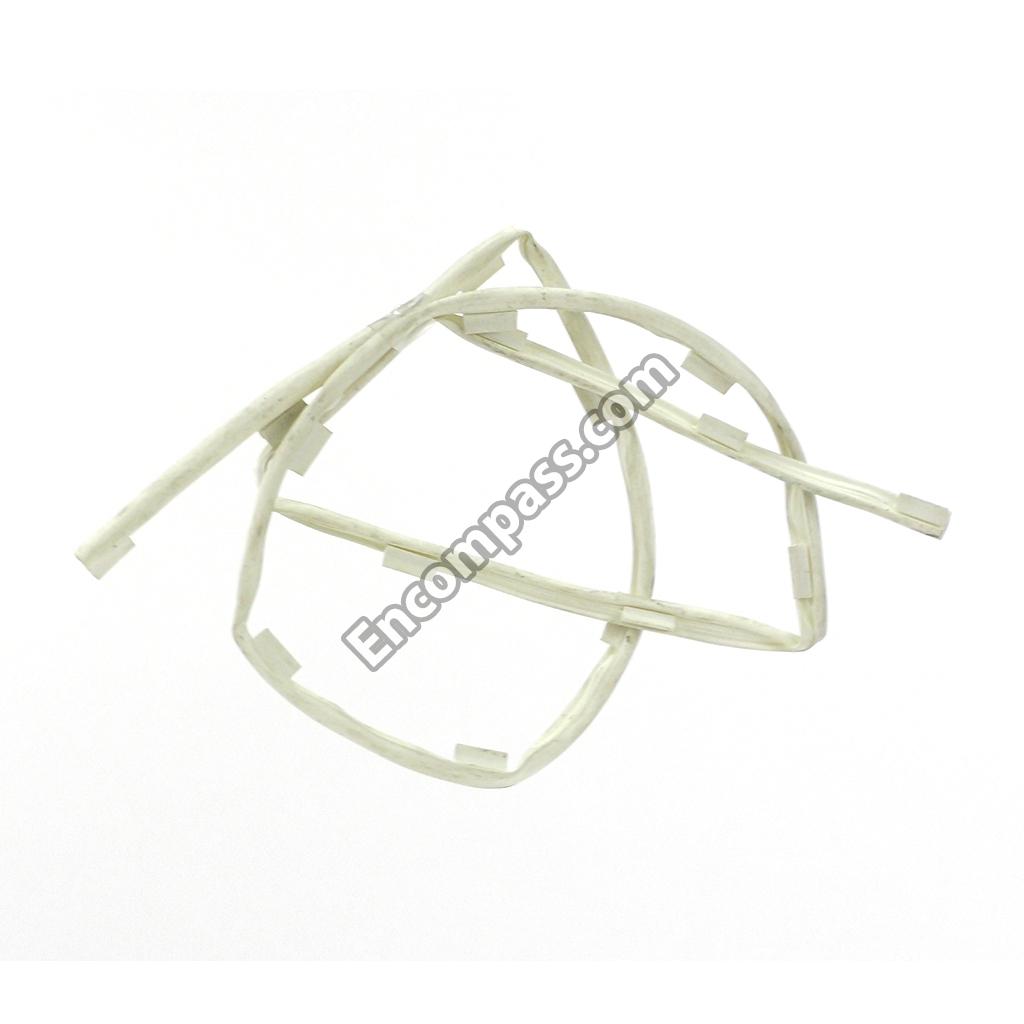

5303201210 5303201210 DOOR-GASKET

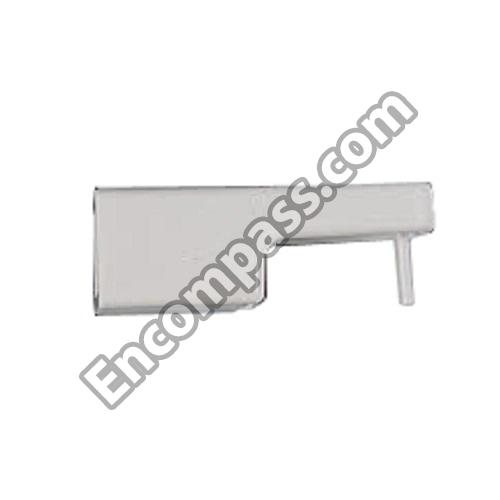

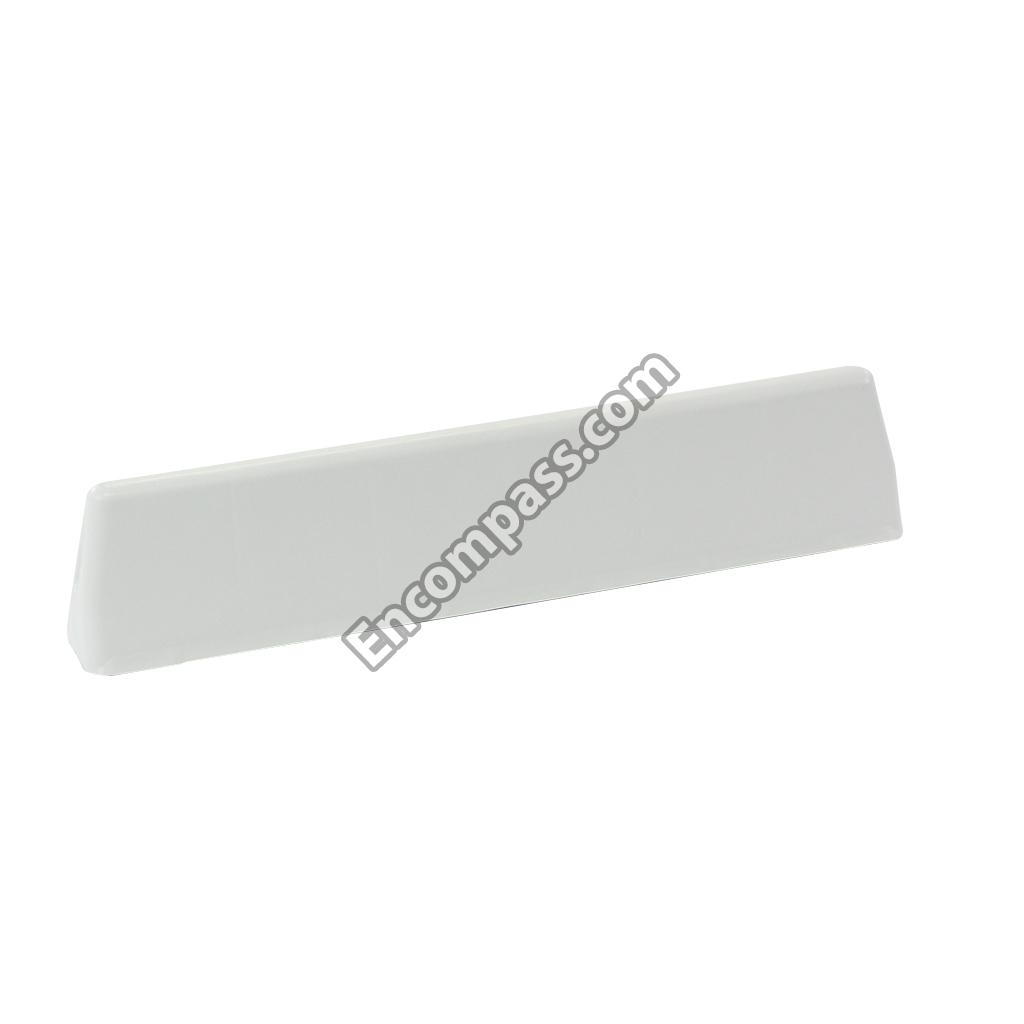

316137000 316137000 END CAP,HANDLE ,WHITE ,(2)
5303291344 5303291344 END CAP-L, H,
5303291352 5303291352 END CAP-R, H,
5303289684 5303289684 FASTENER
316129100 316129100 FASTENER
316204401 316204401 FLUE
316088600 316088600 GLASS,OVEN DOOR ,INNER

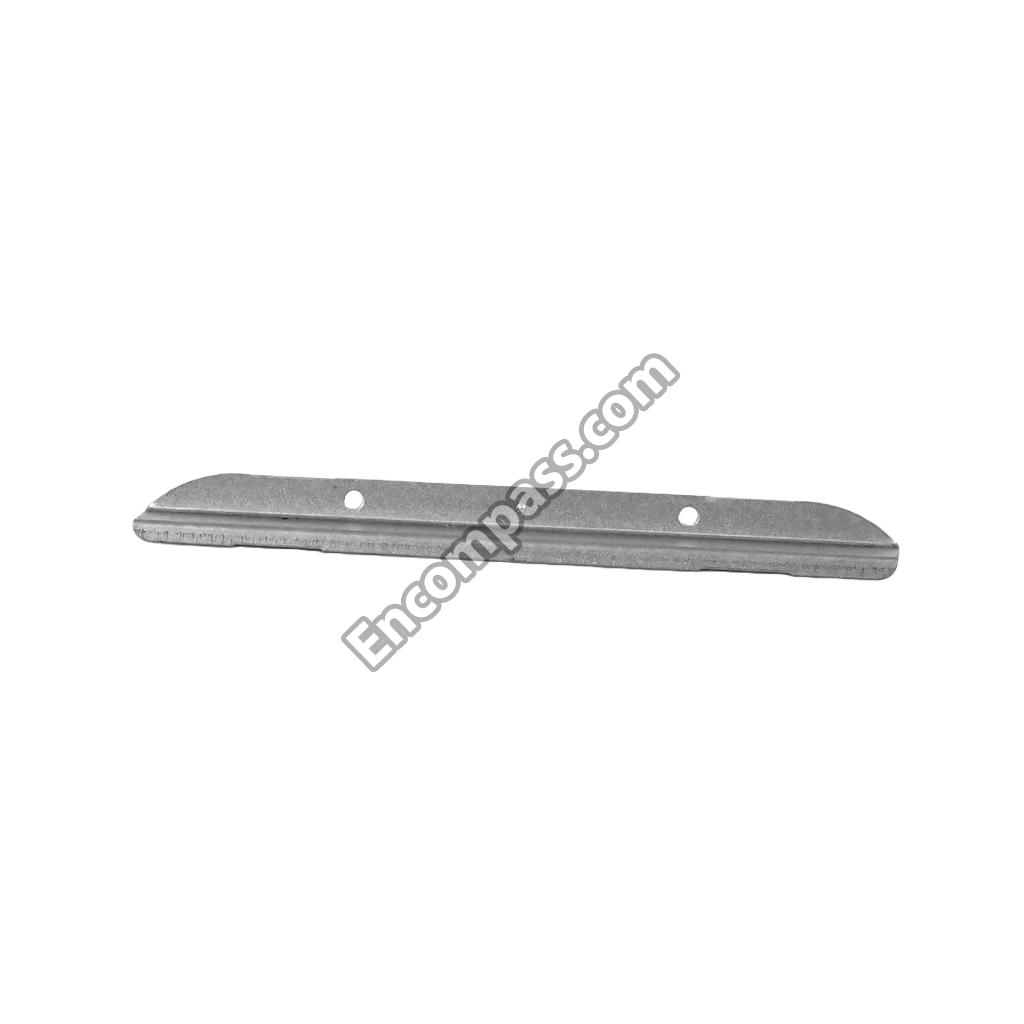

316111501 316111501 GLIDE
316111600 316111600 GLIDE
3051163 3051163 GLIDE-DRWR
316111502 316111502 GLIDE-LOW BROIL,CHASSIS
5303272852 5303272852 GRATE,BLACK ,(4)
316019511 316019511 HANDLE

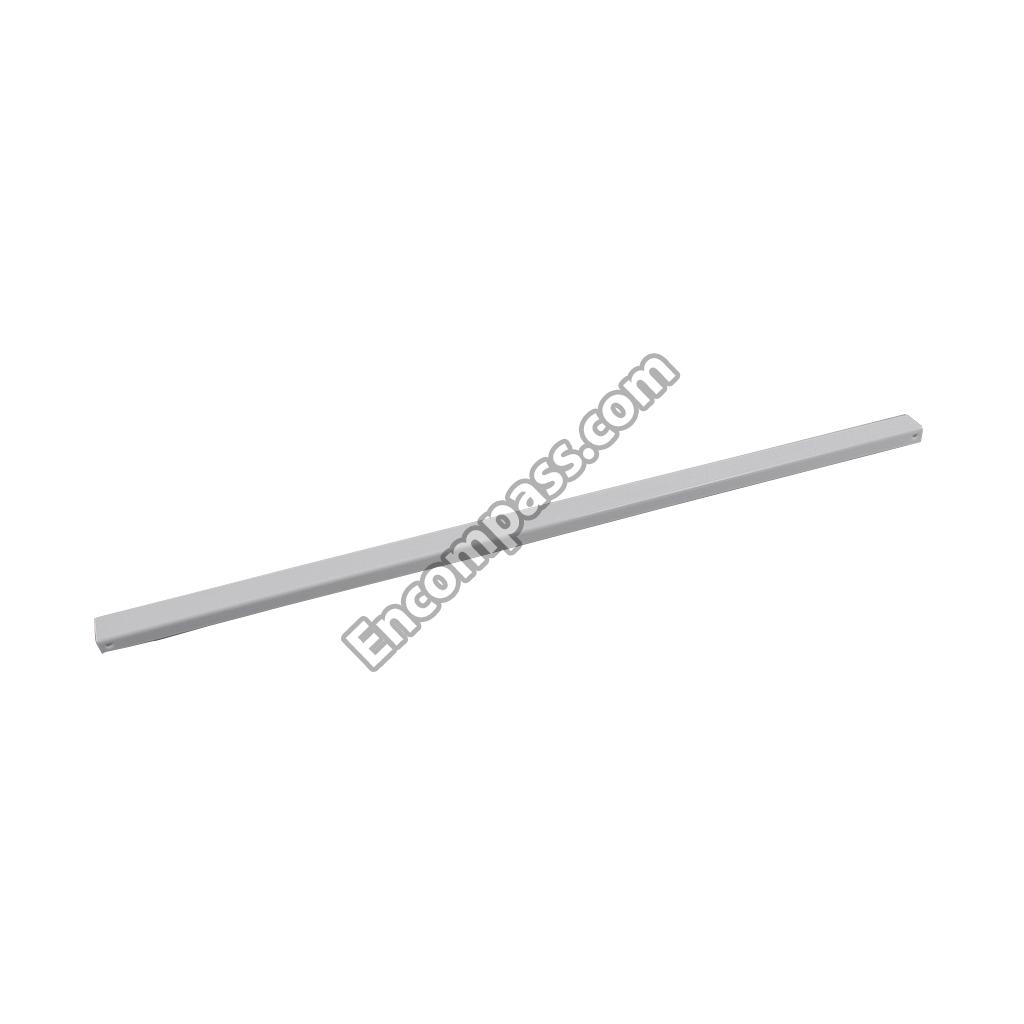

316020202 316020202 HANDLE,OVEN DOOR ,WHITE

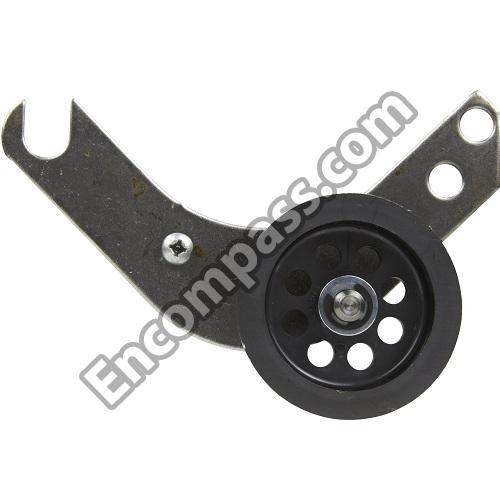

5303212849 5303212849 IDLER ASSEMLBY
5303281085 5303281085 IDLER SPRING (2)
5303935066 5303935066 IGNITOR,OVEN KIT ,W/NUT & INSTR
316081705 316081705 IGNITOR,TOP BURNER `50``
316082000 316082000 INSERT,BROILER PAN
3017142 3017142 INSULATION
316111400 316111400 INSULATION
316097602 316097602 INSULATOR

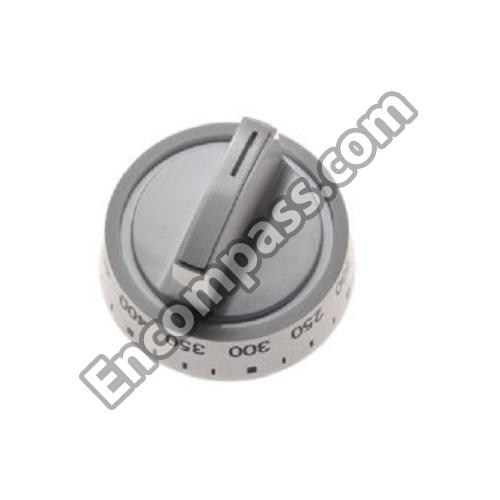

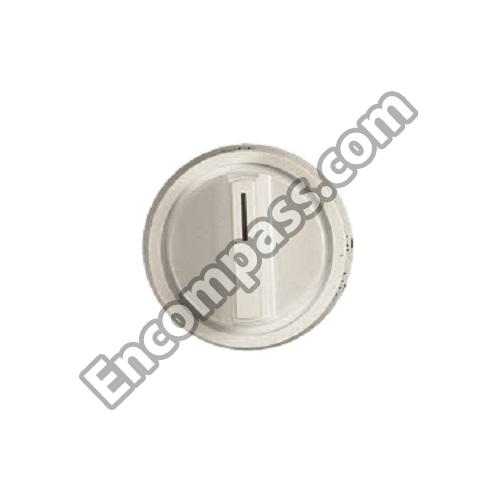

316102303 316102303 KNOB,THERMOSTAT ,WHITE
316009046 316009046 KNOB,TOP VALVE ,WHITE ,(4)
316110101 316110101 LINER
316066610 316066610 LINER

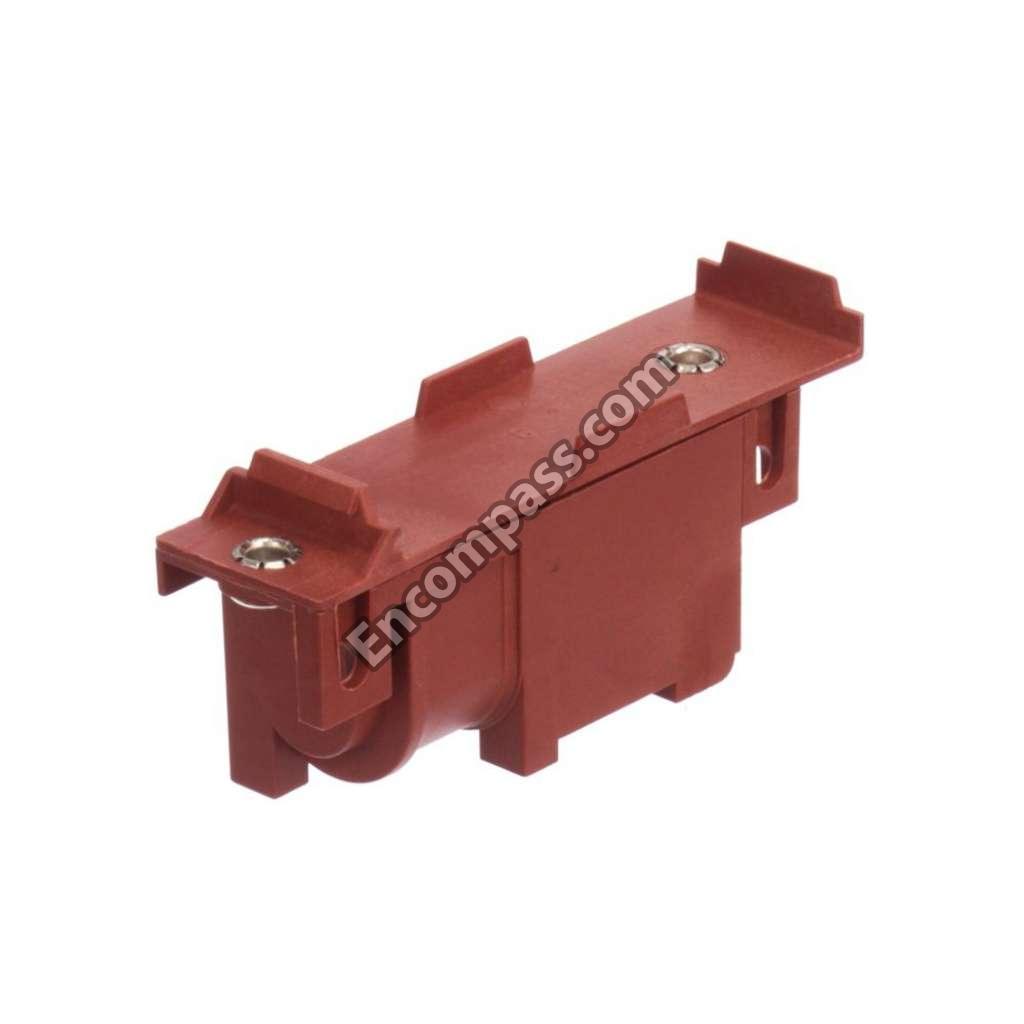

316135700 316135700 MODULE,SPARK
5303283470 5303283470 MOTOR AND PULLEY
5303013272 5303013272 NUT, BAFFLE
316081900 316081900 PAN-BROILER
316034130 316034130 PANEL

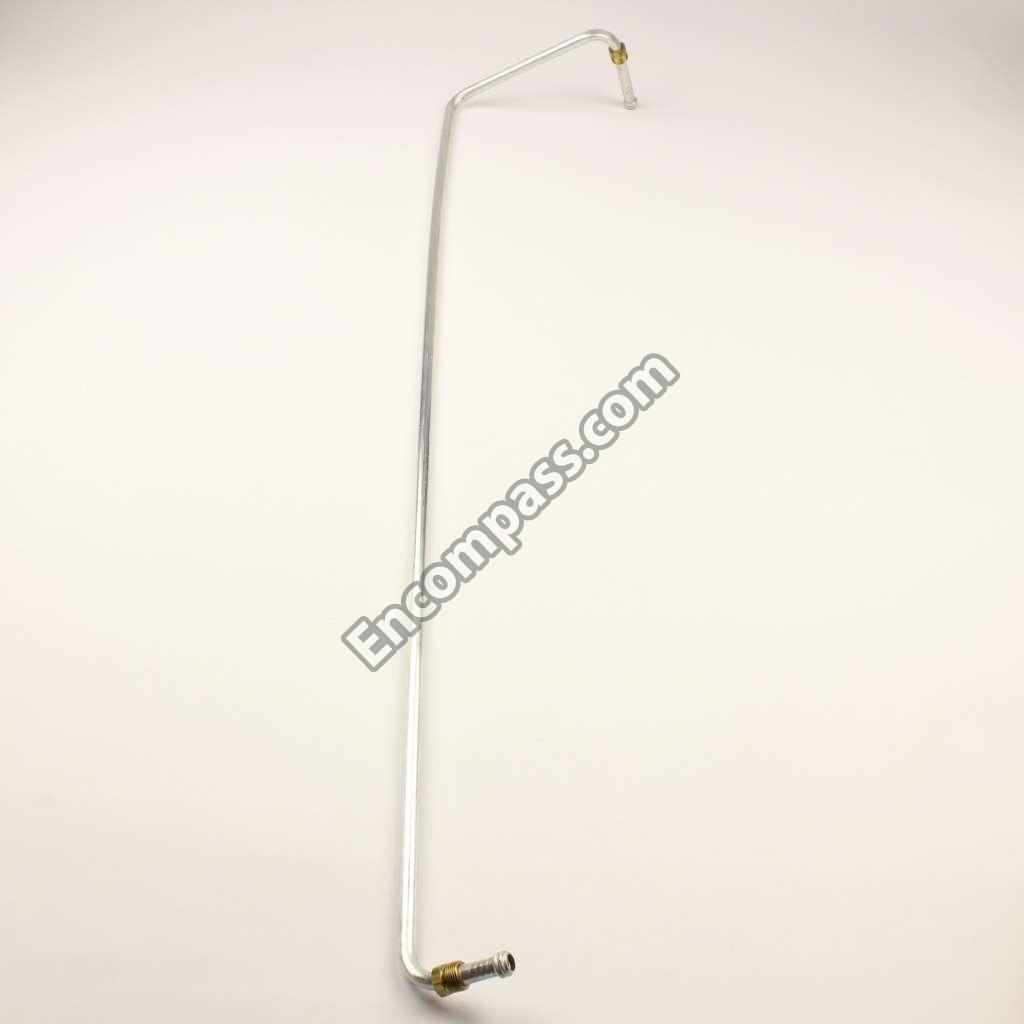

316134400 316134400 PIPE
3018607 3018607 PLATE
807108202 807108202 POWER CORD
316115600 316115600 RACK
316067902 316067902 RACK,OVEN
5303281153 5303281153 REAR BEARING KIT,INCLUDES 5,6 ,12,13,14,18,32
316116400 316116400 RECEPTACLE-LAMP,OVEN

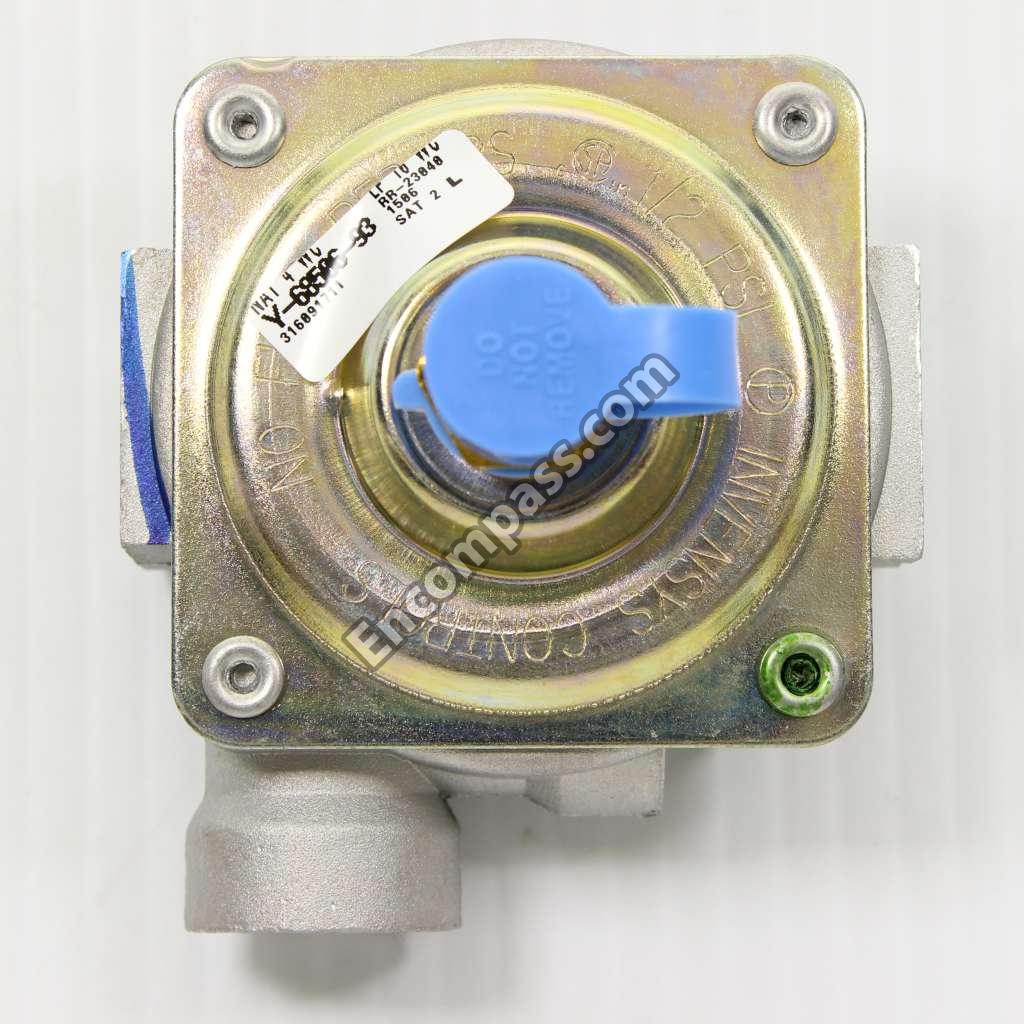

316091711 316091711 REGULATOR,PRESSURE
3016993 3016993 RETAINER
5303272476 5303272476 RETAINER
316066900 316066900 ROD
316021105 316021105 SCREW
316021108 316021108 SCREW
316134300 316134300 SCREW
316021104 316021104 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
316021120 316021120 SCREW
316021112 316021112 SCREW
316021109 316021109 SCREW
5303283289 5303283289 SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
5303015671 5303015671 SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
5303281378 5303281378 SCREW,WAFER HEAD ,10-24F X 3 ,HANDLE MTG
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
316129200 316129200 SCREW-LEVELING,PLASTIC ,WITH STOP
5303202011 5303202011 SEAL,OVEN DOOR ,NON SELF CLEAN

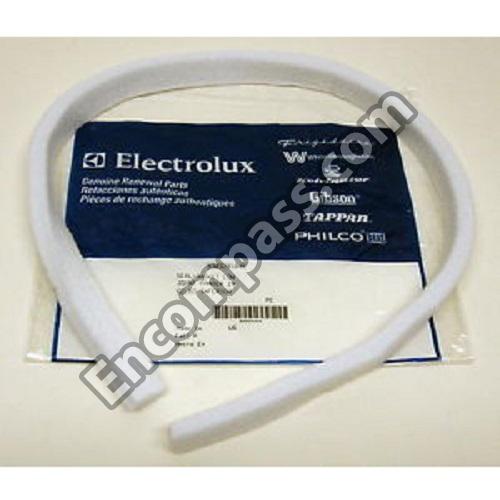

5303281049 5303281049 SEAL-BASKET, LOWER
5303281135 5303281135 SENSOR,RADIANT
316110000 316110000 SHIELD
316112900 316112900 SHIELD
316541500 316541500 SHIELD
3014099 3014099 SPACER
316132100 316132100 SPACER
316111300 316111300 STIFFENER
5303131237 5303131237 SUPPORT
316064600 316064600 SUPPORT

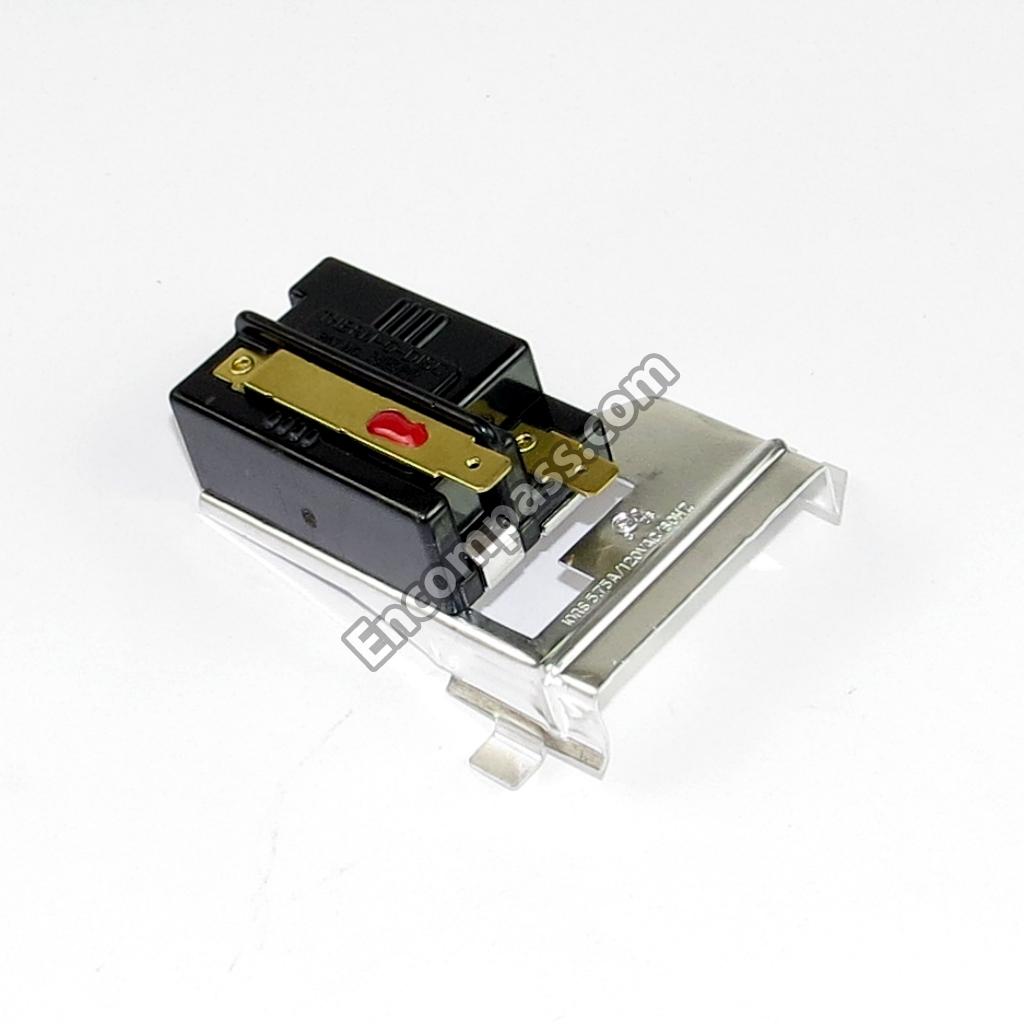

134902000 134902000 SWITCH START
316448701 316448701 SWITCH,OVEN LIGHT ,WHITE ,ROCKER
316112500 316112500 TEMPLATE
316032411 316032411 THERMOSTAT

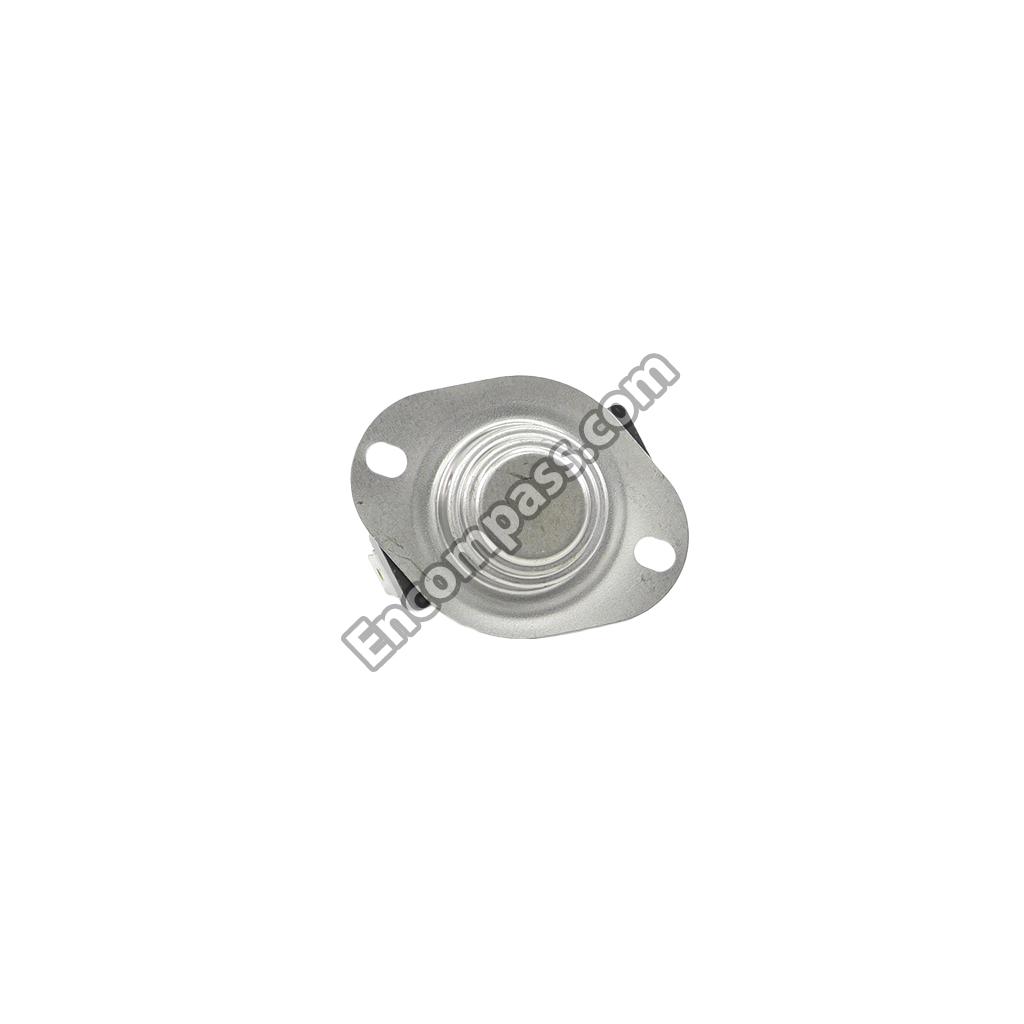

5308015399 5308015399 THERMOSTAT,SAFETY
5308015398 5308015398 THERMOSTAT,TEMP CONTROL
131298400 131298400 THERMOSTAT,TEMP CONTROL
5303297139 5303297139 TIMER,DRYER
316065004 316065004 TUBING`3/8 ,ALUM
3203459 3203459 VALVE,SAFETY
5303935189 5303935189 VALVE,TOP BURNER ,2 POSITION ,W/MTG SCREW
137552900 137552900 VANE,STRAIGHT
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL

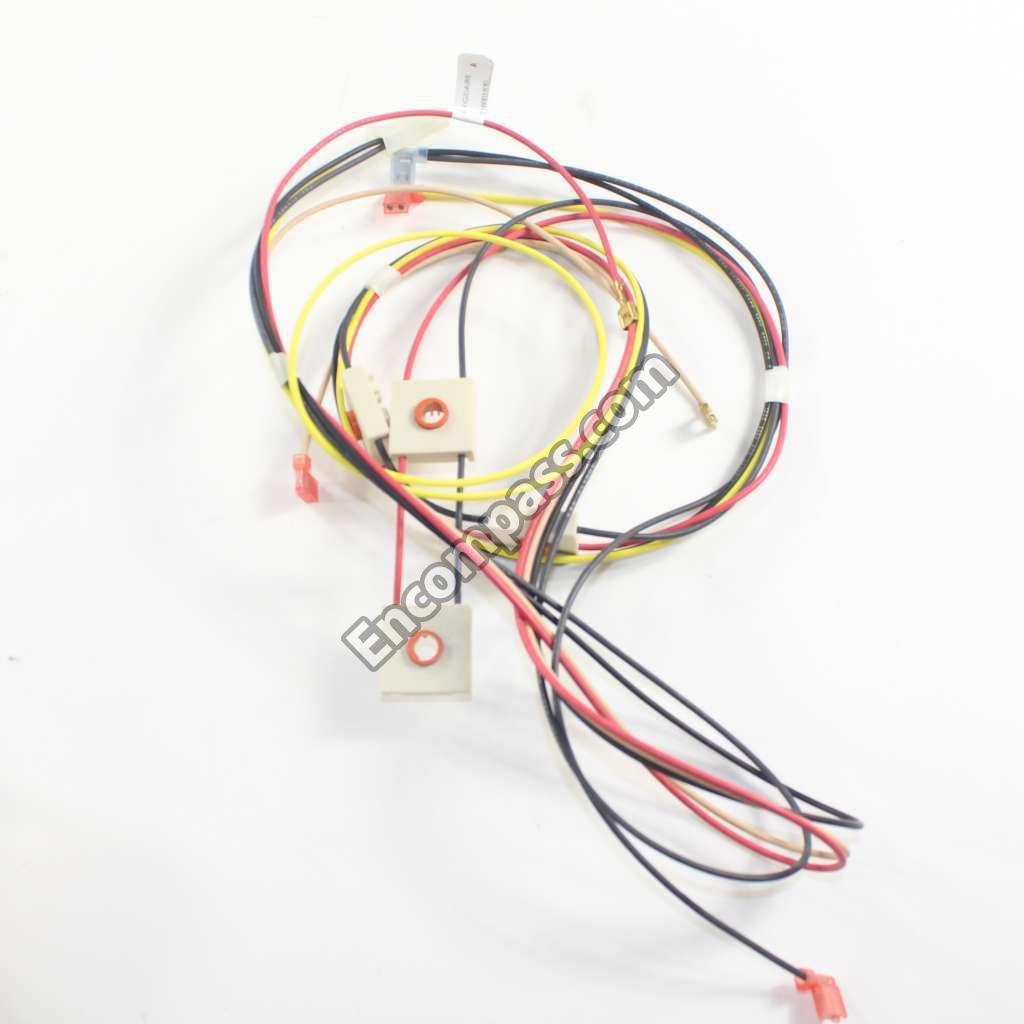

316001830 316001830 WIRING HARNESS
