Model Image
Manufacturer

Electrolux

Model Number

FGF374CCBG

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241681901 241681901 ACTUATOR-ICE,WHITE
241682001 241682001 ACTUATOR-WATER,WHITE
3934058 3934058 ANTI-TIP KIT
3131284 3131284 BAFFLE
5303210379 5303210379 BAFFLE
316099800 316099800 BALLAST-LAMP
316059201 316059201 BRACKET
316091600 316091600 BRACKET
316060002 316060002 BRACKET-CLOCK MTG
3131275 3131275 BUKB-FLUORESCENT
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3131903 3131903 BUMPER

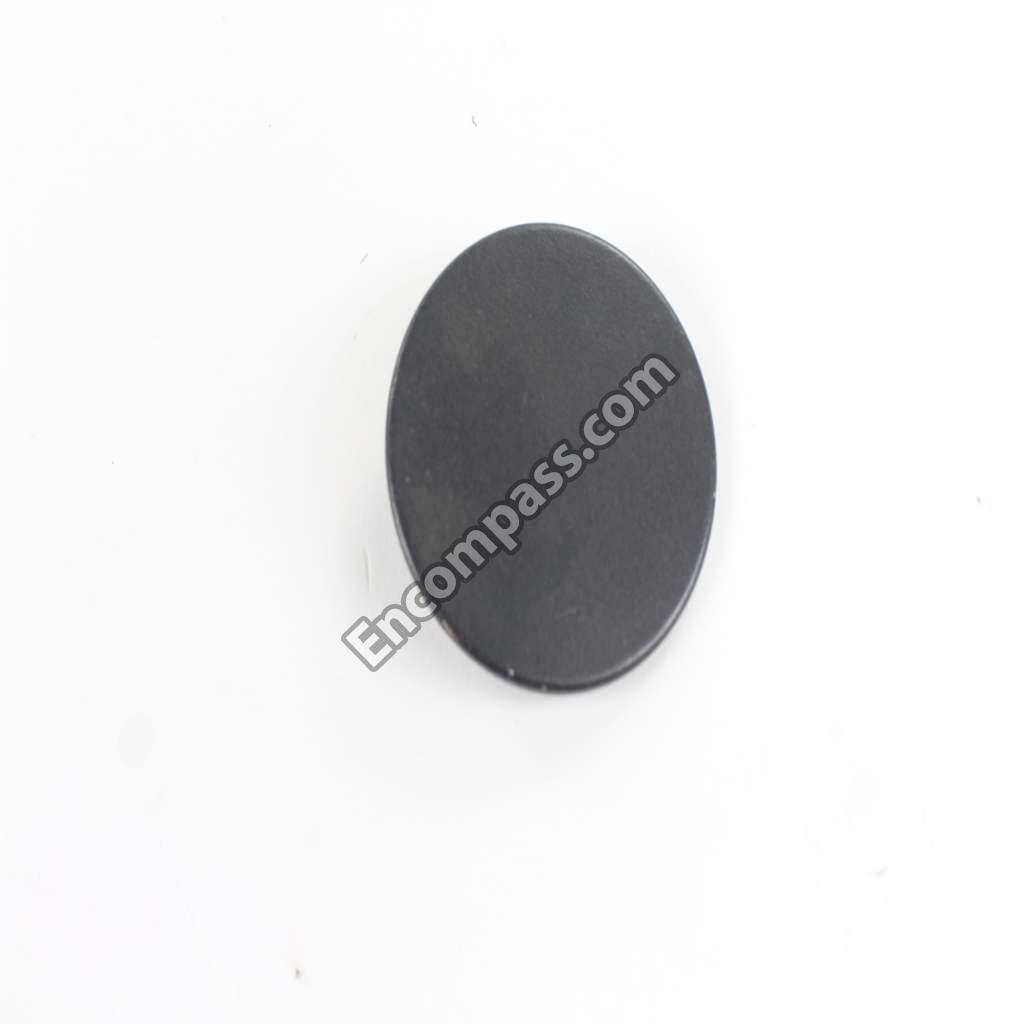

316011014 316011014 CAP-BURNER
316026901 316026901 CAP-END
316026900 316026900 CAP-END
316080011 316080011 CLOCK/TIMER,SLEW
3131570 3131570 COVER
241689301 241689301 DAMPER-ROTARY
316074907 316074907 DEFLECTOR
5303918256 5303918256 DISPENSER HEATER KIT
241688401 241688401 DOOR ASSY-ICE CHUTE
241688501 241688501 DOOR CENTER
241688701 241688701 DOOR SEAL
316088600 316088600 GLASS,OVEN DOOR ,INNER
316088700 316088700 GLASS-OVEN DOOR, AIRWASH
3051162 3051162 GLIDE,DRAWER ,FRONT
3051163 3051163 GLIDE-DRWR
316001618 316001618 HARNESS-WIRING
316007002 316007002 HINGE,OVEN DOOR ,(2)
318222400 318222400 HOUSING,OVEN LIGHT
5303935066 5303935066 IGNITOR,OVEN KIT ,W/NUT & INSTR
316011200 316011200 IGNITOR-TOP BURNER, (4)8 W/MTG BRACKET
316076403 316076403 INSULATION
241688601 241688601 INSULATION-DOOR
316049304 316049304 KNOB-TOP VALVE
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316066610 316066610 LINER
5303307708 5303307708 MAIN TOP
316066201 316066201 MANIFOLD PIPE
5303288460 5303288460 NUT
5303013272 5303013272 NUT, BAFFLE
316010804 316010804 ORIFICE,TOP BURNER ,LARGE ,11K
5303210090 5303210090 ORIFICE-TOP BURNER, SMALL (2)
316011419 316011419 PAN,BURNER ,LARGE ,BLACK
316011415 316011415 PAN-BURNER,BLACK ,SMALL ,(2)
316049104 316049104 PANEL
316024517 316024517 PANEL-CONTROL
241688801 241688801 PIN-HINGE
316074700 316074700 PLATE
807108202 807108202 POWER CORD
316067902 316067902 RACK,OVEN
3051222 3051222 RECEPTACLE-LAMP
3051223 3051223 RECEPTACLE-LAMP
316053200 316053200 RECEPTACLE-STARTER
5303208656 5303208656 REFLECTOR
5303208655 5303208655 REFLECTOR
316091706 316091706 REGULATOR,PRESSURE
316087500 316087500 RETAINER
316062400 316062400 RETAINER PLATE
316026800 316026800 ROD
316026400 316026400 ROD
5303212671 5303212671 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
5303288570 5303288570 SCREW
316048200 316048200 SCREW
316089500 316089500 SCREW
316021104 316021104 SCREW
316021105 316021105 SCREW
316021108 316021108 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
5303015671 5303015671 SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
5303280308 5303280308 SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2, (2)
5303203397 5303203397 SCREW-LEVELING
5303131601 5303131601 SEAL-S/C DOOR
316051700 316051700 SHIELD
5303288578 5303288578 SHIELD
3200836 3200836 SHIELD
316014401 316014401 SHIELD
3131314 3131314 SHIELD
316053800 316053800 SHIELD
3014099 3014099 SPACER
5308003107 5308003107 SPACER
241689001 241689001 SPRING-ACTUATOR
241688901 241688901 SPRING-TORSION
3206218 3206218 STARTER-LAMP
316064600 316064600 SUPPORT
316049105 316049105 SUPPORT
316059903 316059903 SUPPORT-RECEPTACLE
5303935040 5303935040 SWITCH HARNESS TERM
316032000 316032000 SWITCH-IGNITOR,(4)
316067802 316067802 TRIM
316024900 316024900 TRIM-CANOPY/SHIELD
316055301 316055301 TRIM-VENT
316065005 316065005 TUBE
316059615 316059615 TUBE
316059614 316059614 TUBE
316059613 316059613 TUBE
316065003 316065003 TUBE ALUM 3/8 VALVE/REG
316059612 316059612 TUBE,BURNER ,RED ,RF
316065002 316065002 TUBE,VALVE TO MIXER
218976901 218976901 TUBE-WATER INLET,INLET VALVE ,TO ICE MAKER
218976907 218976907 TUBE-WATER INLET,VALVE TO DOOR
218976904 218976904 TUBE-WATER INLET,VALVE TO FILTER
218976409 218976409 TUBE-WATER-DOOR
5303208499 5303208499 VALVE,SAFETY ,DUAL
5303935130 5303935130 VALVE-TOP BURNER 9K
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL
5303289034 5303289034 WIRING HARNESS,MODULE/IGNITER
