Model Image
Manufacturer

Electrolux

Model Number

FGF376CESE

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3934058 3934058 ANTI-TIP KIT
5303210379 5303210379 BAFFLE
3131284 3131284 BAFFLE
316099800 316099800 BALLAST-LAMP
316091600 316091600 BRACKET
316059201 316059201 BRACKET
316093200 316093200 BRACKET
316060002 316060002 BRACKET-CLOCK MTG
3131275 3131275 BUKB-FLUORESCENT
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3131903 3131903 BUMPER
316026905 316026905 CAP-END LH
316026904 316026904 CAP-END RH
316095800 316095800 CLIP
316080011 316080011 CLOCK/TIMER,SLEW
3131570 3131570 COVER
316074907 316074907 DEFLECTOR
316093100 316093100 ELEMENT
316088600 316088600 GLASS,OVEN DOOR ,INNER
316089005 316089005 GLASS,OVEN DOOR ,WHITE ,OUTER
316088700 316088700 GLASS-OVEN DOOR, AIRWASH
316007002 316007002 HINGE,OVEN DOOR ,(2)
318222400 318222400 HOUSING,OVEN LIGHT

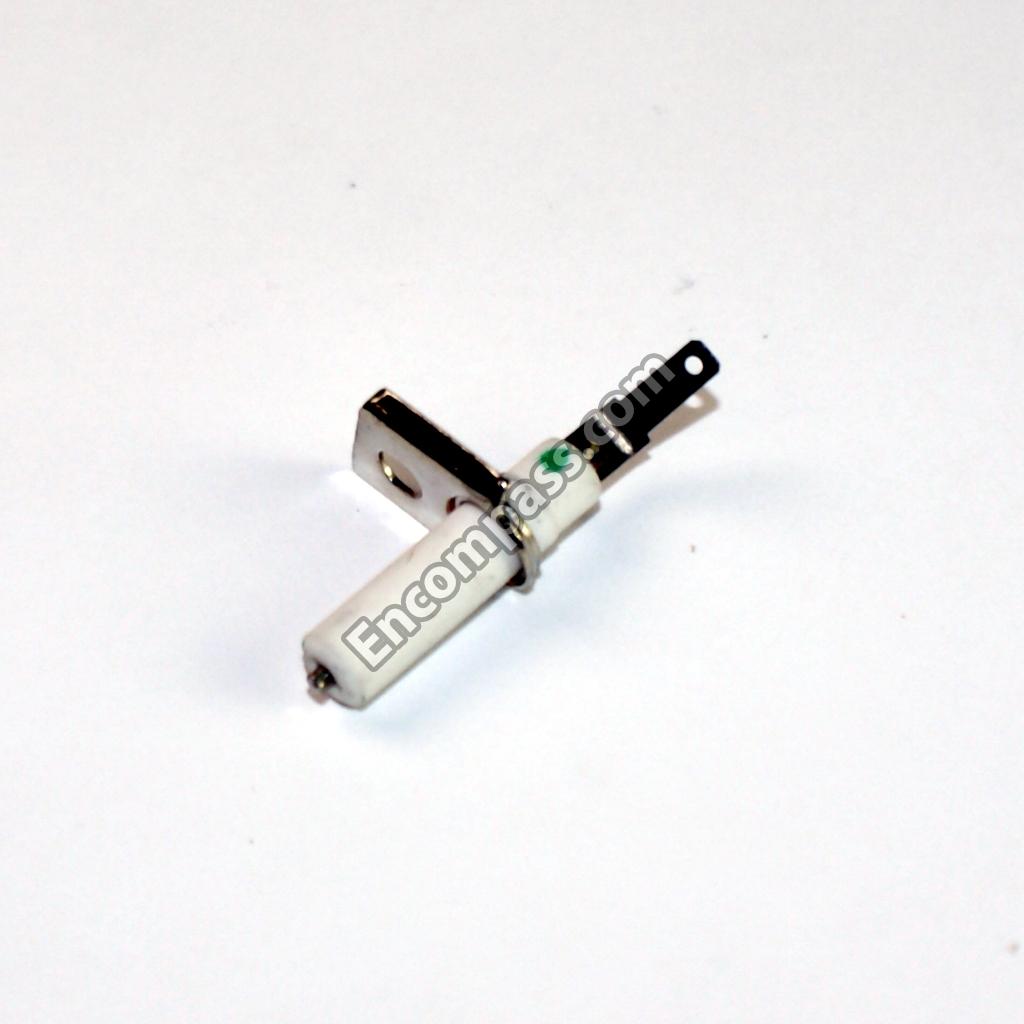

316011200 316011200 IGNITOR-TOP BURNER, (4)8 W/MTG BRACKET
316076403 316076403 INSULATION
316095601 316095601 KNOB-WARMER
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316022500 316022500 LIGHT/LAMP,WARMER,INDICATOR ,
316066610 316066610 LINER
316066201 316066201 MANIFOLD PIPE
5303288460 5303288460 NUT
5303013272 5303013272 NUT, BAFFLE
5303210090 5303210090 ORIFICE-TOP BURNER, SMALL (2)
316089306 316089306 OVERLAY,CLOCK
316011417 316011417 PAN

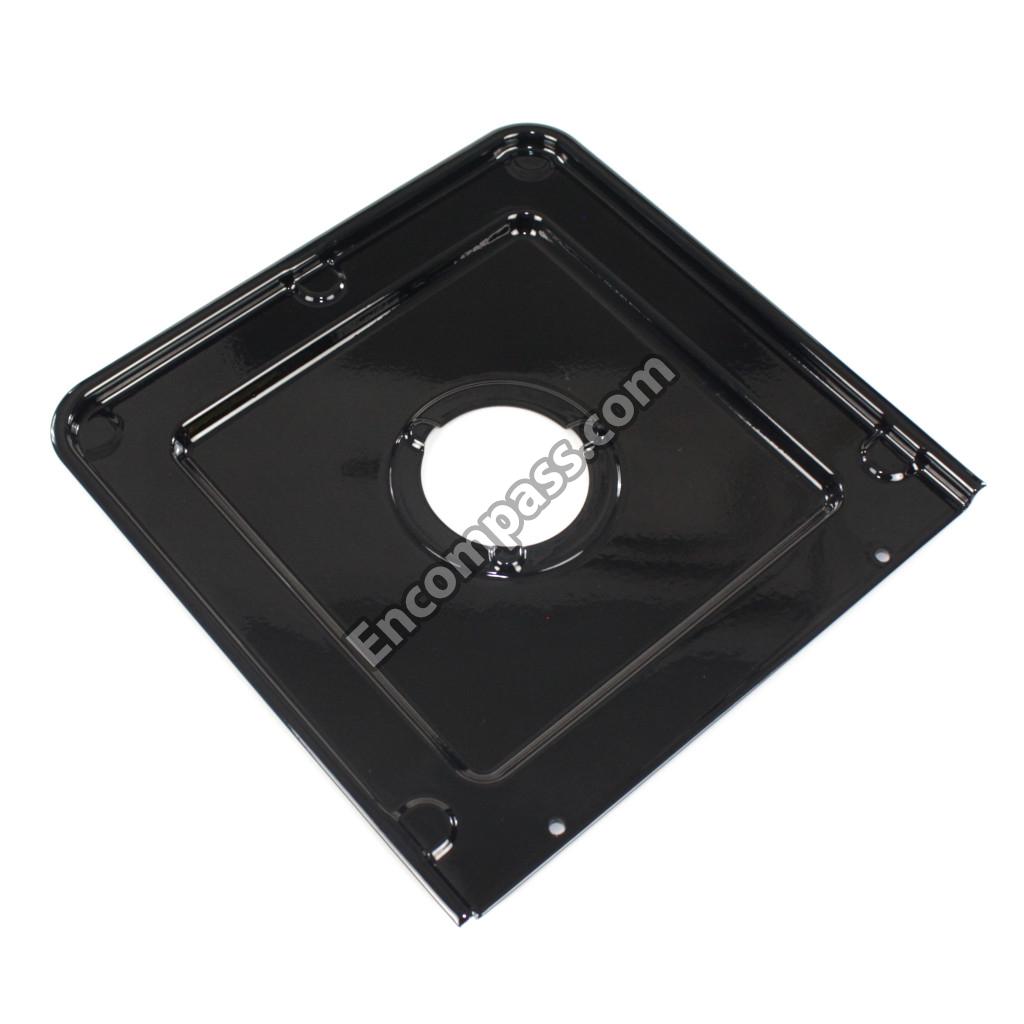

316011419 316011419 PAN,BURNER ,LARGE ,BLACK

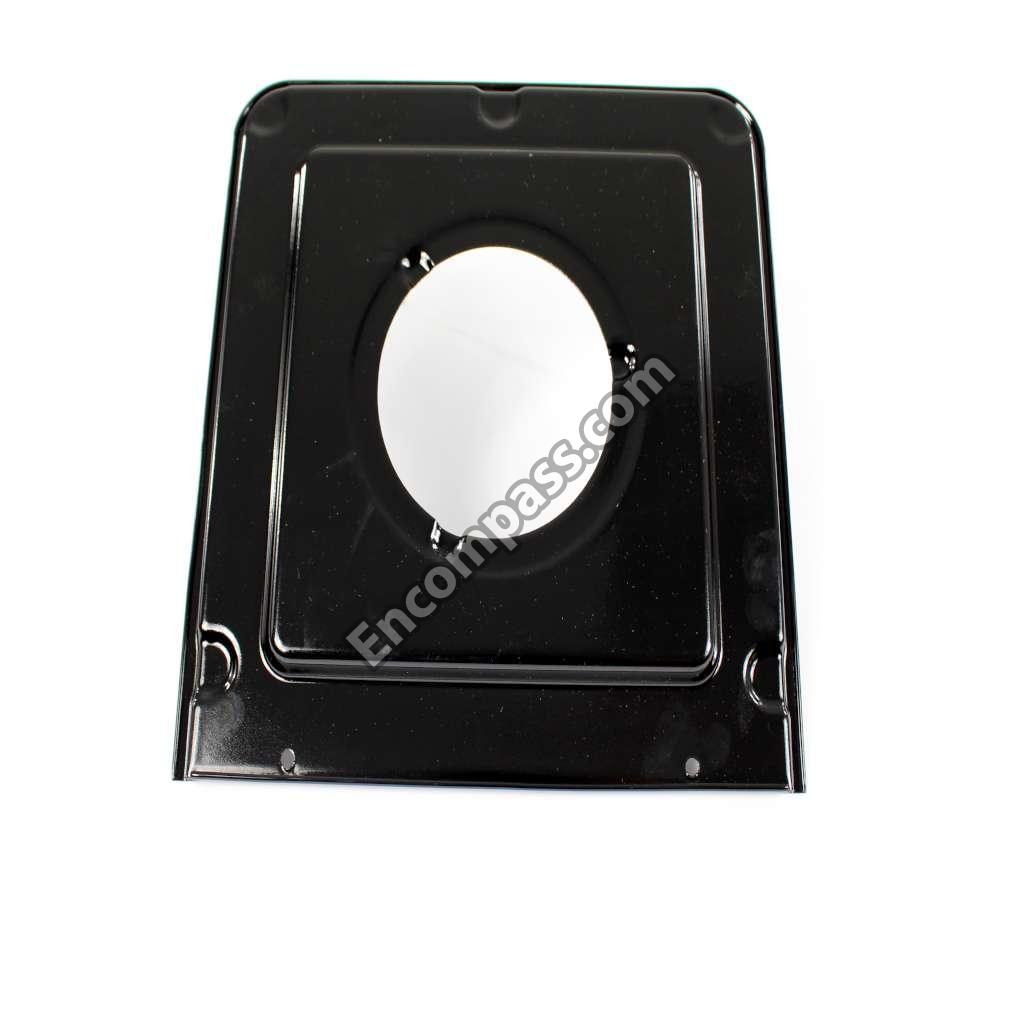

316011415 316011415 PAN-BURNER,BLACK ,SMALL ,(2)
316011413 316011413 PAN-BURNER,GRAY ,SMALL ,(2)
316049104 316049104 PANEL
316074700 316074700 PLATE
3206216 3206216 PLUG-BUTTON
807328301 807328301 RACK
316067902 316067902 RACK,OVEN
3051222 3051222 RECEPTACLE-LAMP
3051223 3051223 RECEPTACLE-LAMP
316053200 316053200 RECEPTACLE-STARTER
5303208655 5303208655 REFLECTOR
3131361 3131361 REFLECTOR
316091706 316091706 REGULATOR,PRESSURE
316087500 316087500 RETAINER
316062400 316062400 RETAINER PLATE
5303161307 5303161307 RETAINING RING
5303161223 5303161223 RETAINING RING (2)
316026400 316026400 ROD
316026800 316026800 ROD
5303292005 5303292005 SCREW
316021105 316021105 SCREW
316021108 316021108 SCREW
316048200 316048200 SCREW
316021104 316021104 SCREW
5303288570 5303288570 SCREW
316116000 316116000 SCREW
3131732 3131732 SCREW
316089500 316089500 SCREW
5303285179 5303285179 SCREW
5303212671 5303212671 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
5303280308 5303280308 SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2, (2)
5303203397 5303203397 SCREW-LEVELING

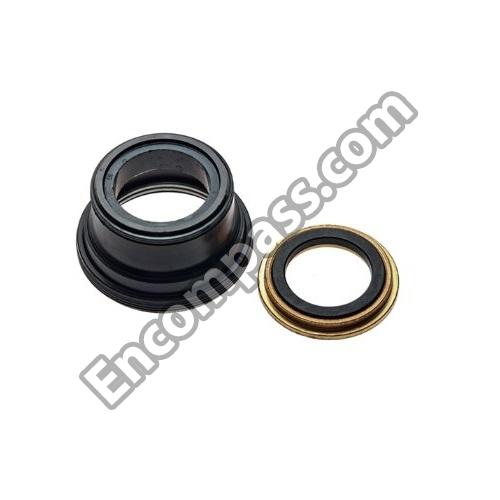

5303279394 5303279394 SEAL ASSY,TUB ,TRANSMISSION
5303131601 5303131601 SEAL-S/C DOOR
316014401 316014401 SHIELD
3131314 3131314 SHIELD
5303288578 5303288578 SHIELD
316051700 316051700 SHIELD
3200836 3200836 SHIELD
316093300 316093300 SHIELD
316081301 316081301 SHIELD
3014099 3014099 SPACER
131784400 131784400 SPACER,BEARING BLOCK ,TRANSMISSION
3206218 3206218 STARTER-LAMP
316049105 316049105 SUPPORT
316064600 316064600 SUPPORT
316059903 316059903 SUPPORT-RECEPTACLE
5303935040 5303935040 SWITCH HARNESS TERM
316032000 316032000 SWITCH-IGNITOR,(4)
316093500 316093500 THERMO DISC
316065005 316065005 TUBE
316059613 316059613 TUBE
316059614 316059614 TUBE
316059615 316059615 TUBE
316065003 316065003 TUBE ALUM 3/8 VALVE/REG
316059612 316059612 TUBE,BURNER ,RED ,RF
316065002 316065002 TUBE,VALVE TO MIXER
5303208499 5303208499 VALVE,SAFETY ,DUAL

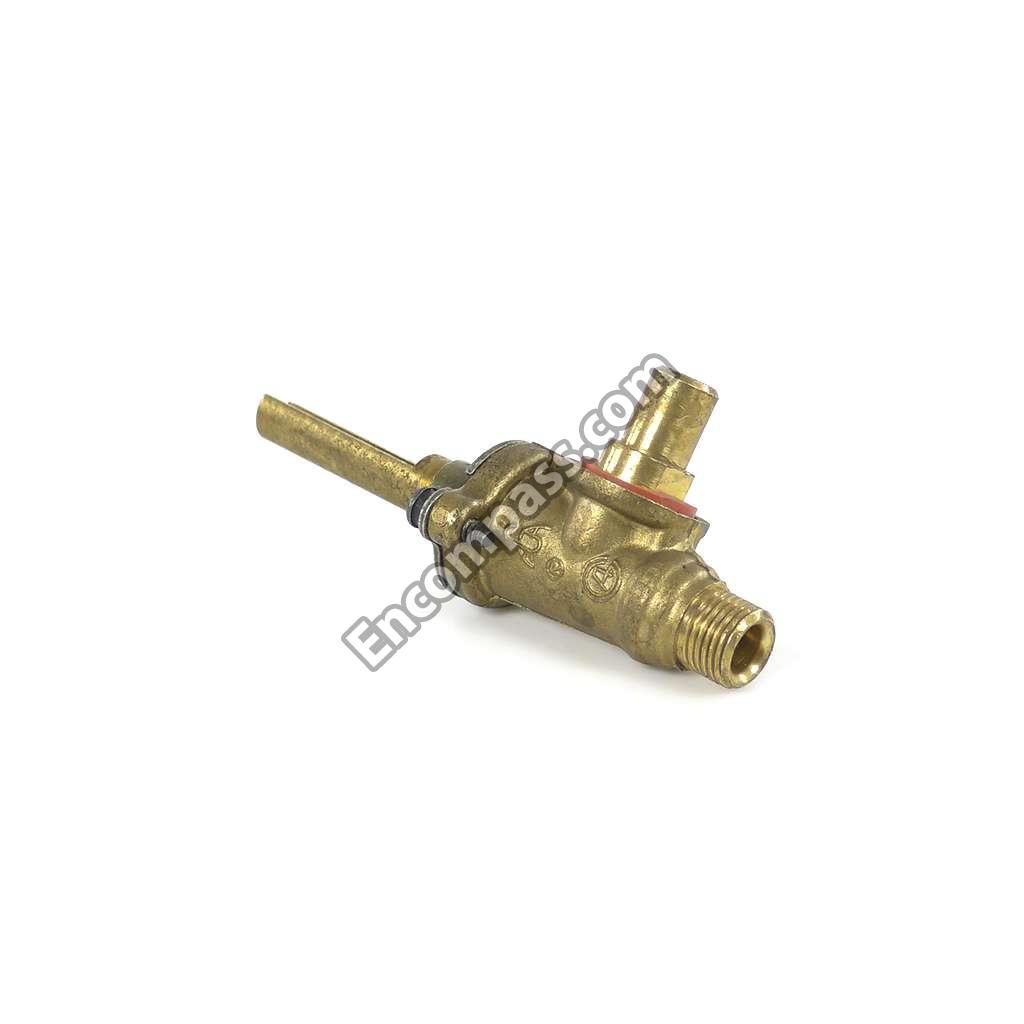

5303935130 5303935130 VALVE-TOP BURNER 9K
5303289034 5303289034 WIRING HARNESS,MODULE/IGNITER
