Model Image
Manufacturer

Electrolux

Model Number

FGF376CJSB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303210379 5303210379 BAFFLE
3131284 3131284 BAFFLE
316033204 316033204 BRACKET
316091600 316091600 BRACKET
316059201 316059201 BRACKET
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3131903 3131903 BUMPER
5303935098 5303935098 BURNER ASSY,SEALED ,LARGE ,11,100 BTU ,(2), INCLUDES,11,37,44A,45
316098509 316098509 CAP
316118801 316118801 CAP-BURNER
3011813 3011813 CLIP
316080011 316080011 CLOCK/TIMER,SLEW
3131570 3131570 COVER
316074907 316074907 DEFLECTOR
316102202 316102202 FOIL
316102203 316102203 FOIL
316089013 316089013 GLASS
316117601 316117601 GLASS
316117500 316117500 GLASS-OVEN DOOR,INNER
3051162 3051162 GLIDE,DRAWER ,FRONT
3051163 3051163 GLIDE-DRWR
316001632 316001632 HARNESS-WIRING
316011201 316011201 IGNITOR
316119302 316119302 IGNITOR,BROILER
316489402 316489402 IGNITOR-OVEN
316011200 316011200 IGNITOR-TOP BURNER, (4)8 W/MTG BRACKET
316082000 316082000 INSERT,BROILER PAN
316047708 316047708 INSULATION,2`` ,OVEN WRAPPER
316109513 316109513 KNOB,TOP VALVE ,WHITE
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316066619 316066619 LINER
316134501 316134501 MANIFOLD-PIPE
316135702 316135702 MODULE,SPARK
5303013272 5303013272 NUT, BAFFLE
316010804 316010804 ORIFICE,TOP BURNER ,LARGE ,11K
5303210090 5303210090 ORIFICE-TOP BURNER, SMALL (2)
316089306 316089306 OVERLAY,CLOCK

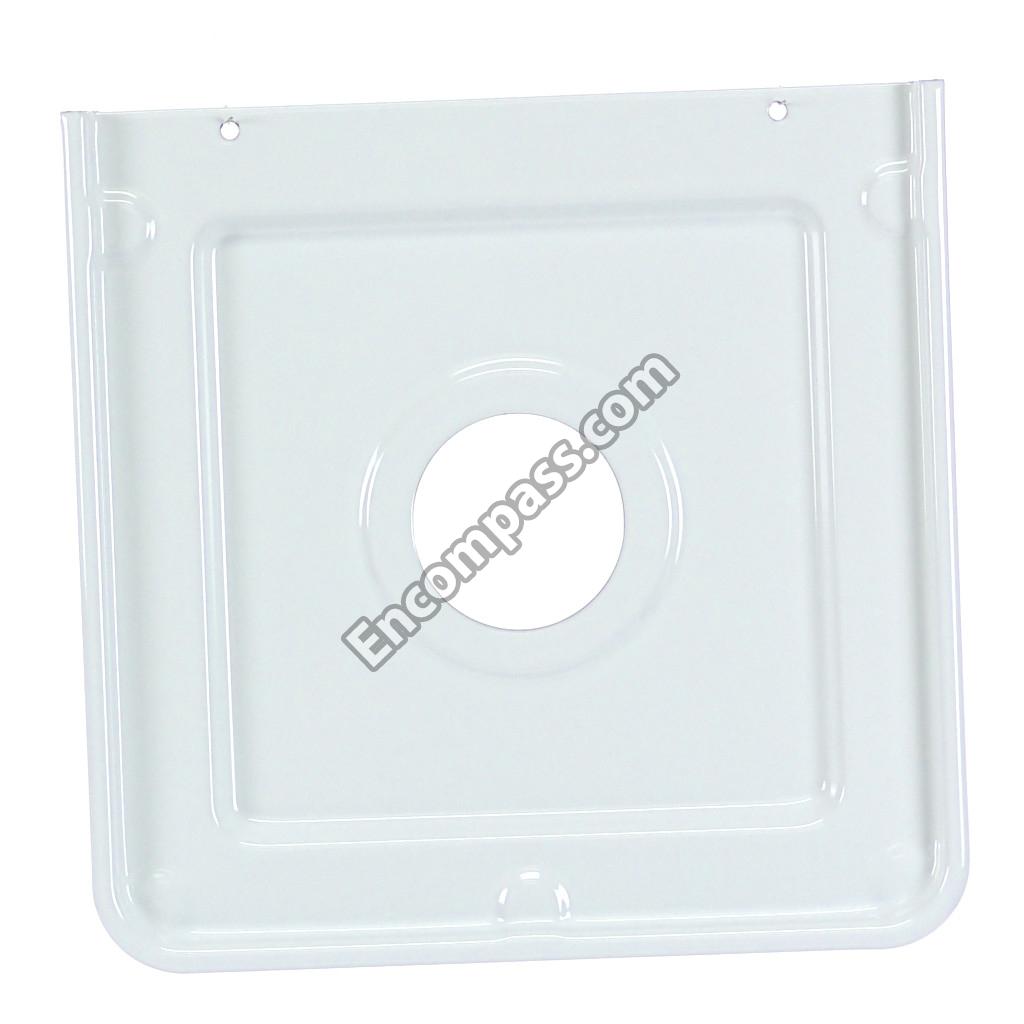

316011417 316011417 PAN
316011409 316011409 PAN BURNER, BLACK
316081900 316081900 PAN-BROILER
316084405 316084405 PANEL
316074700 316074700 PLATE
316065306 316065306 PLATE
807108202 807108202 POWER CORD
316067902 316067902 RACK,OVEN
316116400 316116400 RECEPTACLE-LAMP,OVEN
316091706 316091706 REGULATOR,PRESSURE
316087500 316087500 RETAINER
316026400 316026400 ROD
316026800 316026800 ROD
316021108 316021108 SCREW
316021105 316021105 SCREW
316021104 316021104 SCREW
316134300 316134300 SCREW
5303288570 5303288570 SCREW
316116000 316116000 SCREW
3131732 3131732 SCREW
5303285179 5303285179 SCREW
316021112 316021112 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
316069301 316069301 SCREW-BURNER MTG
5303280308 5303280308 SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2, (2)
316129200 316129200 SCREW-LEVELING,PLASTIC ,WITH STOP
5303131601 5303131601 SEAL-S/C DOOR
316053800 316053800 SHIELD
3131314 3131314 SHIELD
3200836 3200836 SHIELD
5303288578 5303288578 SHIELD
316051700 316051700 SHIELD
316081301 316081301 SHIELD
316497600 316497600 SHIELD-BACKGUARD
316113400 316113400 SPACER
3014099 3014099 SPACER
316132100 316132100 SPACER
316117701 316117701 SPACER
316023108 316023108 SUPPORT
316023109 316023109 SUPPORT
316064600 316064600 SUPPORT
316448701 316448701 SWITCH,OVEN LIGHT ,WHITE ,ROCKER
316112500 316112500 TEMPLATE
316083722 316083722 TRIM
316065005 316065005 TUBE
316059613 316059613 TUBE
316059614 316059614 TUBE
316059615 316059615 TUBE
316065003 316065003 TUBE ALUM 3/8 VALVE/REG
316059612 316059612 TUBE,BURNER ,RED ,RF
316065002 316065002 TUBE,VALVE TO MIXER
5303208499 5303208499 VALVE,SAFETY ,DUAL
316134100 316134100 VALVE-TOP BURNER
316134107 316134107 VALVE-TOP BURNER LI
316134102 316134102 VALVE-TOP BURNER LI
3131737 3131737 WASHER-HINGE
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL
316001475 316001475 WIRING HARNESS
316001824 316001824 WIRING HARNESS ASSEMBLY
