Model Image
Manufacturer

Electrolux

Model Number

FGF380MXFCA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316401600 316401600 BACK
316401401 316401401 BAFFLE
316401301 316401301 BAFFLE
316437100 316437100 BRACE
316408300 316408300 BRACKET
316401200 316401200 BRACKET
316217700 316217700 BRACKET
316217701 316217701 BRACKET
316091600 316091600 BRACKET
316441600 316441600 BRACKET-CLOCK MTG
5303013071 5303013071 BULB/LAMP
316404400 316404400 BURNER
316404300 316404300 BURNER
316201403 316201403 BURNER BOX
316206600 316206600 CAP
316279700 316279700 CLEANER
316234200 316234200 CLIP
316408000 316408000 CLIP
316432800 316432800 CLIP
316401500 316401500 COVER
316409700 316409700 ELBOW
316208901 316208901 FLUE
316117500 316117500 GLASS
316452701 316452701 GLASS
316407400 316407400 GLIDE
316407301 316407301 GLIDE
316424801 316424801 GRATE
316424601 316424601 GRATE
316079500 316079500 HANDLE DOOR/DRAWER
316416600 316416600 HARNESS
316456302 316456302 HINGE

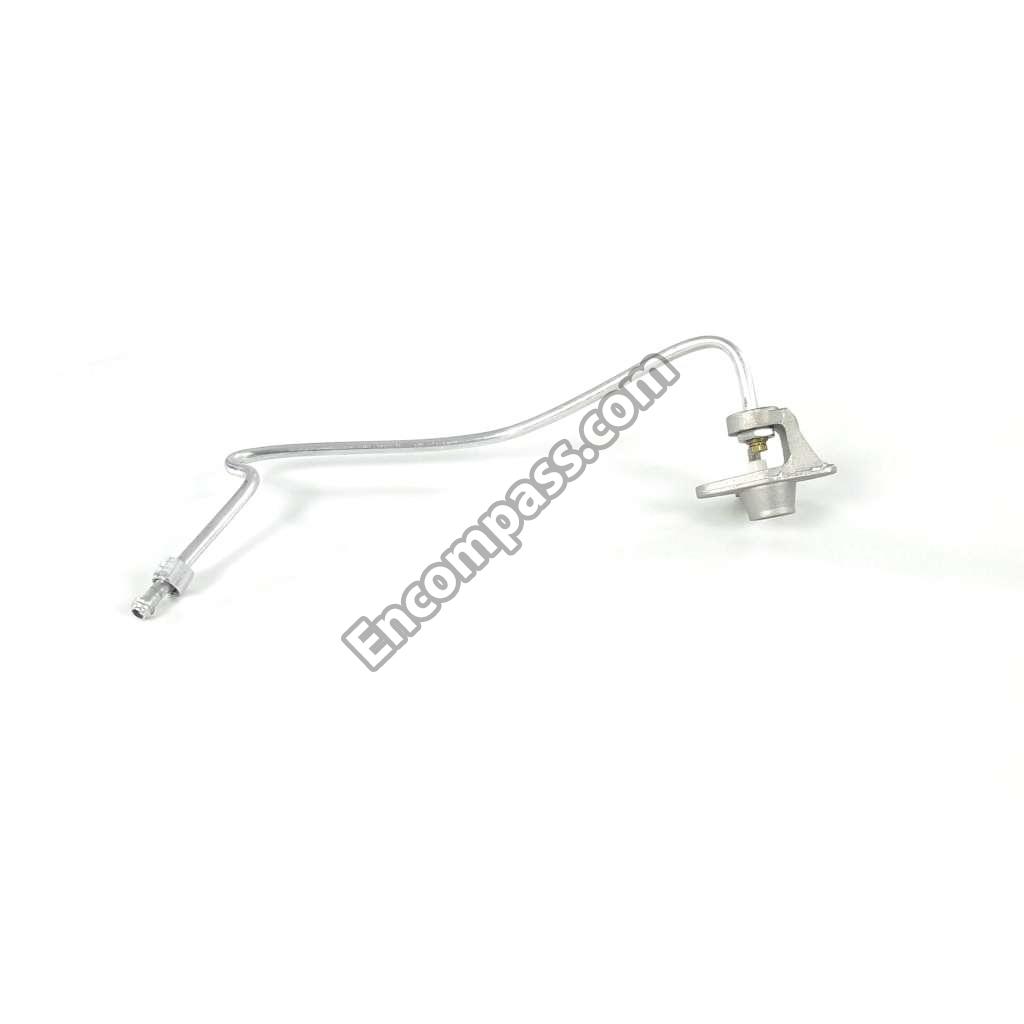

316430801 316430801 IGNITOR/ORIFICE ASS
316430700 316430700 IGNITOR/ORIFICE ASS
316430503 316430503 IGNITOR/ORIFICE ASS
316430402 316430402 IGNITOR/ORIFICE ASS
316248105 316248105 INSTRUCTIONS
316403900 316403900 INSULATION
316403700 316403700 INSULATION
316403600 316403600 INSULATION
316220002 316220002 KNOB
316433603 316433603 LABEL
316405800 316405800 LATCH ASSEMBLY
316423801 316423801 LINER
316403200 316403200 LINER
318079001 318079001 MODULE
316464300 316464300 MOTOR-LATCH
5303013272 5303013272 NUT
316237902 316237902 ORIFICE
316237903 316237903 ORIFICE
316419100 316419100 OVERLAY
316407806 316407806 PANEL
316409305 316409305 PANEL
316400603 316400603 PANEL
316099500 316099500 PIN
316219501 316219501 PIPE
316404500 316404500 RACK
316116400 316116400 RECEPTACLE
316441300 316441300 RECEPTACLE
316091706 316091706 REGULATOR
316087500 316087500 RETAINER
316232700 316232700 ROD
316001006 316001006 SCREW
316418900 316418900 SCREW
316089500 316089500 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
316272900 316272900 SCREW
316418901 316418901 SCREW
316240600 316240600 SCREW
316001003 316001003 SCREW
316021104 316021104 SCREW
5303271648 5303271648 SCREW
316215600 316215600 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316021108 316021108 SCREW
316403101 316403101 SEAL
316408101 316408101 SHIELD
316402500 316402500 SHIELD
316404800 316404800 SHIELD
316404600 316404600 SHIELD
316406200 316406200 SHIELD
316401000 316401000 SHIELD
316402201 316402201 SHIELD
316404200 316404200 SHIELD
316400801 316400801 SHIELD
316400703 316400703 SHIELD
316497600 316497600 SHIELD
316230701 316230701 SHIELD
316402403 316402403 SPACER
316408600 316408600 SPACER
316246501 316246501 SPACER
316411405 316411405 SUPPORT
316411404 316411404 SUPPORT
316445501 316445501 SWITCH
316448700 316448700 SWITCH
316112500 316112500 TEMPLATE
316416200 316416200 TRIM
316405401 316405401 TUBE
316404901 316404901 VALVE
5303935235 5303935235 VALVE
5303935234 5303935234 VALVE
316008401 316008401 WASHER
316064103 316064103 WIRE
316219006 316219006 WIRING HARNESS
316253702 316253702 WIRING HARNESS
