Model Image
Manufacturer

Electrolux

Model Number

FGFB79GSF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316401600 316401600 BACK
316401301 316401301 BAFFLE
316401401 316401401 BAFFLE
316437100 316437100 BRACE
316091600 316091600 BRACKET
316401201 316401201 BRACKET
316404700 316404700 BRACKET
316498200 316498200 BRACKET
316404100 316404100 BRACKET
316446900 316446900 BRACKET
316419200 316419200 BRACKET,CLOCK,(2)
316443201 316443201 BRACKETSUPPORT
316558300 316558300 BURNER
316438200 316438200 BURNER
316438600 316438600 BURNER
316404400 316404400 BURNER
316404300 316404300 BURNER
316527701 316527701 CAP
316438301 316438301 CAP
316438701 316438701 CAP
316432800 316432800 CLIP
316408000 316408000 CLIP
316260000 316260000 CLIP
316401500 316401500 COVER
316231800 316231800 COVER
316026701 316026701 COVER
316408703 316408703 DRAWER
316409700 316409700 ELBOW
316208901 316208901 FLUE
316542100 316542100 GASKETFLUE
316402600 316402600 GLASS
316117500 316117500 GLASS
316407301 316407301 GLIDE
316407400 316407400 GLIDE

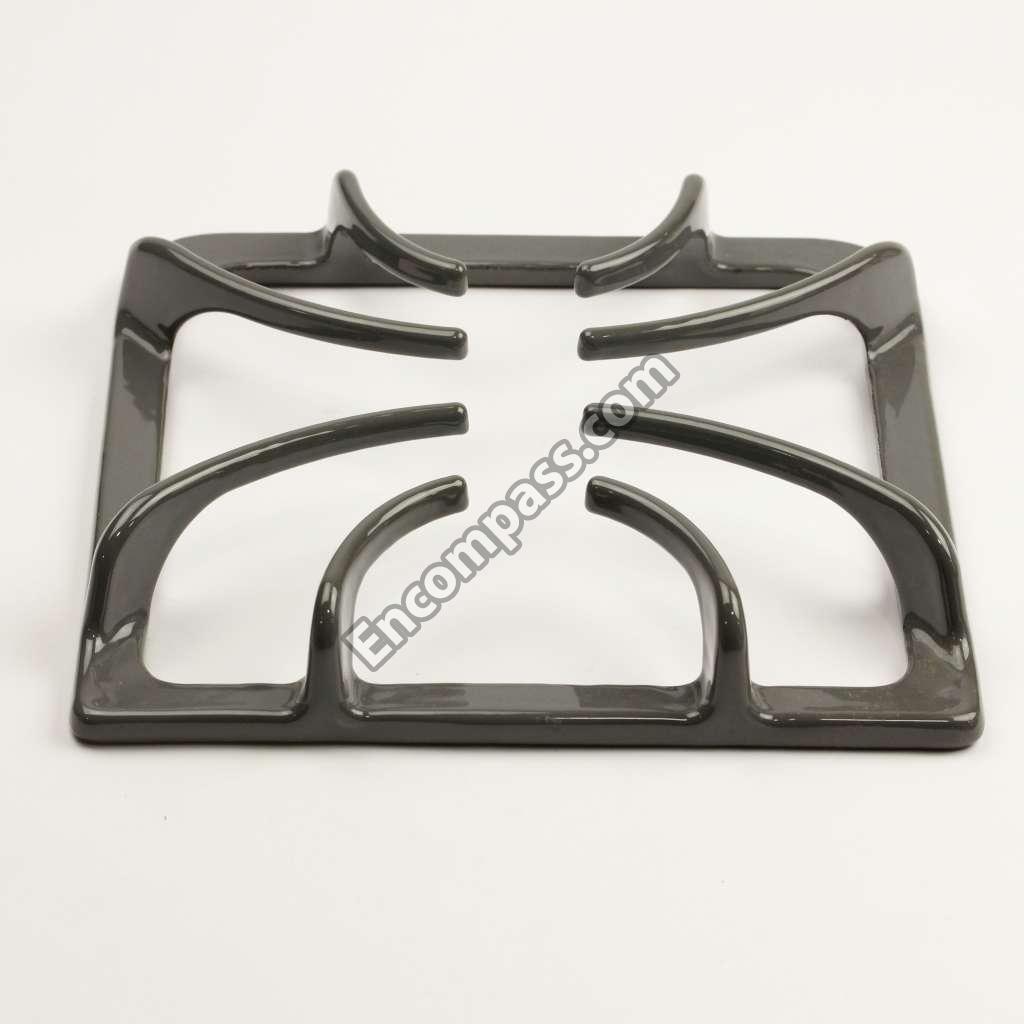

316202401 316202401 GRATE
316270201 316270201 HANDLE
316526901 316526901 HARNESS
316489403 316489403 IGNITOR
316489404 316489404 IGNITOR
316536600 316536600 IGNITOR/ORIFICE ASS
316536602 316536602 IGNITOR/ORIFICE ASS
316536610 316536610 IGNITOR/ORIFICE ASS
316536614 316536614 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
316417518 316417518 INSTRUCTIONS
316403700 316403700 INSULATION
316403600 316403600 INSULATION
316403900 316403900 INSULATION
316220008 316220008 KNOB
316433603 316433603 LABEL
316405800 316405800 LATCH ASSEMBLY
318406100 318406100 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316403200 316403200 LINER
316423801 316423801 LINER
316254506 316254506 MAINTOP
316417900 316417900 MANIFOLD PIPE
316135702 316135702 MODULE
316464300 316464300 MOTOR-LATCH
5303013272 5303013272 NUT
316136600 316136600 NUT
316527504 316527504 ORIFICE
316527511 316527511 ORIFICE
316419304 316419304 OVERLAY
316081900 316081900 PAN
316436290 316436290 PANEL
316400603 316400603 PANEL
316403401 316403401 PANEL
316489009 316489009 PANELMANIFOLD
316099500 316099500 PIN
316490000 316490000 PROBE
316441300 316441300 RECEPTACLE
316116400 316116400 RECEPTACLE
316091706 316091706 REGULATOR
316087500 316087500 RETAINER
316539800 316539800 RETAINER
316232700 316232700 ROD
316021108 316021108 SCREW
316021109 316021109 SCREW
316021104 316021104 SCREW
316001003 316001003 SCREW
316240600 316240600 SCREW
316215600 316215600 SCREW
316529700 316529700 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316021132 316021132 SCREW
316418901 316418901 SCREW
316272900 316272900 SCREW
316116000 316116000 SCREW
5303271648 5303271648 SCREW
3131732 3131732 SCREW
5303285179 5303285179 SCREW
316089500 316089500 SCREW
316418900 316418900 SCREW
316433300 316433300 SCREW
316403101 316403101 SEAL
316230701 316230701 SHIELD
316497600 316497600 SHIELD
316498100 316498100 SHIELD
316400801 316400801 SHIELD
316489200 316489200 SHIELD
316400700 316400700 SHIELD
316401000 316401000 SHIELD
316404200 316404200 SHIELD
316406200 316406200 SHIELD
316404600 316404600 SHIELD
316404800 316404800 SHIELD
316402500 316402500 SHIELD
316402306 316402306 SHIELD
316517600 316517600 SPACER
316402403 316402403 SPACER
316411402 316411402 SUPPORT
316411403 316411403 SUPPORT
316445500 316445500 SWITCH
316259801 316259801 SWITCH-ROCKER
316416201 316416201 TRIM
5303935326 5303935326 TRIM KITDOOR
316489100 316489100 TUBE
316537100 316537100 TUBEVALVE TO MIXER
5303935305 5303935305 VALVE
5303935307 5303935307 VALVE
5303935308 5303935308 VALVE
316404901 316404901 VALVE
316008401 316008401 WASHER
316219019 316219019 WIRING HARNESS
