Model Image
Manufacturer

Electrolux

Model Number

FGFL77ABC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303210379 5303210379 BAFFLE
3131284 3131284 BAFFLE
316091600 316091600 BRACKET
316211100 316211100 BRACKET
316217700 316217700 BRACKET
316217701 316217701 BRACKET
316026600 316026600 BRACKET
316237201 316237201 BRACKET,GLASS SUPPORT ,(2)
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
316212300 316212300 BURNER,SEALED ,11K
316212400 316212400 BURNER,SEALED ,9.5K
316213600 316213600 CAP,12K BURNER ,BLACK
316213500 316213500 CAP,9.5K BURNER ,BLACK
3011813 3011813 CLIP
316234200 316234200 CLIP
316233400 316233400 COVER
316233500 316233500 COVER
316231800 316231800 COVER
316026701 316026701 COVER
316234500 316234500 COVER
316011503 316011503 DRAWER
318398302 318398302 FAN BLADE
316574601 316574601 FOIL
316574603 316574603 FOIL,1.5`` X 29`` ,ALUMINUM ,BLACK
5303935200 5303935200 GLASS,DOOR KIT ,BLACK ,OUTER ,W/FOIL TAPE
316237100 316237100 GLASS,OVEN DOOR ,CLEAR ,HEAT BARRIER
316117500 316117500 GLASS-OVEN DOOR,INNER
3051162 3051162 GLIDE,DRAWER ,FRONT
3051163 3051163 GLIDE-DRWR
316252642 316252642 GRATE,BLACK
316270200 316270200 HANDLE,DOOR ,BLACK
316119302 316119302 IGNITOR,BROILER
5303935066 5303935066 IGNITOR,OVEN KIT ,W/NUT & INSTR

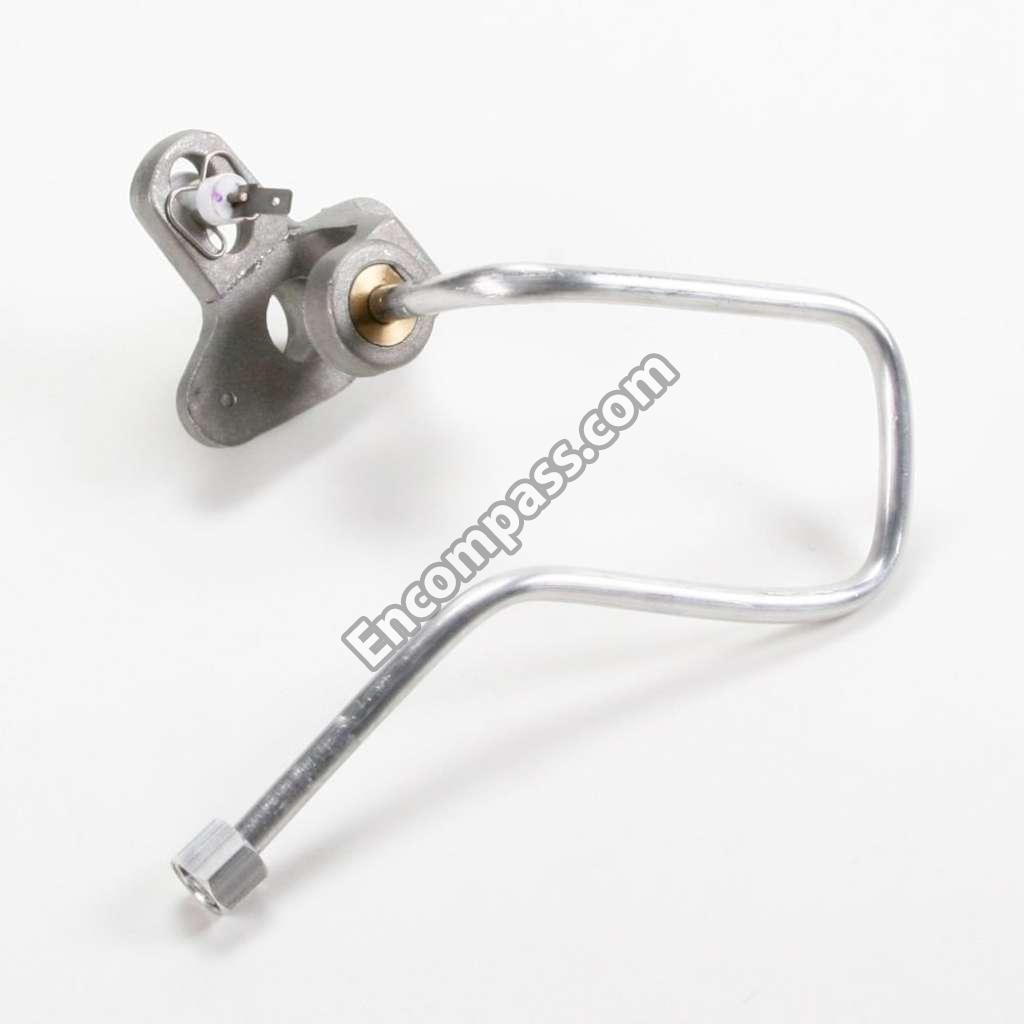

316237805 316237805 IGNITOR/ORIFICE ASSY.,TOP BURNER ,FRONT
316237801 316237801 IGNITOR/ORIFICE ASSY.,TOP BURNER ,FRONT
316237704 316237704 IGNITOR/ORIFICE ASSY.,TOP BURNER ,REAR ,9.5K,W/HOLDER ,TUBE
316082000 316082000 INSERT,BROILER PAN
316248105 316248105 INSTRUCTIONS
316236700 316236700 INSULATION
316047708 316047708 INSULATION,2`` ,OVEN WRAPPER
316220002 316220002 KNOB,TOP VALVE ,BLACK ,4
316213900 316213900 LATCH,OVEN DOOR
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316022500 316022500 LIGHT/LAMP,WARMER,INDICATOR ,
316231400 316231400 LINER
316202331 316202331 MAIN TOP,BLACK
316135702 316135702 MODULE,SPARK

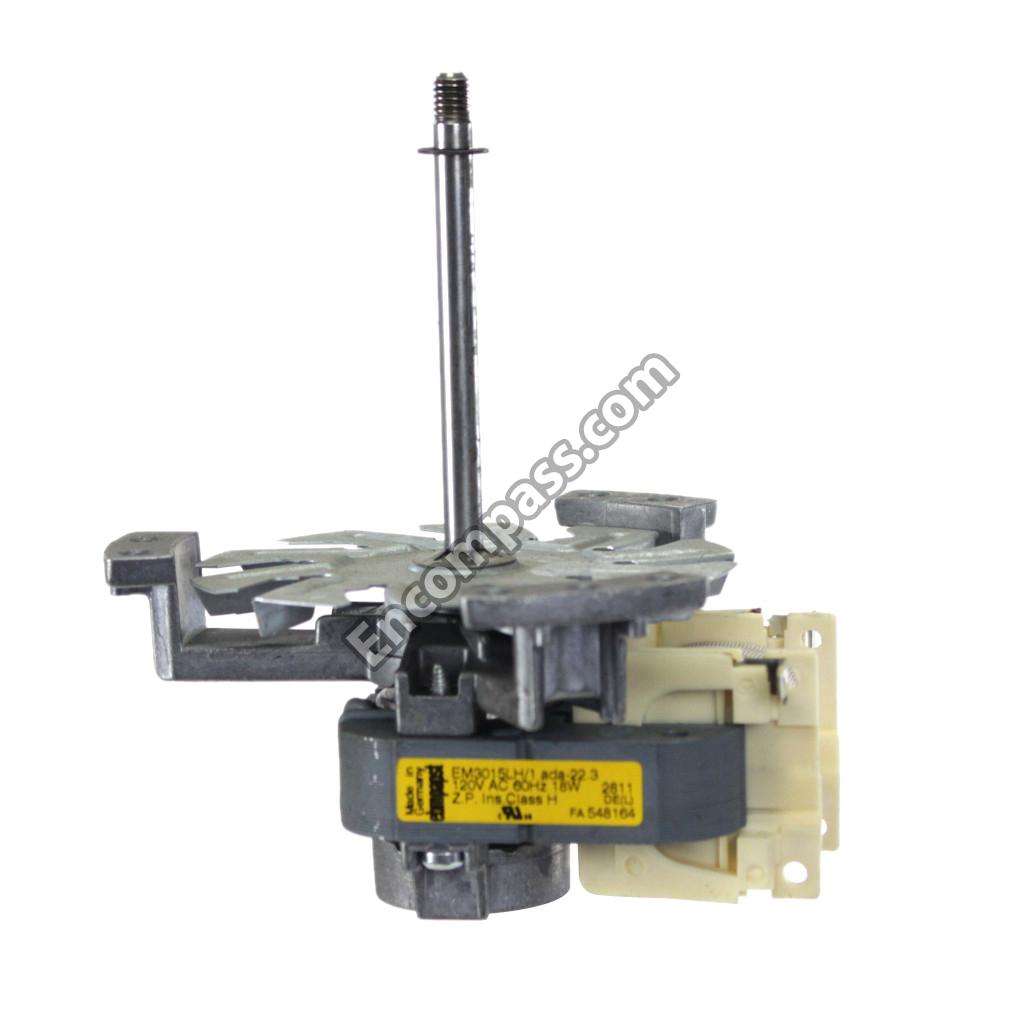

316234601 316234601 MOTOR,FAN
5303013272 5303013272 NUT, BAFFLE
316136600 316136600 NUT-FAN RETAINER
316237901 316237901 ORIFICE,TOP BURNER ,11K
316237902 316237902 ORIFICE-TOP BURNER,9.5K
316220805 316220805 OVERLAY,CLOCK ,BLACK ,ES300
316081900 316081900 PAN-BROILER
316232688 316232688 PANEL
316204990 316204990 PANEL
316231206 316231206 PANEL

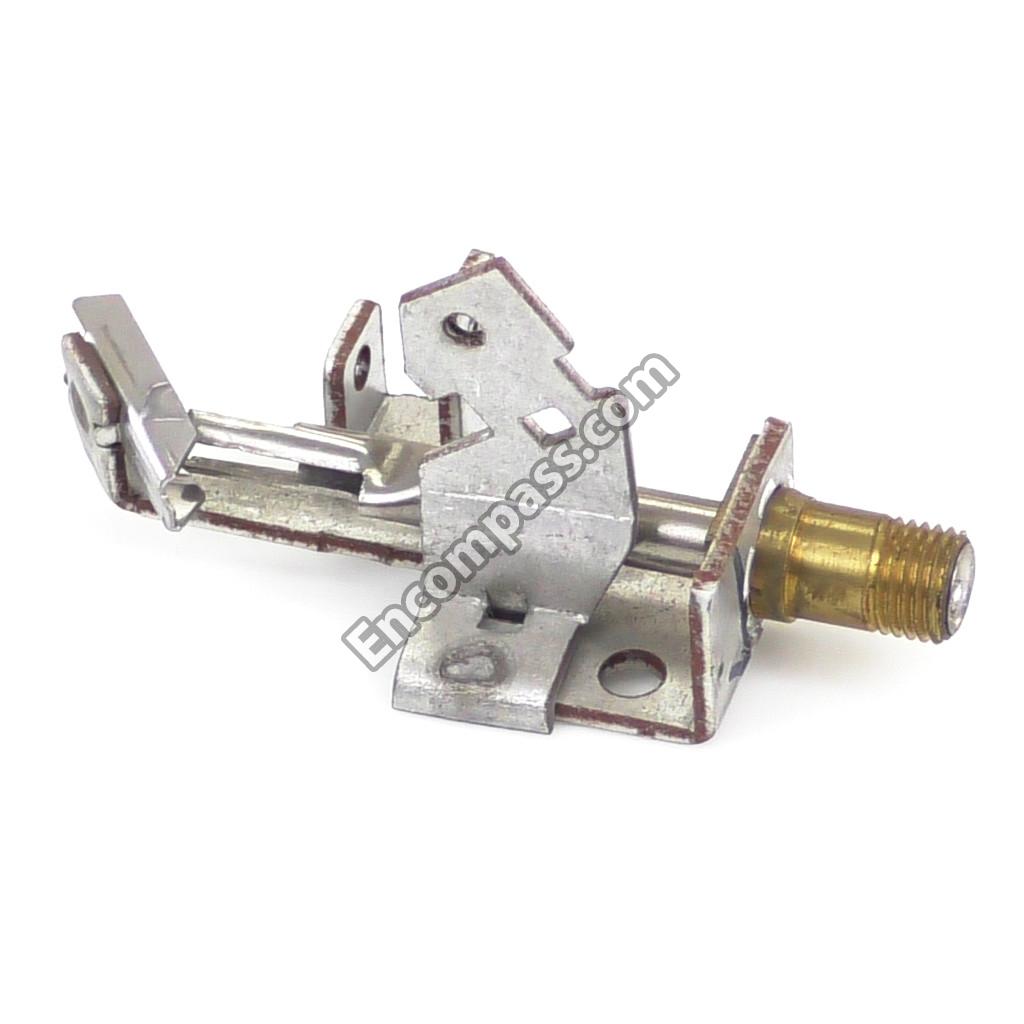

5303285763 5303285763 PILOT ASSEMBLY-OVEN
316099500 316099500 PIN
316204000 316204000 PIPE
316065306 316065306 PLATE
807108202 807108202 POWER CORD
316233903 316233903 PROBE,OVEN TEMP
316067902 316067902 RACK,OVEN
316116400 316116400 RECEPTACLE-LAMP,OVEN
316091706 316091706 REGULATOR,PRESSURE
316087500 316087500 RETAINER
316232700 316232700 ROD
316021108 316021108 SCREW
316021109 316021109 SCREW
316021104 316021104 SCREW
316134300 316134300 SCREW
5303288570 5303288570 SCREW
316116000 316116000 SCREW
3131732 3131732 SCREW
5303285179 5303285179 SCREW
316001016 316001016 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
316001013 316001013 SCREW,WAFER HEAD ,10-24 X 1.375 ,
316129200 316129200 SCREW-LEVELING,PLASTIC ,WITH STOP
316240600 316240600 SCREW`ASSY MTG ,IGNITOR/ORIFICE
316230900 316230900 SEAL,OVEN DOOR
316497600 316497600 SHIELD
316239900 316239900 SHIELD
316230701 316230701 SHIELD
316232800 316232800 SHIELD
3131314 3131314 SHIELD
3200836 3200836 SHIELD
5303288578 5303288578 SHIELD
316239300 316239300 SHIELD
316051700 316051700 SHIELD
316222707 316222707 SHIELD
316113400 316113400 SPACER
3014099 3014099 SPACER
316246500 316246500 SPACER
316117701 316117701 SPACER
316448700 316448700 SWITCH,ROCKER ,BLACK ,OVEN LIGHT
316259800 316259800 SWITCH,SPEED BAKE,BLACK
316112500 316112500 TEMPLATE
5303935191 5303935191 TRIM KIT-DOOR,3 SIDED ,BLACK ,
316207000 316207000 TUBE
316065003 316065003 TUBE ALUM 3/8 VALVE/REG
316065002 316065002 TUBE,VALVE TO MIXER

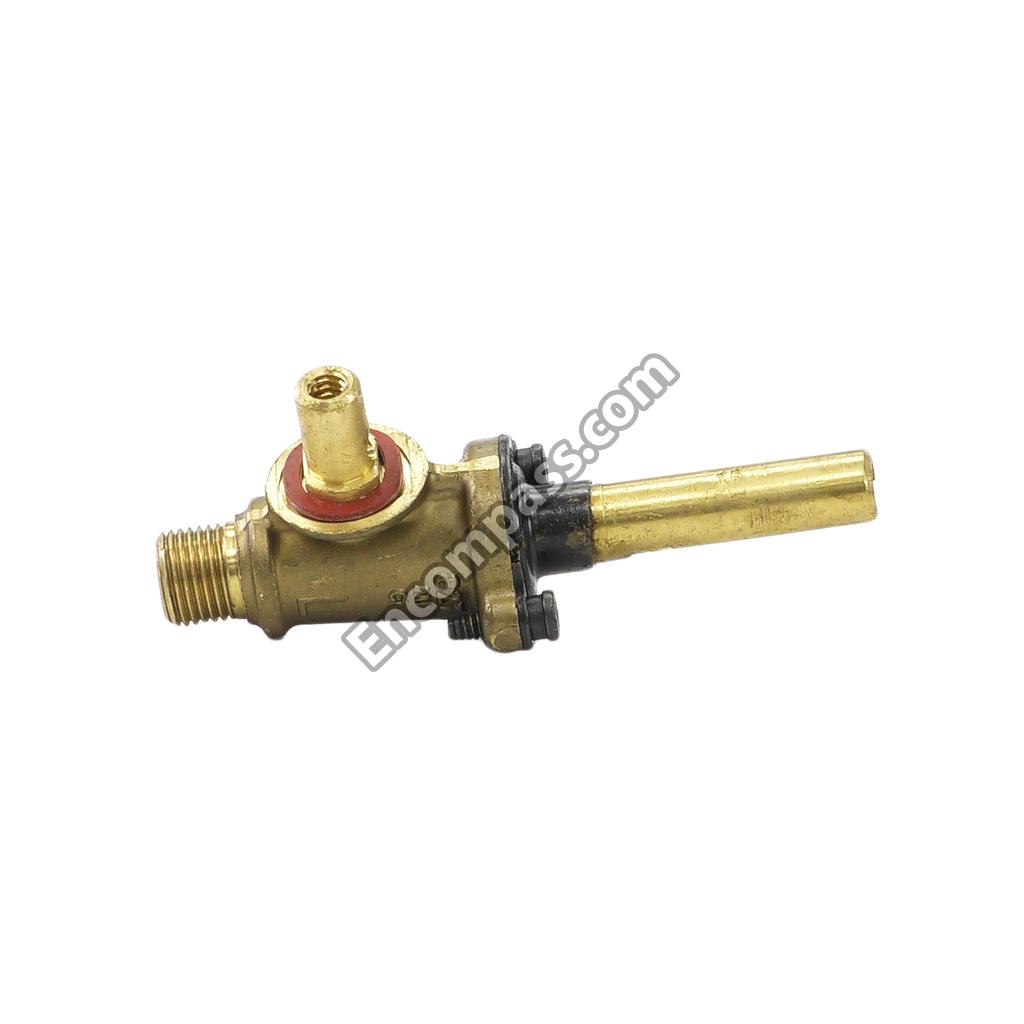

5303935210 5303935210 VALVE
5303935213 5303935213 VALVE,9.5K TOP BURNER ,W/MTG SCREW
5303208499 5303208499 VALVE,SAFETY ,DUAL
316136500 316136500 WASHER,FAN MOTOR
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL
