Model Image
Manufacturer

Electrolux

Model Number

FGGF3030PFA

Description

Range/oven, Gas, Freestanding

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316112005 316112005 ANTI TIP KIT
316401600 316401600 BACK
316401301 316401301 BAFFLE
316401401 316401401 BAFFLE
316437100 316437100 BRACE
316257400 316257400 BRACKET
316091600 316091600 BRACKET
316401201 316401201 BRACKET
316498200 316498200 BRACKET
316408300 316408300 BRACKET
316286300 316286300 BRACKETBODYSIDE
316285000 316285000 BRACKETMAINTOP
316285001 316285001 BRACKETMAINTOP
316438200 316438200 BURNER
316438400 316438400 BURNER
316558300 316558300 BURNER
316404302 316404302 BURNER
316404400 316404400 BURNER
316438000 316438000 BURNERSEALED 12K B
316546601 316546601 CAP
316546702 316546702 CAP
316546703 316546703 CAP
316432800 316432800 CLIP
316408000 316408000 CLIP
316557201 316557201 CLOCK/TIMER
807108202 807108202 CORD
316401500 316401500 COVER
316408703 316408703 DRAWER
316409700 316409700 ELBOW
316208901 316208901 FLUE
316423807 316423807 FRAME
316542100 316542100 GASKETFLUE
316117501 316117501 GLASS
316117500 316117500 GLASS
316452722 316452722 GLASS
316407301 316407301 GLIDE
316407400 316407400 GLIDE
316499502 316499502 GRATE
316554008 316554008 HANDLE
316580338 316580338 HARNESS
316580602 316580602 HARNESSIGNITOR
316580615 316580615 HARNESSIGNITOR
316575906 316575906 HINGE
316489403 316489403 IGNITOR
316489404 316489404 IGNITOR
316536621 316536621 IGNITOR/ORIFICE ASS
316536623 316536623 IGNITOR/ORIFICE ASS
316536602 316536602 IGNITOR/ORIFICE ASS
316536610 316536610 IGNITOR/ORIFICE ASS
316536612 316536612 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
316403700 316403700 INSULATION
316403600 316403600 INSULATION
316403900 316403900 INSULATION

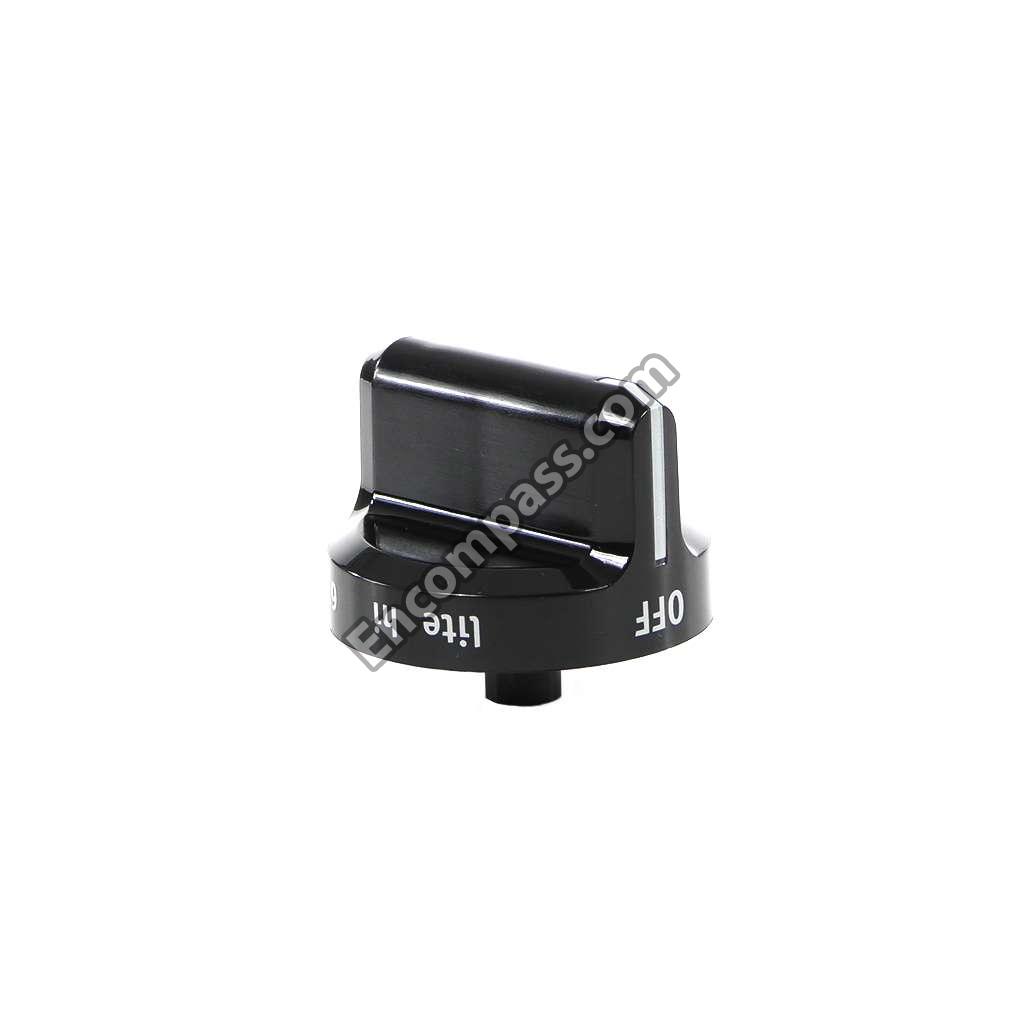

316564511 316564511 KNOBTOP VALVE
316483100 316483100 LABEL
316405800 316405800 LATCH ASSEMBLY
318406100 318406100 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316403200 316403200 LINER
316469605 316469605 MAINTOP PANEL
316417901 316417901 MANIFOLD
316262404 316262404 MODULE,SPARK
316464300 316464300 MOTOR-LATCH
316572700 316572700 NAMEPLATE
5303013272 5303013272 NUT
316527502 316527502 ORIFICE
316527504 316527504 ORIFICE
316527508 316527508 ORIFICE
316419339 316419339 OVERLAY
316081900 316081900 PAN
316572406 316572406 PANEL
316400603 316400603 PANEL
316249082 316249082 PANEL,MANIFOLD,STAINLESS STEEL
316490000 316490000 PROBE
316441300 316441300 RECEPTACLE
316116400 316116400 RECEPTACLE
316087500 316087500 RETAINER
316539800 316539800 RETAINER
316232700 316232700 ROD
316089500 316089500 SCREW
316021109 316021109 SCREW
316021110 316021110 SCREW
316021105 316021105 SCREW
316021108 316021108 SCREW
316001003 316001003 SCREW
316540900 316540900 SCREW
316021104 316021104 SCREW
316240600 316240600 SCREW
297174300 297174300 SCREW
316215600 316215600 SCREW
316272900 316272900 SCREW
316279600 316279600 SCREW
316418900 316418900 SCREW
316418901 316418901 SCREW
316116000 316116000 SCREW
3131732 3131732 SCREW
5303285179 5303285179 SCREW
316403101 316403101 SEAL
316230701 316230701 SHIELD
316557600 316557600 SHIELD
316497601 316497601 SHIELD
316498100 316498100 SHIELD
316400801 316400801 SHIELD
316401000 316401000 SHIELD
316404200 316404200 SHIELD
316400700 316400700 SHIELD
316405900 316405900 SHIELD
316406200 316406200 SHIELD
316404601 316404601 SHIELD
316404800 316404800 SHIELD
316408101 316408101 SHIELD
316402310 316402310 SHIELD
316517600 316517600 SPACER
316284100 316284100 SPACER
316402403 316402403 SPACER
316445500 316445500 SWITCH
316416200 316416200 TRIM
316489101 316489101 TUBEMANIFOLD SUPPL
316537100 316537100 TUBEVALVE TO MIXER
316431000 316431000 TUBEVALVE TO RGLTR
316560900 316560900 VALVE
316031501 316031501 VALVE
5303935306 5303935306 VALVE
5303935308 5303935308 VALVE
5303935305 5303935305 VALVE
316008401 316008401 WASHER
