Model Image
Manufacturer

Electrolux

Model Number

FGGF304DLB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318322801 318322801 ANGLE
5304480428 5304480428 ANTI TIP KIT
318260525 318260525 BAFFLE
318260526 318260526 BAFFLE
318579700 318579700 BAFFLE
318290402 318290402 BAFFLE
318937500 318937500 BAFFLE

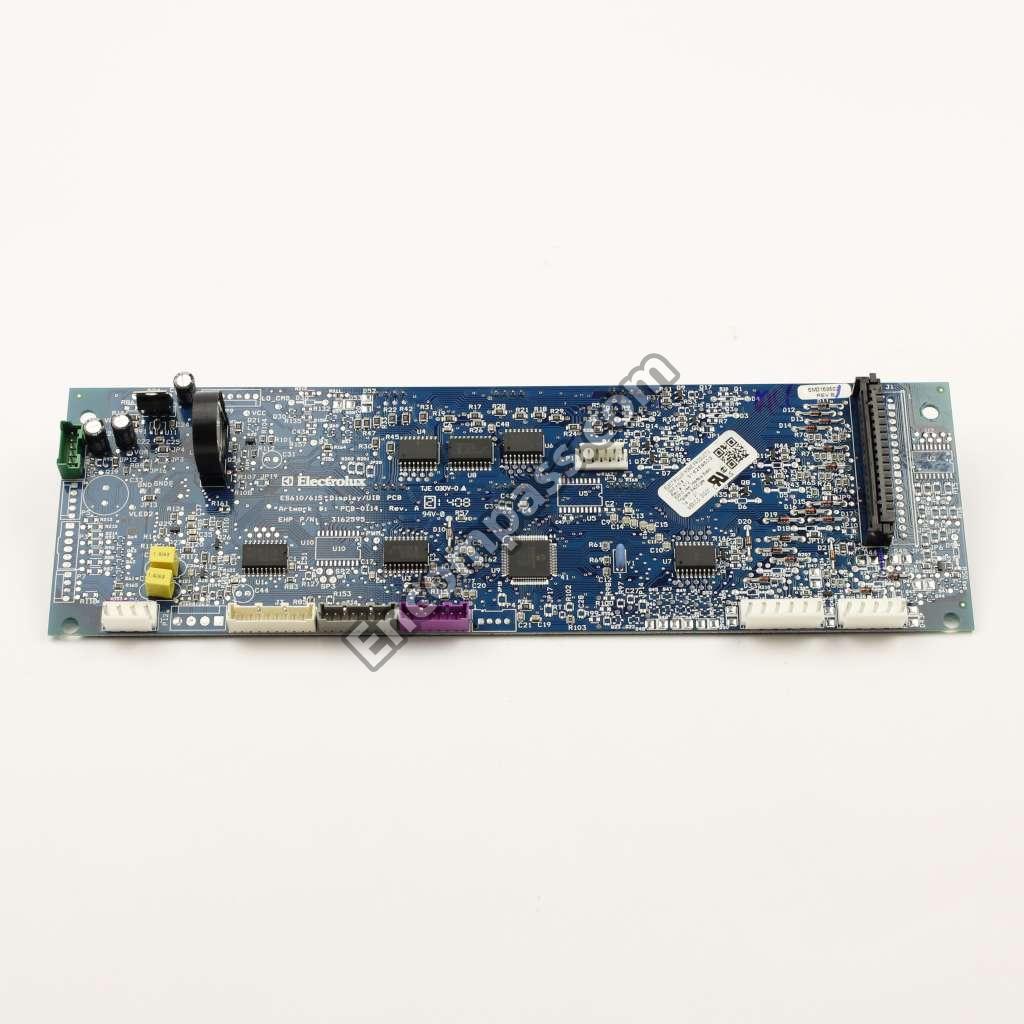

316443932 316443932 BOARD
318571400 318571400 BRACE
318382301 318382301 BRACKET
316446900 316446900 BRACKET
318338520 318338520 BRACKET
318291900 318291900 BRACKET
318256212 318256212 BRACKET
318935300 318935300 BRACKET
318603915 318603915 BRACKET
318573700 318573700 BRACKET
316558300 316558300 BURNER
316438200 316438200 BURNER
316438600 316438600 BURNER
316438400 316438400 BURNER
316261501 316261501 BURNER
357710306 357710306 BURNER
318413501 318413501 CAP
316260000 316260000 CLIP
318167300 318167300 CLIP
316259502 316259502 CONTROLLER
318565451 318565451 CONVERSION KIT
318938300 318938300 DEFLECTOR
318904212 318904212 DEFLECTOR
318580100 318580100 DEFLECTOR
318587800 318587800 DEFLECTOR
318304175 318304175 DOOR ASSEMBLY
318255513 318255513 ELEMENT
318311935 318311935 END CAP
318311934 318311934 END CAP
318398302 318398302 FAN BLADE
316281700 316281700 FITTING
318056249 318056249 FRONT
318212212 318212212 GLASS
318212216 318212216 GLASS
318212215 318212215 GLASS
318934201 318934201 GLASS ASSEMBLY
316499502 316499502 GRATE
316544500 316544500 HANDLE
318572705 318572705 HARNESS
318567120 318567120 HINGE
318567130 318567130 HINGE
318222400 318222400 HOUSING

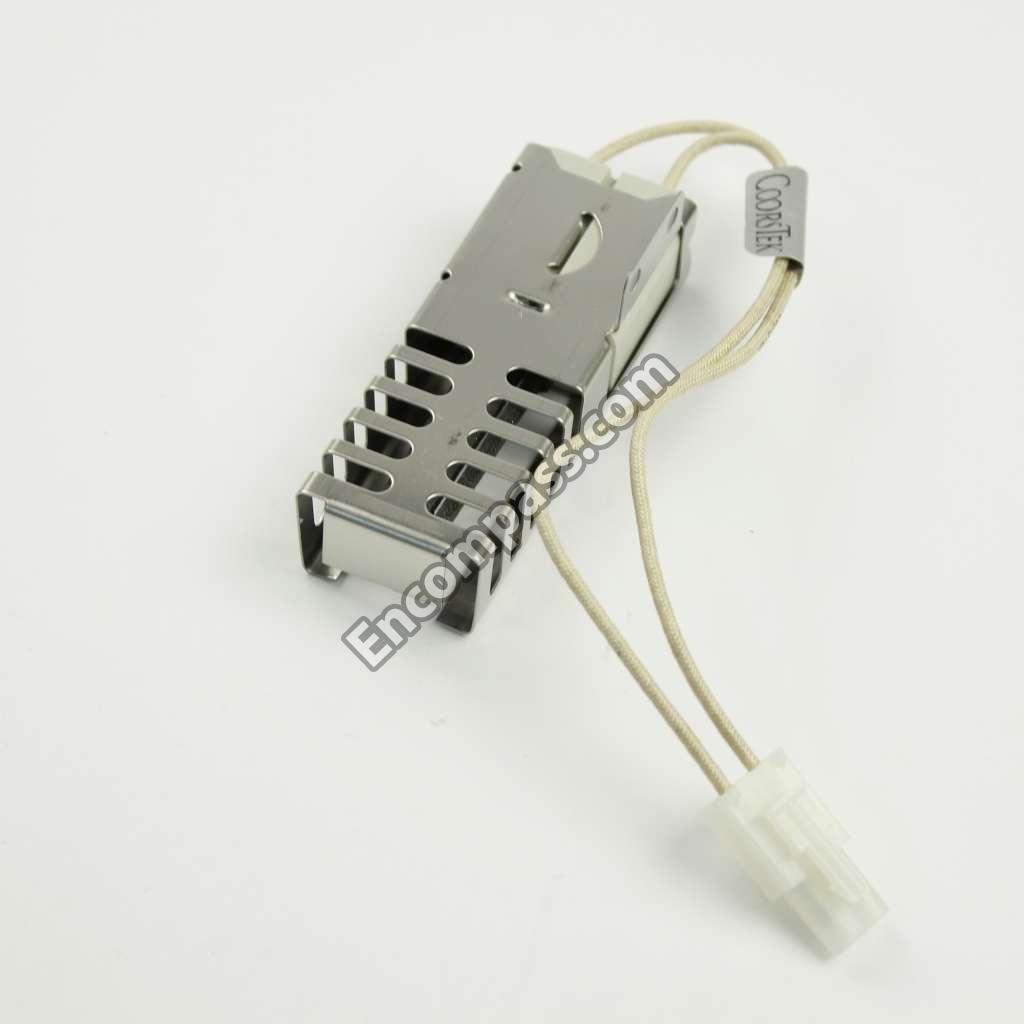

316489405 316489405 IGNITOR
316489406 316489406 IGNITOR
316540700 316540700 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316543204 316543204 IGNITOR/ORIFICE ASS
316543203 316543203 IGNITOR/ORIFICE ASS
318929702 318929702 INSERT
318372007 318372007 INSULATION
318372015 318372015 INSULATION
316564508 316564508 KNOB
316433603 316433603 LABEL
318603810 318603810 LADDER
318603821 318603821 LADDER
318406100 318406100 LENS
318259676 318259676 LINER
318327038 318327038 LINER
316281401 316281401 MIXER ELBOW
316281300 316281300 MIXER ELBOW
316409705 316409705 MIXER ELBOW
318095967 318095967 MOTOR
316136600 316136600 NUT
316527511 316527511 ORIFICE
316527509 316527509 ORIFICE
316527504 316527504 ORIFICE
318290555 318290555 PANEL
318290505 318290505 PANEL
318289401 318289401 PANEL
318405404 318405404 PANEL
318407100 318407100 PANEL
318314111 318314111 PANEL
318573506 318573506 PANEL
318583604 318583604 PANEL
318299882 318299882 PANEL BODY SIDE BLCK
316099500 316099500 PIN
316281600 316281600 PIPE
5303320846 5303320846 PLATE
318938700 318938700 PLATE
318601909 318601909 RACK
318926805 318926805 RACK
318561101 318561101 RECEPTACLE
316470716 316470716 REGULATOR
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5304456367 5304456367 RIVET
318250207 318250207 ROD
5303308456 5303308456 SCREW
5303300265 5303300265 SCREW
5304453593 5304453593 SCREW
5304453223 5304453223 SCREW
5304436875 5304436875 SCREW
5304461333 5304461333 SCREW
5304401490 5304401490 SCREW
5303323129 5303323129 SCREW
5304415832 5304415832 SCREW
316215600 316215600 SCREW
5303323277 5303323277 SCREW
5303300195 5303300195 SCREW
5303211311 5303211311 SCREW
5304454881 5304454881 SCREW
316240600 316240600 SCREW,HEX WASH,6-32 X .485
318053154 318053154 SEAL
318053152 318053152 SEAL
318562500 318562500 SENSOR
318571500 318571500 SHIELD
318534925 318534925 SHIELD
318264720 318264720 SPACER
318165800 318165800 SPACER
318264721 318264721 SPACER
316114100 316114100 SPACER
318293702 318293702 SPACER
316517600 316517600 SPACER
5303311164 5303311164 SPRING
318192400 318192400 SPRING
316445501 316445501 SWITCH
318566021 318566021 TIMER ASSEMBLY
316536100 316536100 TRANSFORMER
318304210 318304210 TRIM
318562703 318562703 TRIM
318301432 318301432 TRIM
318260227 318260227 TRIM
318301422 318301422 TRIM
318355012 318355012 TRIM
316416200 316416200 TRIM
318566201 318566201 TRIM
318249409 318249409 TUBE
316281200 316281200 TUBE
316259900 316259900 TUBE
316527200 316527200 TUBE
316449200 316449200 TUBE
316527100 316527100 TUBE
5303935259 5303935259 VALVE
316256700 316256700 VALVE
318234025 318234025 VALVE
318234024 318234024 VALVE
318234022 318234022 VALVE
318234021 318234021 VALVE
316259600 316259600 VALVE
318087450 318087450 VALVE
5304436864 5304436864 WASHER
318232661 318232661 WIRING HARNESS
318199790 318199790 WIRING HARNESS
